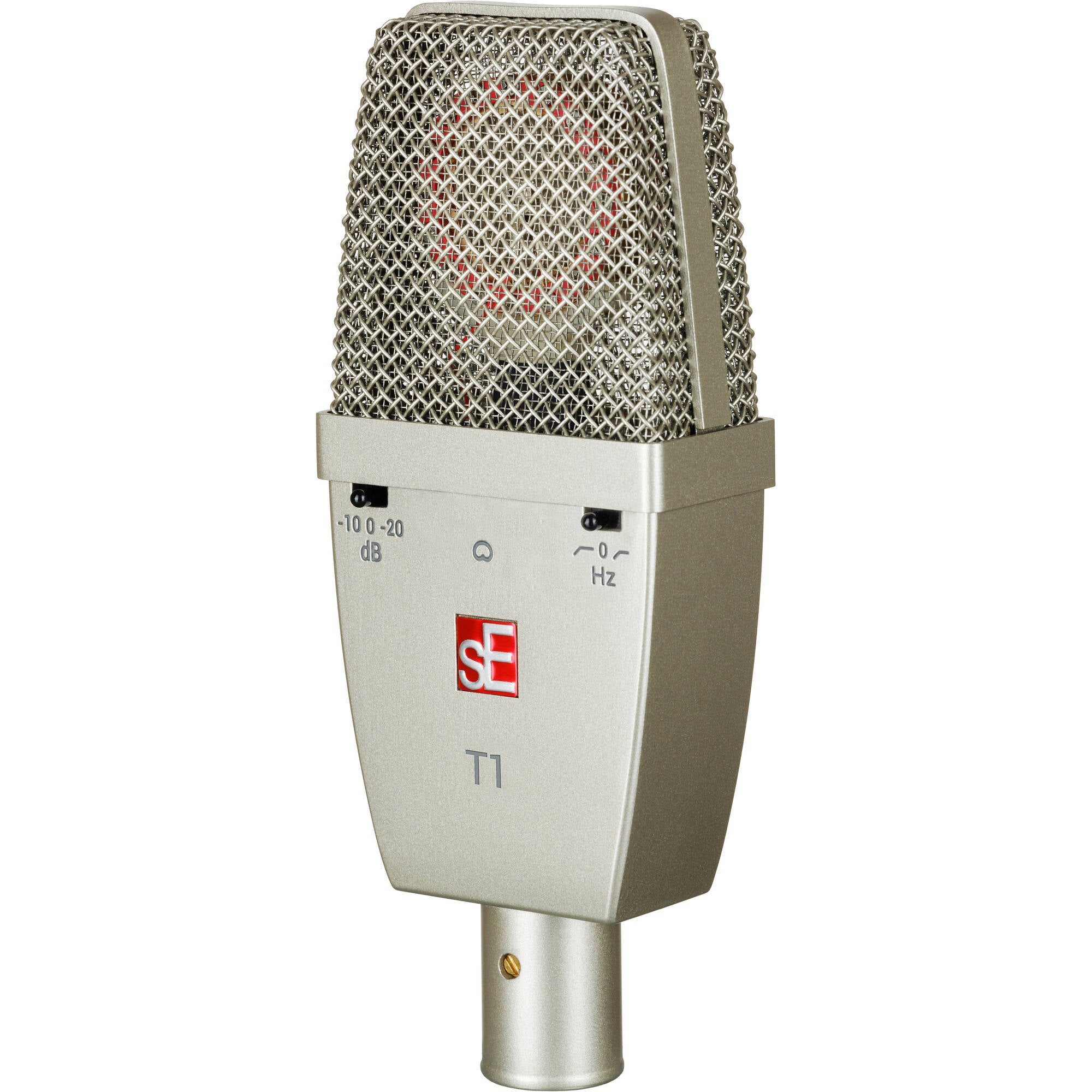

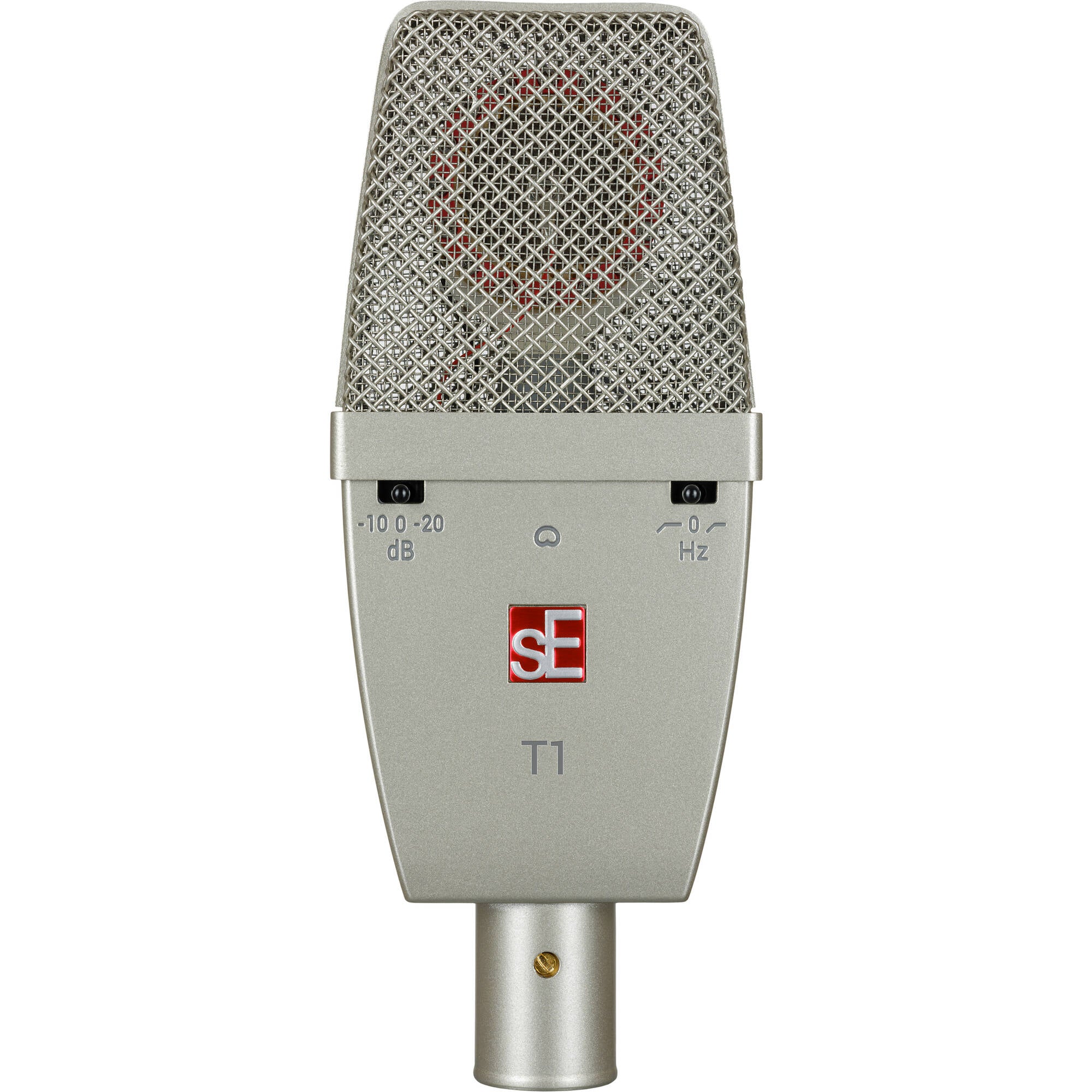

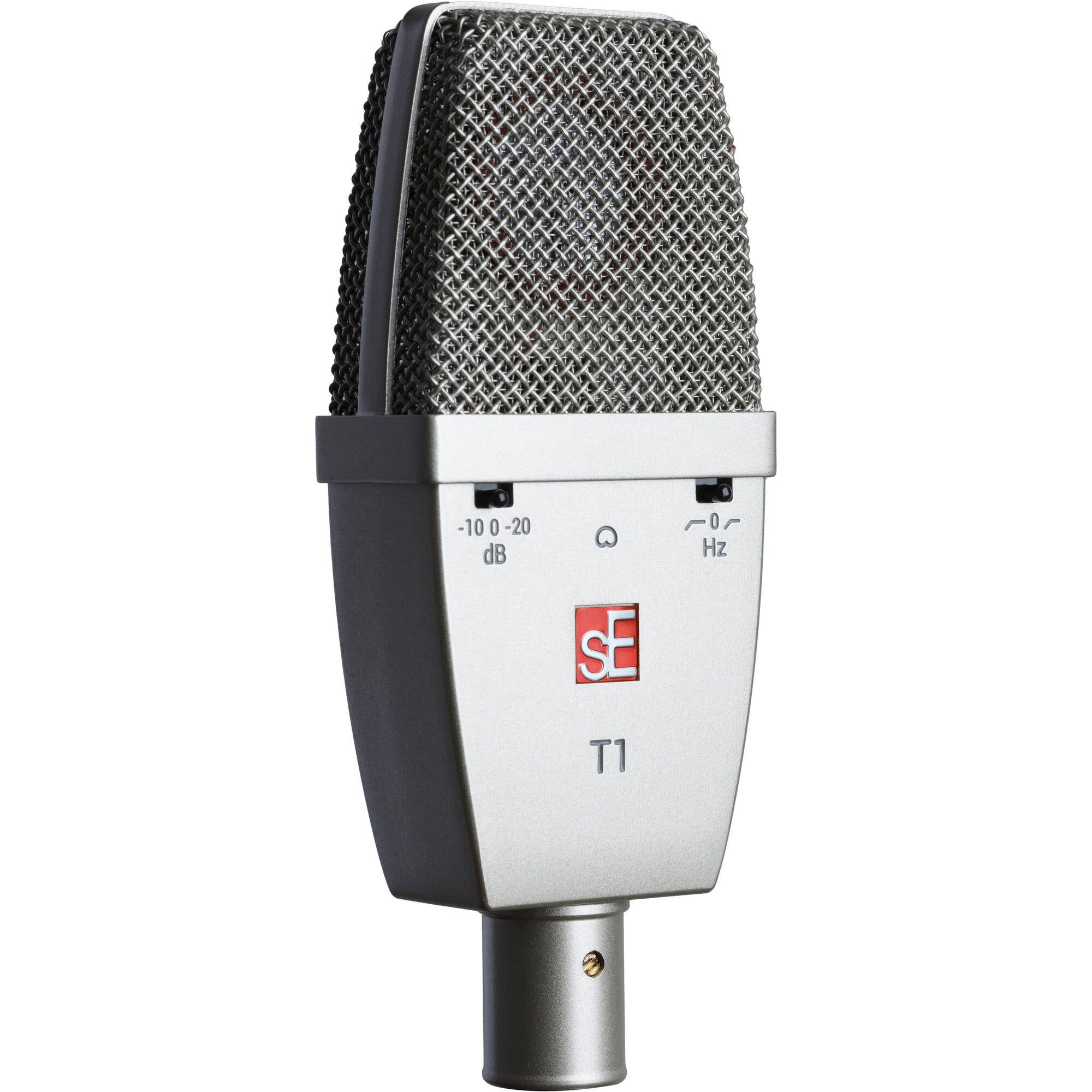

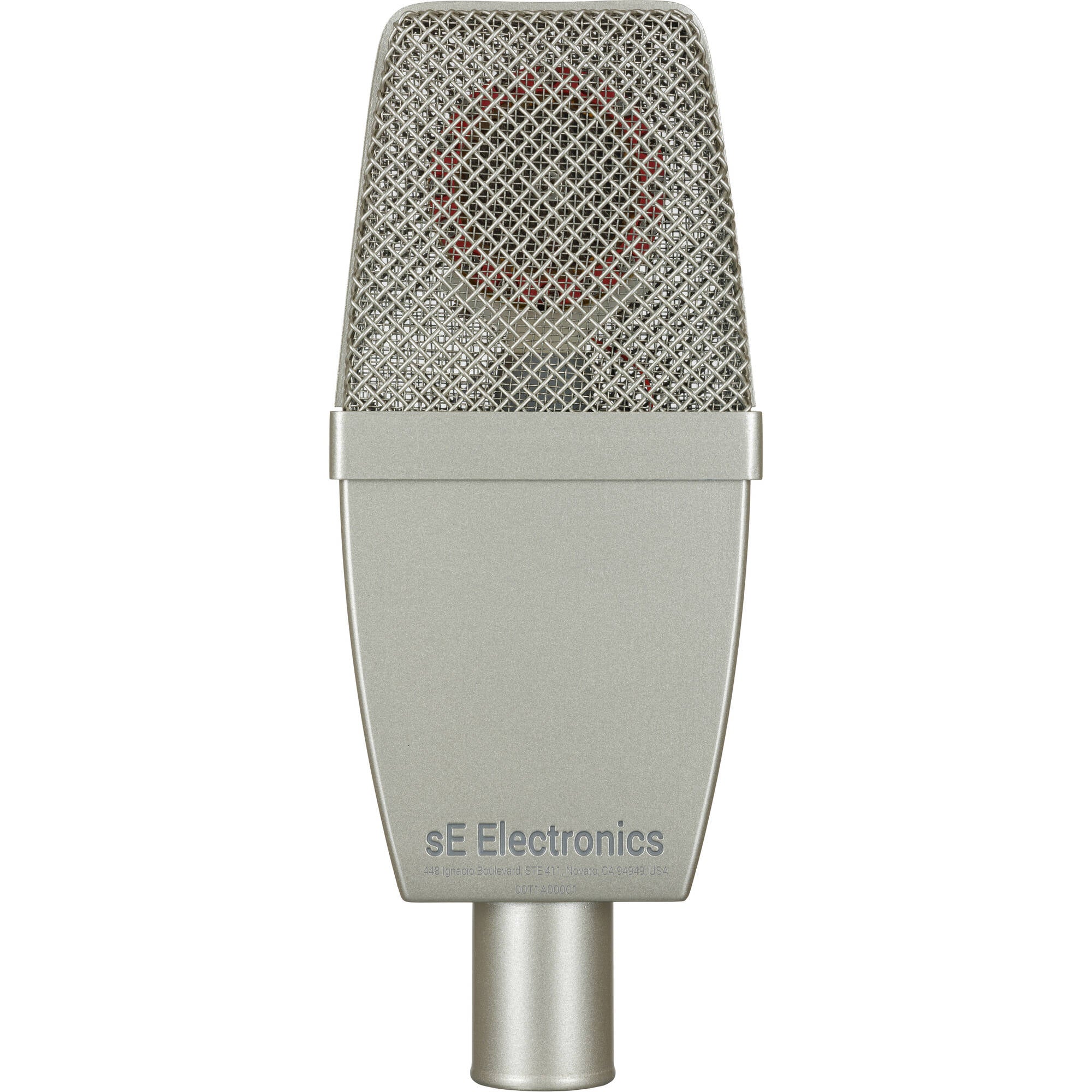

sE Electronics T1 Large-Diaphragm Condenser Microphone

Large-diaphragm Condenser Mic with Cardioid Polar Pattern, Twin 1" Titanium-sputtered Brass Capsule, 80Hz/160Hz Low-cut Filters, and -10dB-/20dB Pads

Titanium Makes The Difference

Meet the T1, the latest addition to our renowned range of large-diaphragm true-condenser microphones. This cardioid-only version of the multi-pattern T2 comes with the same sleek design, ultra-fast transient response and warm, smooth sound, making it an ideal choice for a wide variety of applications such as piano, percussion instruments and bass cabinets.

Recommended Use

Drums, percussion, overheads, hi-hats, orchestral + strings, piano, bass guitar cab, acoustic guitar, electric guitar cab, vocals, woodwinds, brass

Features

• The little brother to the renowned T2

• The very same hand-crafted twin 1" titanium-sputtered brass capsule as the T2

• Titanium-sputtered true condenser cardioid capsule

• Accurate definition and fast transient response

• Built roadworthy with all-metal housing

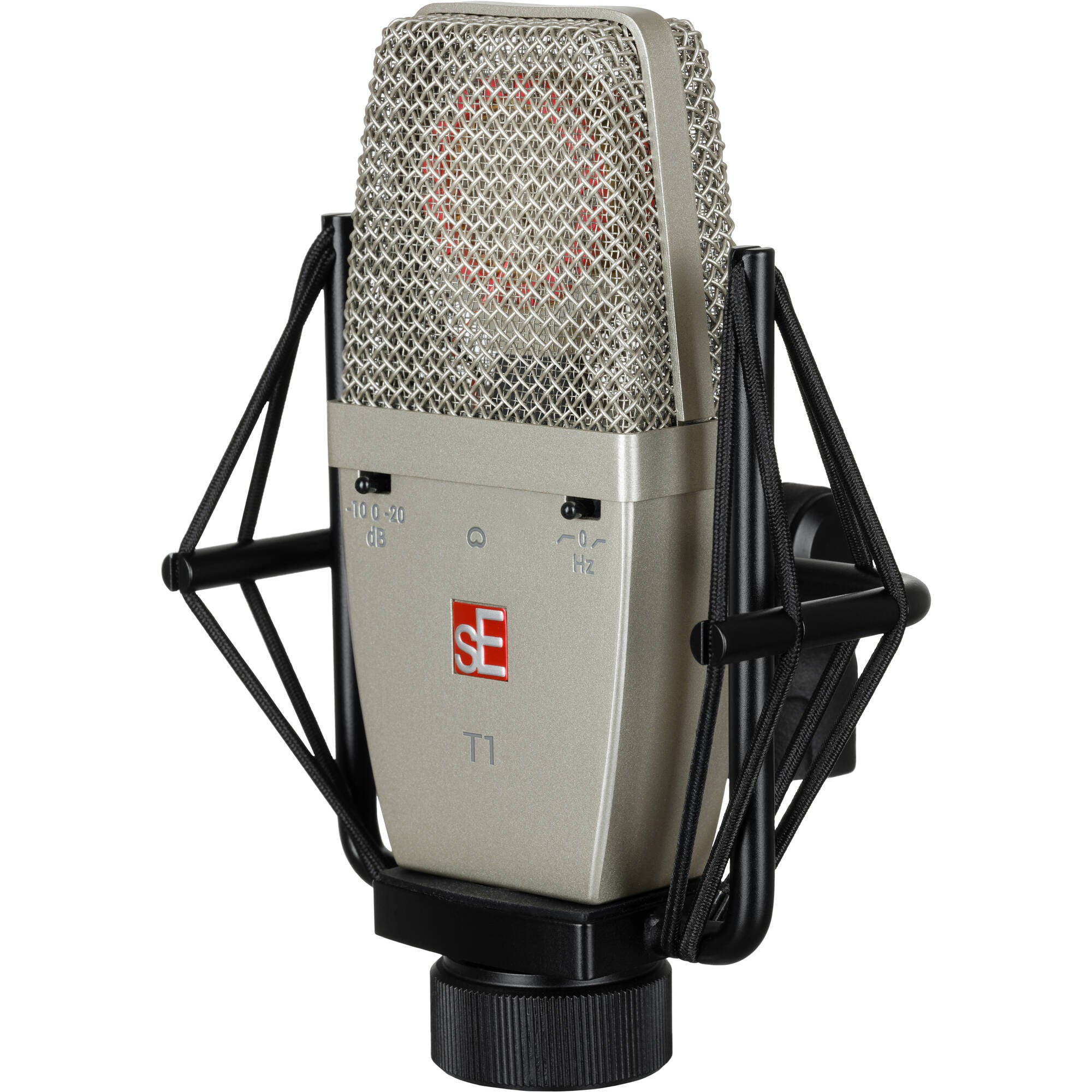

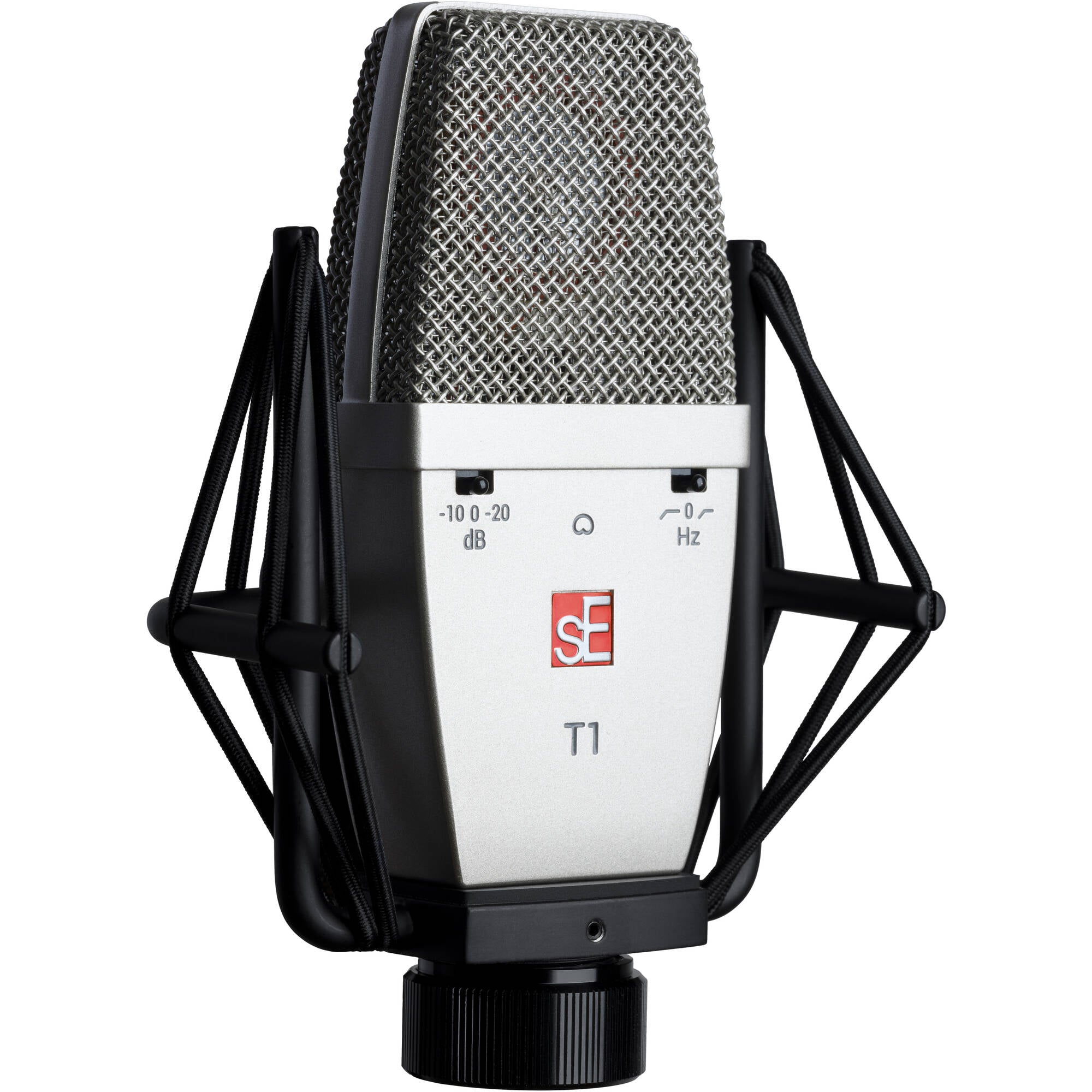

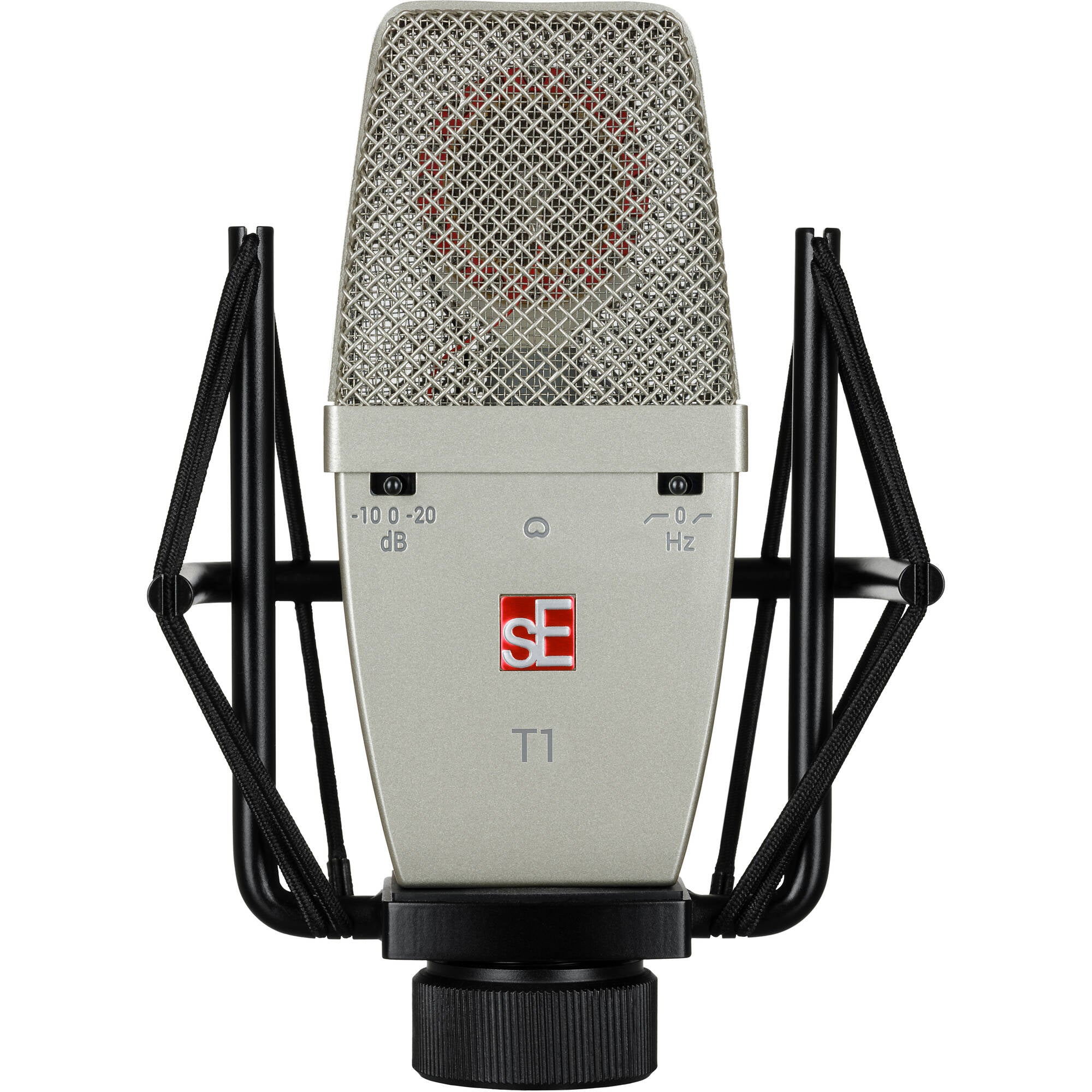

• Innovative close-miking shockmount

• 80 / 160 Hz low-cut filters and -10 / -20 dB pads

• Available in a matched-pair configuration


Specifications

• Components

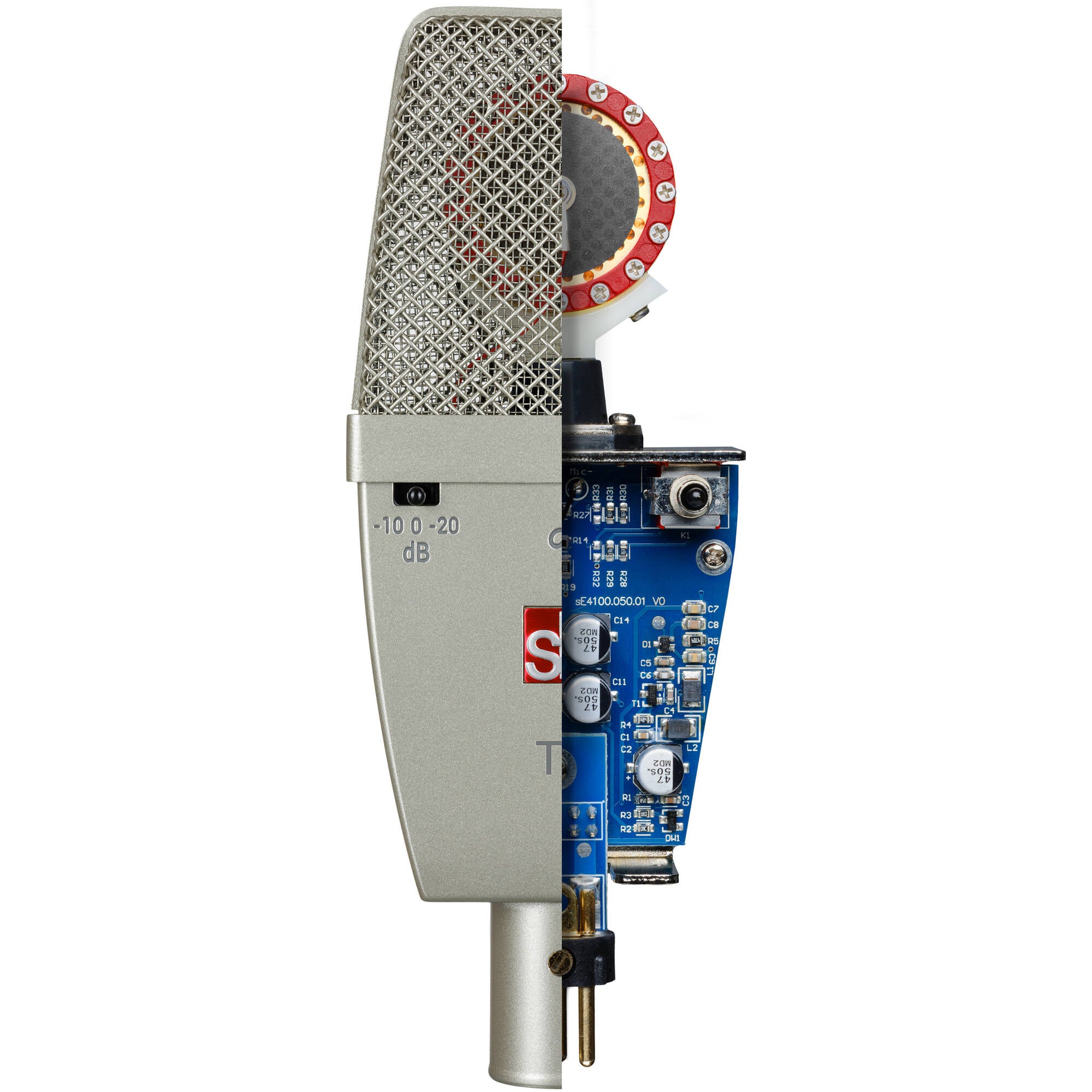

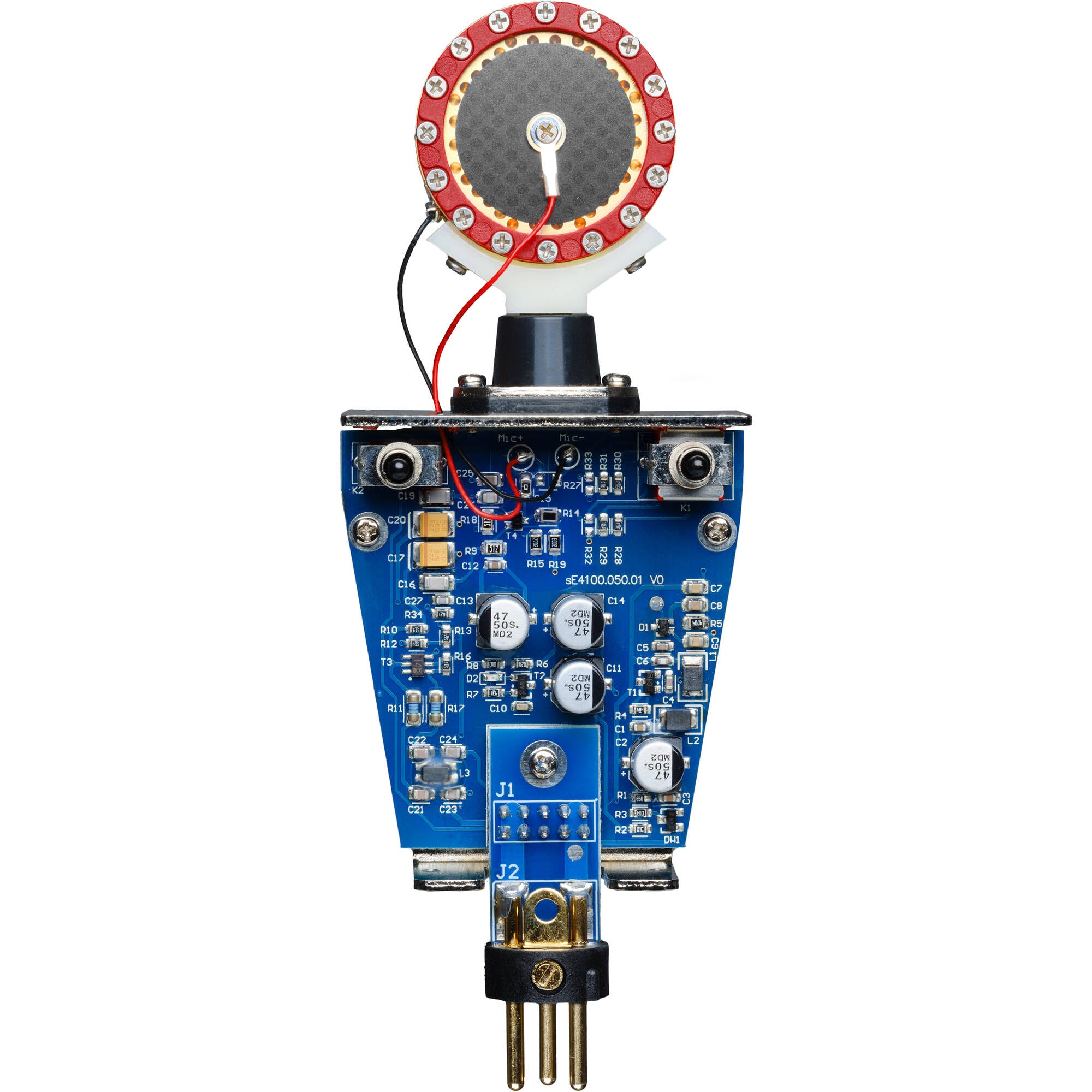

• Capsule: Hand-crafted 1" titanium-sputtered true condenser

• Diaphragm: Titanium-sputtered mylar

• Power

• Electrical impedance: 125 Ohms

• Connectivity: 3-pin male XLR connector

• Powering: 48V Phantom power (P48 according to IEC 61938)

• Sound

• Polar pattern: Cardioid

• Frequency range: 20 Hz - 20 kHz

• Sensitivity: 25 mV / Pa (-32 dBV)

• Max SPL: 137 / 147 / 157 dB (0/10/20 dB Attenuation Pad - 0.5% THD)

• Equivalent noise level: 9 dB(A)

• Signal to noise ratio: 85 dB

• Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable

• Attenuation pad: 10 / 20 dB, switchable

• Dimensions

• Mic weight: 290 g (10.23 oz.)

• Mic length: 146 mm (5.75 in.)

• Mic width: 29 mm (1.10 in.)

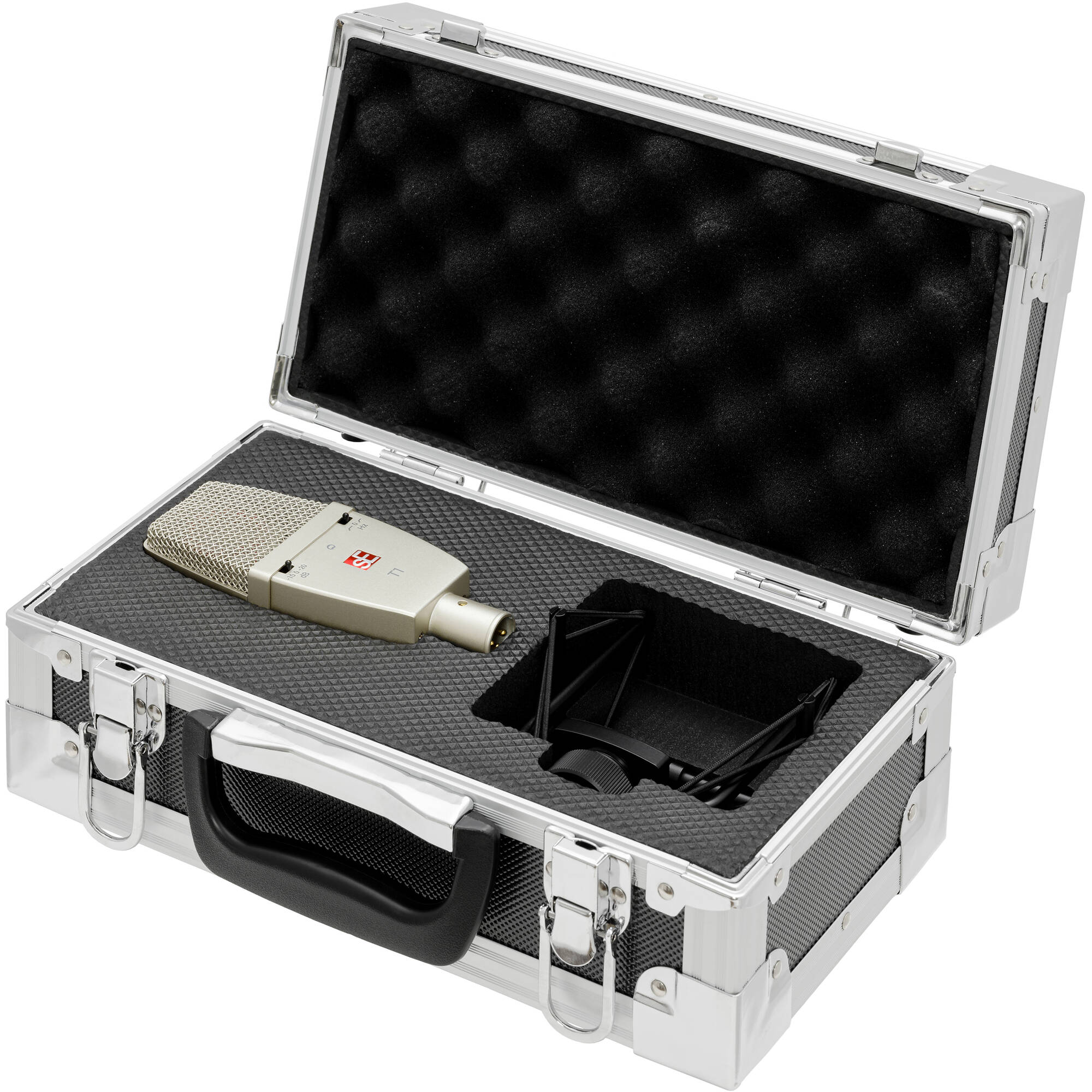

What's in the T1 box

• T1 microphone

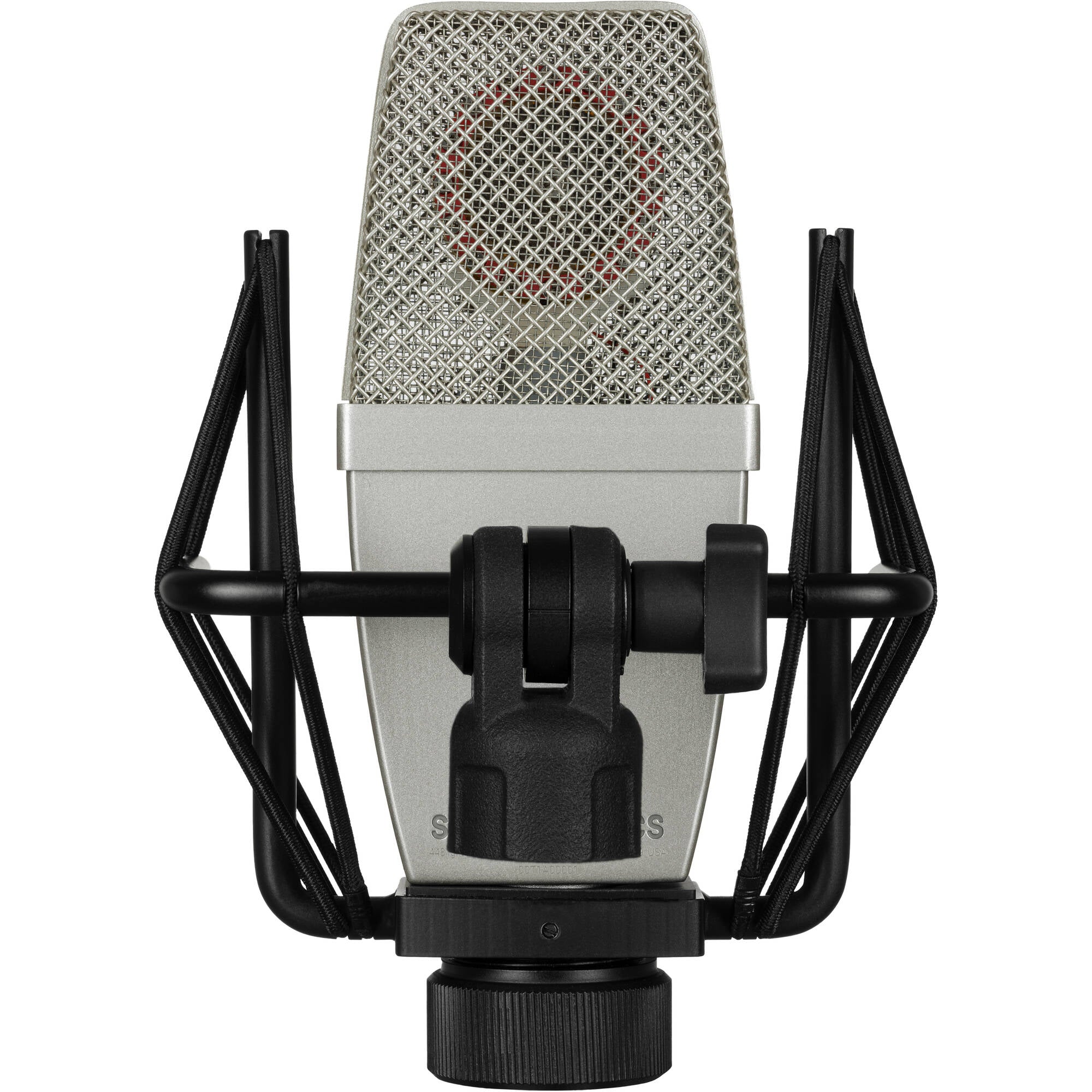

• Custom shockmount + thread adapter

• Metal case
