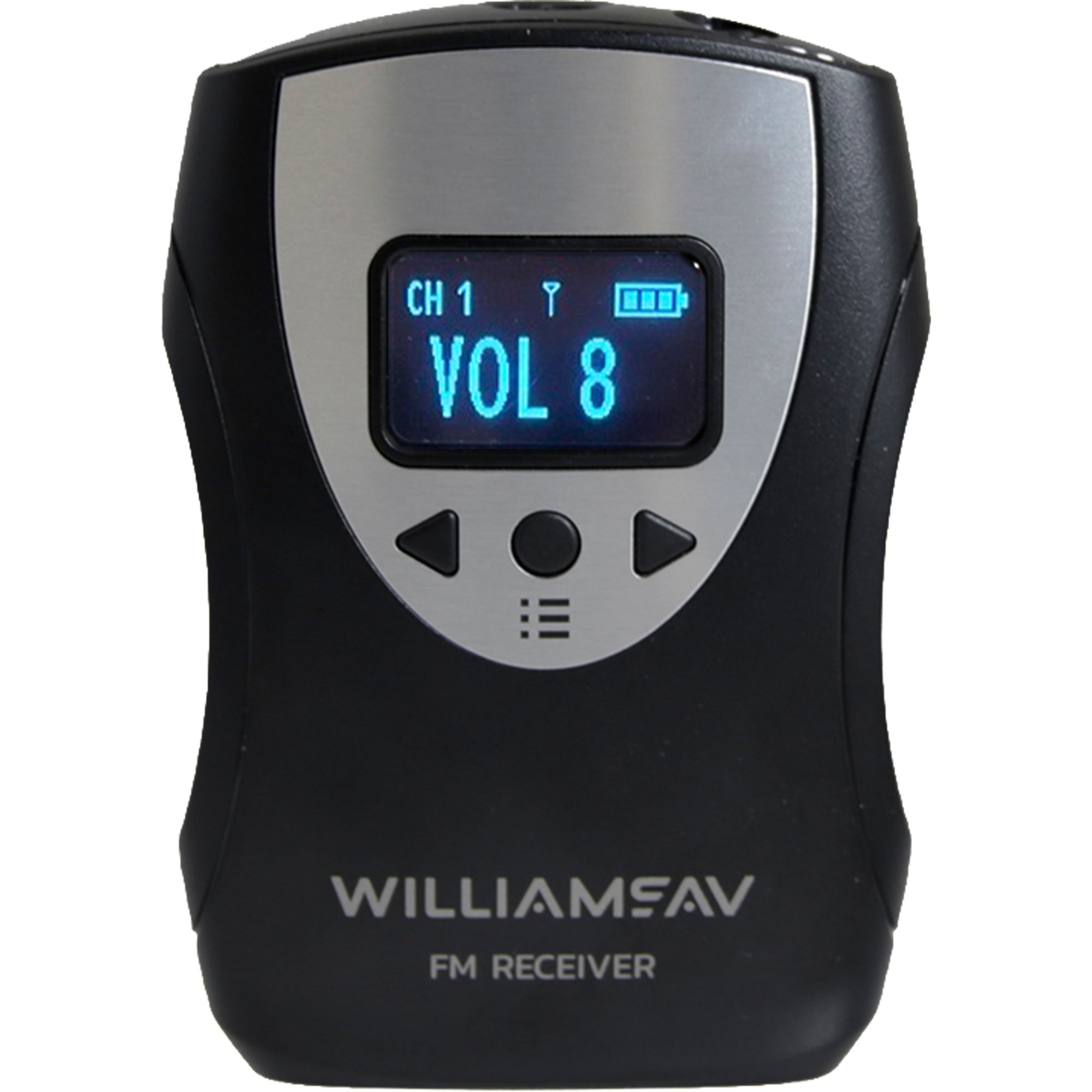

Williams AV PPA R38N FM Receiver

PPA SelectView FM Receiver

PPA SelectView (PPA R38N) FM Receiver. High-resolution OLED screen. Quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wideband frequencies (72-76 MHz). Digitally synthesized for exceptional audio clarity and stability. Digital tuning, digital squelch and battery-saving sleep mode. New stereo jack paired with the mono jack adds compatibility with variety of earphones/headphones. Rechargeable.

Features:

• OLED high-resolution screen - easy to read and provides a quick view of receiver status.
• All user settings are accessible via the on-screen menu - including all 17 wideband channels.
• Stylish new design
• Now features stereo headphone jack
• Rechargeable or non-rechargeable batteries
• Digital Volume Controls
• 4-step battery level indication
• Display shows channel or frequency
• Step/seek function allows user to increment channel manually, or seek to the next active channel
• Sleep Mode/Auto-Off saves battery power
• Soft Audio Turn-On

Specifications:

• Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
• Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
• Color: Black/Silver. Black ABS Plastic case with Aluminum faceplate.
• Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable
• Battery Life:
  (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
  (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
• Current Consumption: 52mA nominal
• Operating Temp. Range: 32Ω - 122ΩF (0Ω to 50ΩC)
• Channels: 17 Wideband, accessed via menu
• Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
• FM Deviation: 75 kHz
• De-Emphasis: 75 ΩS
• Display Screen: 1" OLED
• Power Indication: Power button, backlit green.
• Good battery strength - glows solid. Low battery - flashes.
• Sensitivity: 2 ΩV at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 Hz - 15 kHz, Ω3dB
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: Minimum 65 dB @ 1.0V
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max at 16 Ω
• Headphone Connector: 3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
• Supplied Earphone: Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 Ω
• Power Save Mode: Enters sleep mode after approximately 3 minutes of no RF signal
• Approvals: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.

Includes:

• (1) PPA R38N Receiver
• (1) CLP 015 Belt Clip
• Earphones/Headphones/Batteries sold separately.
• All items can be purchased separately.
