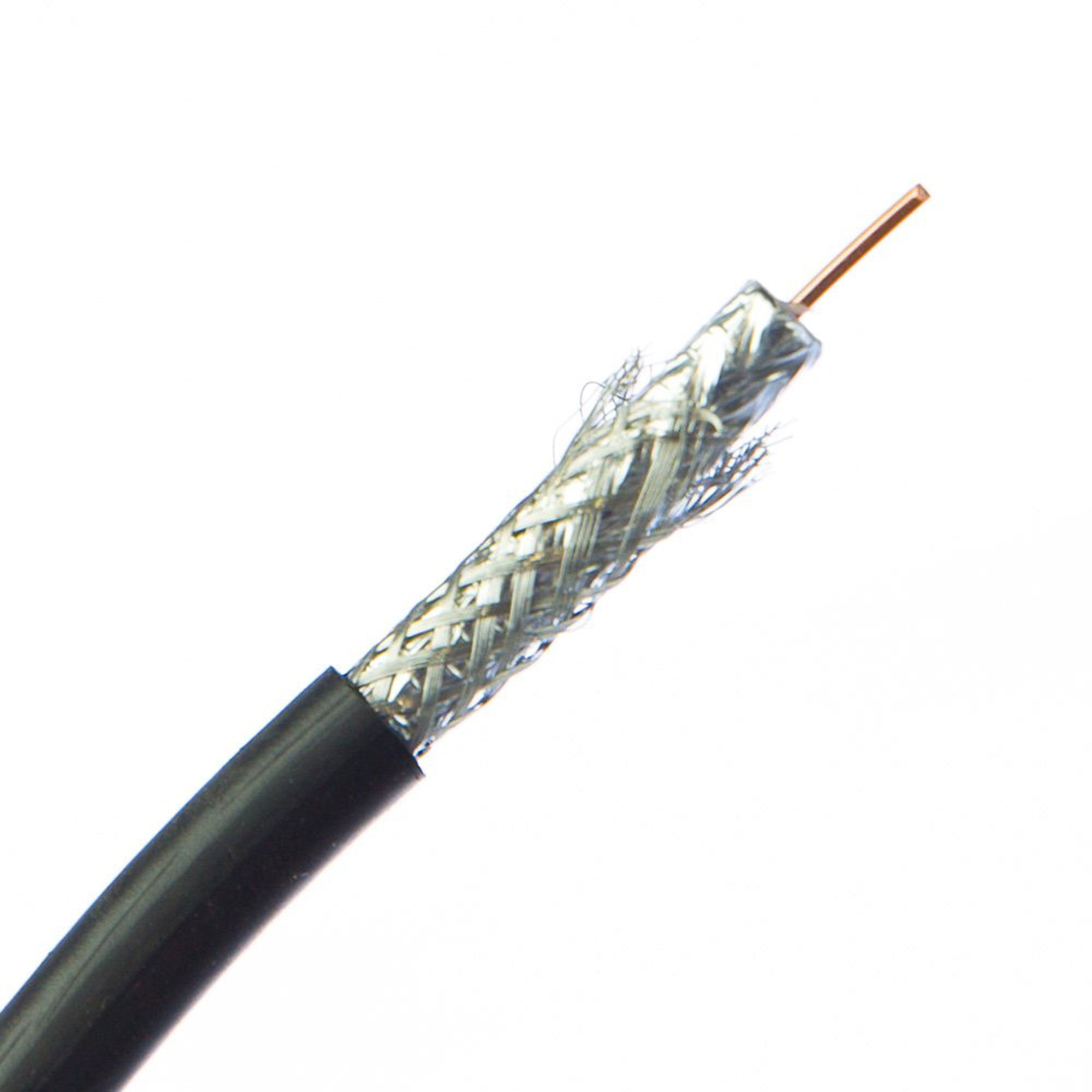

Whirlwind W1694A Bulk RG6 Coax Cable (By the Foot)

Bulk Coax Cable - RG-6/U, CM, 18 AWG, Foam Insulation (Sold by the Foot)

Our video cables offer a variety of sizes and flexibility with outstanding specs and low loss.

The video lines in the composite (WV) cables are RG-59 75 Ohms and the audio lines are 22ga., 7x30TC, 100% foil shield w/drain, nom cap 32pf/ft.

All video cables use cellular polyethylene dielectric and have PVC jackets.

Specifications:

• Model: W1694A RG-6
• No. of Conductors: 1 coax
• Center Conductor Stranding: 18 ga. BC (solid)
• Shield: 95% TC+ foil
• Capacitance (pF/ft): 16.2
• Vel of Prop: 83%
• Nom Attenuation @ 100MHz: 2.2 dB/100'
• Overall Diameter (inches): .275
• Weight per 100 ft (lbs.): 4.5
