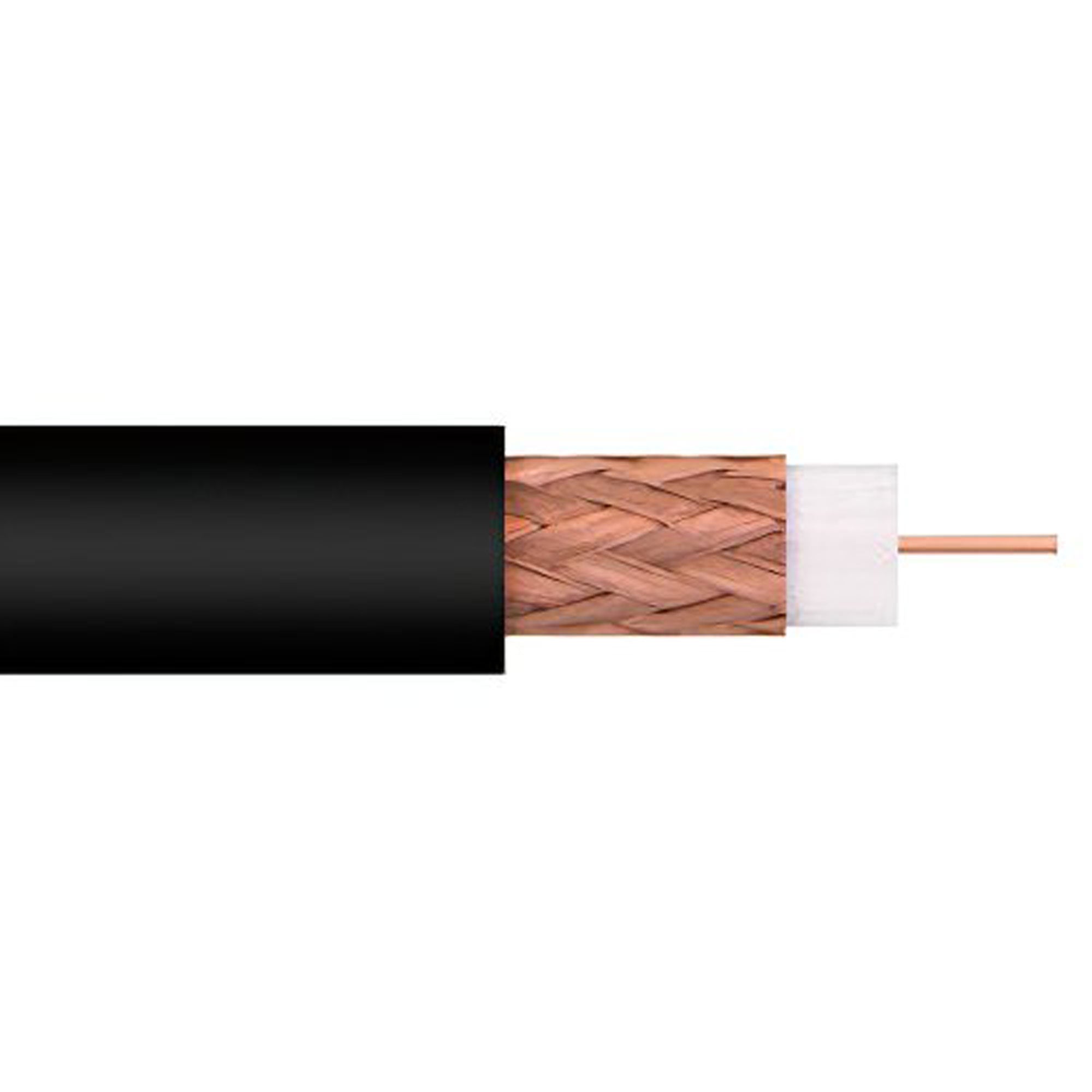

Whirlwind W1505 Bulk RG59 Coax Cable (By the Foot)

Bulk Coax Cable - RG-59/U, 20AWG, CMR Rated, Foam Insulation (Sold by the Foot)

Our video cables offer a variety of sizes and flexibility with outstanding specs and low loss.

The video lines in the composite (WV) cables are RG-59 75 Ohms and the audio lines are 22ga., 7x30TC, 100% foil shield w/drain, nom cap 32pf/ft.

All video cables use cellular polyethylene dielectric and have PVC jackets.

Specifications:

• Model: W1505A RG-59
• No. of Conductors: 1 coax
• Center Conductor Stranding: 20 ga. BC (solid)
• Shield: 95% TC+ foil
• Capacitance (pF/ft): 16.3
• Vel of Prop: 83%
• Nom Attenuation @ 100MHz: 2.7dB/100'
• Overall Diameter (inches): .235
• Weight per 100 ft (lbs.): 3.21
