Whirlwind pcDIhw Stereo Direct Box (Hardwired)

Direct Box - Dual with RCA, 1/4" Inputs, 1/8" Hardwired Input Tail, 3 Feet

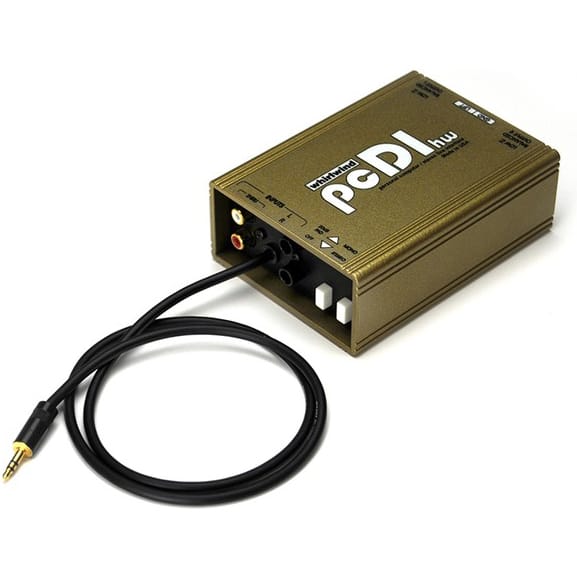

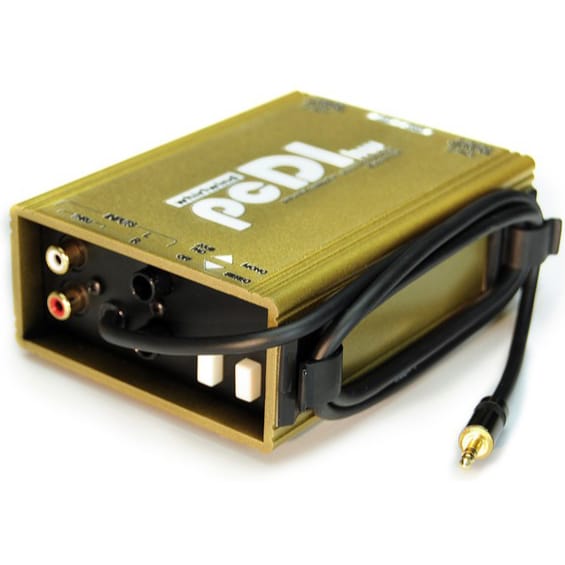

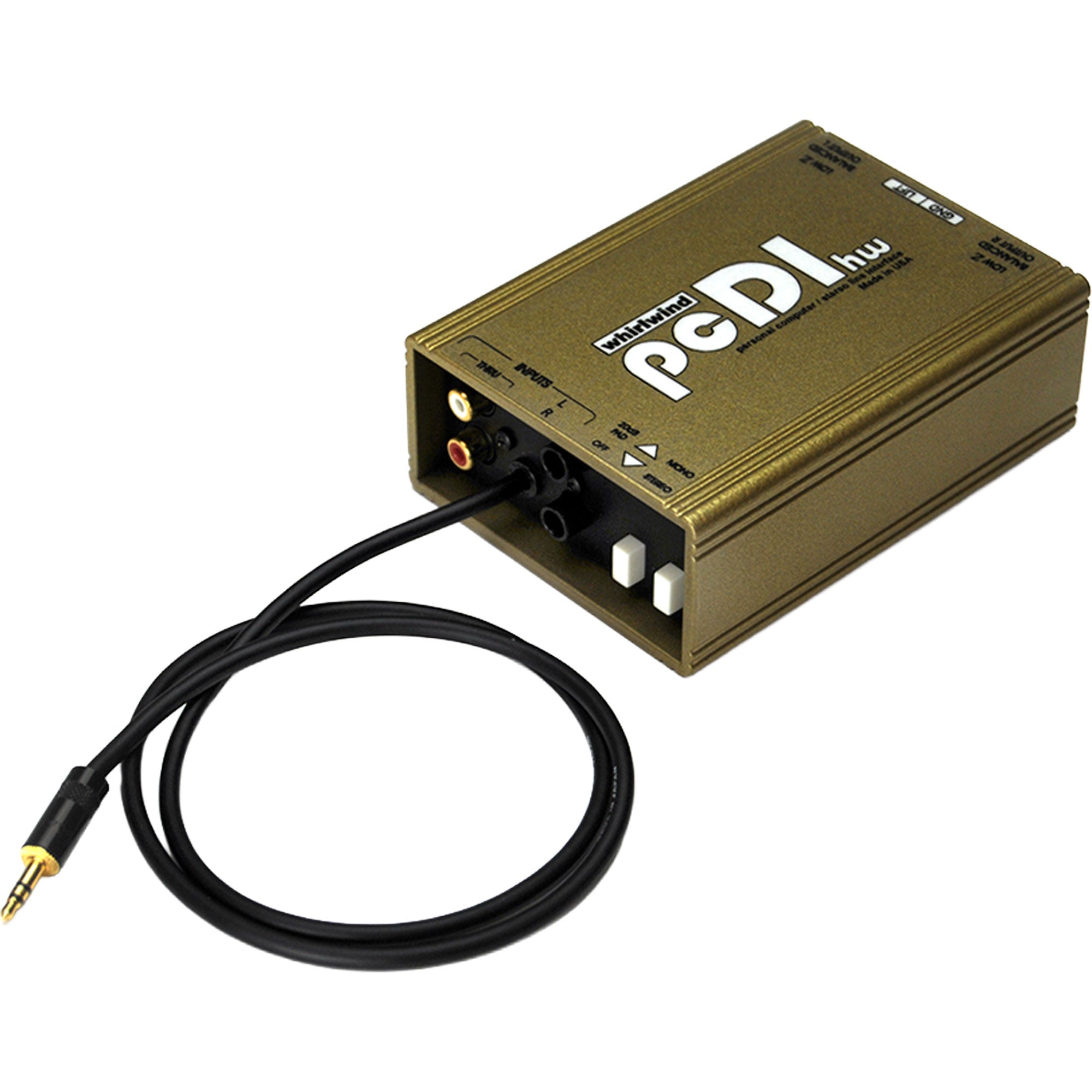

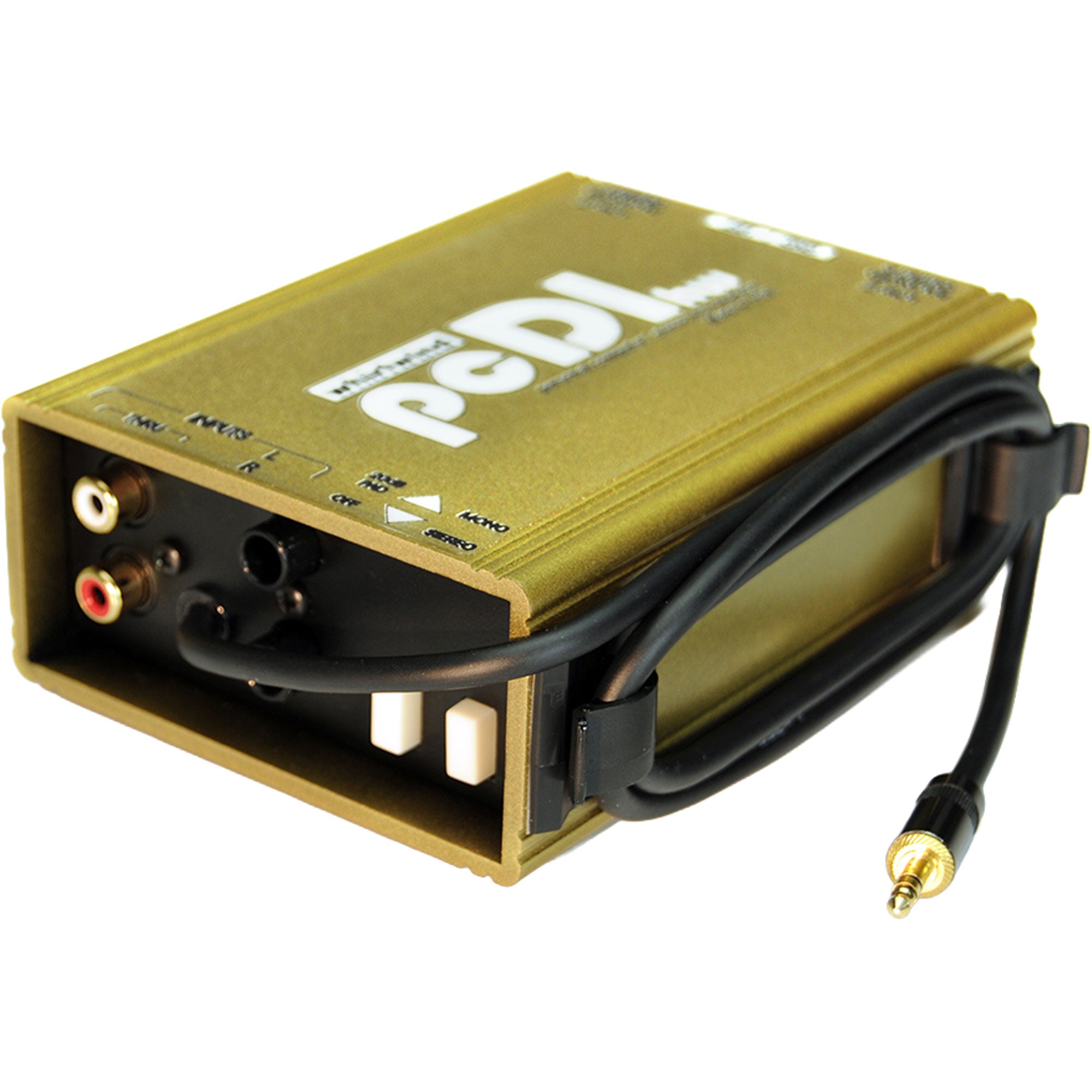

The Whirlwind pcDIhwb is a PCDI with a hard wired tail terminated with a stereo 3.5mm plug, perfect for interfacing the outputs of CD players, computer sound cards, iPODs / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment. (with no chance of losing the cable)

This unit contains two separate DIs - input your signals with one hard wired, 30 inch 3.5mm (1/8") mini TRS stereo plug, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.

Features:

• Color coded RCA phono in / through jacks
• 3.5 mm input plug on a 30" hard wired cable
• 1/4" TS input jacks

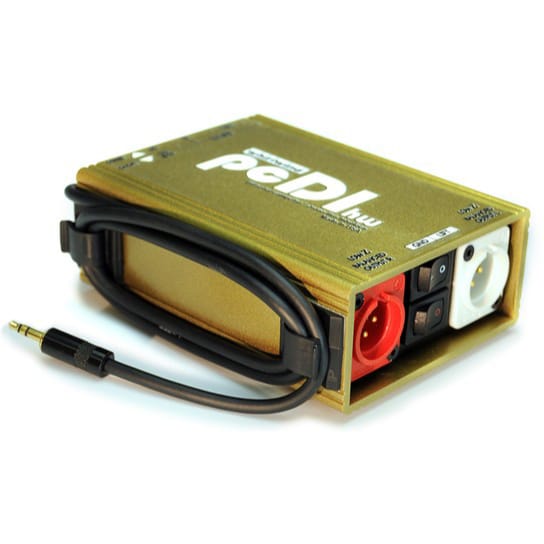

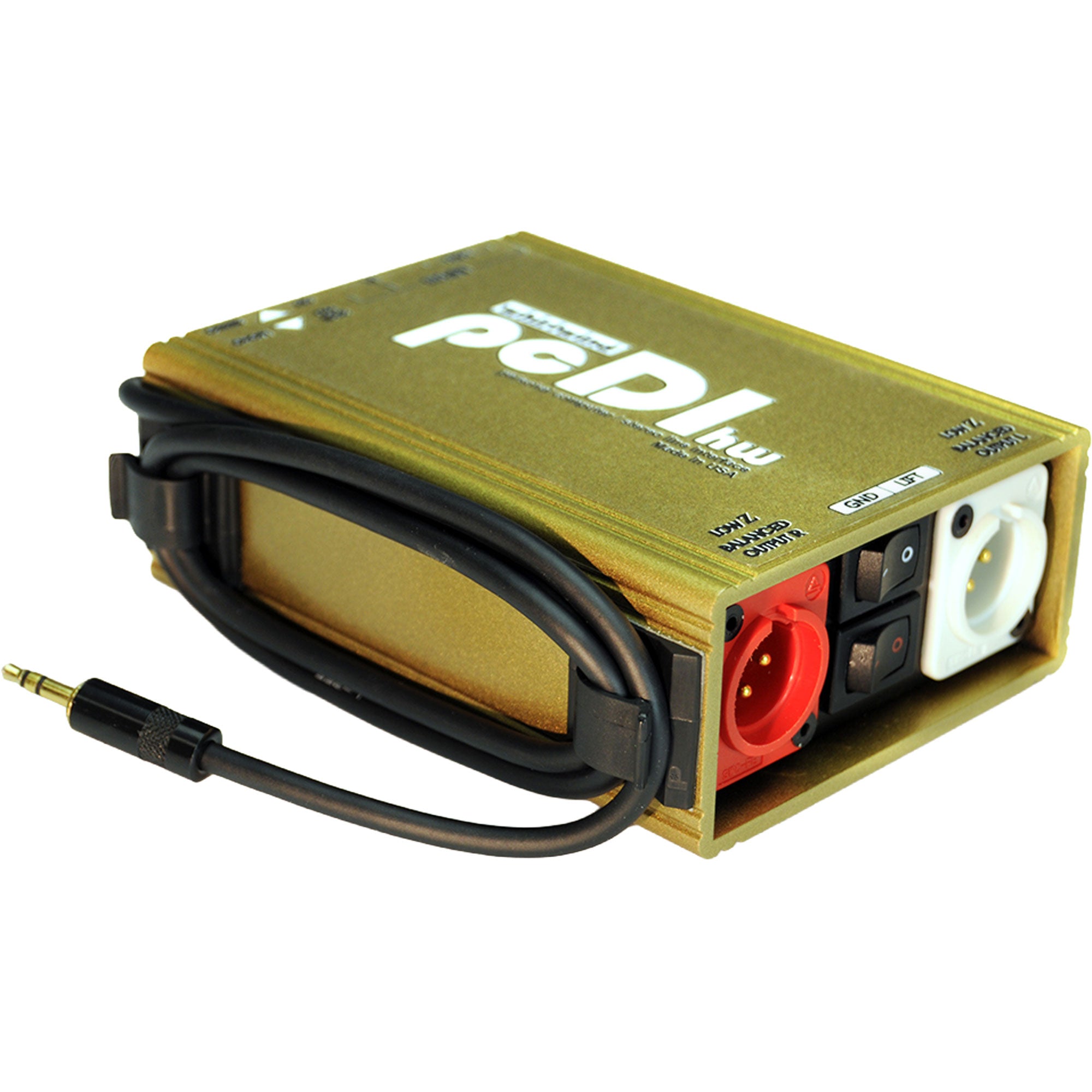

• Color coded XLR output jacks
• Ground Lift switch to help eliminate hum and buzz
• Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
• 20dB pad switch for connection to "hot" input signals
• Uses Whirlwind's TRHL-M transformers with metal shield

Specifications:

• Impedance Ratio (input to output, per channel): 133:1
• Frequency Response: 20Hz-20kHz ±1dB
• Level Change (input to output): -20dB (pad out), -40dB (pad in)
