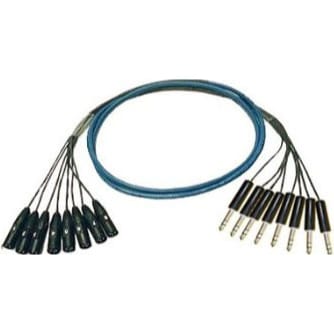

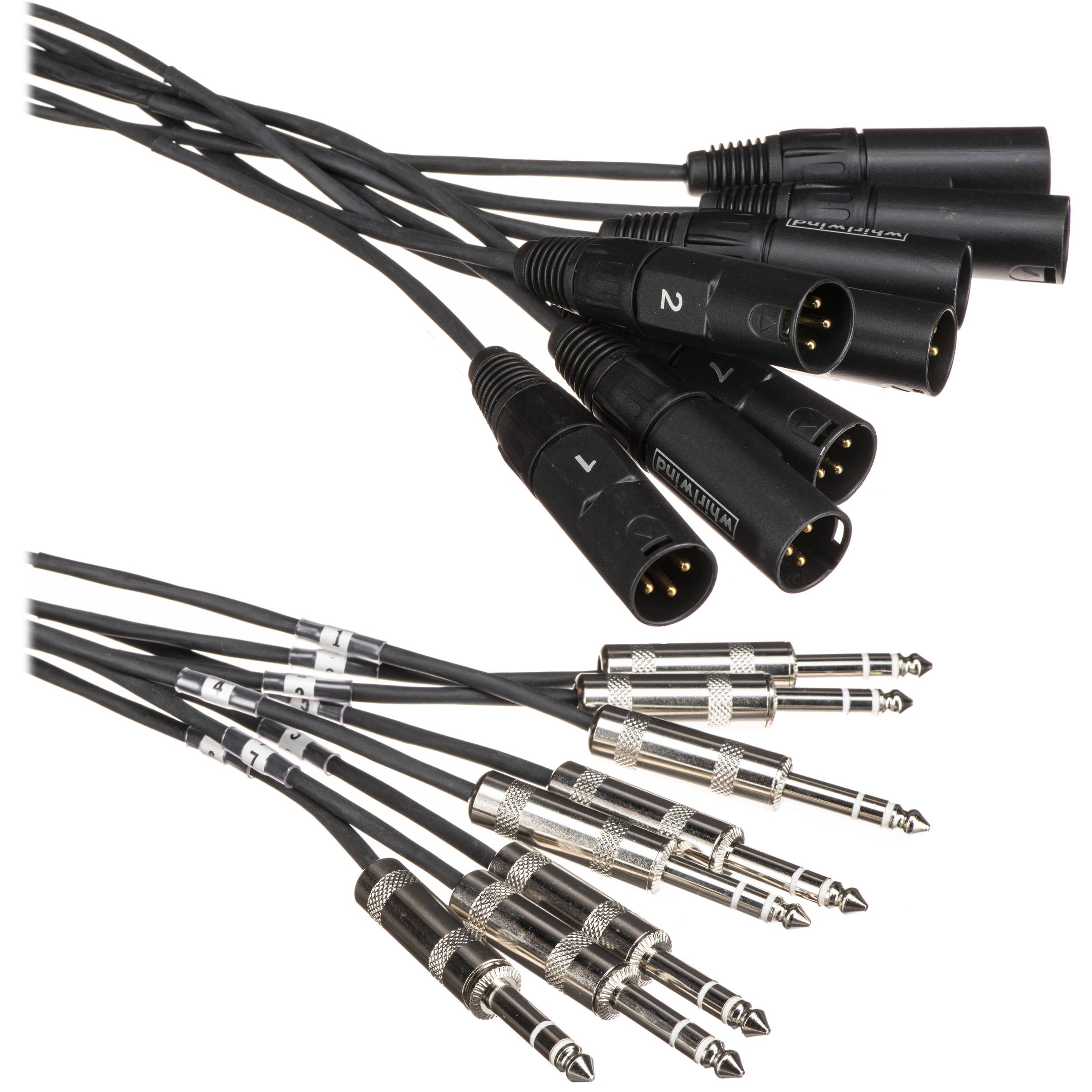

Whirlwind MT-12-M-S-50 Medusa Multitrack Audio Snake 12 XLRM to 12x 1/4" TRS Male (50')

Medusa Multitrack Audio Snake - Fan to Fan 12 XLRM to 12 x 1/4" TRS Male, 50 ft.

The Medusa Multitrack (MT) Series is designed to interface multitrack recorders or outboard equipment to mixing consoles.

Each Multitrack Medusa is constructed of Whirlwind multipair cable with a heat-shrunk fanout at each end, and is available with optional Snakeskin for an extra charge. An alternative construction uses individually jacketed (IJ) Canare wire with Snakeskin fanouts standard.

Choose from 8, 12, 16, 24 or 32 line configurations (other channel counts available special order) and Whirlwind XLRs, RCA Phono plugs or 1/4" TRS plugs.

Each fanout can be specified with distinct connector types and signal polarity. When the same type of connector is specified at each end, wiring is pin to pin. Wire mesh hanger grips can be ordered as an option.

Catalog Number:
MT 1 2 3 4 5 6
Example - MT32FM25SSH

Number of Channels (1)
8 - 8 channels
12 - 12 channels
16 - 16 channels
20 - 20 channels
24 - 24 channels
32 - 32 channels

Type of Connectors End A (2)
F - WI3F (XLR female)
M - WI3M (XLR male)
S - 1/4" TRS
TT - TT patch plugs
LF - long frame patch plugs
R - RCA plugs

Type of Connectors End B (3)
(Use table #2)

Cable Length in Feet (Meters) (4)
10 - 10' (3.05m)
25 - 25' (7.62m)
50 - 50' (15.25m)
XX - custom length

Snakeskin Option (5)
SS - Snakeskin on fanout (extra charge)
(Blank) - no snakeskin

Hanger Option 6
H - hanger grips at each end
(Blank) - no hanger grips

Standard Snakeskin Colors
Input Ch #: Std Color
1-8: black
9-16: white
17-24: blue
25-32: purple
33-40: yellow
41-48: green
49-56: orange
All Returns: red
