Key Features
- Twist-Lock
- 20A 125V AC
- Insulgrip Flanged Inlet
- 2-Pole 3-Wire Grounding
- NEMA L5-20P
- Screw Terminal
- Nylon Casing
- Back Wired
- White
Description

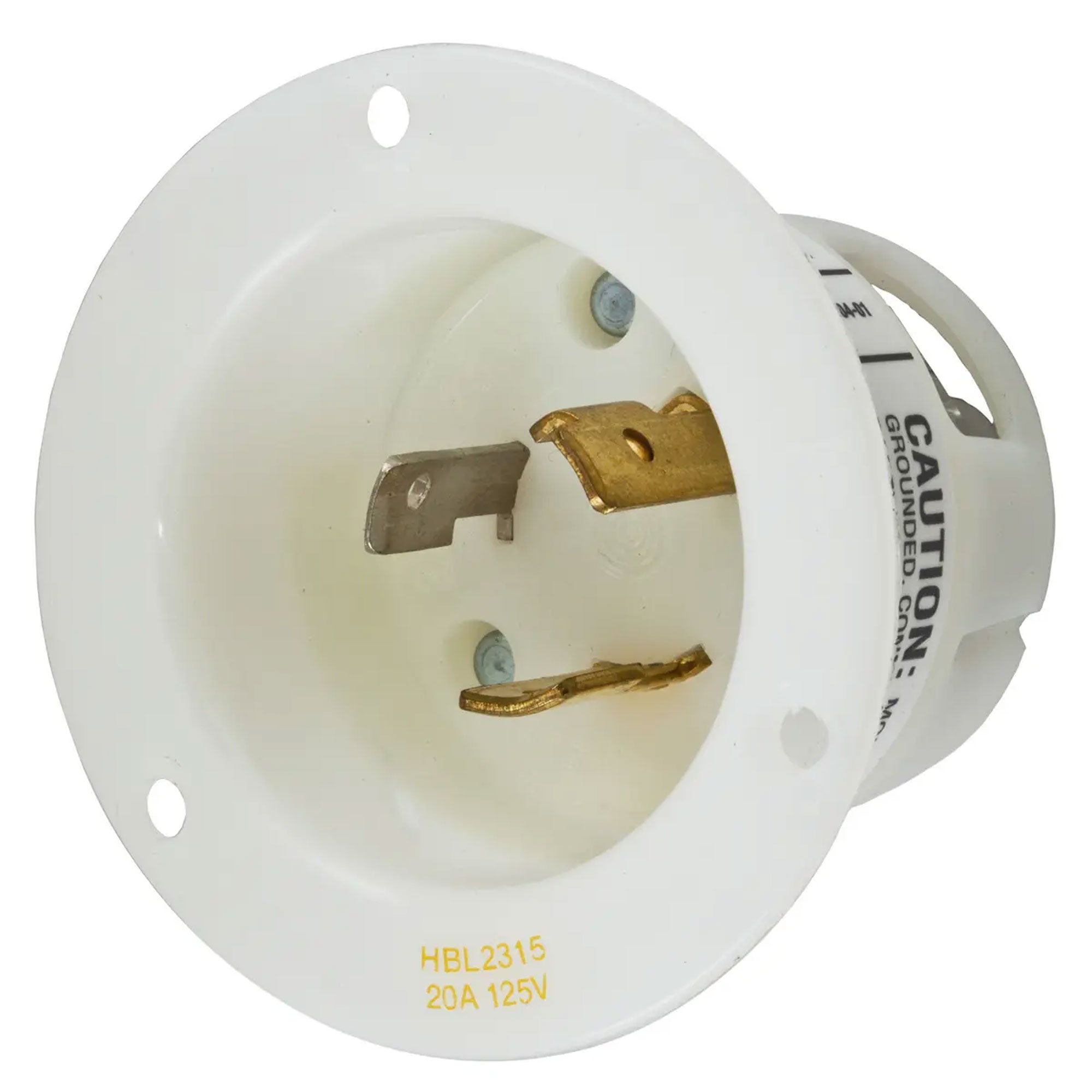

Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Inlet, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Nylon casing, Back wired, White
Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Inlet, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Nylon casing, Back wired, White. Impact resistant thermoplastic construction. Backwired terminations for ease of installation. #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson). Mounting screws included.
Features:
- HB or better as per UL94/CSA 22.2 No.0.17 Flammability test
- IP20 Moisture resistance rating
- -40 to 75°C Operating temperature range
- Impact-resistant thermoplastic construction
- Back wired terminations for ease of installation
- Mounting screws included
- Product family: Hubbell
- Type: Chassis
Specifications:
- General
- Cord Range: 0.360"-0.930" (9-24)
- Insulation: Insulated Body
- Item Type: 20A Insulgrip Flanged Inlet
- Number Of Poles: 2-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 - Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Type: Flanged Inlet
- UPC: 783585037783
- Dimensions
- Dimensions: 2.88 in x 2.88 in x 2.09 in
- Display Size: Standard Sized Product
- Height: 2.09 in
- Length: 2.88 in
- Weight: 0.20 lb
- Width: 2.88 in
- Electrical Ratings
- Amperage Rating: 20 A
- Connectivity: Screw Terminals
- Current / Amperage Rating: 20 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 125 VAC
- Voltage Rating Description: 125 VAC
- Conductor Related
- Number Of Wires: 3-Wire
- Wire Size: #16 AWG to #8 AWG
- Certifications and Compliance
- Nema Rating: L5-20P
- Logistics
- Carton Quantity: 10
Details
- Manufacturer: Whirlwind
- MPN: HBL2315
- Model Number: HBL2315
- UPC: 783585037783
