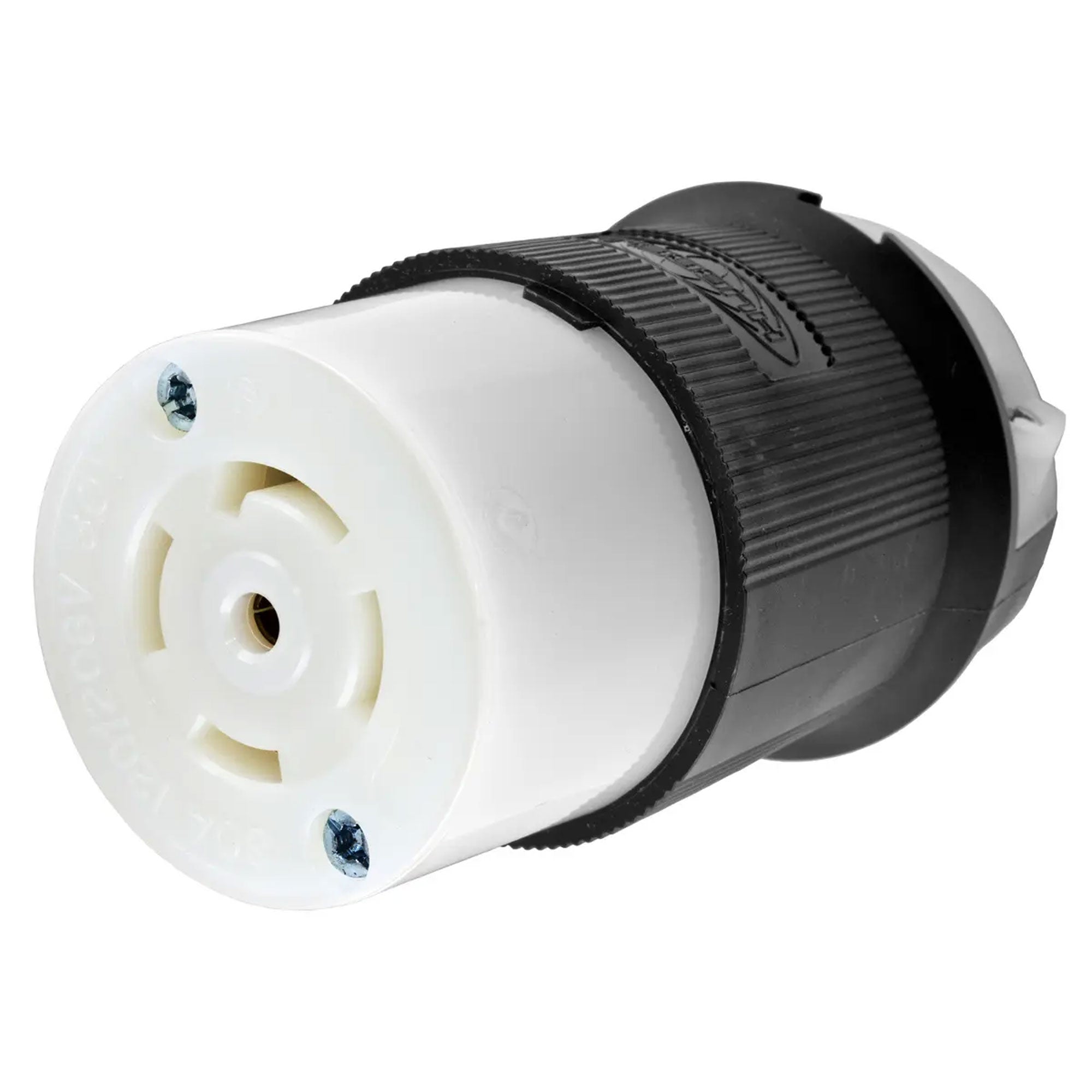

Whirlwind Hubbell HBL2813 Twist-Lock Nema L21-30R Female AC Electrical Power Connector

Twist-Lock Insulgrip 30A 208V L21-30R Plug, Black and White

Locking Devices, Twist-Lock, Insulgrip Connector, 30A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-30R, Black and white nylon

Features:

• UL 498 listed
• HB or better per UL94 or CSA 22.2 No. 0.6 Flammability test
• IP30 Moisture resistance
• -40 to 75°C Operating temperature range
• Ribbed nylon housing provides a secure grip and impact and chemical resistance
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
• Product family: Hubbell
• Type: Inline

Specifications:

• General
• Application: Heavy Duty Industrial
• Color: Black, White
• Cord Range: 0.350"-1.150" (9-29)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: 30A Insulgrip Connector
• Listings:
• UL 498
• Fed.Spec. W-C-596
• CSA C22.2 No.42
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance:
  Electrical-Current Interrupting - Certified at full rated current
  Electrical - Dielectric Voltage - 2,000V minimum
  Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6
  Environmental - Operating Temperatures - Maximum Continuous 75°C
• Minimum -40°C (w/o impact)
• UPC: 783585039657
• Dimensions
• Dimensions: 2.33 in x 2.33 in x 3.86 in
• Display Size: Standard
• Height: 3.86 in
• Length: 2.33 in
• Weight: 0.40 lb
• Width: 2.33 in
• Electrical Ratings
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 120/208 VAC
• Voltage Rating Description: 120/208 VAC
• Conductor Related
• Number Of Wires: 5-Wire Grounding
• Wire Size: #16 AWG to #8 AWG
• Certifications and Compliance
• Industry Standard(s):
  Fed.Spec. W-C-596
  Listed to UL 498
  Certified to CSA, C22.2, No. 42
• Nema Rating: L21-30R
• Logistics
• Carton Quantity: 30
