Description

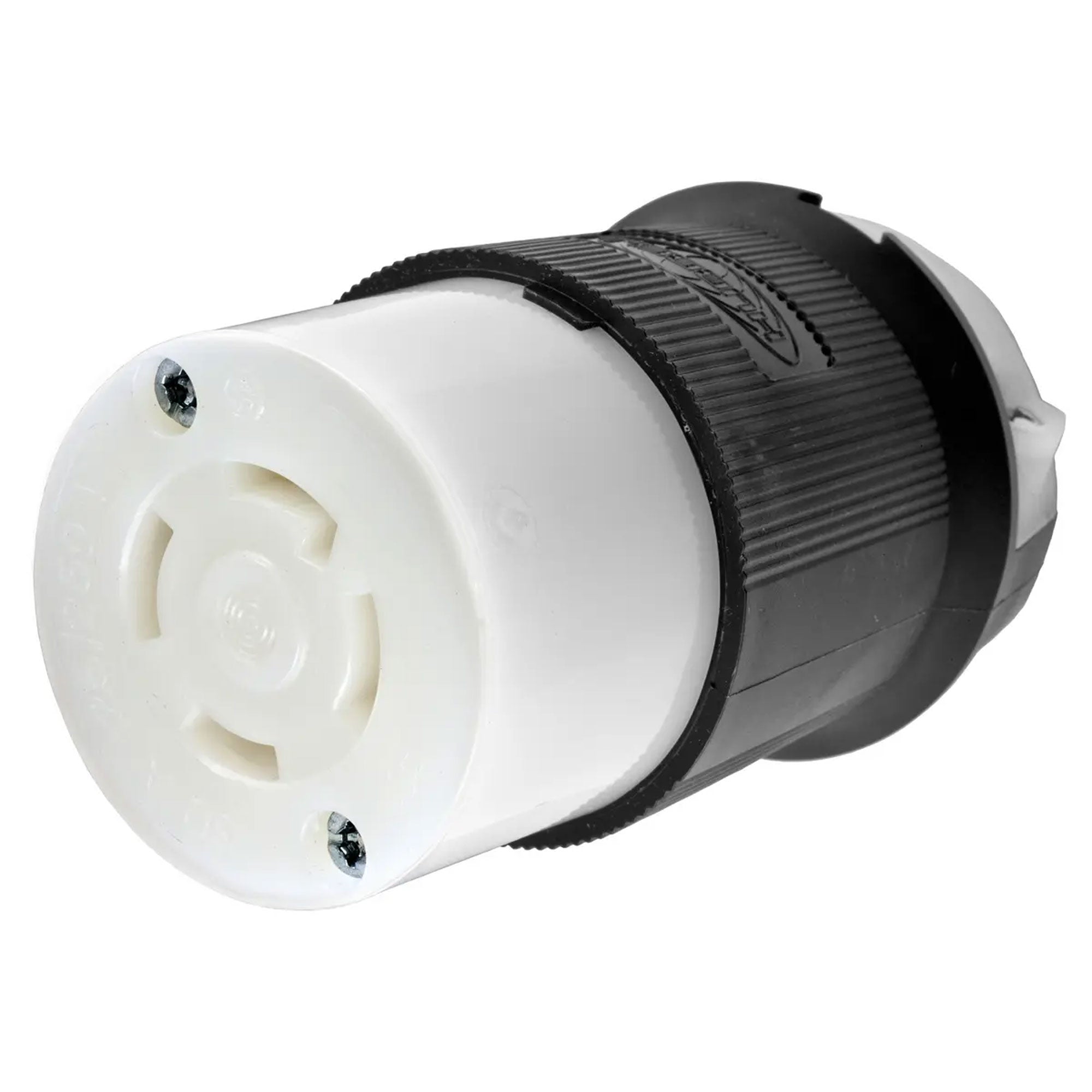

Twist-Lock Insulgrip 30A 250V 3P4W Plug, Black and White
Locking Devices, Twist-Lock, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black and White.
Specifications:
- General
- Application: Heavy Duty Industrial
- Color: Black, White
- Cord Range: 0.350"-1.150" (9-29)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Insulation: Insulated Body
- Item Type: 30A Grounding Insulgrip Connector
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 3-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
- Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 - Type: Connector Body
- UPC: 783585039176
- Dimensions
- Dimensions: 2.33 in x 2.33 in x 3.86 in
- Display Size: Standard
- Height: 3.86 in
- Length: 2.33 in
- Weight: 0.35 lb
- Width: 2.33 in
- Electrical Ratings
- Amperage Rating: 30 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 30 A
- Current Rating: 30 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 125/250 VAC
- Voltage Rating Description: 125/250 VAC
- Conductor Related
- Cable Range: 0.350 - 1.150 in
- Number Of Wires: 4-Wire
- Wire Size: #16 AWG to #8 AWG
- Certifications and Compliance
- Industry Standard(s):
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L14-30R
- Logistics
- Carton Quantity: 30
Details
- Manufacturer: Whirlwind
- MPN: HBL2713
- Model Number: HBL2713
- UPC: 783585039176
