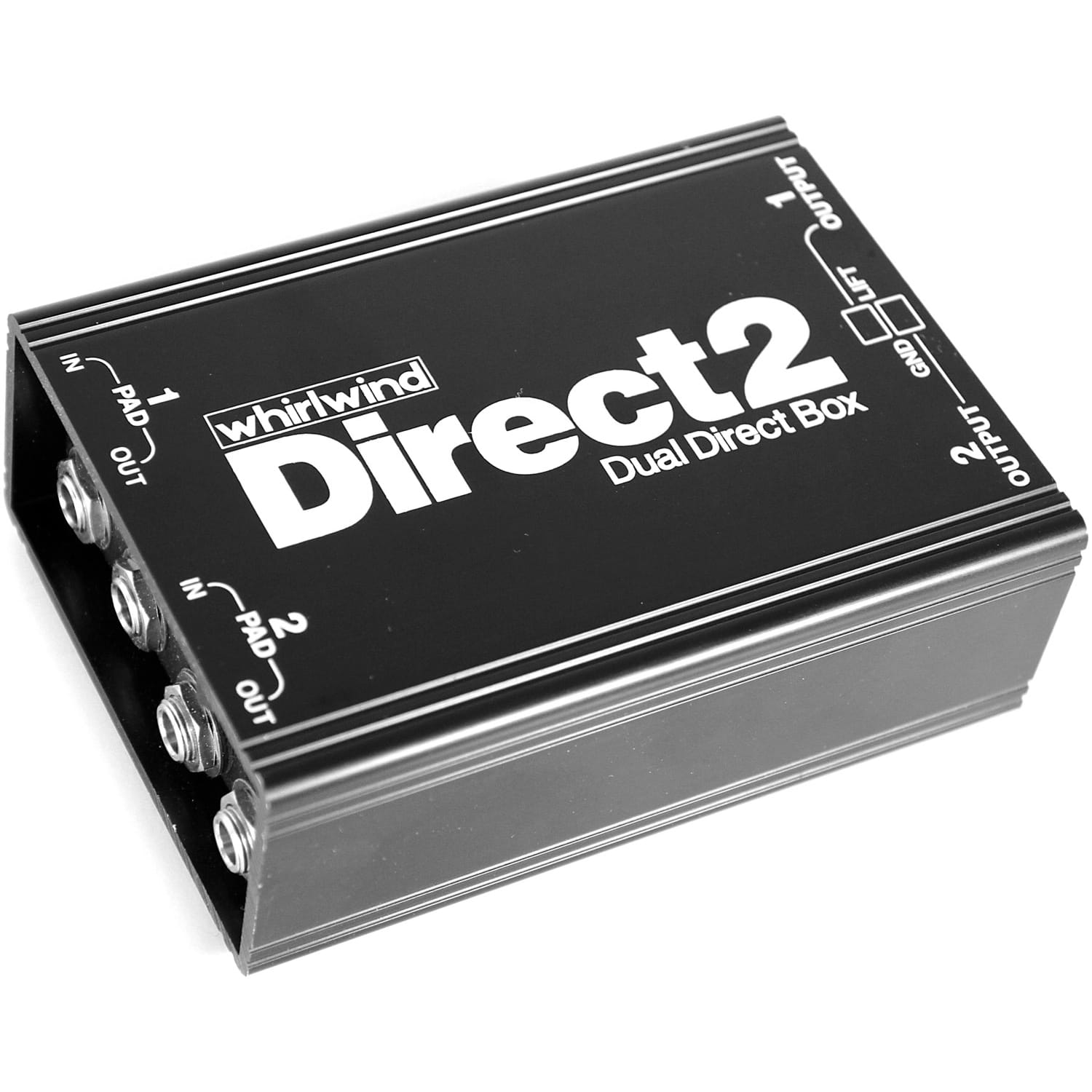

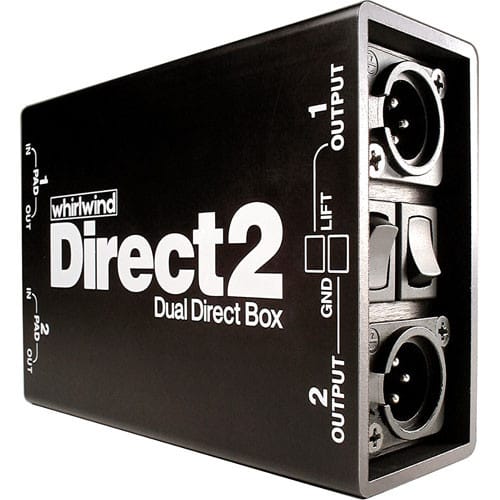

Whirlwind Direct2 Passive Direct Box with Whirlwind TRHL-M Transformer

Passive Direct Box with Whirlwind TRHL-M Transformer

The DIRECT2 combines features found on two of our DIRECTOR direct boxes in one unit.

Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc.

The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.

Features:

• Each section features:
• 1/4" parallel wired in/out jacks
• Ground Lift switch to help eliminate hum and buzz
• -20dB pad switch for connection to "hot" input signals
• Uses Whirlwind's TRHL-M transformer with metal shield

Specifications:

• Impedance Ratio (input to output per channel): 133:1 Frequency Response: 20Hz-20kHz +/-1dB
• Level Change (input to output): -20dB (pad out), -40dB (pad in)
