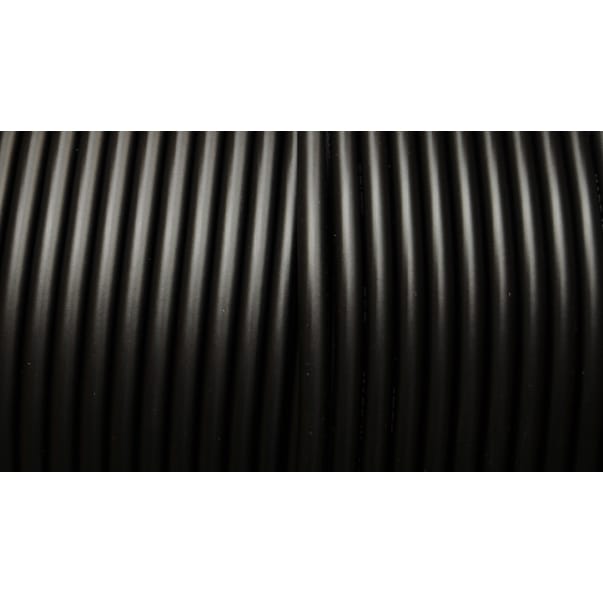

Whirlwind Belden 1266A Microphone Cable (By the Foot)

Bulk Microphone Cable - Single Pair, 22 AWG, Flexible, Foil Shields, Belden, Black (Sold by the Foot)

Belden 1266A Polypropylene insulation for jacket, 9 colors. 2 conductor hookup.

We carry a complete line of Audio cables to fit every application imaginable.

Specifications:

• No. of Conductors: 2
• Conductor Gauge & Stranding: 22, 7x30
• Shield Type & % Coverage: Foil 100%
• Overall Diameter (inches): .145
• Nominal Cap. 1 (pf/ft.): 30
• Nominal Cap. 2 (pf/ft.): 54
• Jacket Thickness (inches): .020
• Insulation Thickness (inches): .010
• Weight per 100 ft. (lbs.): 1.57
