Key Features
- 6 Optical Fibers
- SingleMode Fiber Optic Rating
- OFNP Rated
- Indoor Outdoor
- Plenum Rated
- Sold by the Foot
- Shipped in a Continuous Length
Description

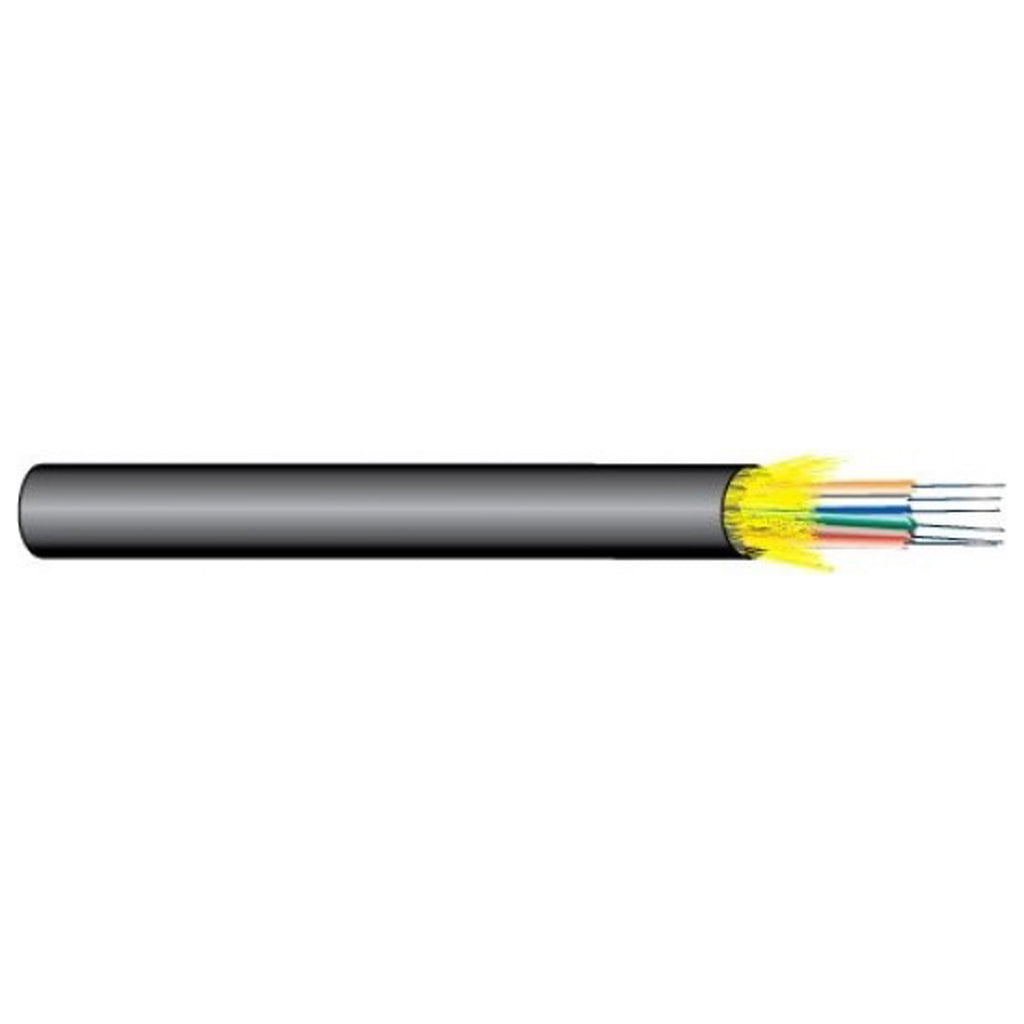

6 Fiber Single Mode Distribution Indoor Outdoor OFNP Audio, Video and Data Cable - Black - Sold by the Foot
The WP9W045T from West Penn is a 6 fiber single-mode distribution indoor outdoor OFNP audio, video and data 40G network cable.
Specifications:
- CONDUCTOR PARAMETERS
- Conductor Type: Optical Fiber
- Number Of Fibers: 6
- Fiber Optic Size: 8.3/125
- OM Fiber Optic Rating: SingleMode
- INSULATION PARAMETERS
- Insulation Type: Thermoplastic
- Buffer Size: 900 µm
- Insulation Color Code: 1.Blue,2.Orange,3.Green,4.Brown,5.Slate,6.White
- SHIELDING PARAMETERS
- Fiber Optic Design: Distribution
- ELECTRICAL CHARACTERISTICS
- OVERALL CONSTRUCTION
- Jacket Type: UV Resistant Polyolein
- Nominal Cable O.D.: 0.19 in
- Plenum: Yes
- NEC UL Rating: OFNP
- RoHS Compliant: Yes
- TIA Test: TIA455-82 Water Penetration Test, ANSI/TIA-568-C.3
- Pull Tension: 300 lbs
- Bend Radius: 1.9 in
- Cable Weight: 19 lbs
- Indoor/Outdoor OFNP: Yes
- Connectors:
LC: FI-4243
SC: FI-4247 or APC SC: FI-5209
ST: FI-4251
Details
- Manufacturer: West Penn
- MPN: WP9W045T
- Model Number: WP9W045T
- UPC: 612825398011
