Key Features
- 6 Optical Fibers
- OM4 Fiber Optic Rating
- OFNP Rated
- Indoor Outdoor
- Plenum Rated
- Sold by the Foot
- Shipped in a Continuous Length
Description

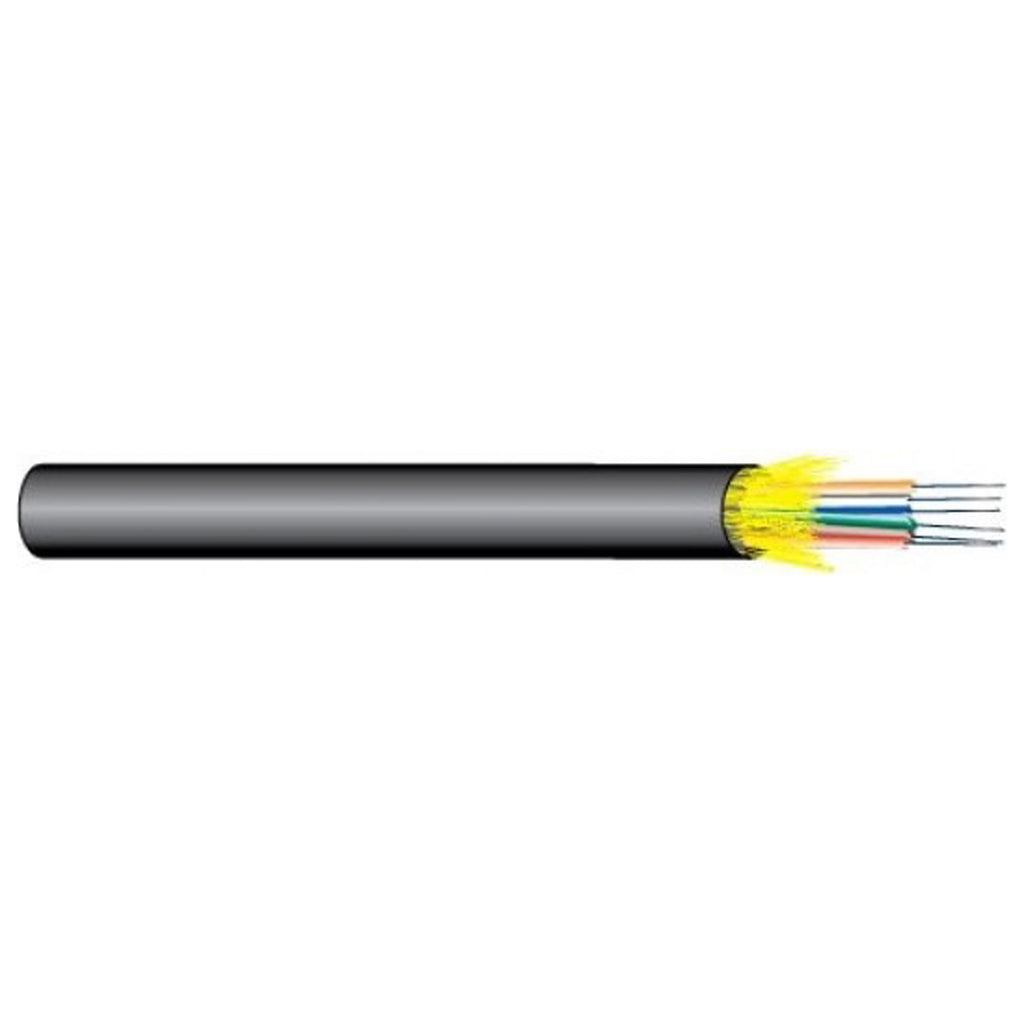

6 Fiber OM4 Distribution Indoor Outdoor OFNP Audio, Video and Data 40G Network Cable - Black - Sold by the Foot
The WP9E045T from West Penn is a 6 fiber OM4 distribution indoor outdoor OFNP audio, video and data 40G network cable.
Specifications:
- CONDUCTOR PARAMETERS
- Conductor Type: Optical Fiber
- Number Of Fibers: 6
- Fiber Optic Size: 50/125
- OM Fiber Optic Rating: OM4
- INSULATION PARAMETERS
- Insulation Type: Thermoplastic
- Buffer Size: 900 µm
- Insulation Color Code: 1.Blue, 2.Orange, 3.Green, 4.Brown, 5.Slate, 6.White
- SHIELDING PARAMETERS
- Fiber Optic Design: Distribution
- ELECTRICAL CHARACTERISTICS
- OVERALL CONSTRUCTION
- Jacket Type: UV Resistant Polyolein
- Nominal Cable O.D.: 0.19 in
- Plenum: Yes
- NEC UL Rating: OFNP
- RoHS Compliant: Yes
- TIA Test: TIA455-82 Water Penetration Test, ANSI/TIA-568-C.3
- Pull Tension: 300 lbs
- Bend Radius: 1.9 in
- Cable Weight: 19 lbs
- Indoor/Outdoor OFNP: Yes
- Connectors:
LC: FI-4242 Or OM4 FI-5252
SC: FI-4246 Or OM4 FI-5253
ST: FI-4250
Details
- Manufacturer: West Penn
- MPN: WP9E045T
- Model Number: WP9E045T
- UPC: 612825395836
