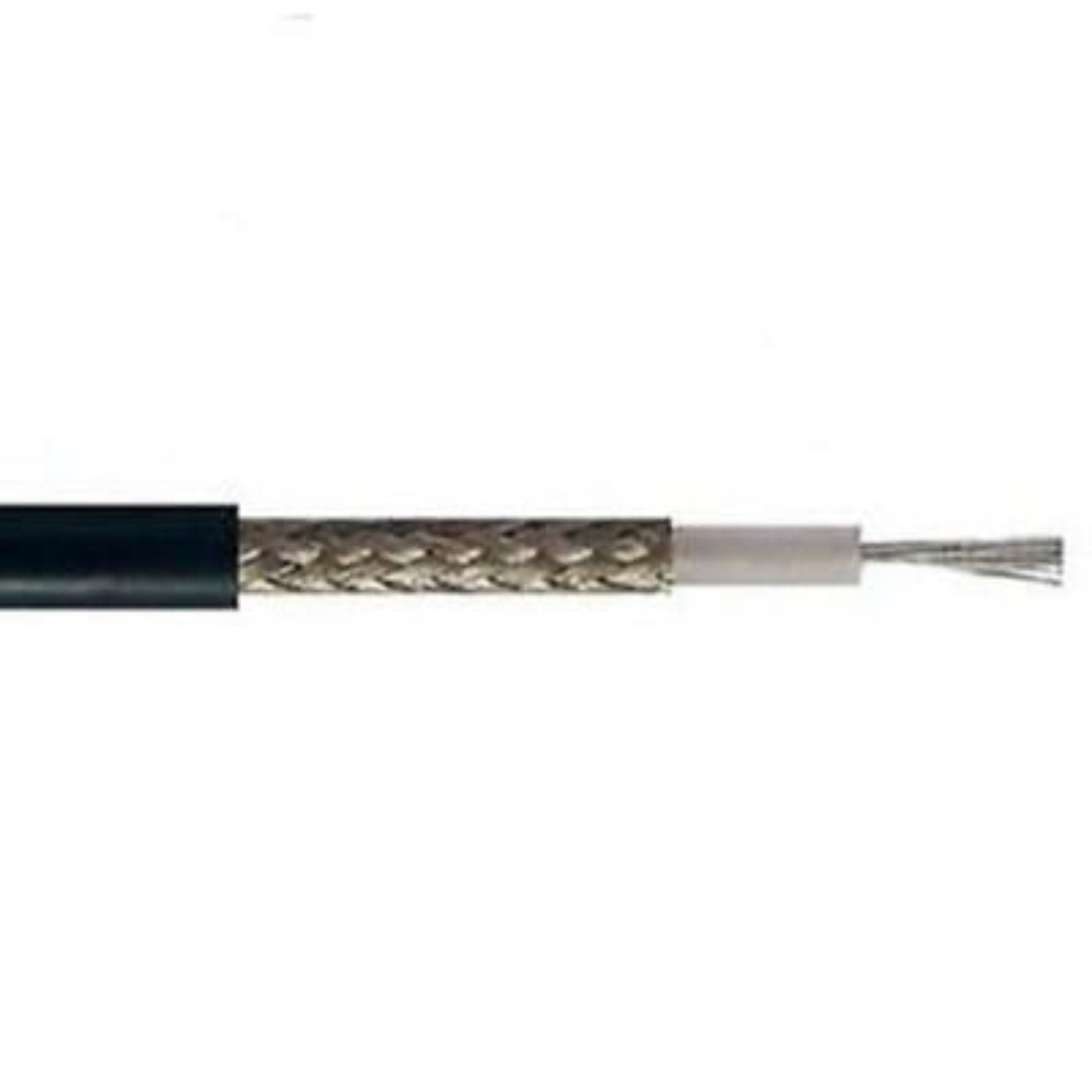

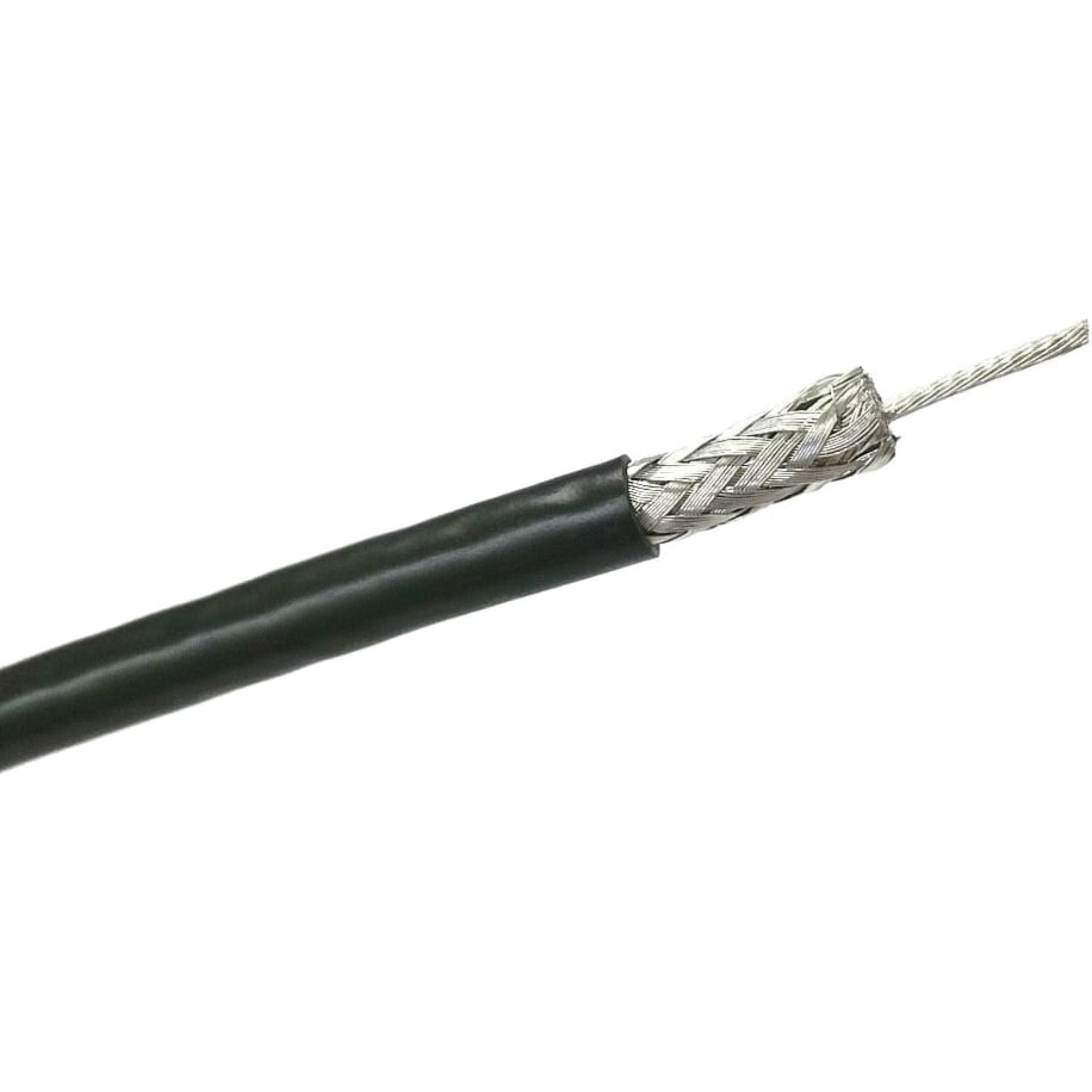

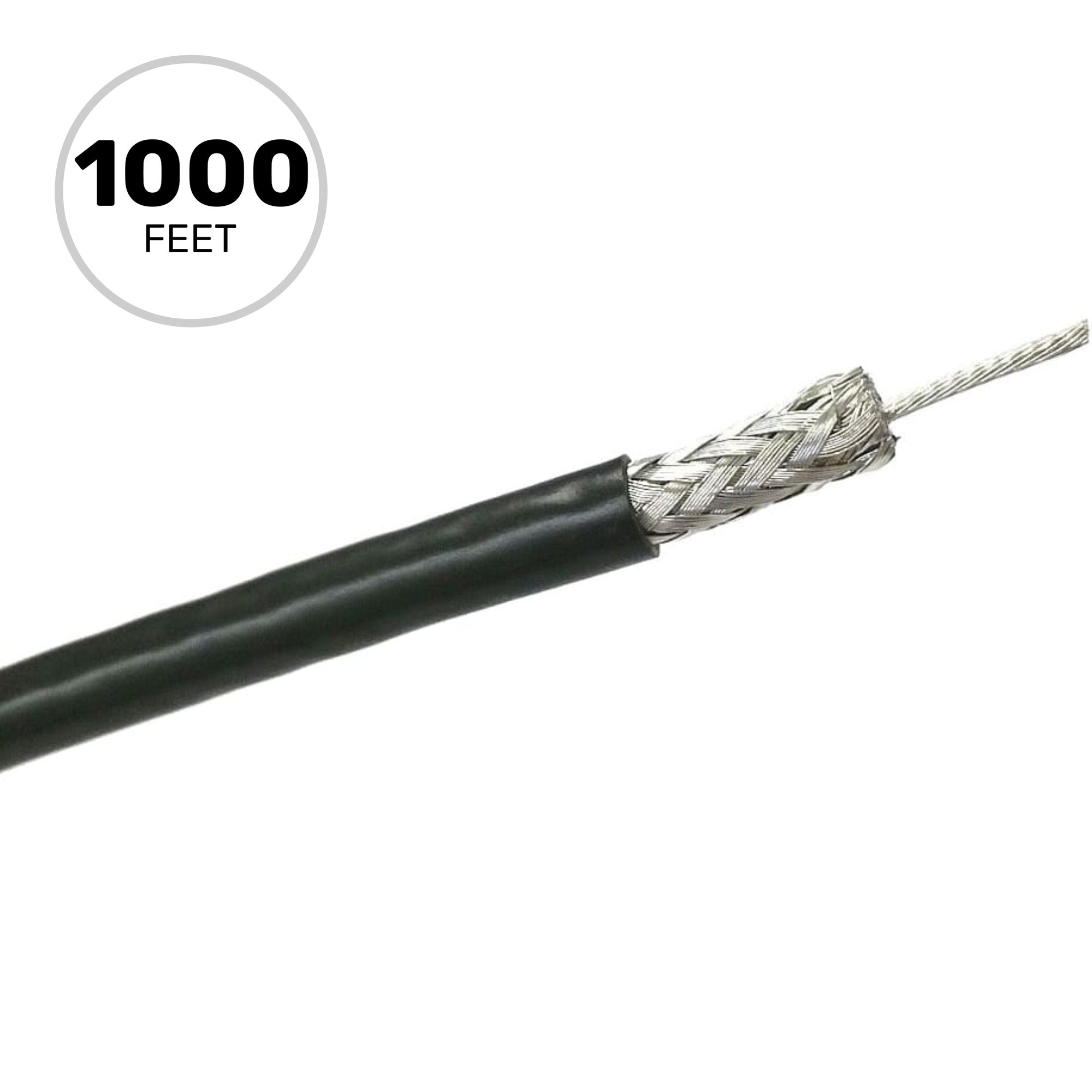

West Penn 812 RG58/U 50 Ohm Non-Plenum Stranded Coaxial Cable (Black, 1000' Roll)

RG58/U 20 AWG 50 Ohm Non-Plenum Coaxial Cable CM Rated - Black - Full 1000' Spool

Great for RF 50 Ohm Video, Wireless Mic Distribution

Wireless mic systems should use 50 Ohm cables exclusively because of their robust designs and consistent performances. A 50 Ohm coaxial cable, such as an RG-58, has a much lower loss rate than a 75 Ohm cable, and also offers excellent Power Impedance Matching.

Specifications:

• CONSTRUCTION & DIMENSIONS
• CONDUCTOR PARAMETER:
  Number of Conductors: 1
  AWG Size: 20
  Conductor Stranding: 19x32
  Conductor Type: Tinned Copper
  Nominal DCR: 8.8 Ohm/1000ft
• INSULATION PARAMETER:
  Insulation Type: Foam Polyethylene
  Insulation Thickness: 0.116 in
• SHIELDING PARAMETER:
  Shield Type: Overall 100% Aluminum Foil
  Shield Type 2: 95% Tinned Copper Braid
• ELECTRICAL CHARACTERISTICS:
  Nominal Impedance: 50 Ohm
  Nom. Cap. Between Conductors: 25 pF/ft
• OVERALL CONSTRUCTION
• Jacket Type: PVC
• Jacket Thickness: 0.031 in
• Nominal Cable O.D.: 0.195 in
• Plenum: No
• NEC UL Rating: CM
• RoHS Compliant: Yes
• Pull Tension: 45 lbs
• Bend Radius: 1.95 in
• Cable Weight: 30 lbs
• OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
• Nominal Velocity of Propagation (VP): 80 %
• UL Flammability: UL1685
• Operating Range: -40 to 75 Deg C
• UL Voltage Rating: 300
• ATTENUATION PERFORMANCE
• FREQUENCY (MHz) - ATTENUATION (dB/100ft):
  1 MHz - 0.3 dB/100ft
  10 MHz - 1.1 dB/100ft
  50 MHz - 2.5 dB/100ft
  100 MHz - 3.8 dB/100ft
  200 MHz - 5.6 dB/100ft
  400 MHz - 8.4 dB/100ft
  900 MHz - 13.7 dB/100ft
  1000 MHz - 14.5 dB/100ft
• POWER RATING
• FREQUENCY (MHz) - MAX POWER RATING (W):
  50 MHz - 530 W
  100 MHz - 350 W
  400 MHz - 160 W
  1,000 MHz - 90 W
• RELATED PRODUCTS
• Plenum Number: 25812
• BNC Crimp: CN-BM53-13
