Key Features
- 10/100/1000 BaseT Ethernet
- IP CCTV, Digital Integration, HDBaseT
- Category 6 Applications
- 23 AWG Solid Conductors
- Unshielded Twisted Pair (UTP)
- For Direct Burial & Wet Conditions
- Sold by the Foot
- Shipped in a Continuous Length
Description

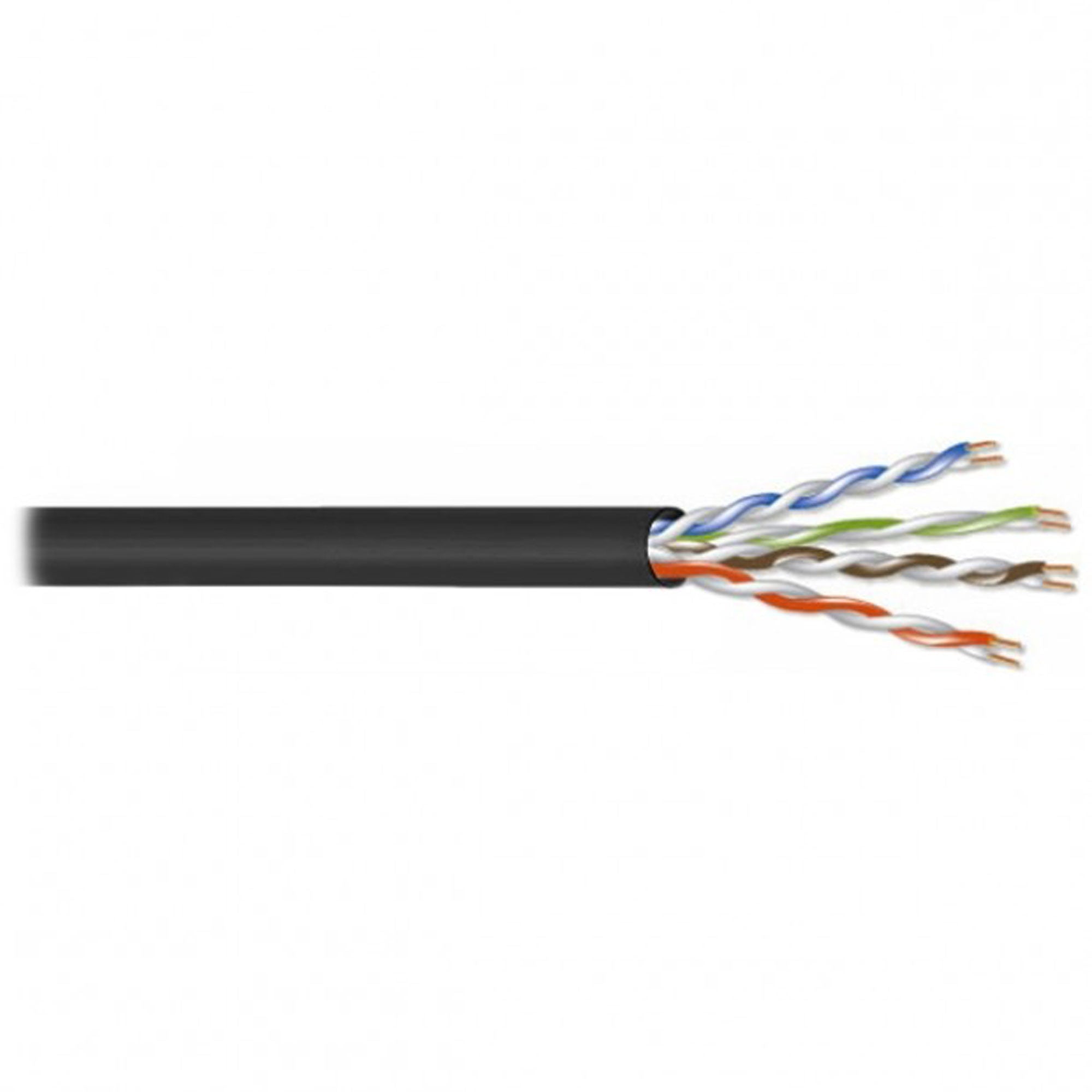

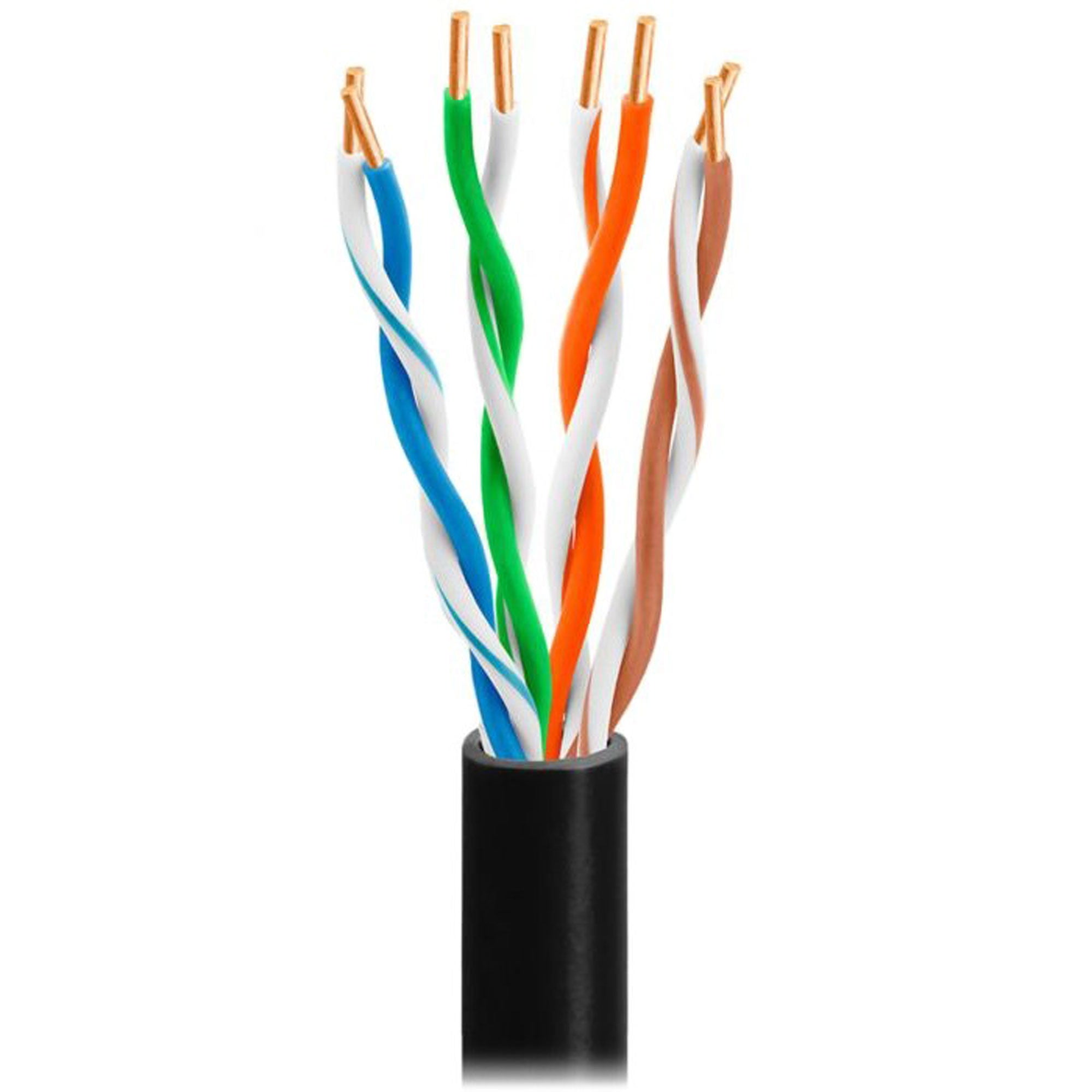

4 Pair 23 AWG CAT6 UTP Indoor/Outdoor Direct Burial Ethernet Networking Cable - Black - Sold by the Foot
4 Pair 23AWG UTP Category 6 Indoor/Outdoor CM-LS
10/100/1000 BaseT Ethernet, IP CCTV, Digital Integration, HDBaseT
The Cable is suitable for use in building in Wet Locations and suitable for use outdoor in duct and aerial lashing It is fully water blocked and has a sunlight resistant jacket.
Specifications:
- CONDUCTOR PARAMETERS
- Number Of Pairs: 4
- AWG Size: 23
- Conductor Stranding: Solid
- Conductor Type: Bare Copper
- Nominal DCR: 24 Ohm/1000ft
- INSULATION PARAMETERS
- Insulation Type: Polyolefin
- Insulation Color Code: 1. Blue, WH-Blue 2. Orange, WH-Orange 3. Green, WH-Green 4. Brown, WH-Brown
- SHIELDING PARAMETERS
- Shield Type: Unshielded Twisted Pair (UTP)
- Flooding Compound: Yes
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 100 Ohm
- Nominal Capacitance Between Conductors: 14 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Total Number of Conductors: 8
- Jacket Type: UV Resistant Polyolein
- Nominal Cable O.D.: 0.251 in
- Plenum: No
- NEC UL Rating: CM-LS (Low Smoke, Zero Halogen)
- RoHS Compliant: Yes
- ANSI/TIA Category: Category 6 TIA/EIA 568.2-D
- TIA Test: ANSI/TIA-568.2-D
- Pull Tension: 35 lbs
- Bend Radius: 1.255 in
- Cable Weight: 43 lbs
Details
- Manufacturer: West Penn
- MPN: 4246IOBK
- Model Number: 4246IOBK
- UPC: 612825054375
