Key Features
- 10/100/1000 BaseT Ethernet
- IP CCTV, Digital Integration, HDBaseT
- Category 6 Applications
- 23 AWG Solid Conductors
- Unshielded Twisted Pair (UTP)
- Flouropolymer Insulation
- Flexible Plenum Jacket
- Full 1000' EZ Box Spool
Description

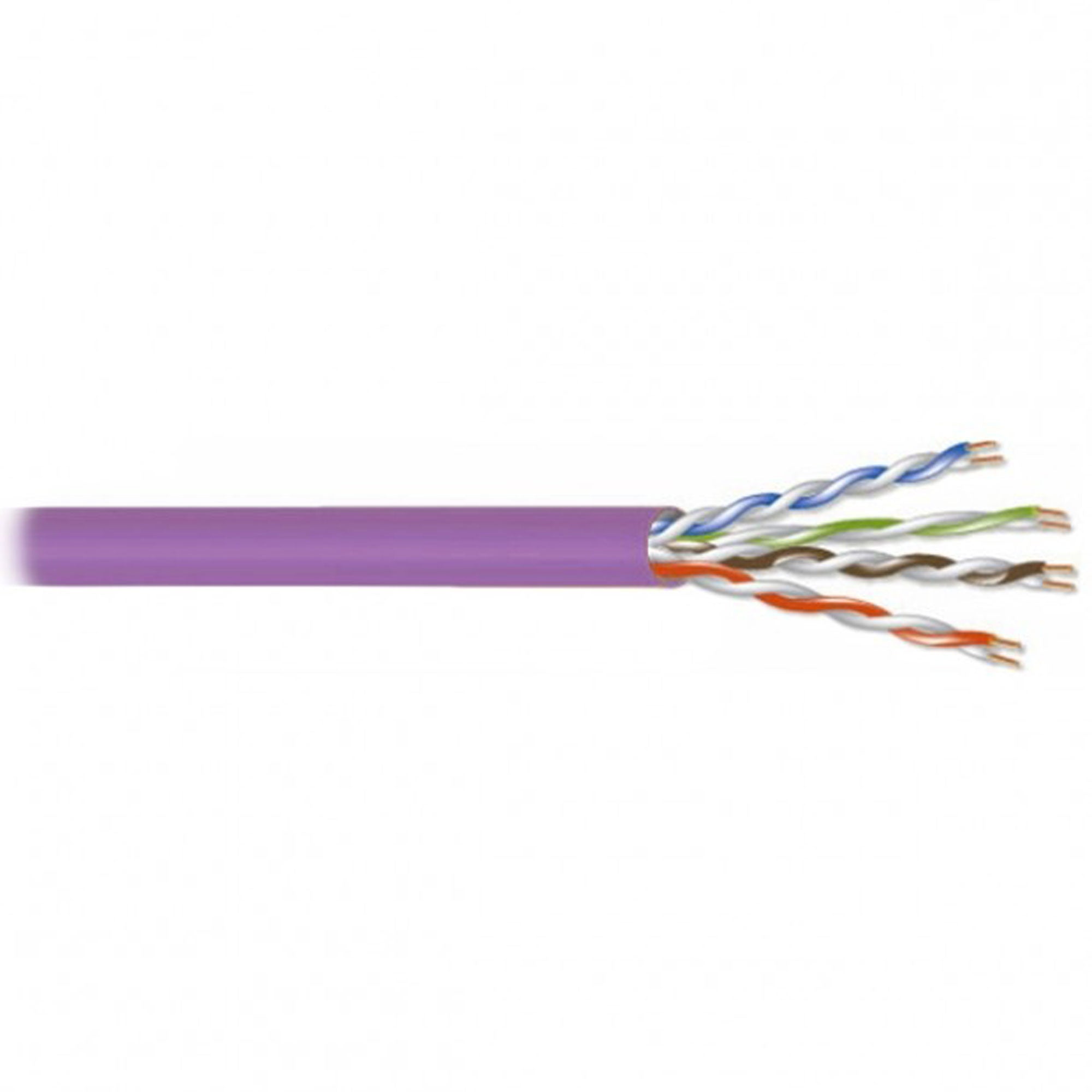

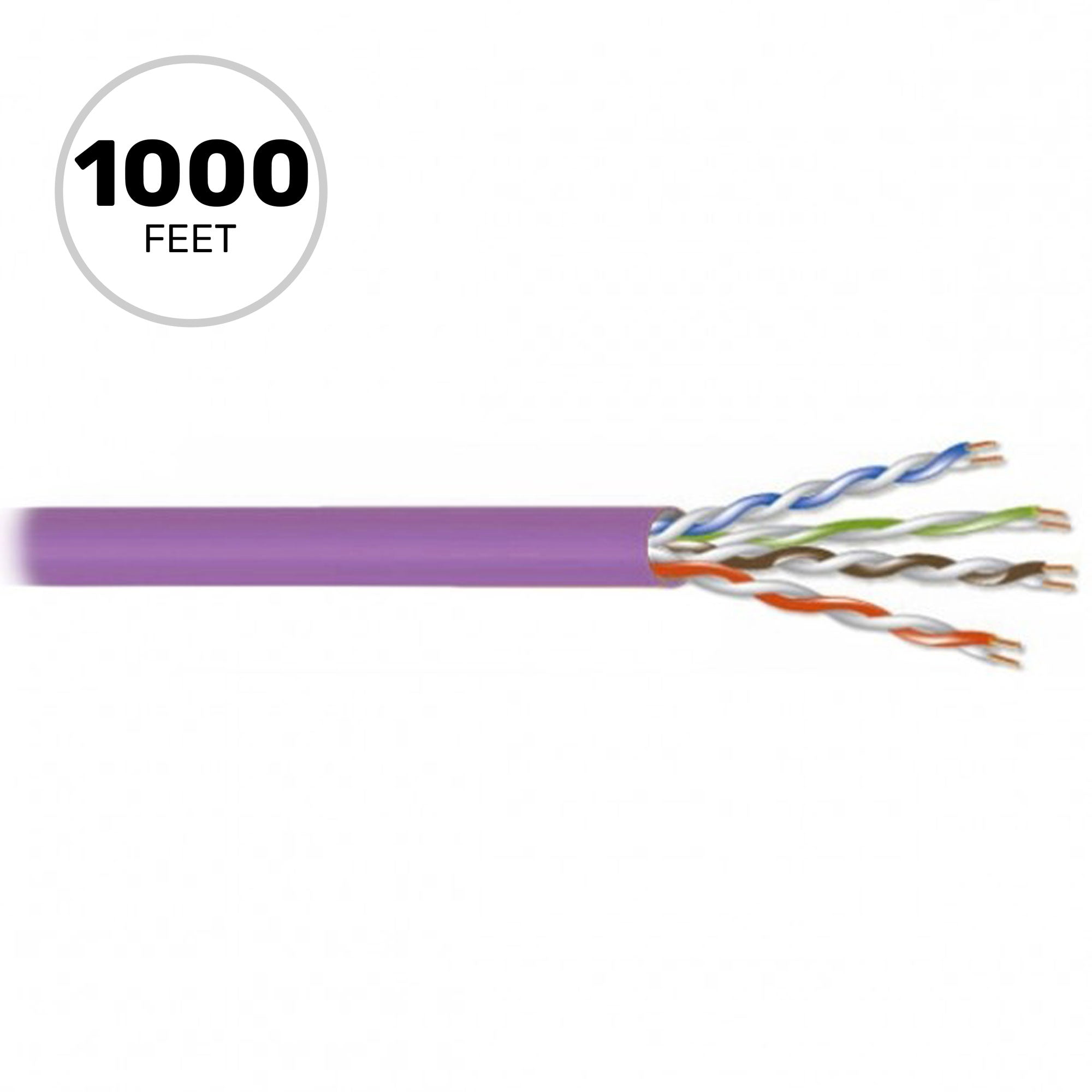

Plenum-Rated 4 Pair 23 AWG CAT6 Ethernet Networking Cable with Flouropolymer Insulation - Purple/Violet - Full 1000' Spool
West Penn's 254246 is an unshielded CAT6 network plenum cable with 4 pairs of 23 AWG solid bare copper conductors and an overall plenum PVC jacket. Applications include Ethernet, IP cameras, digital integration, and more.
Specifications:
- CONDUCTOR PARAMETERS
- Number Of Pairs: 4
- AWG Size: 23
- Conductor Stranding: Solid
- Conductor Type: Bare Copper
- Nominal DCR: 22 Ohm/1000ft
- INSULATION PARAMETERS
- Insulation Type: Flouropolymer
- Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
- SHIELDING PARAMETERS
- Shield Type: Unshielded Twisted Pair (UTP)
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 100 Ohm
- Nominal Capacitance Between Conductors: 15 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Total Number of Conductors: 8
- Jacket Type: Flexible Plenum
- Nominal Cable O.D.: 0.225 in
- Plenum: Yes
- NEC UL Rating: CMP - CMP-LP
- RoHS Compliant: Yes
- ANSI/TIA Category: Category 6 TIA/EIA 568.2-D
- TIA Test: TIA-568.2-D
- Pull Tension: 40 lbs
- Bend Radius: 1.125 in
- Cable Weight: 27 lbs
Details
- Manufacturer: West Penn
- MPN: 254246EZVT1000
- Model Number: 254246EZVT1000
- UPC:
