Key Features
- 2 x 22 AWG
- Stranded Bare Copper Conductors
- Unshielded Overall Jacket
- Sequentially Footmarked
- For Indoor Use
- For Ducts, Plenums, & Other Spaces
- Great for Intercom & Security
- Great for Sound, Audio & Music

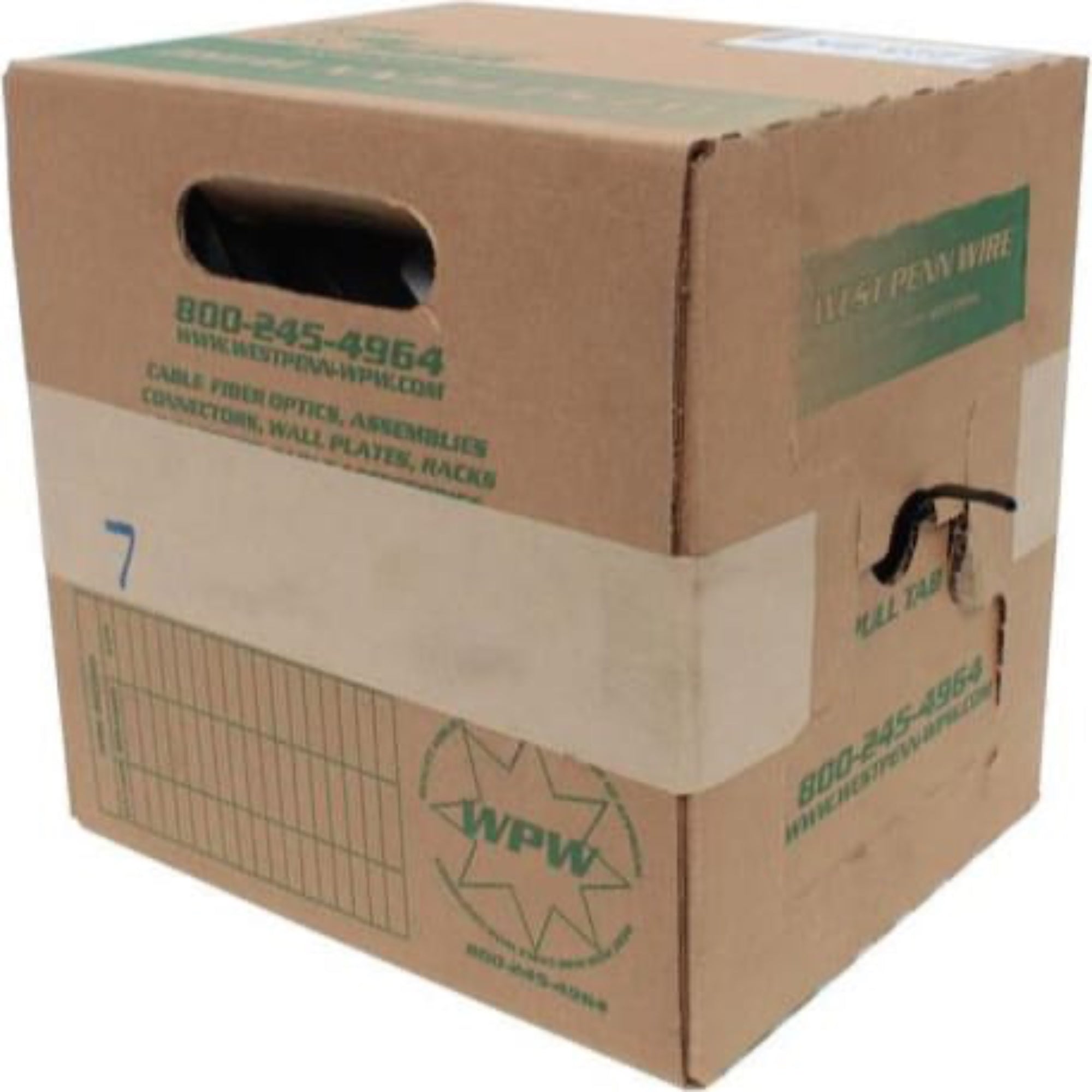

- Full 1000' Spool
Description

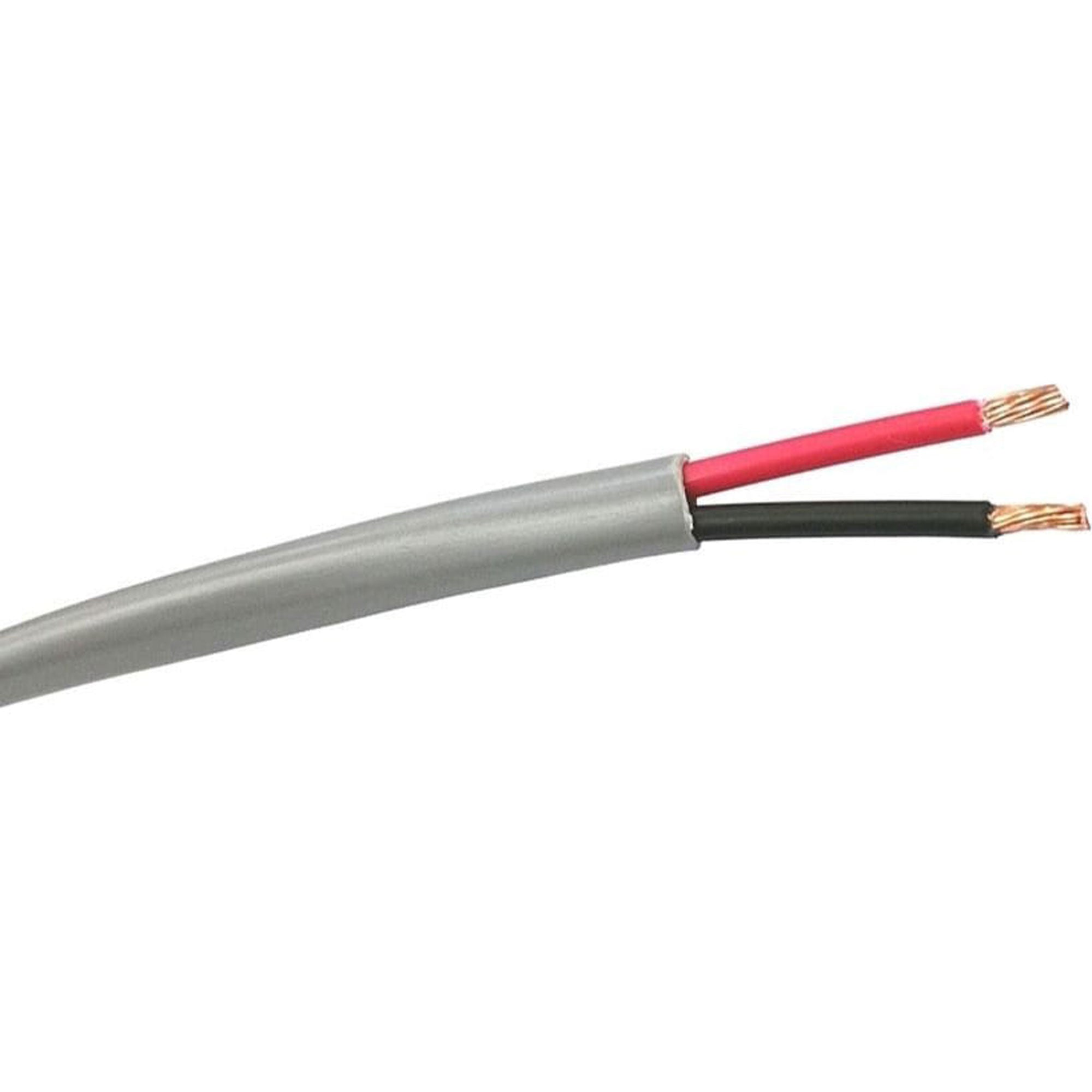

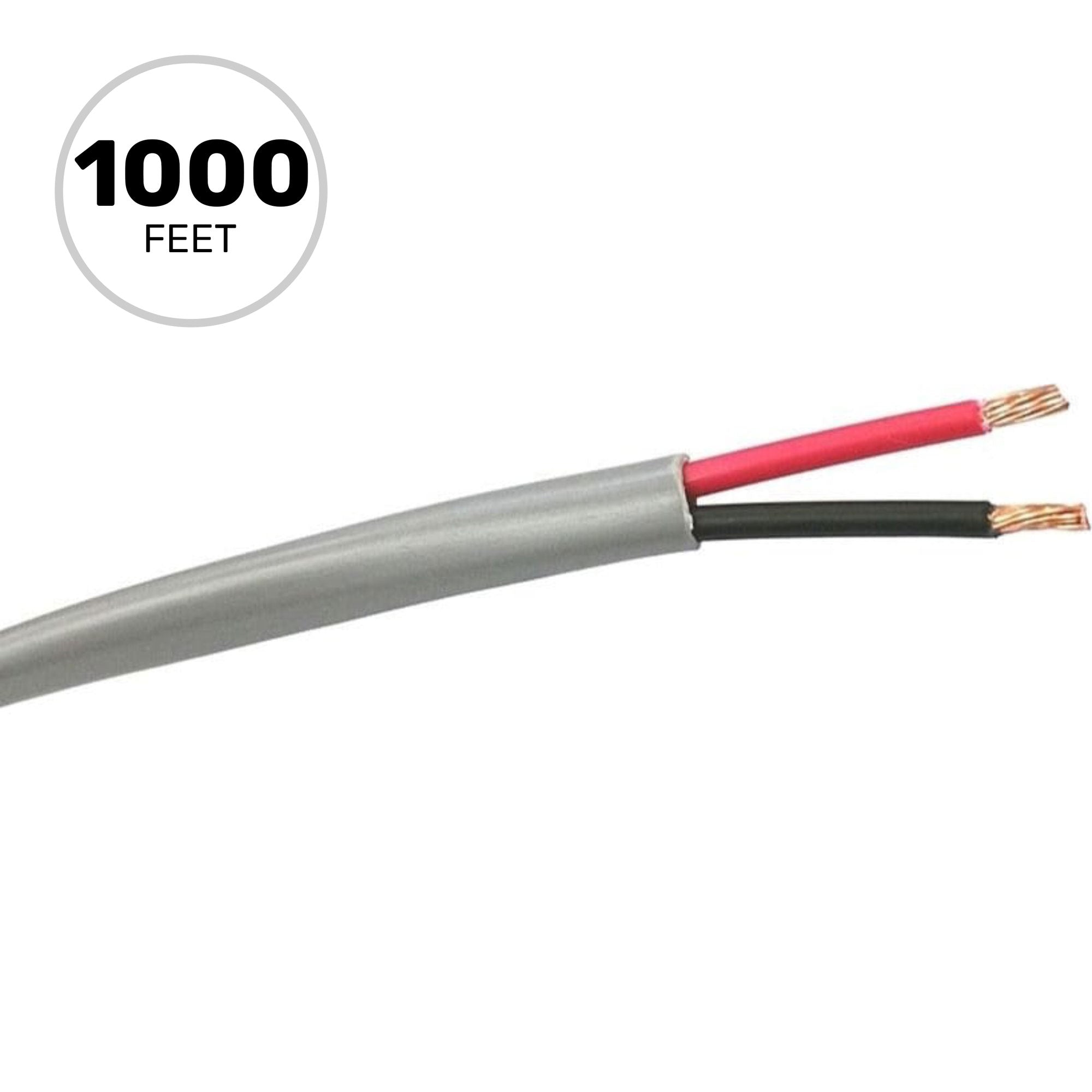

2 Conductor 22awg Plenum Rated Speaker Wire - Grey - Full 1000' Spool

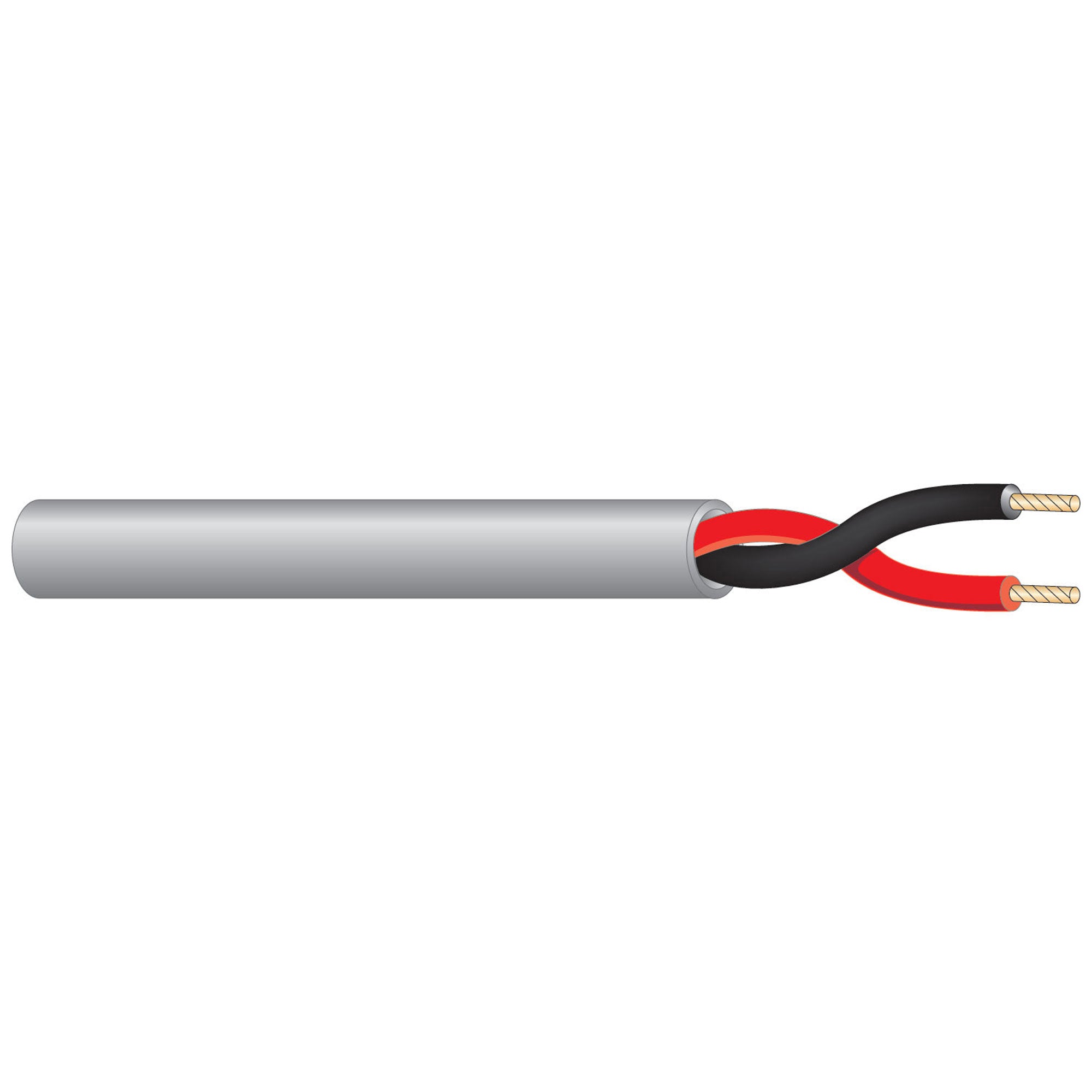

22/2 Stranded bare copper conductors, unshielded with an overall jacket.
Applications:
Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)
Specifications:
- Construction Parameters:
- Conductor 22 AWG Bare Copper
- Stranding 7x30
- Insulation Material Polymer Alloy
- Insulation Thickness 0.010" Nom.
- Number of Conductors 2
- Shield None
- Drain None
- Jacket Material Flexible Plenum
- Jacket Thickness 0.015" Nom.
- Overall Cable Diameter 0.110" Nom.
- Approximate Cable Weight 10 Lbs/1M' Nom.
- Flame Rating NFPA 262 Flame Test
- Electrical & Environmental Properties:
- Temperature Rating -10C To +60C
- Operating Voltage 300 V RMS
- Max.Capacitance Between Conductors @ 1 KHz 28 pf/ft Nom.
- DC Resistance per Conductor @ 20deg C 17 Ohms/1M' Nom.
- Insulation Colors Black, Red
- Jacket Color Gray
- RoHS Compliant -
- Mechanical Properties:
- Max. Recommended Pull Tension 21 lbs
- Min. Bend Radius (Install) 1.1"
Details
- Manufacturer: West Penn
- MPN: 25221BGY1000
- Model Number: 25221BGY1000
- UPC:
