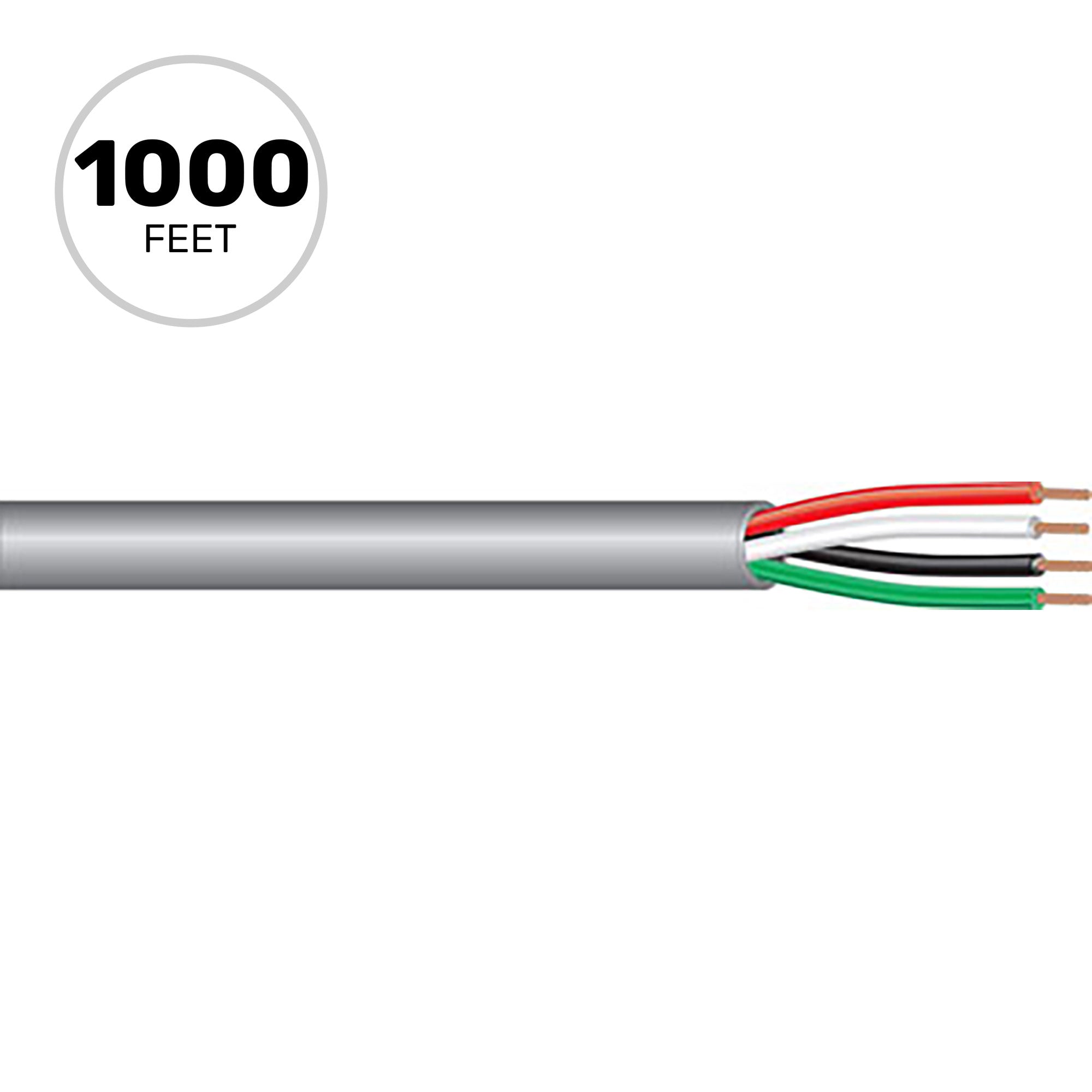

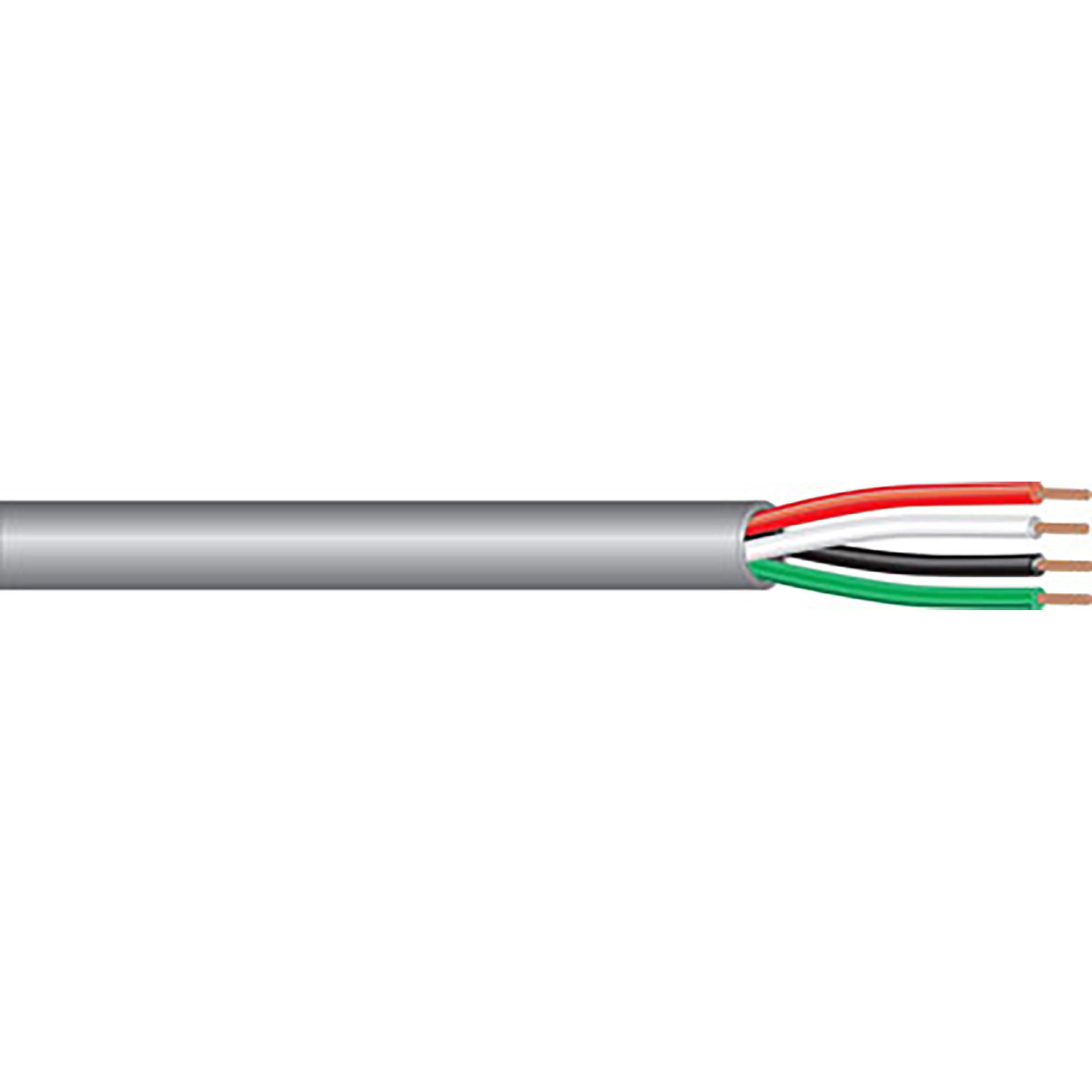

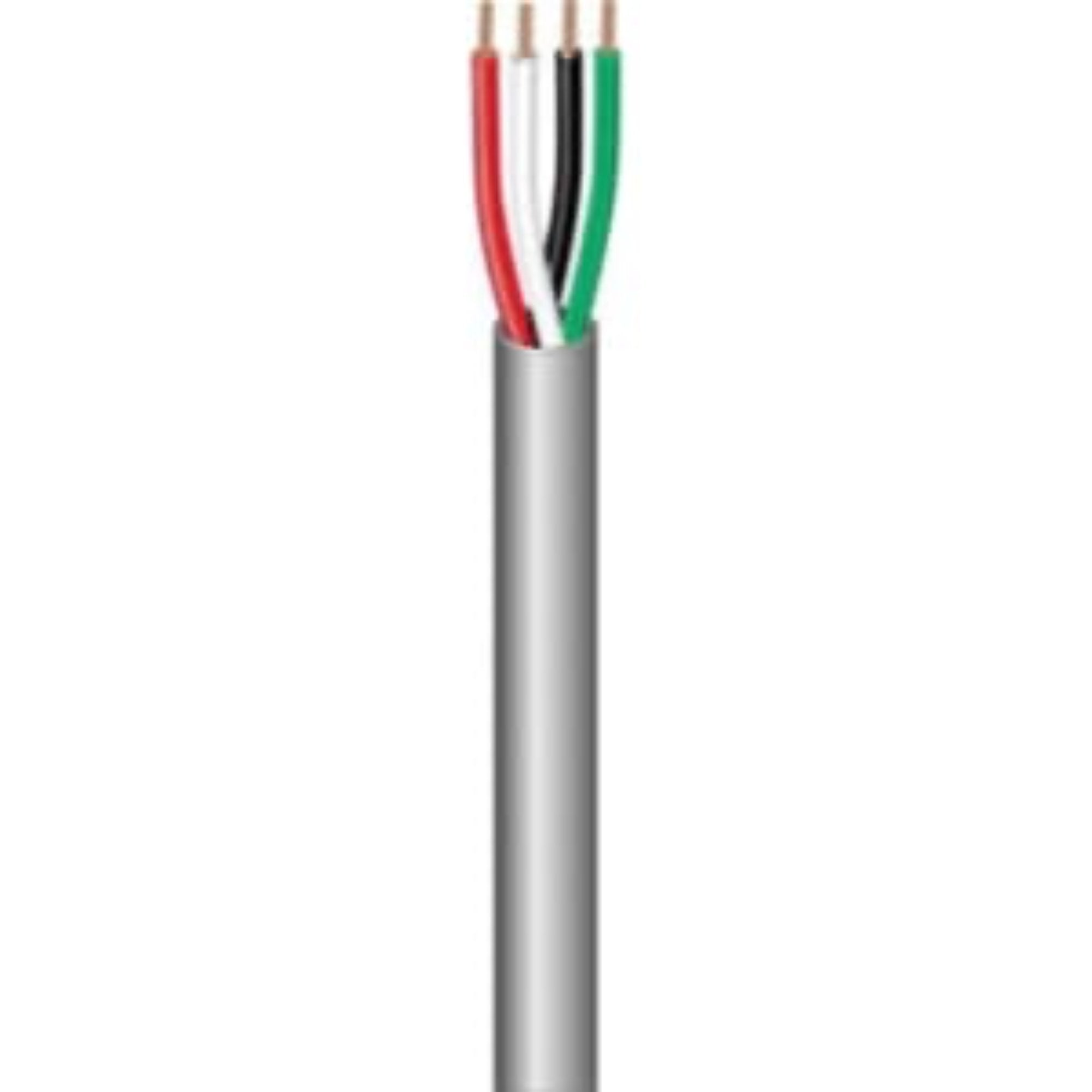

West Penn 240 4 Conductor 22G Solid Unshielded PVC Jacket Wire (Grey, 1000' Roll)

4 Conductor 22awg Non-Plenum Speaker Wire with Solid Conductors - Grey - Full 1000' Spool

22/4 Solid bare copper conductors, unshielded with an overall jacket.

Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits

Part # 240 Specifications

• Construction Parameters:
• Conductor 22 AWG Bare Copper
• Stranding Solid
• Insulation Material PVC
• Insulation Thickness 0.010" Nom.
• Number of Conductors 4
• Shield None
• Drain None
• Jacket Material PVC
• Jacket Thickness 0.015" Nom.
• Overall Cable Diameter 0.142" Nom.
• Approximate Cable Weight 14.3 Lbs/1M' Nom.
• Flame Rating UL 1666 Riser Flame Test
• Electrical & Environmental Properties:
• Temperature Rating -20C To +60C
• Operating Voltage 300 V RMS
• Max.Capacitance Between Conductors @ 1 KHz 24 pf/ft Nom.
• DC Resistance per Conductor @ 20deg C 17.5 Ohms/1M' Nom.
• Insulation Colors Black, Red, White, Green
• Jacket Color Gray
• RoHS Compliant -
• Mechanical Properties:
• Max. Recommended Pull Tension 34 lbs.
• Min. Bend Radius (Install) 1.4"
