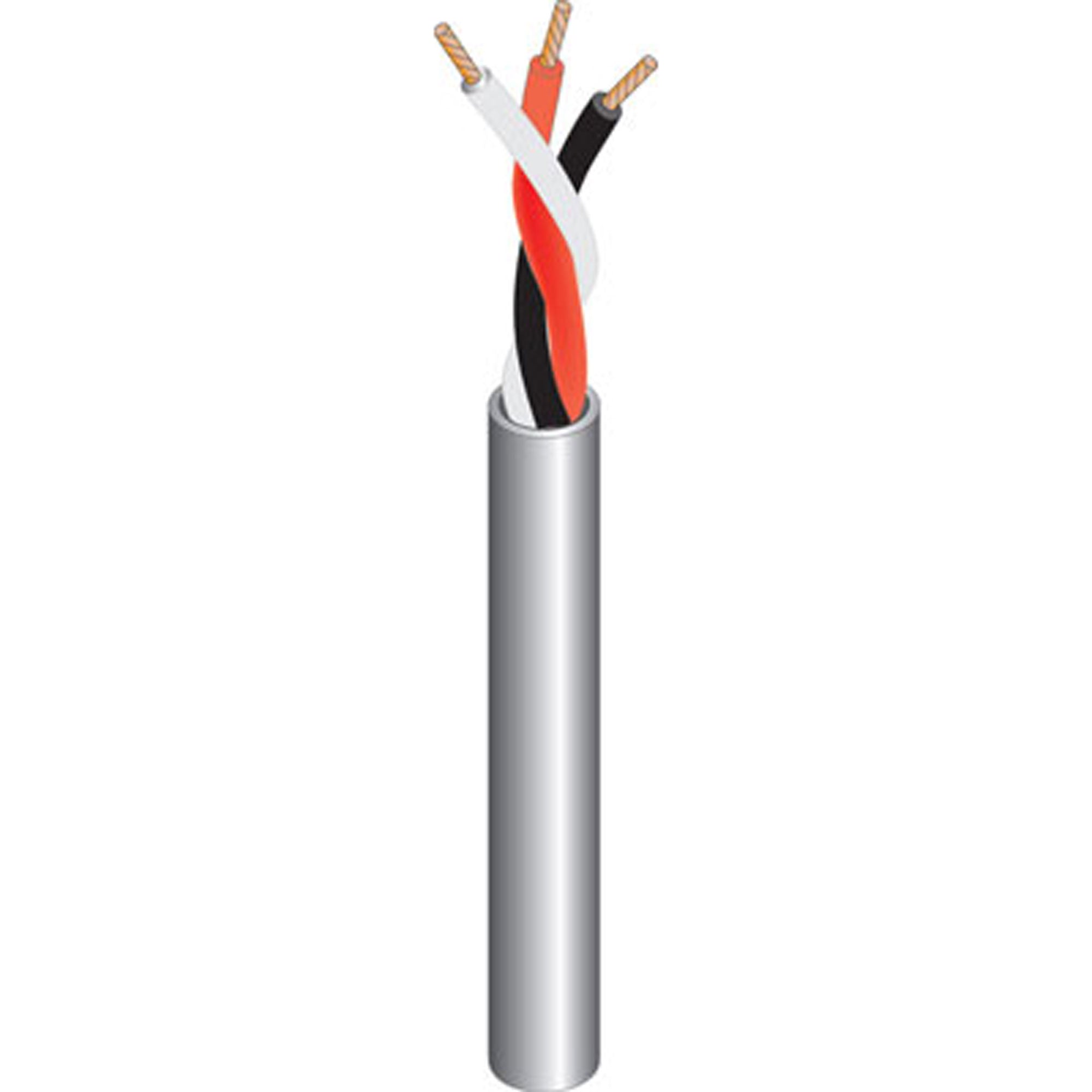

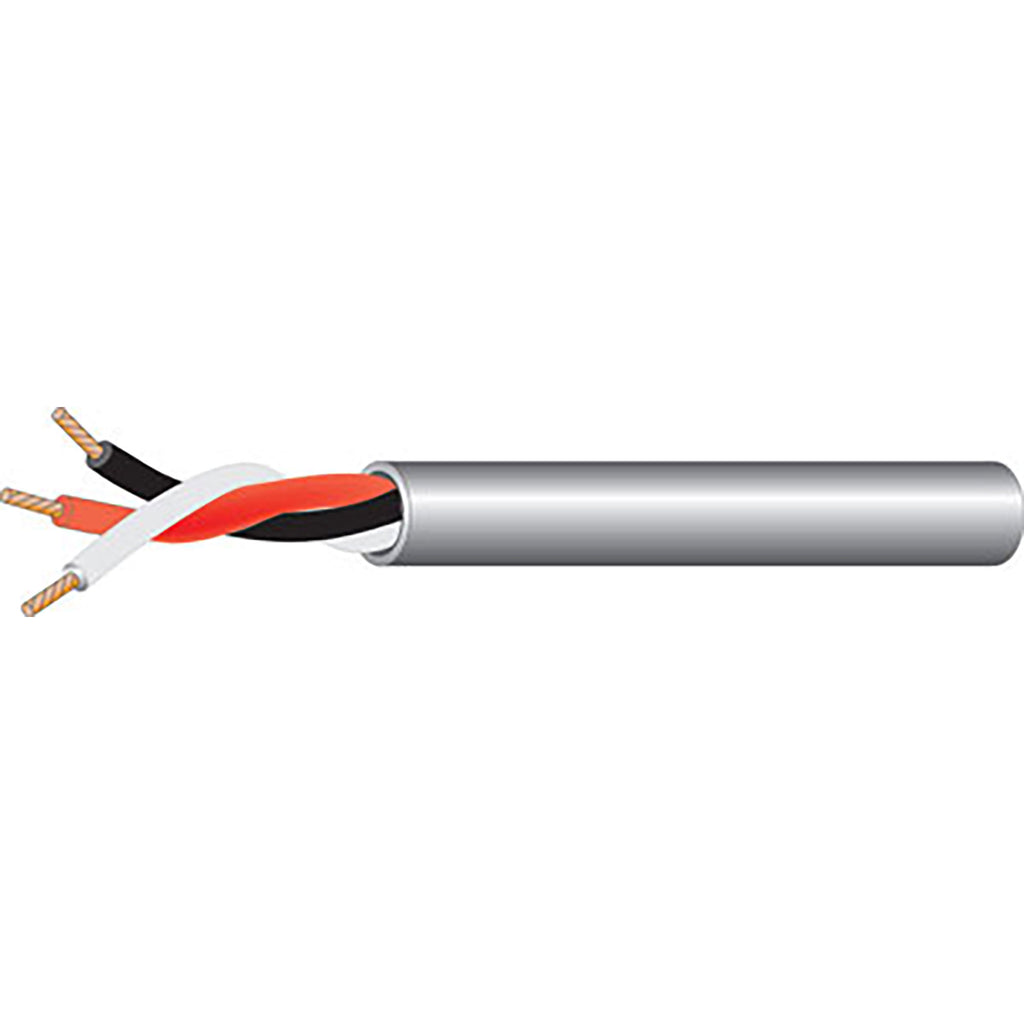

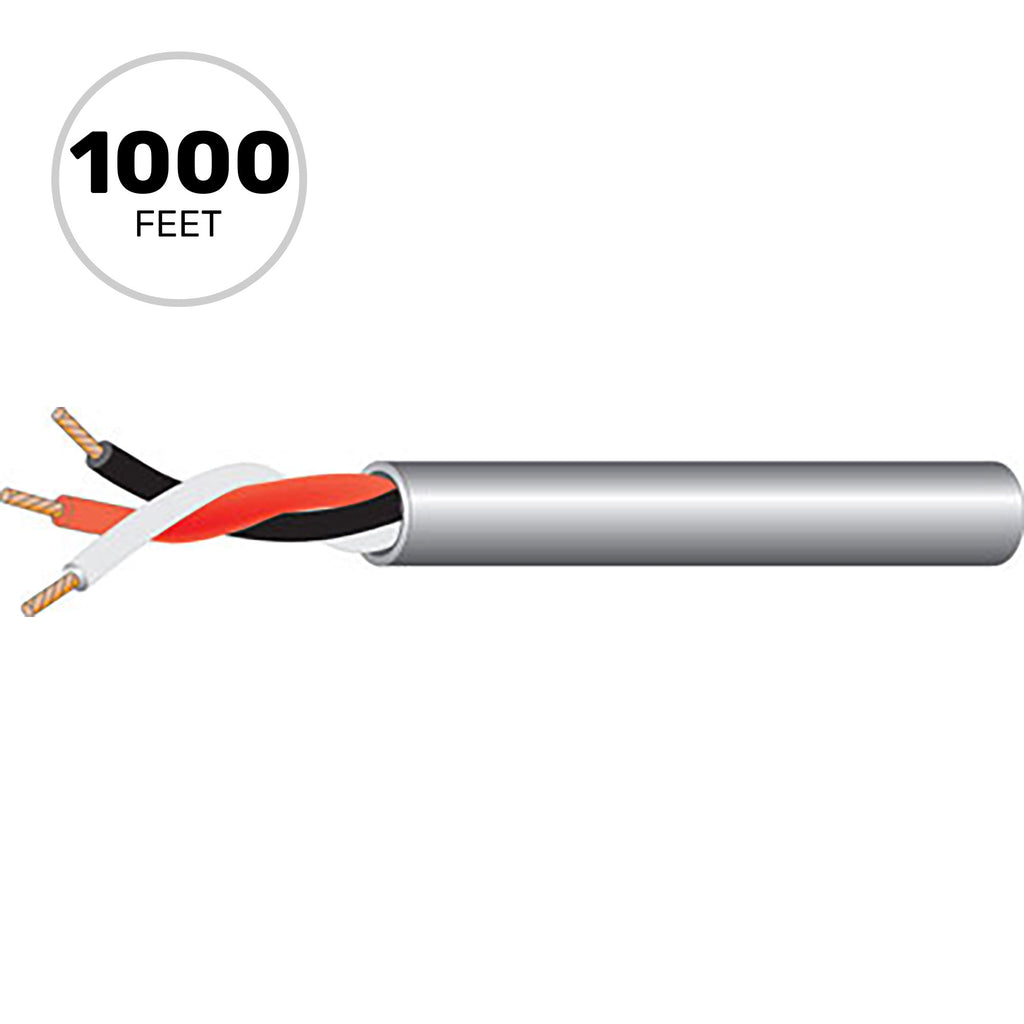

West Penn 231 3 Conductor 22G Stranded Unshielded PVC Jacket CMR Wire (Grey, 1000' Roll)

3 Conductor 22 awg Stranded Bare Copper Conductors, Unshielded with an Overall Jacket - Grey - Full 1000' Spool

22/3 Unshielded CMR Audio and Control Cable

22/3 Stranded Bare Copper Conductors, Unshielded With An Overall Jacket.

Specifications:

• CONSTRUCTION PARAMETERS:
• Conductor 22 AWG Bare Copper
• Stranding 7x30
• Insulation Material PVC
• Insulation Thickness 0.010" Nom.
• Number of Conductors 3
• Shield None
• Drain None
• Jacket Material PVC
• Jacket Thickness 0.015" Nom.
• Overall Cable Diameter 0.141" Nom.
• Approximate Cable Weight 11.6 Lbs/1M' Nom.
• Flame Rating UL 1666 Riser Flame Test
• ELECTRICAL & ENVIRONMENTAL PROPERTIES:
• Temperature Rating -20C To +60C
• Operating Voltage 300 V RMS
• Max.Capacitance Between Conductors @ 1 KHz 25 pf/ft Nom.
• DC Resistance per Conductor @ 20deg C 17 Ohms/1M' Nom.
• Insulation Colors Black , Red, White
• Jacket Color Gray
• RoHS Compliant Yes
• MECHANICAL PROPERTIES:
• Max. Recommended Pull Tension 27.3 lbs.
• Min. Bend Radius (Install) 1.25"
