Key Features
- 2 x 12 AWG
- Stranded Bare Copper Conductors
- Unshielded Overall Jacket
- Sequentially Footmarked
- For Indoor Use
- Great for Intercom & Security
- Great for Sound, Audio & Music

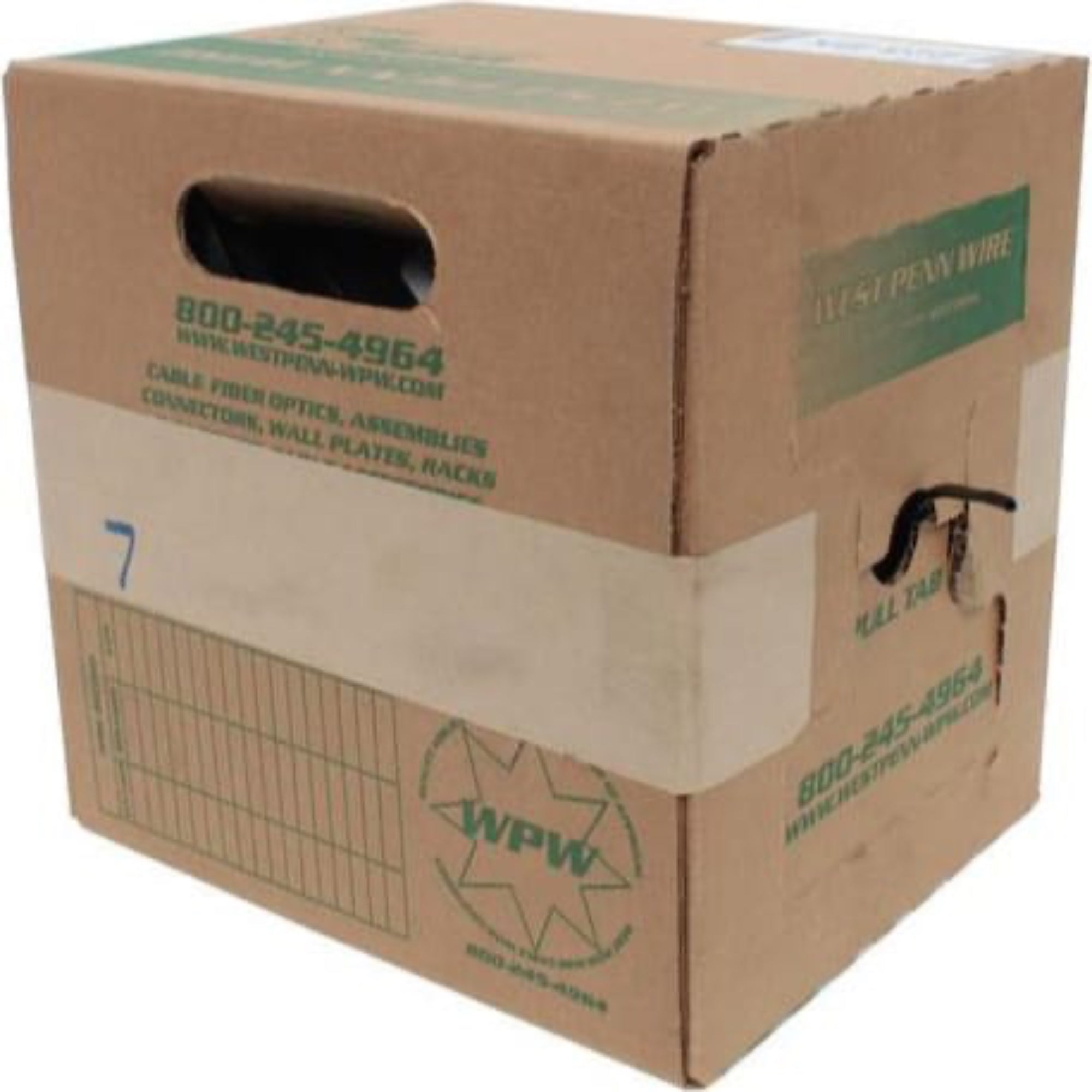

- Full 1000' Spool
Description

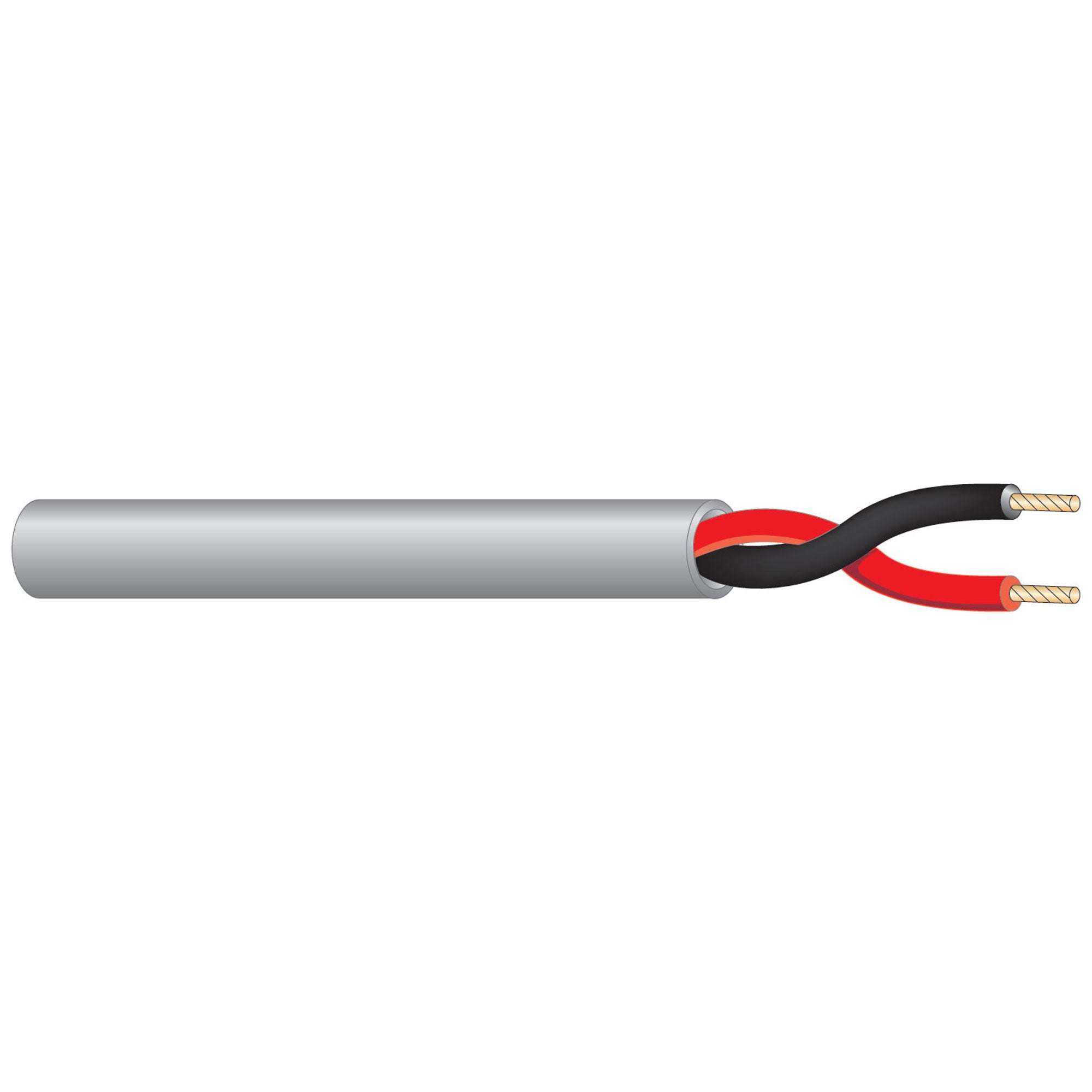

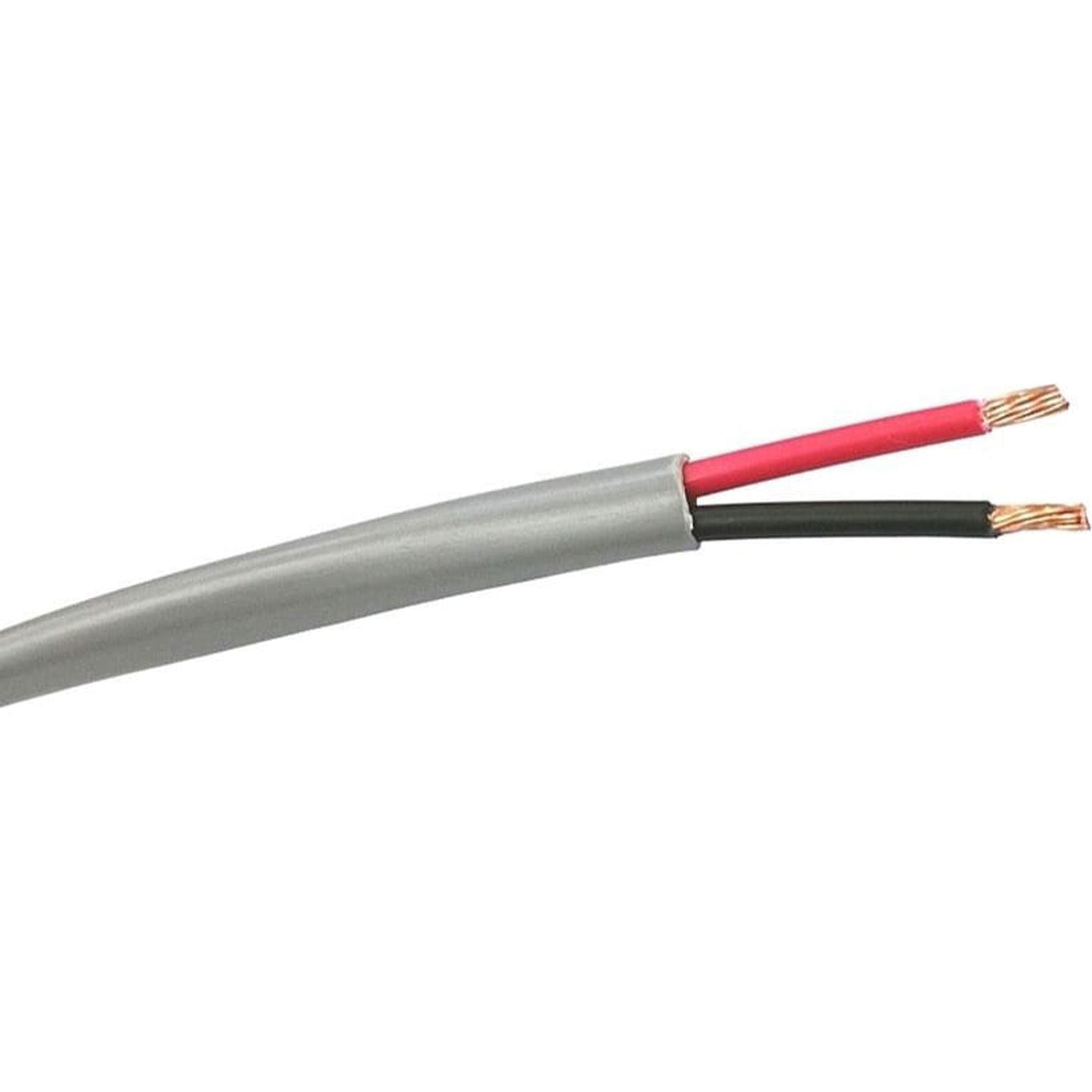

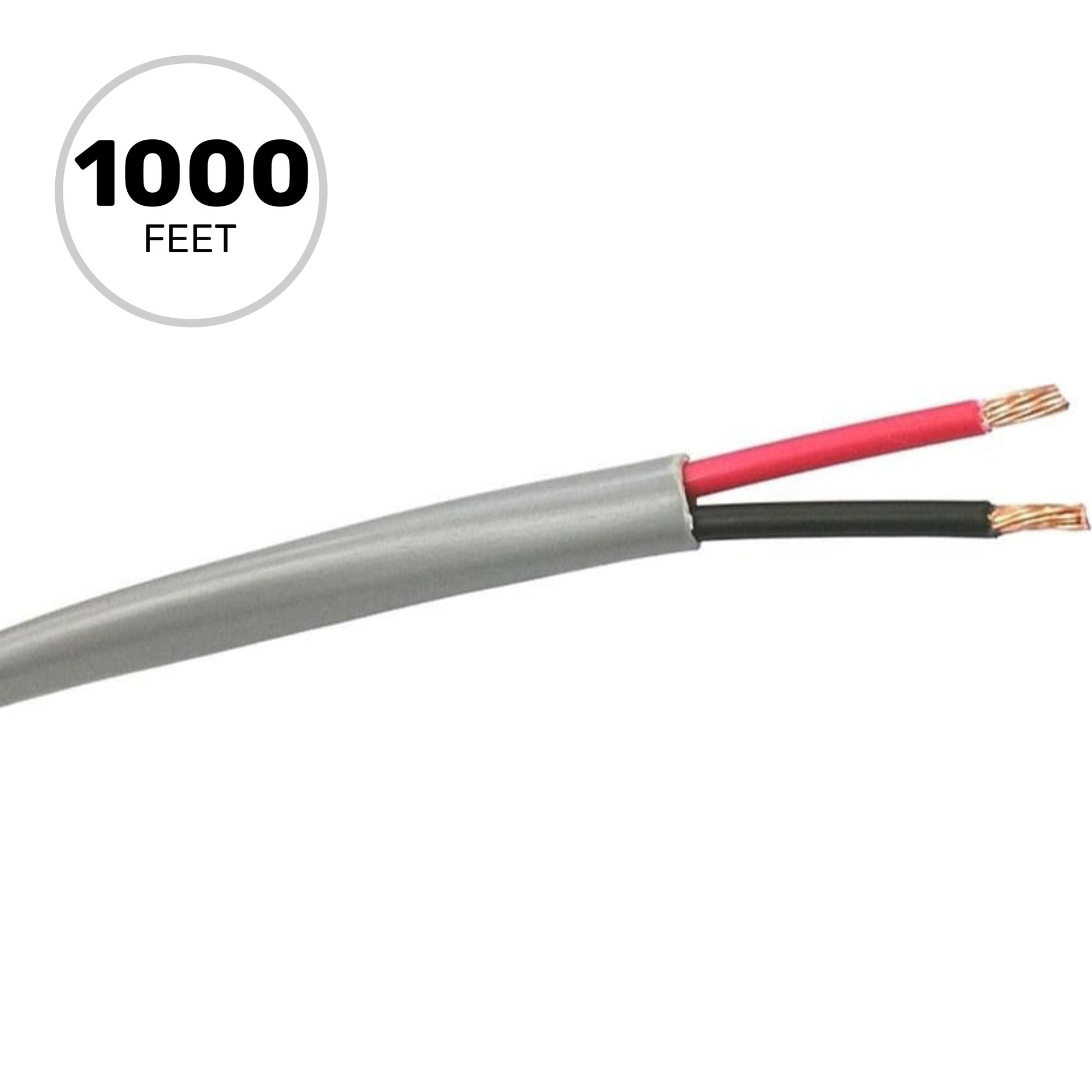

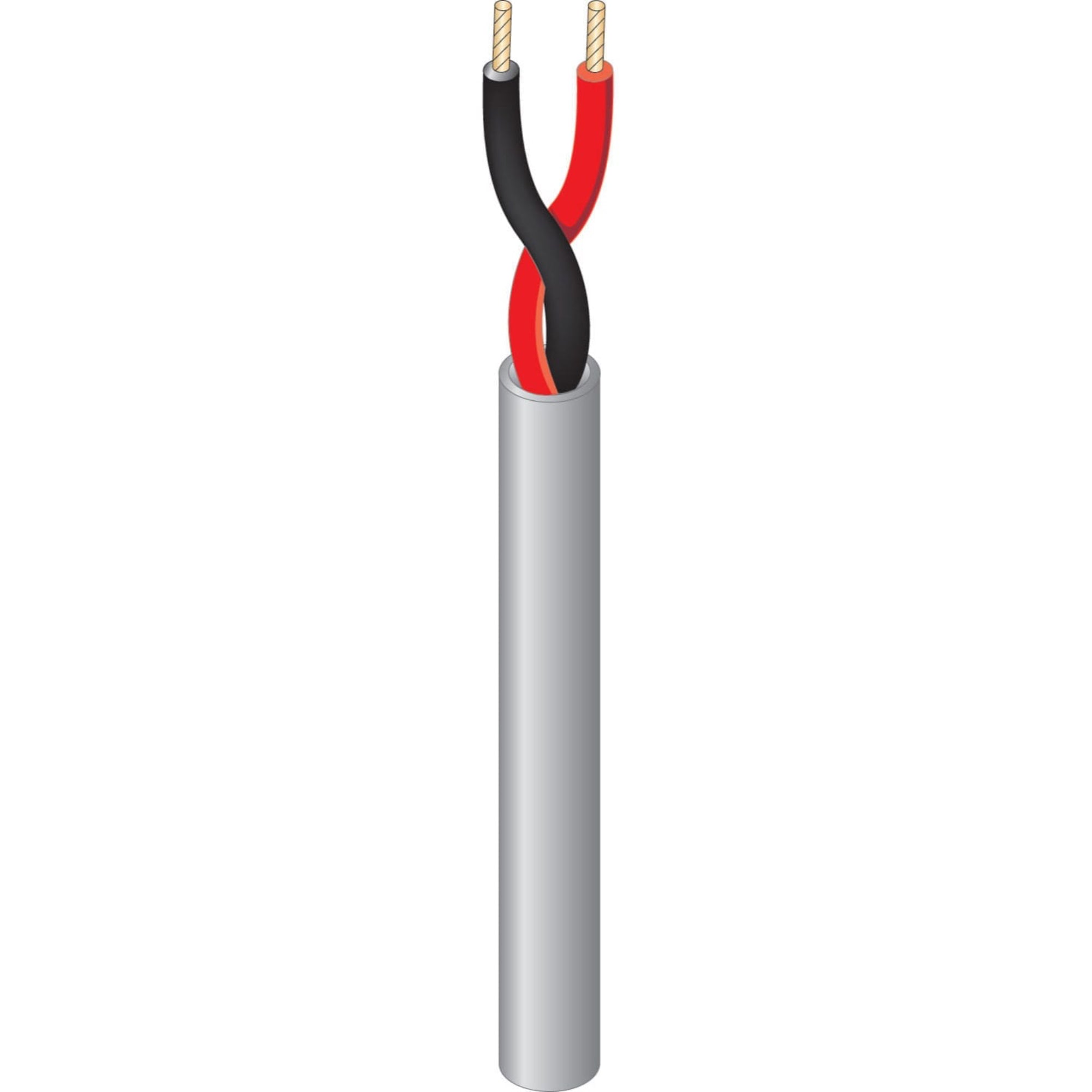

2 Conductor 12awg Non-Plenum CMR Speaker Wire with Stranded Conductors - Grey - Full 1000' Spool
12/2 Stranded bare copper conductors, unshielded with an overall jacket.
Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Conductors: 2
- AWG Size: 12
- Conductor Stranding: 19x25
- Conductor Type: Bare copper
- Nominal DCR: 1.7 Ohm/1000ft
- Cabling Lay Length: 4.5 in
- Twists/Foot: 2.7 twist/ft
- INSULATION PARAMETER
- Insulation Type: PVC
- Insulation Thickness: 0.012 in
- Insulation Color Code: 1. Black 2.White
- SHIELDING PARAMETER
- Shield Type: None
- ELECTRICAL CHARACTERISTICS
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Jacket Thickness: 0.017 in
- Nominal Cable O.D.: 0.264 in
- Plenum: No
- NEC UL Rating: CL3R, FPLR
- RoHS Compliant: Yes
- Pull Tension: 152 lbs
- Bend Radius: 2.376 in
- Cable Weight: 61 lbs
- OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
- UL Flammability: UL1666 Vertical Shaft
- Operating Range: -20 to 60 Deg C
- UL Voltage Rating: 300
Details
- Manufacturer: West Penn
- MPN: 227GY1000
- Model Number: 227GY1000
- UPC:
