Key Features
- 2 x 14 AWG
- Stranded Bare Copper Conductors
- Unshielded Overall Jacket
- Sequentially Footmarked
- For Indoor Use
- Great for Intercom & Security
- Great for Sound, Audio & Music
- Sold by the Foot
- Shipped in a Continuous Length
Description

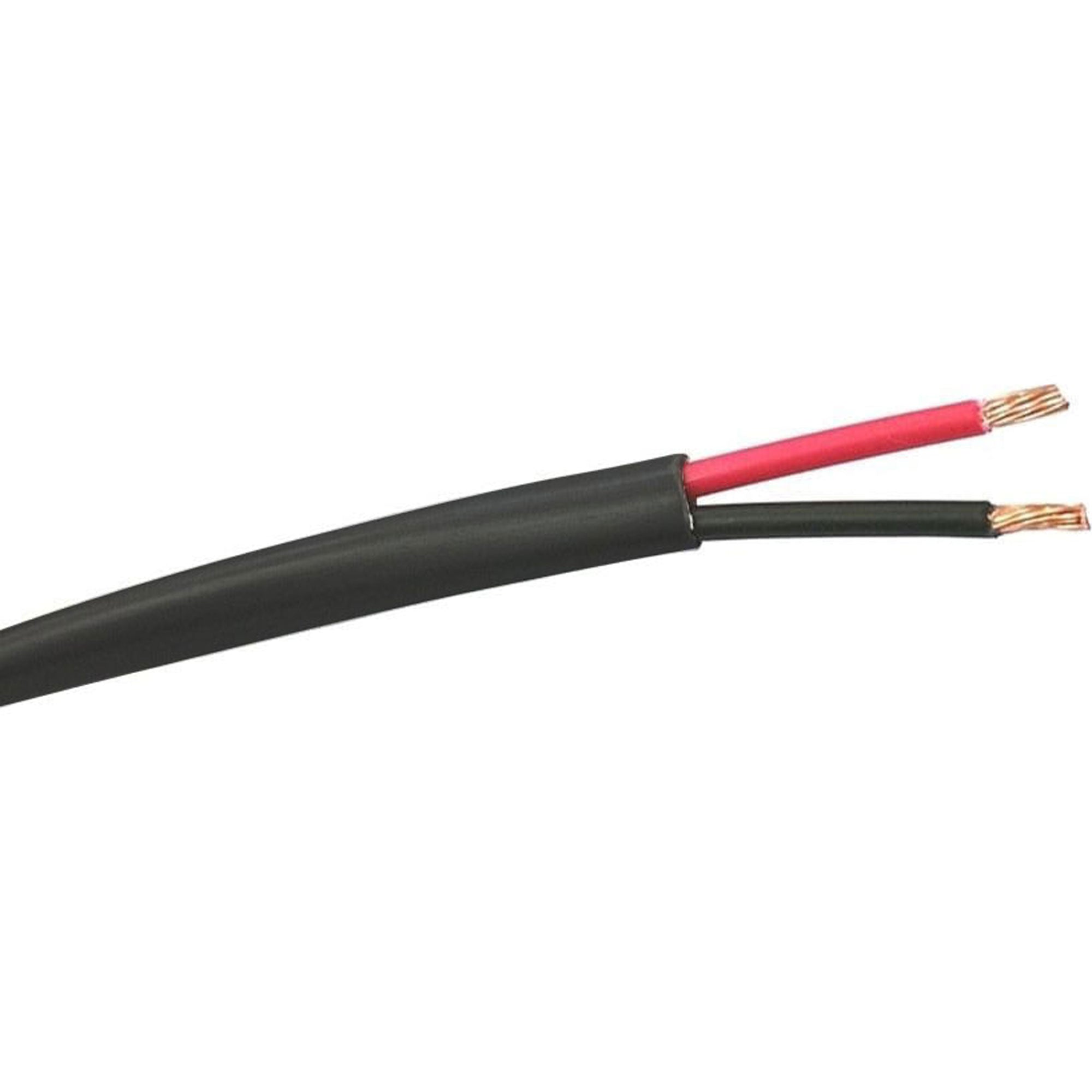

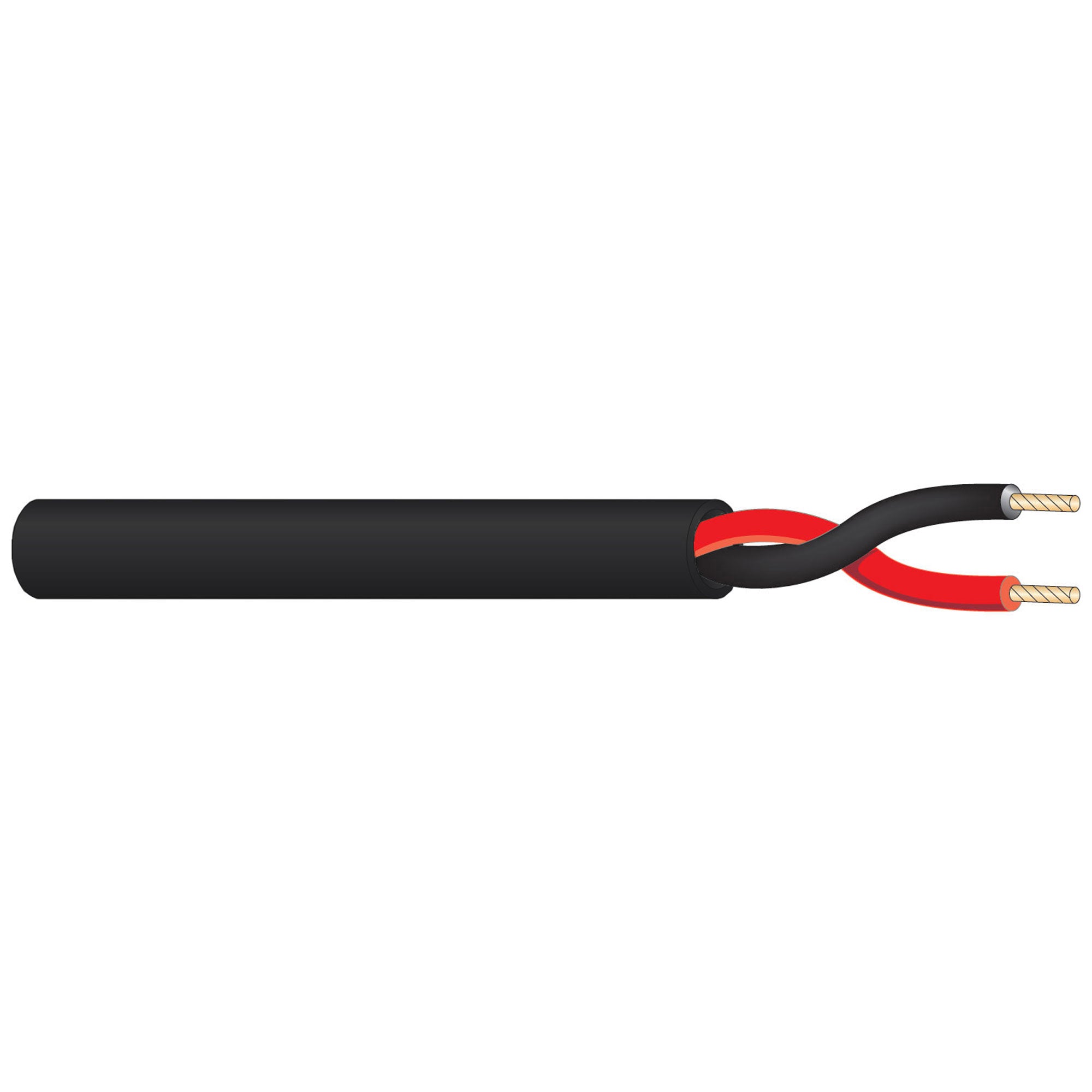

2 Conductor 14awg Non-Plenum CMR Speaker Wire with Stranded Conductors - Black - Sold by the Foot
14/2 Stranded bare copper conductors, unshielded with an overall jacket.
Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Conductors: 2
- AWG Size: 14
- Conductor Stranding: 19x27
- Conductor Type: Bare copper
- Nominal DCR: 2.7 Ohm/1000ft
- Cabling Lay Length: 4 in
- Twists/Foot: 3 twist/ft
- INSULATION PARAMETER
- Insulation Type: PVC
- Insulation Thickness: 0.012 in
- Insulation Color Code: 1. Black 2.White
- SHIELDING PARAMETER
- Shield Type: None
- ELECTRICAL CHARACTERISTICS
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Jacket Thickness: 0.017 in
- Nominal Cable O.D.: 0.23 in
- Plenum: No
- NEC UL Rating: CL3R, FPLR
- RoHS Compliant: Yes
- Pull Tension: 79 lbs
- Bend Radius: 2.07 in
- Cable Weight: 42 lbs
- OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
- UL Flammability: UL1666 Vertical Shaft
- Operating Range: -20 to 60 Deg C
- UL Voltage Rating: 300
Details
- Manufacturer: WEST PENN
- MPN: 226BK
- Model Number: 226BK
- UPC: 612825043737
