Key Features
- 2 x 22 AWG
- Solid Bare Copper Conductors
- Unshielded Overall Jacket
- Sequentially Footmarked
- For Indoor Use
- Great for Intercom & Security
- Great for Sound, Audio & Music

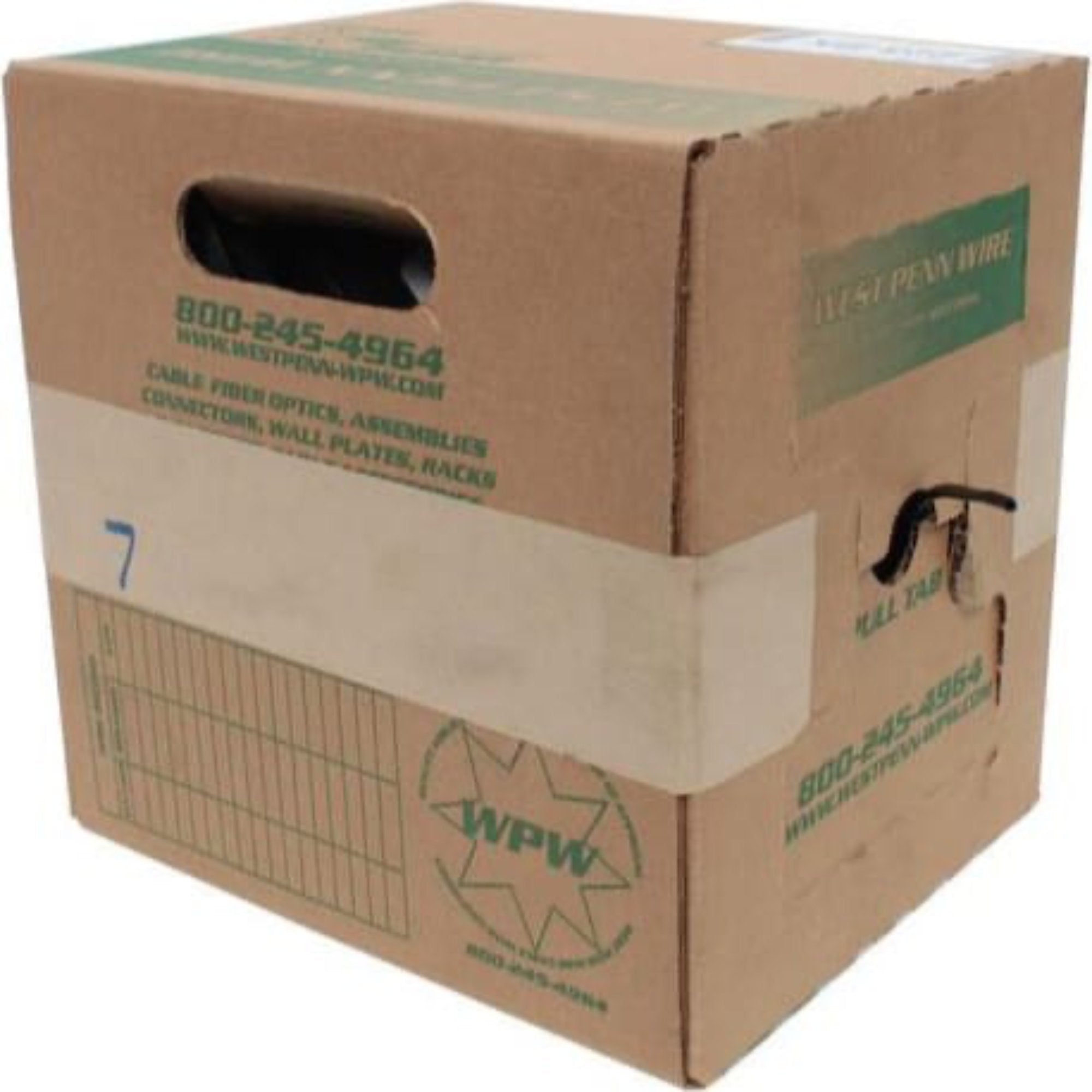

- Full 1000' Spool
Description

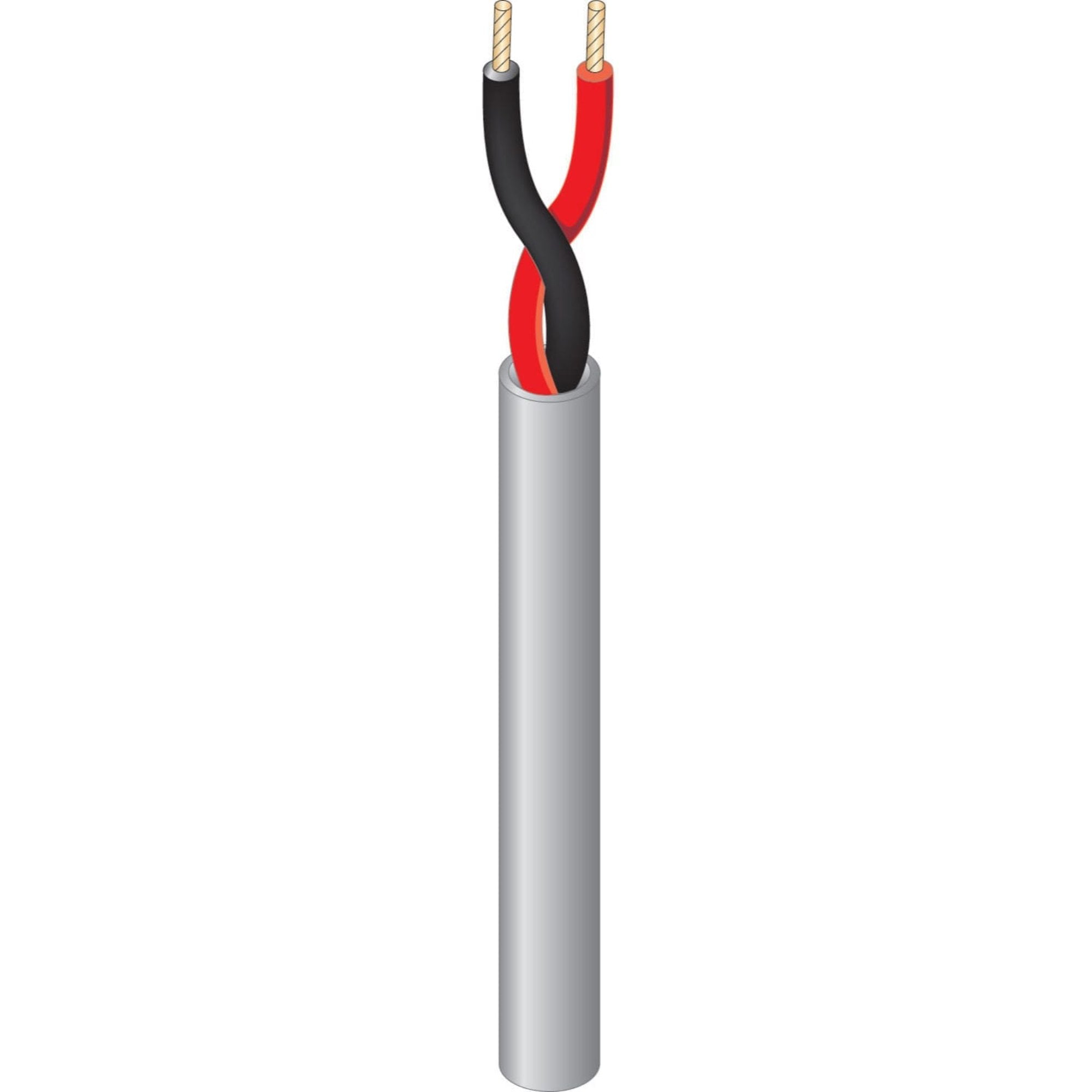

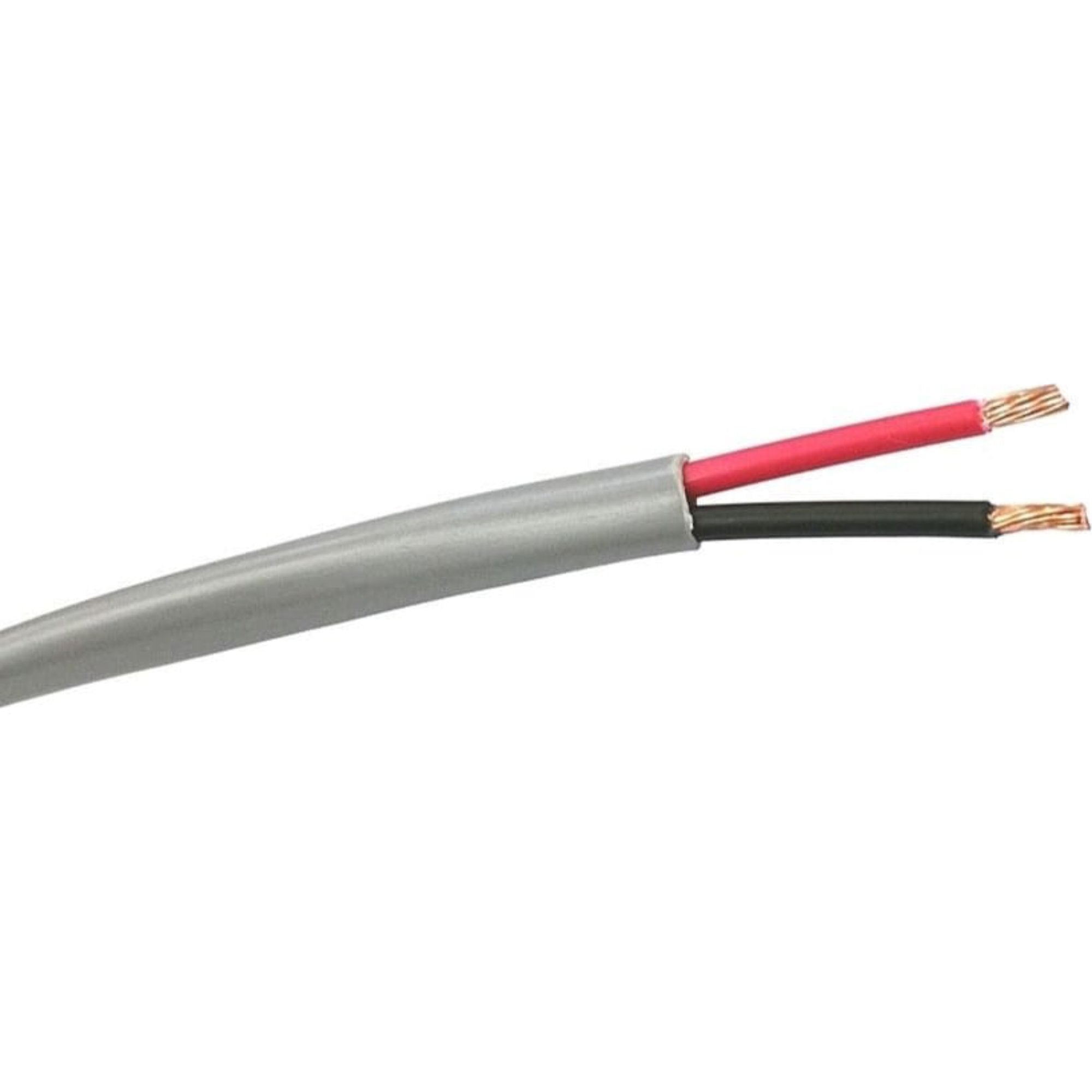

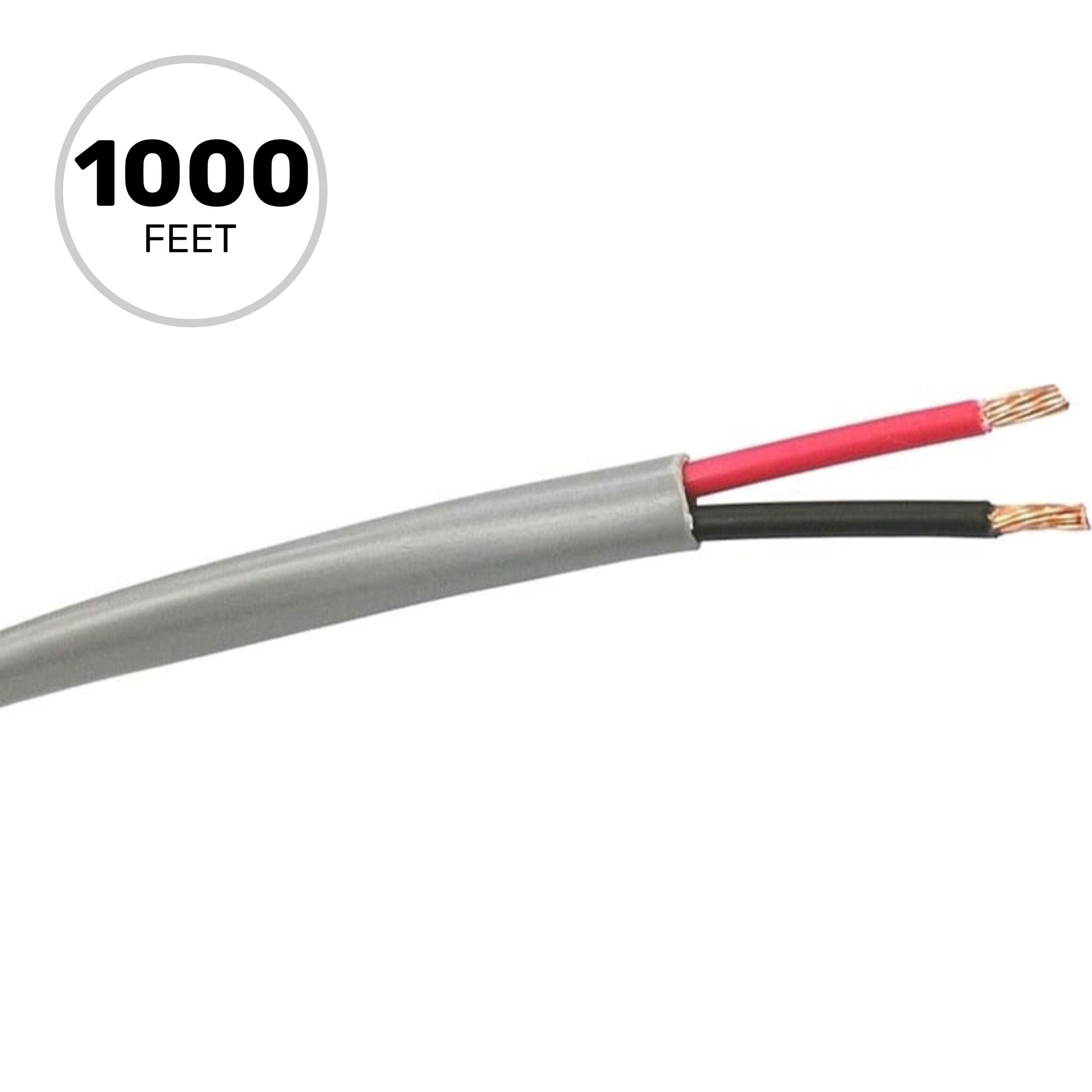

2 Conductor 22awg Non-Plenum CMR Speaker Wire with Solid Conductors - Grey - Full 1000' Spool
22/2 Solid bare copper conductors, unshielded with an overall jacket.
Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Conductors: 2
- AWG Size: 22
- Conductor Stranding: Solid
- Conductor Type: Bare copper
- Nominal DCR: 17.5 Ohm/1000ft
- Cabling Lay Length: 1.5 in
- Twists/Foot: 8 twist/ft
- INSULATION PARAMETER
- Insulation Type: Polypropylene - PP
- Insulation Thickness: 0.007 in
- Insulation Color Code: 1. Black 2.Red
- SHIELDING PARAMETER
- Shield Type: None
- ELECTRICAL CHARACTERISTICS
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Jacket Thickness: 0.017 in
- Nominal Cable O.D.: 0.118 in
- Plenum: No
- NEC UL Rating: CMR, CMG
- RoHS Compliant: Yes
- Pull Tension: 18 lbs
- Bend Radius: 1.062 in
- Cable Weight: 10 lbs
- OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
- UL Flammability: UL1666 Vertical Shaft
- CSA Flammability: FT4
- Operating Range: -20 to 60 Deg C
- UL Voltage Rating: 300
Details
- Manufacturer: West Penn
- MPN: 220GY1000
- Model Number: 220GY1000
- UPC:
