Key Features
- Fits PES51 Soldering Pencil
- 0.8mm (1/32") Tip Size
- Sensor Hole in Base
- Conical Shape
Description

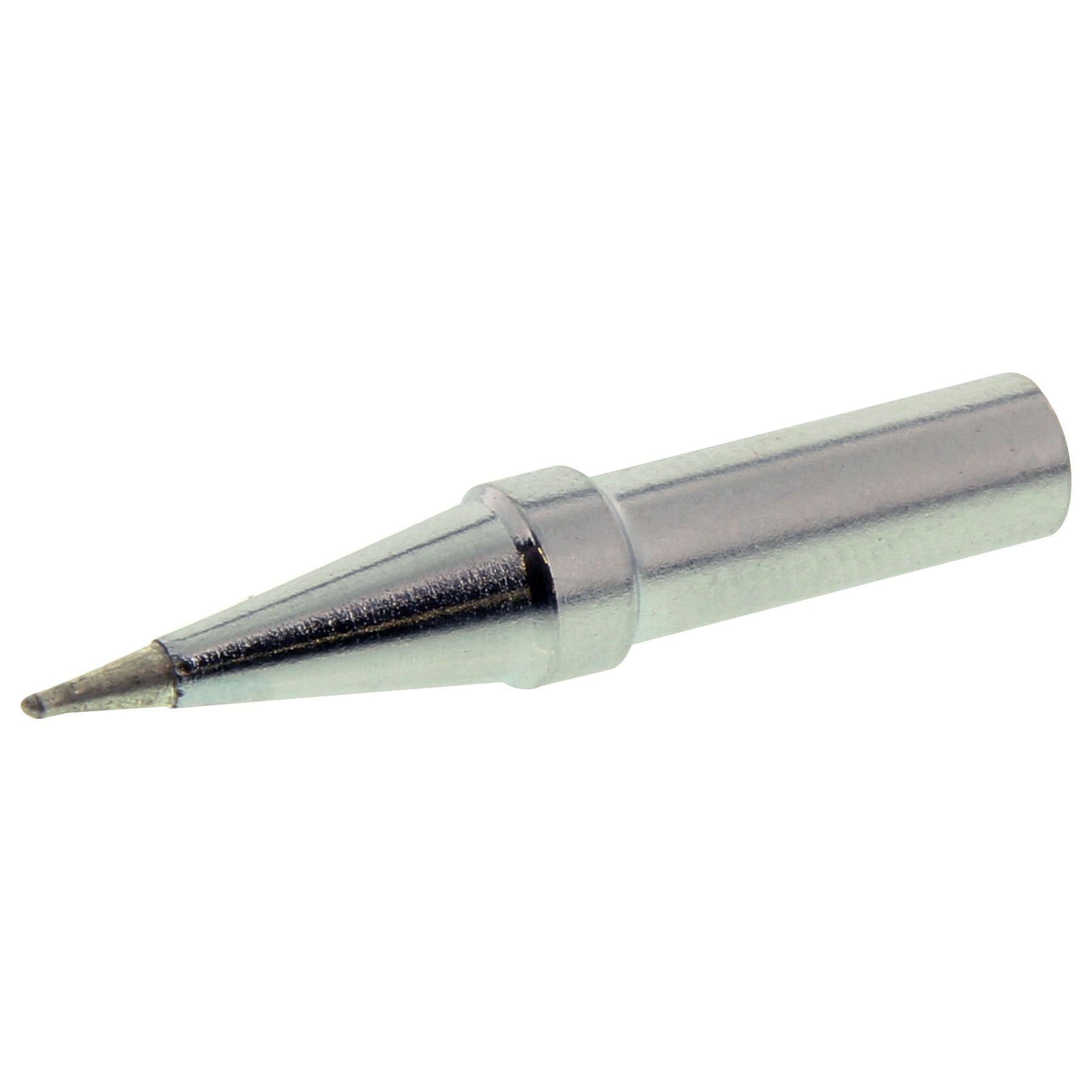

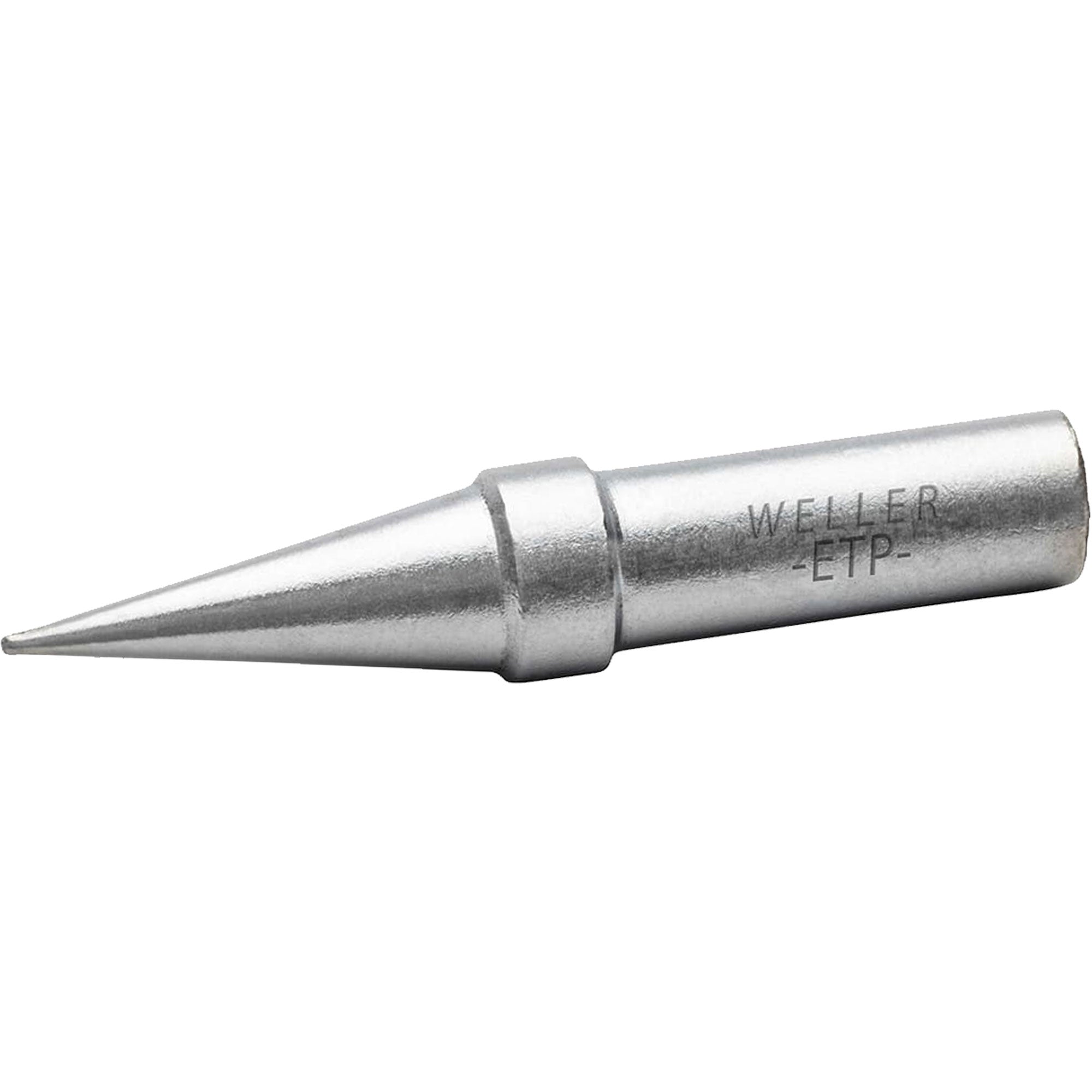

Soldering Iron Tip, Conical, 0.031 inch / 0.8 mm
The Weller ETP is a 0.031" / 0.8 mm, Conical soldering tip.
Weller ET tips are compatible for use with a variety of Weller stations and tools. Weller ET tips have a long life, which helps reduce the total cost of ownership through decreased costs in consumables and maintenance.
Effective heat transfer
High quality copper core delivers effective heat transfer to the solder point
Longer life
Iron and chrome plating extends the service life of the soldering tip
Compatibility
Weller ET tips are compatible with many systems including the WE1010, WES51/50, WESD51, LR21 and WEP70
Features:
- The Weller ETP Conical Tips are for the for PES51 Soldering Pencil.
- Tips are tinned with Lead-Free Solder
- Sensor hole in the base of tip is fitted with a stainless steel liner
- Prevents the tip from seizing to the sensor
Specifications:
- Length: 0.625"
- Finish: Chromium, Iron and Nickel Plated
- Fits Model: PES51
- For Use With: EC1201A, EC1204A, PES50, PES51, WCC101 Soldering Pencils
- Lead-Free Solder Compatible: Yes
- Material: Copper
- RoHS Compliance: Yes
- Shape: Conical
- Style: ETP
- Style 1: ETP
- Tip Size: 0.031"
- Tip Style: Conical
- Tip Thickness: 0.0120"
- Type: Soldering Tip
Details
- Manufacturer: Weller
- MPN: ETP
- Model Number: ETP
- UPC: 037103477248
