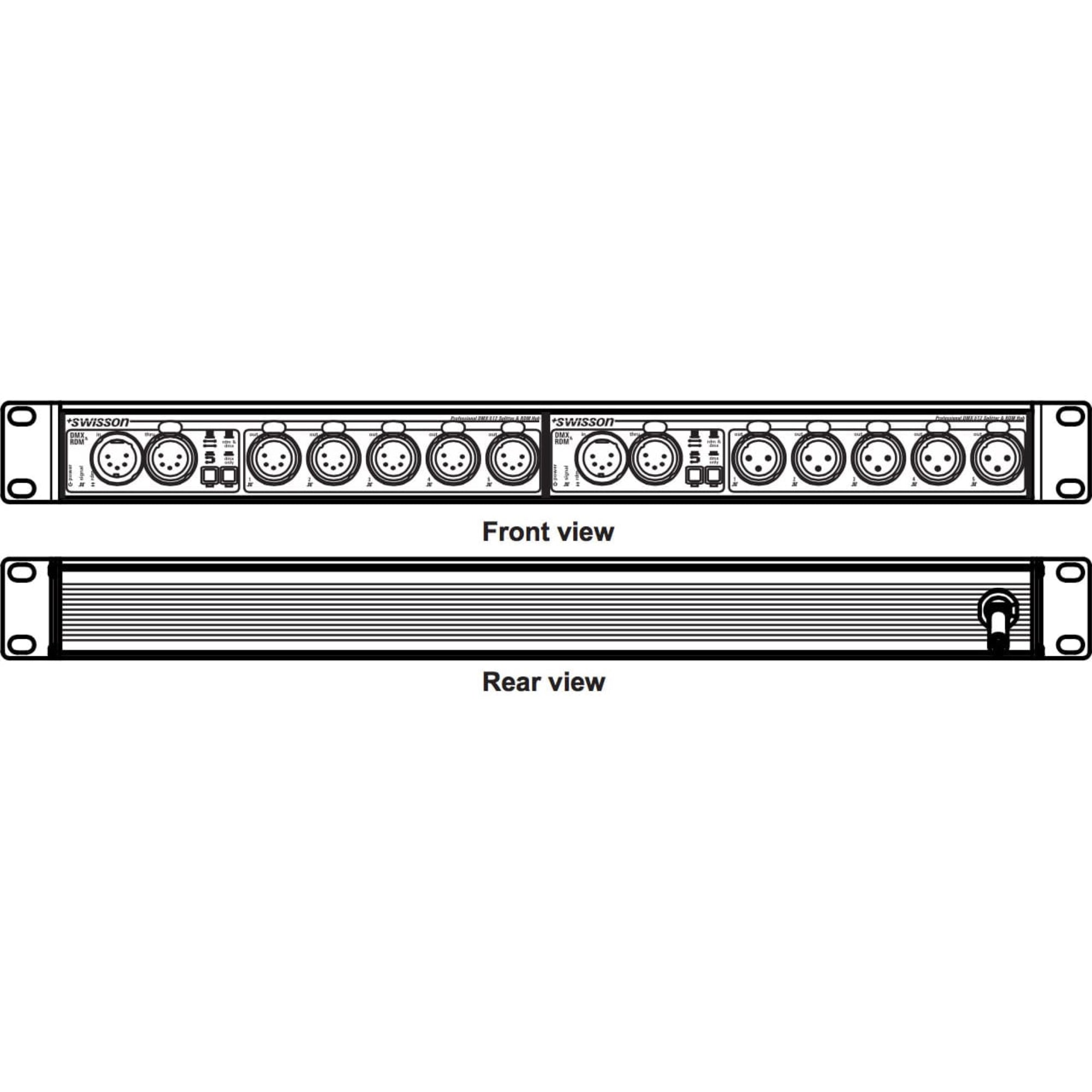

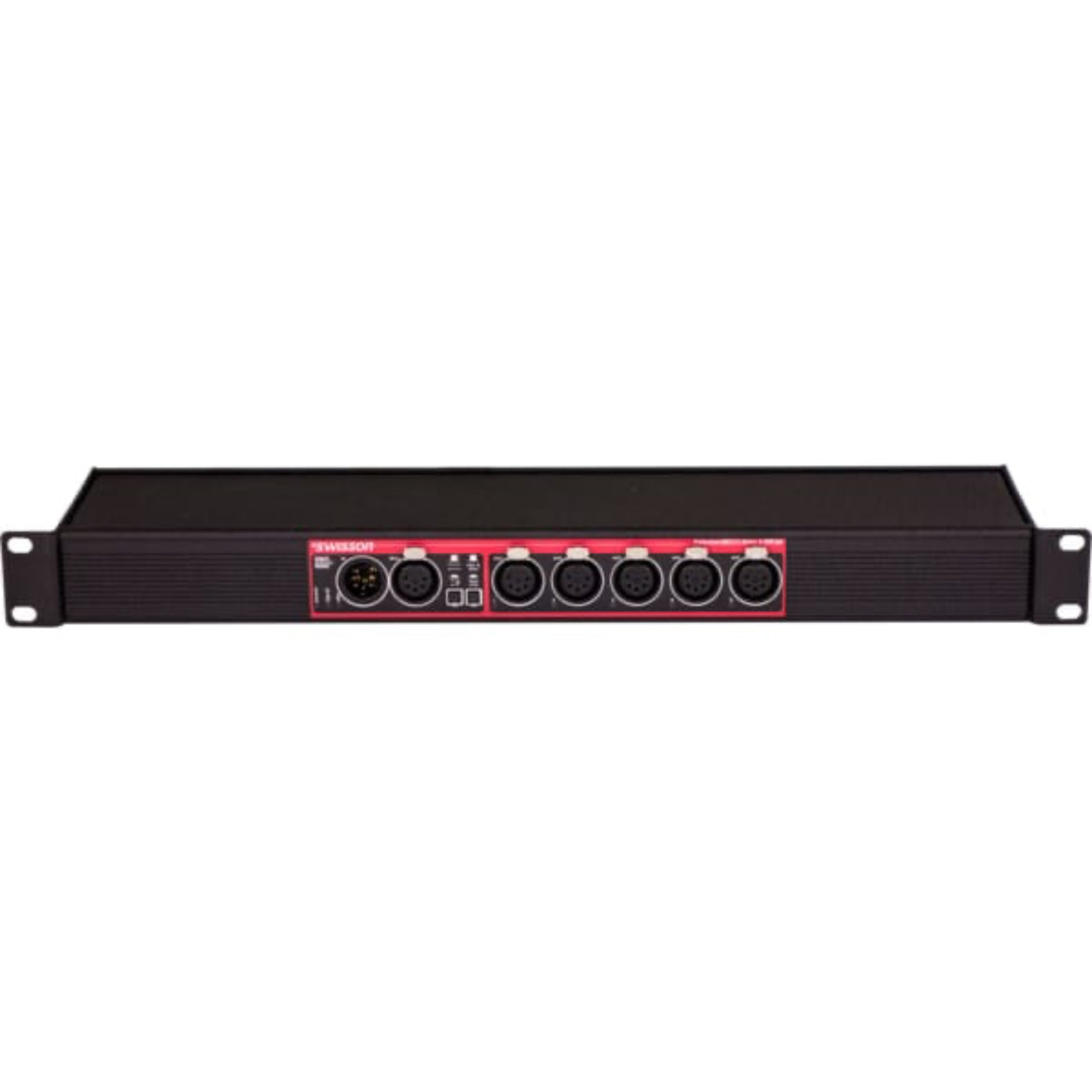

Swisson XSR-5R5-5R5-US RDM & DMX Splitter (Double Rack Mix)

5-Pin and 3-Pin RDM & DMX Splitter / Booster - Double Rack Mix Style with NEMA 5-15

The splitters of the SWISSON XSR series are reliable DMX and RDM splitters and boosters that process DMX and RDM signals with a high level of reliability for professional applications.

The XSR has a specially designed power supply which ensures safe operation even under harsh mains conditions. All ports are individually optically isolated and well protected against transient over voltages.

In the "DMX-only" mode all non-DMX data is filtered out and a clean signal without RDM or other protocols is generated.

The XSR splitters are "discoverable", and are visible to RDM controllers. This gives the user a better overview of the installation and helps with trouble shooting.

What is RDM?
RDM (Remote Device Management) is an extension of the DMX512 protocol for monitoring and configuring DMX512 equipment. It runs concurrently with DMX512 over the same cable. DMX addresses, device profiles and other parameters can be set remotely by an RDM capable light controller.

Changing the DMX address of a fixture with the ladder is not necessary anymore. Unlike DMX, RDM is a bidirectional protocol. RDM needs a splitter which can handle the bidirectional communication.

Features:

• High level of reliability
• Boosts DMX & RMD
• Regenerates DMX & RDM
• Reduces reflection problems
• Distributes DMX & RDM
• Optical isolation on each individual port
• Connection types: 5-pin and 3-pin XLR models,
• RJ-45 and Pluggable screw terminals models
• Housing types: Installation, box, rack and double rack models
• 5 DMX outputs per universe (10 outputs on the double-rack)
• Built-in line termination
