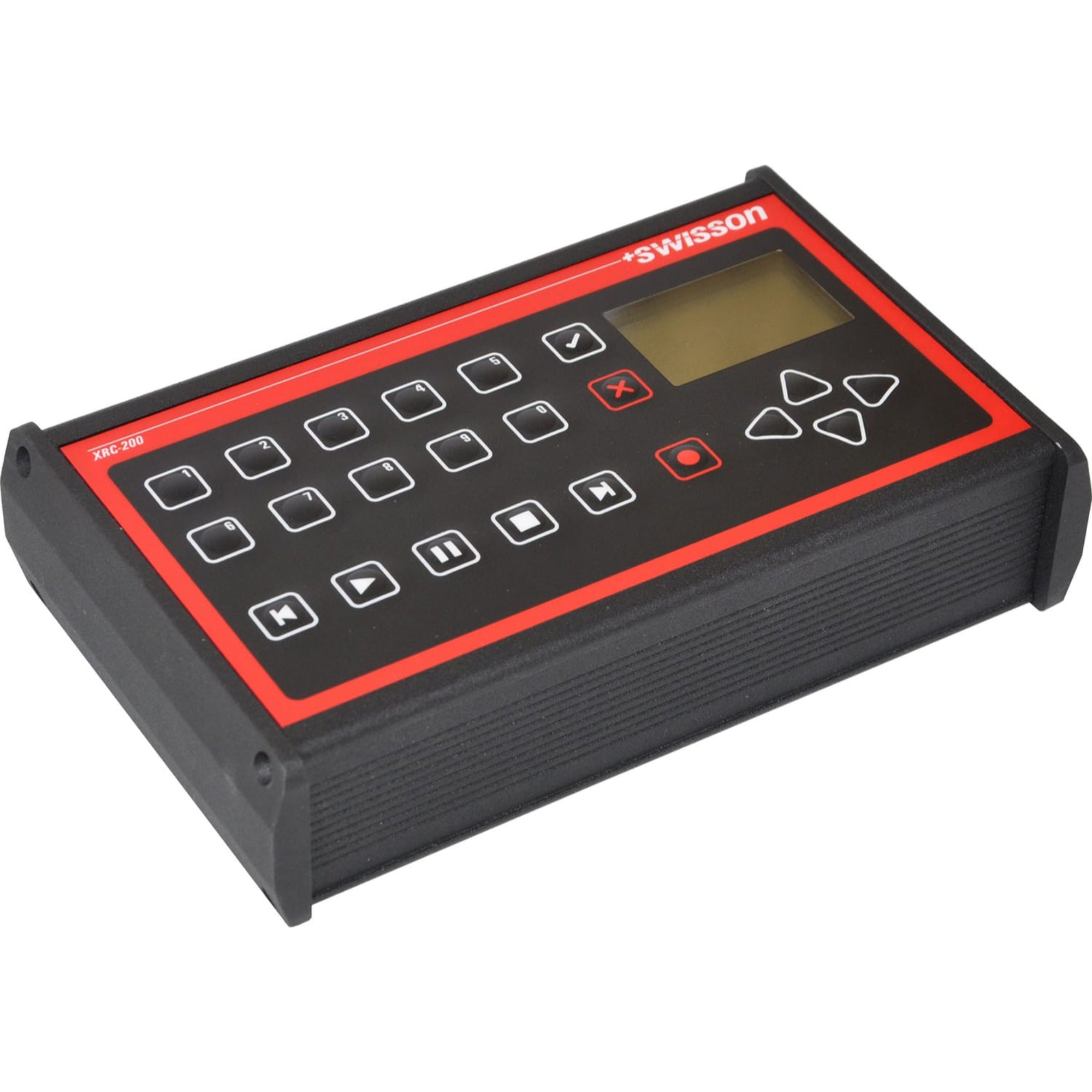

Swisson XRC-200 DMX Dynamic Recorder

2 Universe, Real-Time DMX Recorder, Stand-Alone DMX Replay Unit

The XRC-200 is an easy to use DMX recording and replay unit. The operating concept is similar to a CD player and can be used by non-professionals.

The sequences are recorded from a lighting console, or other DMX output device, onto the device. The XRC-200 replays the recorded sequences in real time.

With the ability to record 2 DMX universes (1024 DMX channels), the XRC-200 is also suitable for LED and moving light applications/installations. A variety of applications in architecture and entertainment, tradeshow, retail and museum lighting are covered with the XRC-200 easily and economically.

The optional XRC-CT15B contact box with 15 inputs for dry contacts allows a customized integration of triggers for control of the XRC-200 in. In addition, the XRC-200 has an internal timer for show and device control. The device can also be set up to be remotely operated or triggered by DMX. During live shows, the XRC-200 can be used as a DMX backup device.

The sequences and settings of the XRC-200 can be stored and managed with the XRC-200 PC software, which is connected via the USB port.

Features:

• Record and play back 64 sequences
• 10 configurable play lists
• Configurable fade times
• Optional 15 control inputs
• 2 DMX inputs
• 2 DMX outputs
• Built-in timer
• Backup device
• USB connection for firmware update, and PC software
• PC software for uploading, downloading and storage of shows
