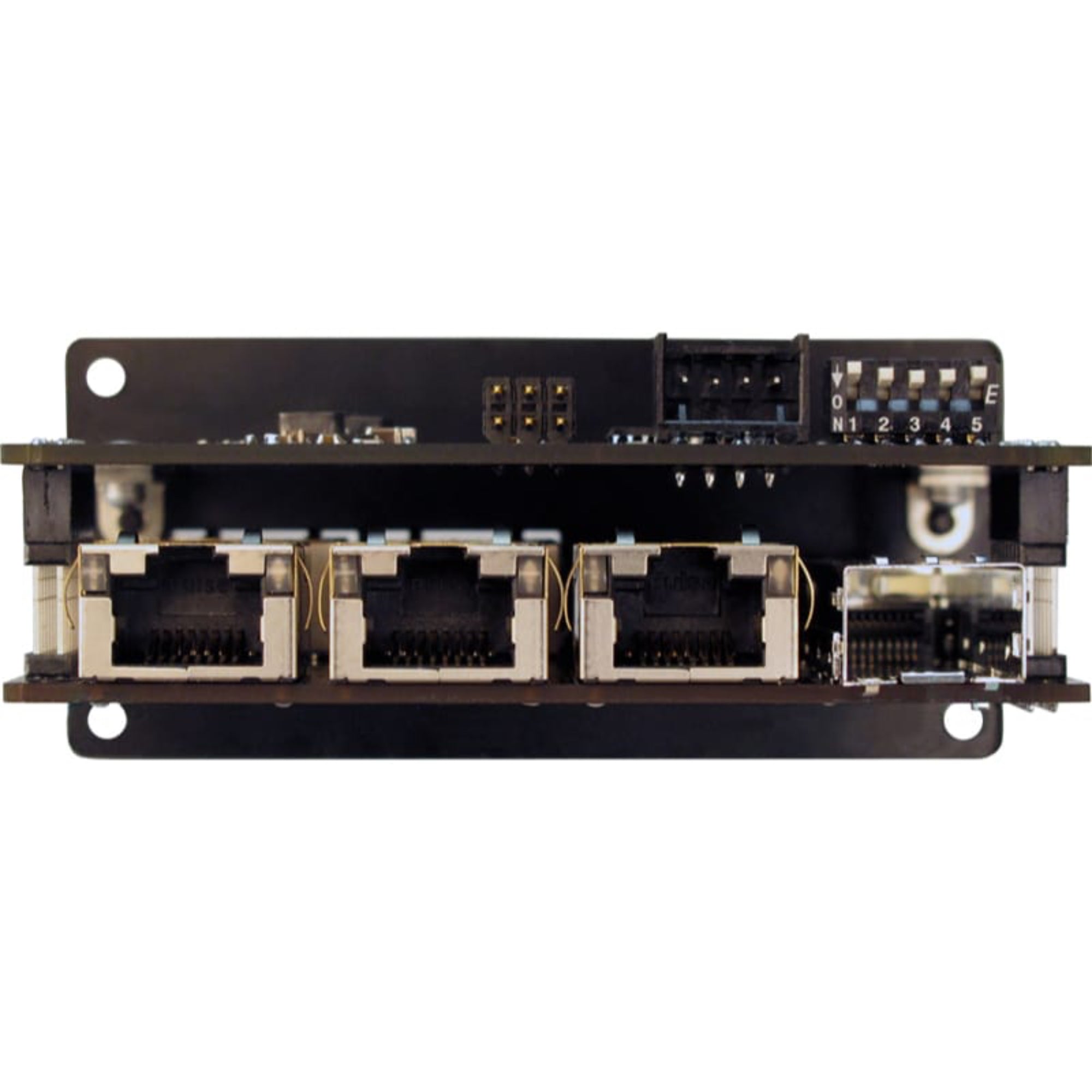

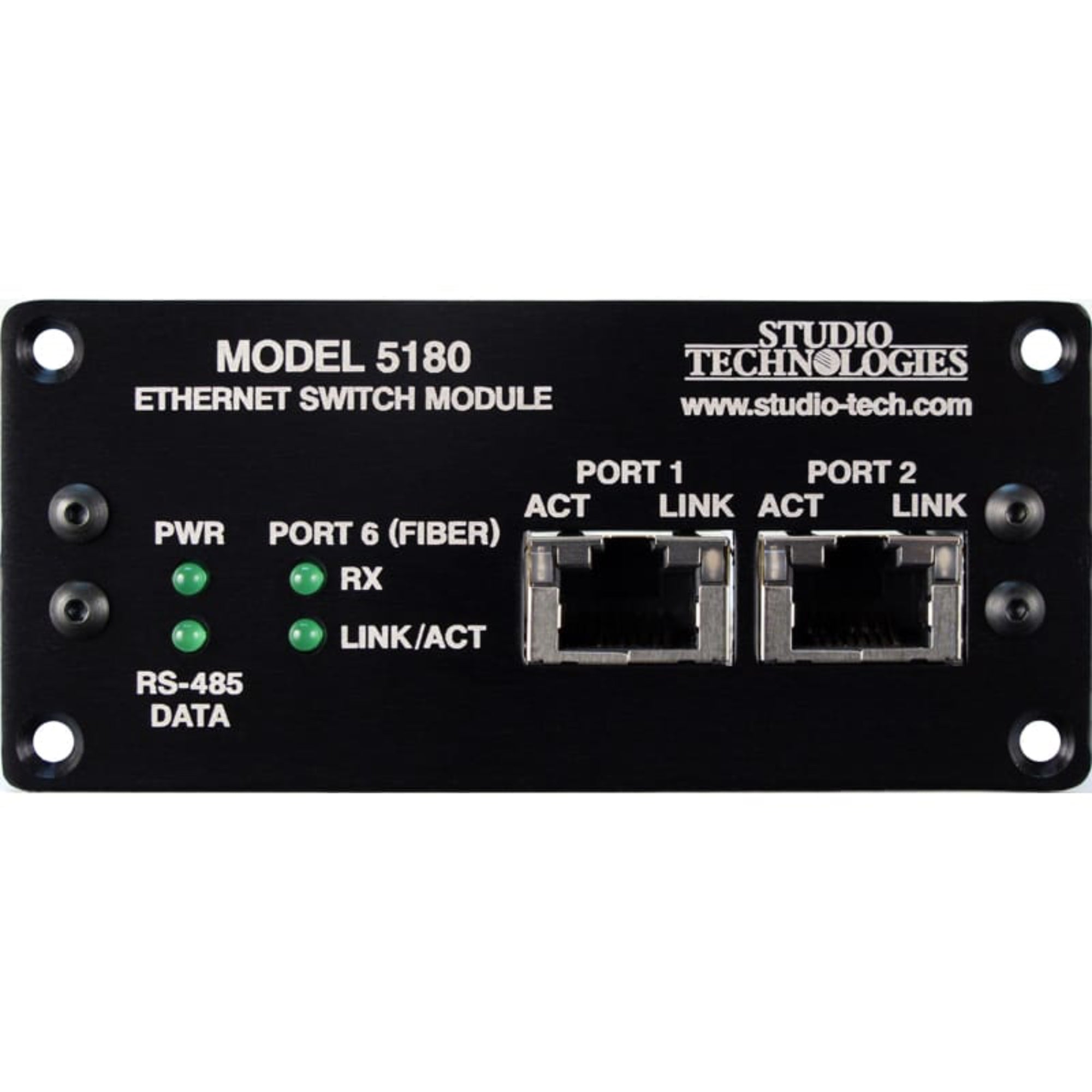

Studio Technologies Model 5180 Ethernet Switch Module

Ethernet Switch Module without Optical Support

The Model 5180 is a combination 5-port copper (UTC) Ethernet switch and single-mode optical fiber Ethernet media converter. All UTC ports (RJ45 jacks) support 10/100/1000 "Gigabit" Ethernet with auto MDI/MDI-X capability. Advanced high technology performance includes support for Ethernet AVB standards. Optional optical transceiver module adds Gigabit media conversion capability for interconnecting Ethernet signals via fiber. Standard optical output wavelength is 1310 nm FP; CWDM wavelengths available (1490 and 1550 nm stocked). Requires mounting method and 12 Vdc for operation.
