Studio Technologies Model 204 Announcer's Console

Model 204 Announcer's Console

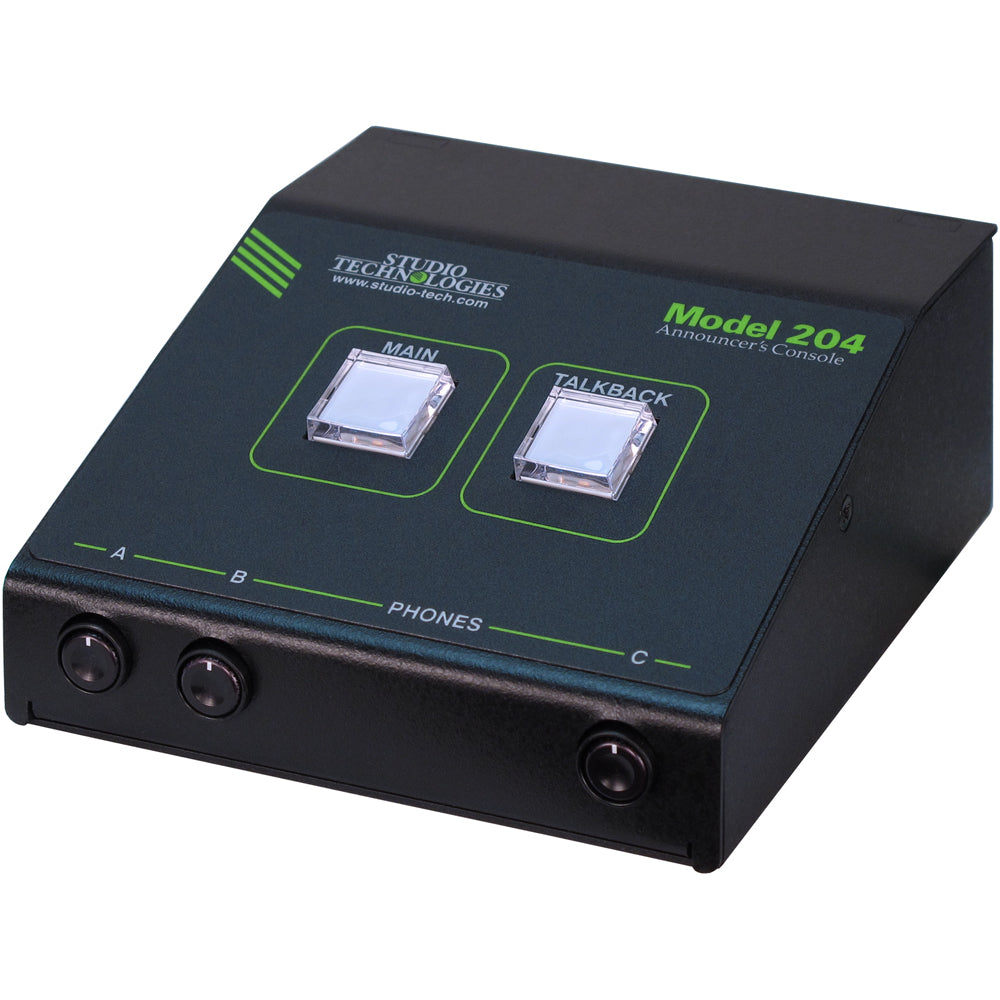

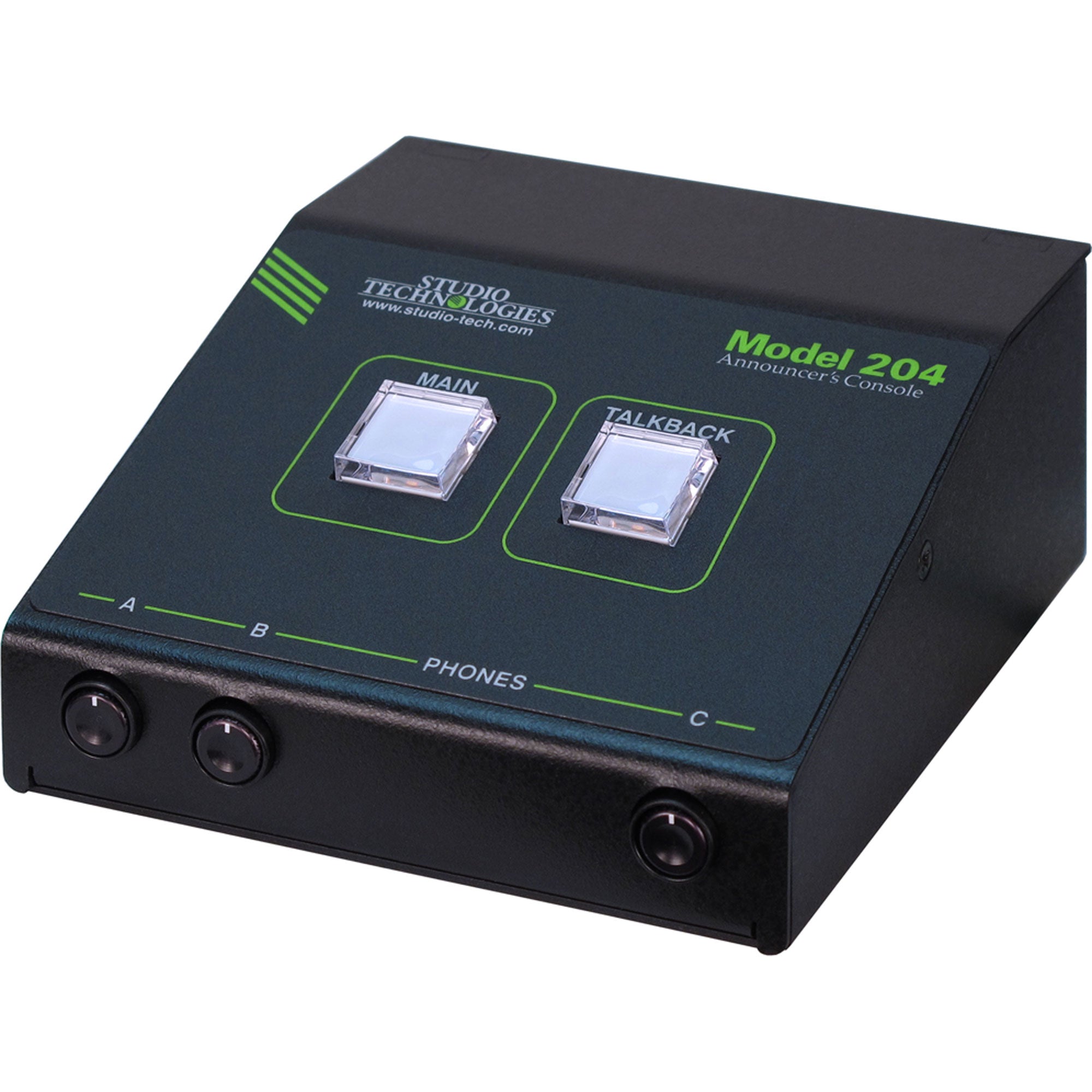

The Model 204 Announcer's Console offers a unique combination of analog and digital audio resources for use in broadcast sports, eSports, live event, entertainment, and streaming broadcast applications. The unit is housed in a compact, rugged steel enclosure that's intended for table-top use. Calling the Model 204 "cute" or "cool" would be accurate; its nicely proportioned but diminutive size makes it ideal for use in space-constrained locations. The Model 204 supports Dante audio-over-Ethernet digital media technology with AES67 compatibility for integration into contemporary applications. The unit is extremely simple to deploy, is "pro" quality throughout, and provides an intuitive user experience. The Model 204's audio quality is excellent, with low distortion, low noise, and ample headroom. Careful circuit design and rugged components ensure long, reliable operation.

The Model 204 integrates directly into both Dante audio-over-Ethernet and standard analog audio environments. With just a Power-over-Ethernet (PoE) connection, a microphone, and a pair of headphones or an earpiece, a complete broadcast on-air position can be created. And by using the Model 204's microphone output a direct connection to an analog microphone-level input on an associated camera, remote I/O interface, or audio console can be supported. Two remote control inputs allow external switches or contact closures to activate the main and talkback button functions.

Model 204 operating features are configured using the STcontroller personal computer software application. An extensive set of parameters allows the unit's functions to be tailored to meet the needs of many applications. STcontroller, compatible with version 7 and later of the Windows operating system, is a fast and simple means of confirming and revising the unit's operating parameters.

Specifications:

• Power Source:
  Power-over-Ethernet (PoE): class 2 (low power, <=6.49 watts)
• Network Audio Technology:
  Type: Dante audio-over-Ethernet
  AES67-2013 Support: yes
  Dante Domain Manager (DDM) Support: yes
  Bit Depth: up to 24
  Sample Rate: 44.1 and 48 kHz
  Number of Transmitter (Output) Channels: 2 (main, talkback)
  Number of Receiver (Input) Channels: 4 (Headphone Ch1,Headphone Ch2, Headphone Ch3, Headphone Ch4)
  Dante Audio Flows: 4; 2 transmitter, 2 receiver
• Network Interface:
  Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
  Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)
• Microphone Input:
  Compatibility: dynamic or phantom-powered microphones
  Type: balanced, capacitive coupled
  Impedance: 2 k ohms, nominal
  Gain: 35, 43, 52, 59 dB, selectable
  Frequency Response: 25 Hz to 20 kHz, -3 dB
  Distortion (THD+N): <0.022%, measured at 35 dB of gain
  Dynamic Range: 96 dB, A-weighted
  Phantom Power: P48 per IEC 61938 standard, on/off selectable with status LED
• Compressor:
  Application: applies to Dante main and talkback transmitter (output) channels
  Threshold: 1 dB above nominal level (-19 dBFS)
  Slope: 2:1
  Status LED: compressor active
• Microphone Output:
  Type: passive via two 200 ohm resistors from microphone input (will pass phantom power in either direction)
  Muting: solid-state relay contacts, 60 dB attenuation @ 1 kHz
• Headphone Output:
  Type: 2-channel (stereo)
  Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headphones, headsets, or earpieces with nominal impedance of 50 ohms or greater
  Maximum Output Voltage: 3.8 Vrms, 1 kHz, 150 ohm load
  Frequency Response: 20 Hz to 20 kHz, -2 dB
  Distortion (THD+N): <0.002%
  Dynamic Range: >100 dB
• Remote Control Inputs: 2
  Functions: mimics the action of the main and talkback button functions
  Type: active low, 1 mA maximum, inputs pull up to 3.3 volts DC

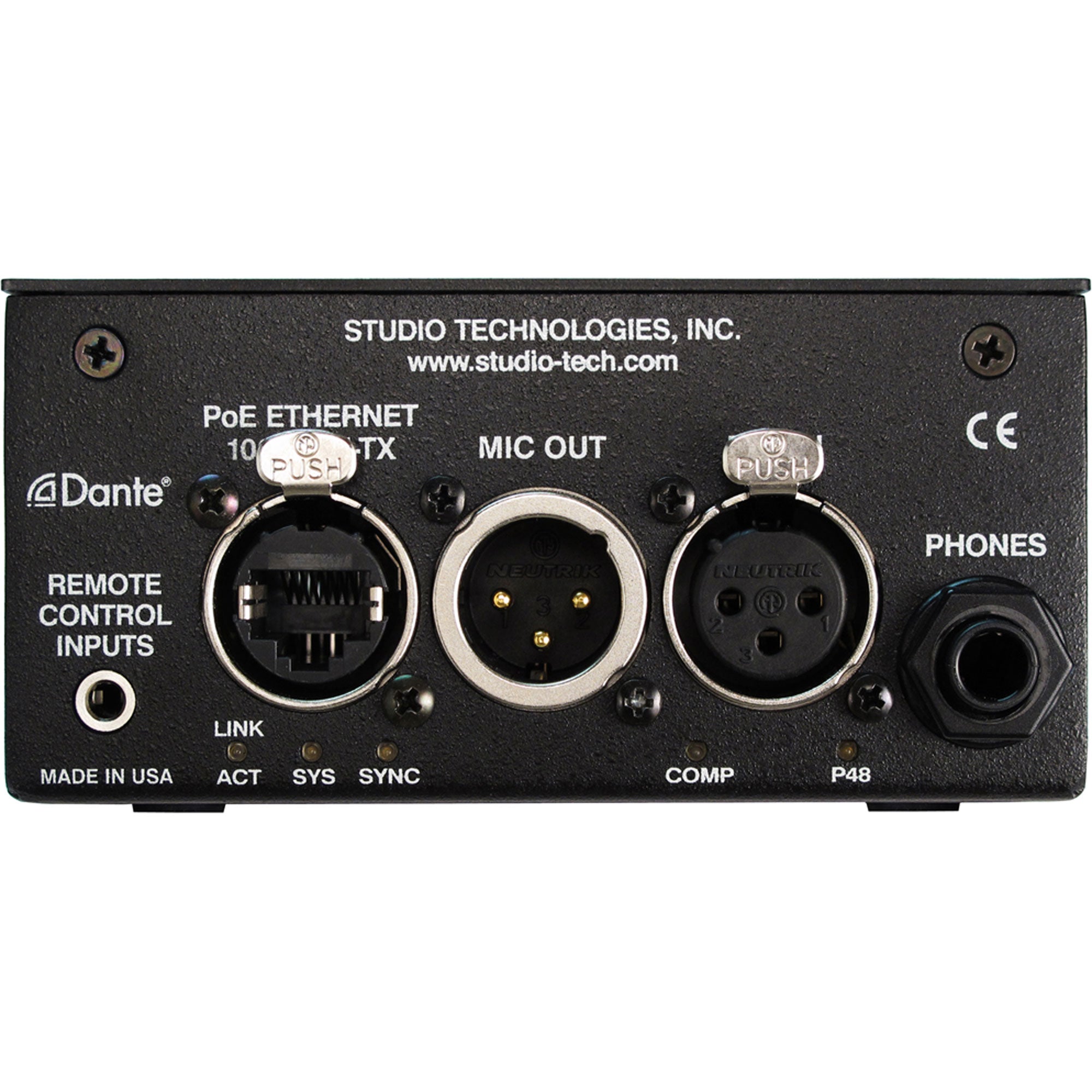

• Connectors:
  Microphone Input: 3-pin female XLR
  Microphone Output: 3-pin male XLR
  Headphone Output: 3-conductor ¼-inch jack
  Remote Control Inputs: 3-conductor 3.5 mm jack
  Ethernet: Neutrik etherCON RJ45
  USB: type A receptacle (located inside Model 204's enclosure and used only for updating firmware)
• Configuration: requires Studio Technologies STcontroller personal computer application, version 1.05.00 and later
  (STcontroller compatible with Windows version 7 and later)
• Dimensions (Overall):
  4.3 inches wide (10.9 cm)
  2.1 inches high (5.4 cm)
  5.1 inches deep (13.0 cm)
• Deployment: intended for tabletop applications
• Weight: 1.2 pounds (0.55 kg)
