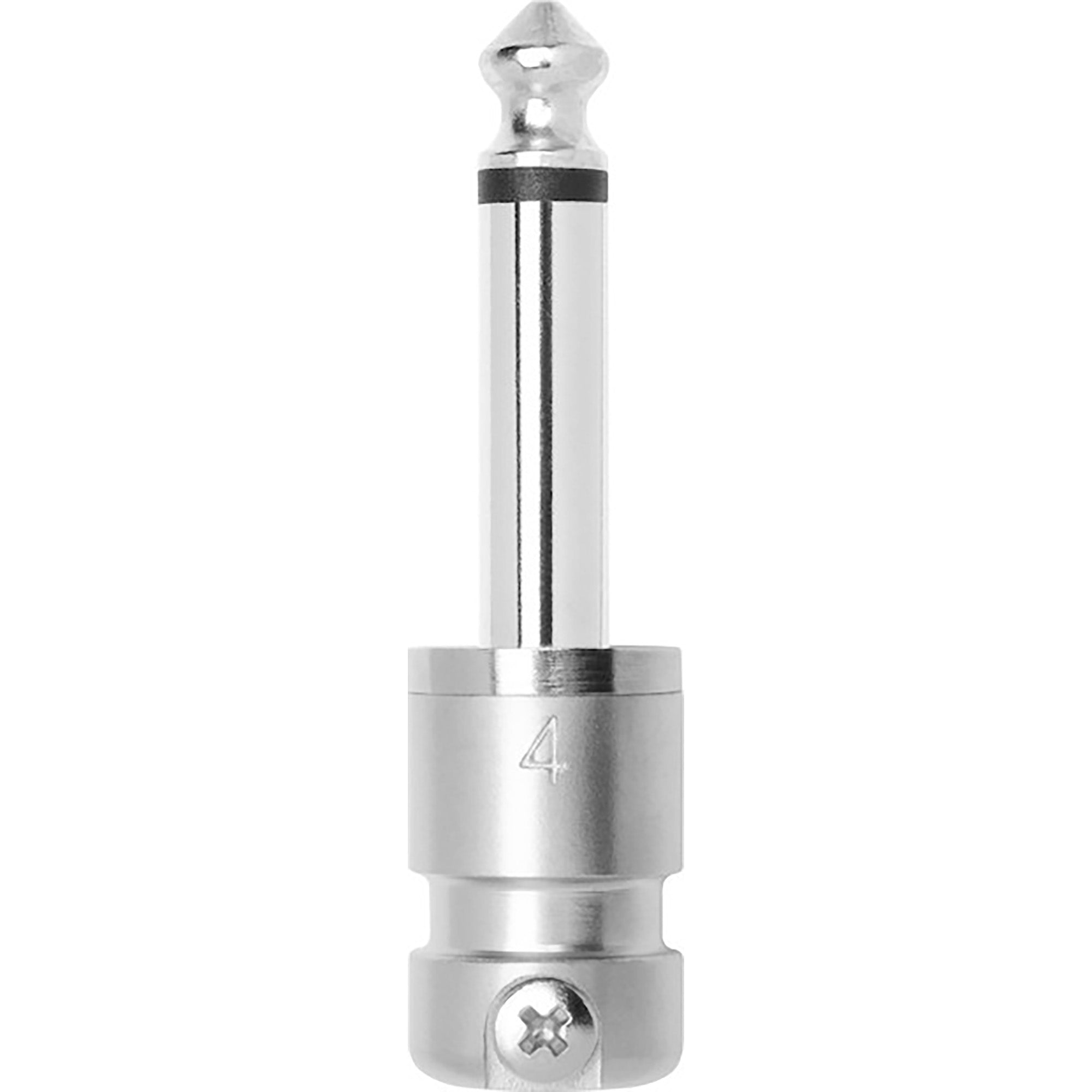

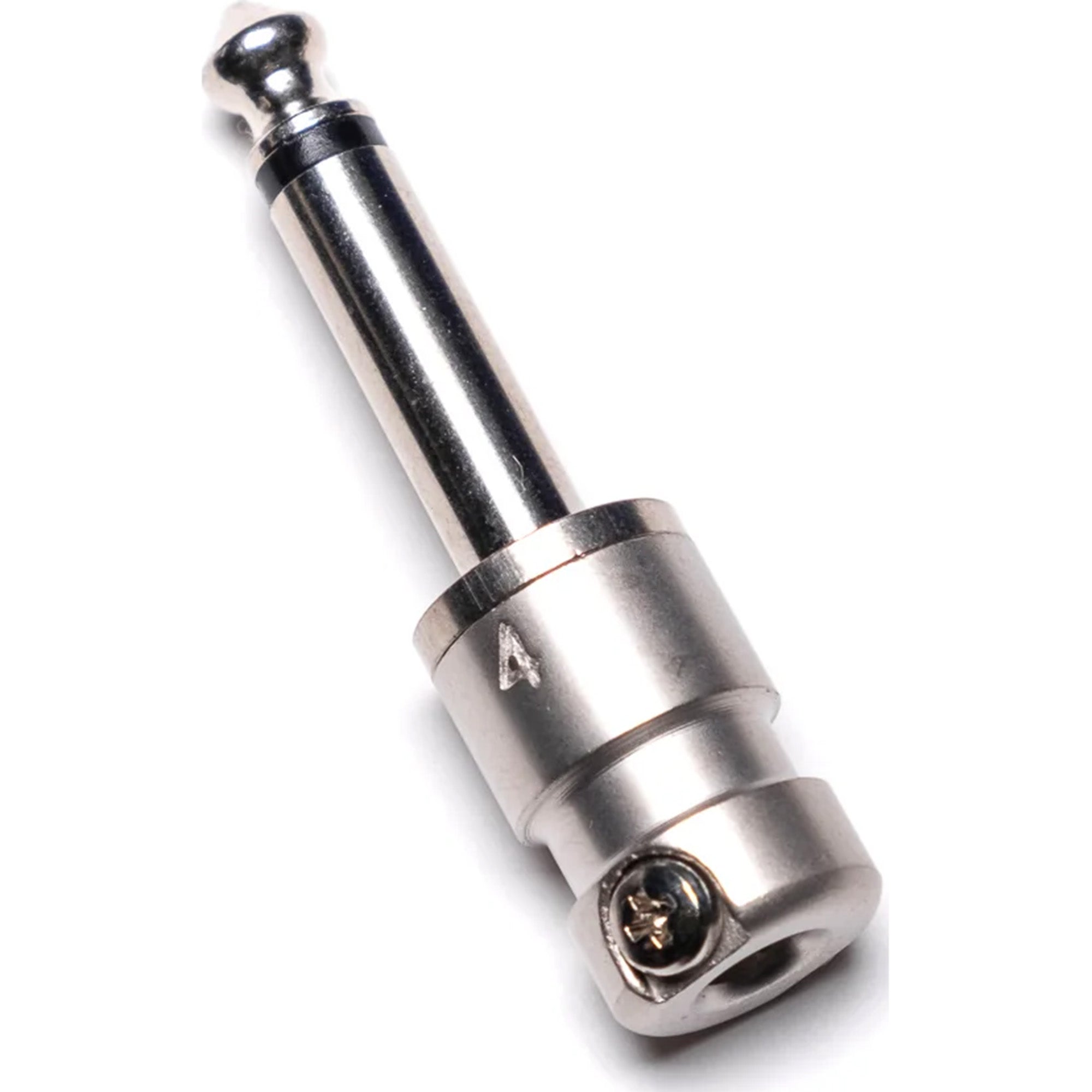

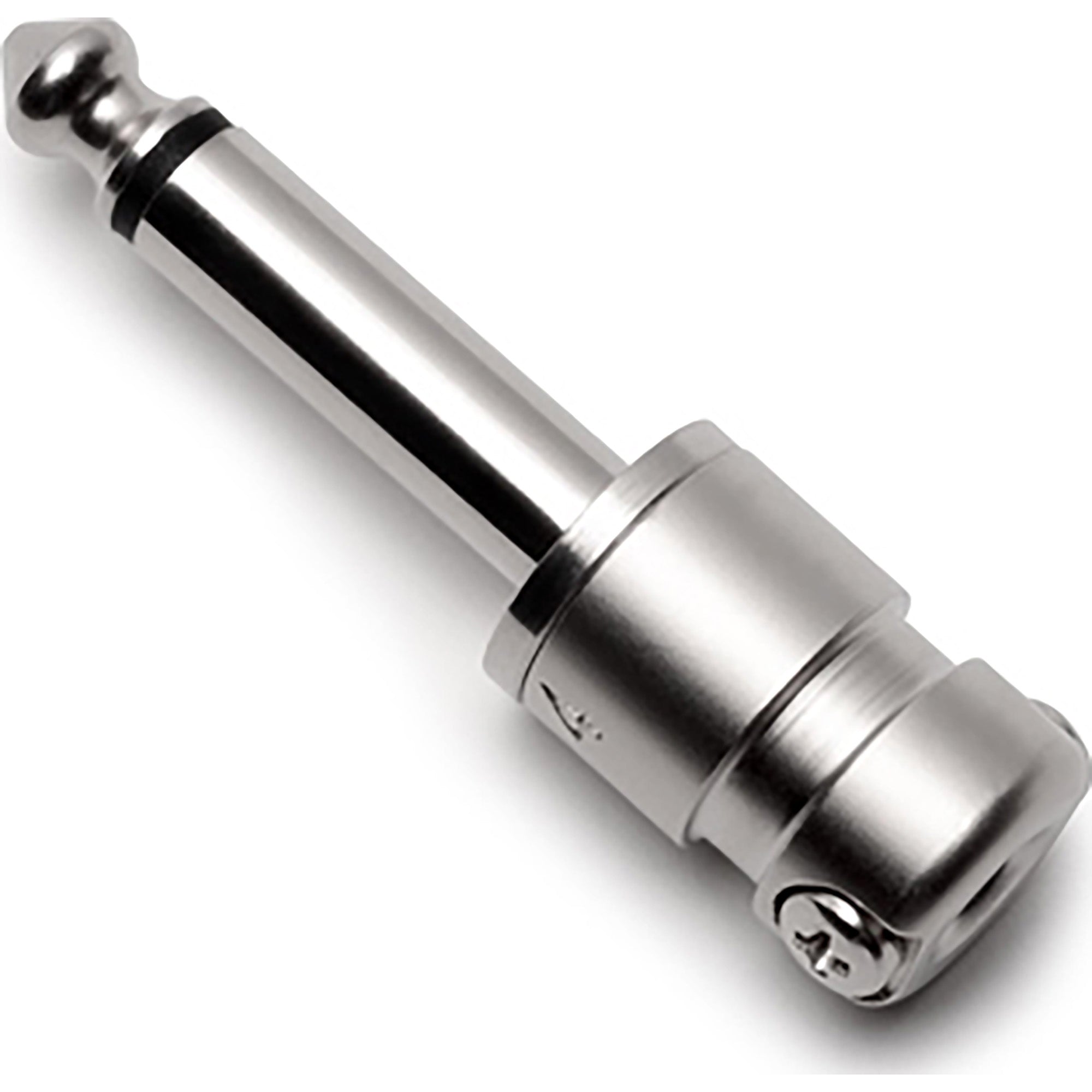

SquarePlug SPS4 Compact Short Straight 1/4" TS Mono Cable Plugs (Matte Nickel, 100 Pack)

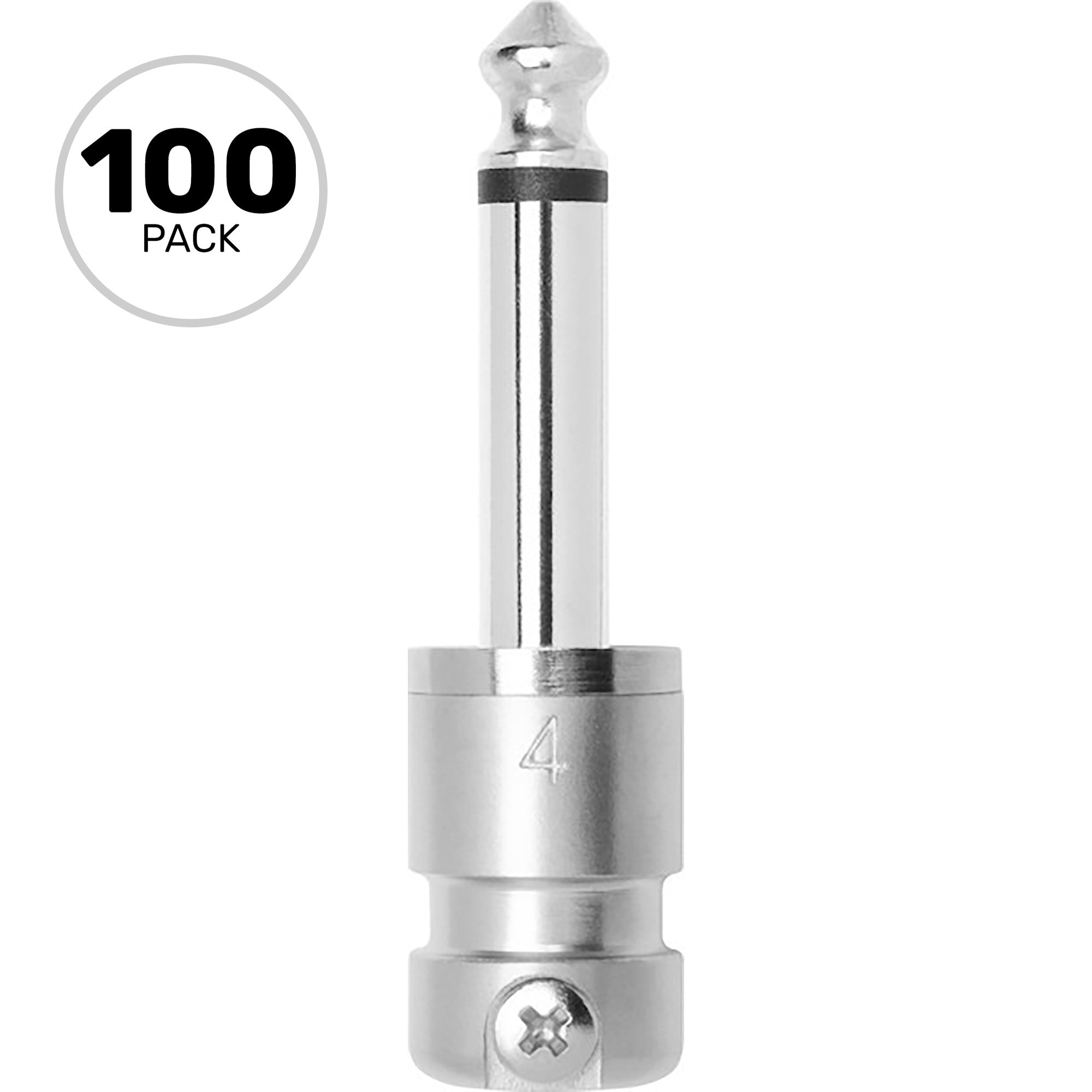

Short Handle Straight 1/4" Mono TS Cable End Connector for Cables up to 4.6mm OD - Matte Nickel - Full Box of 100

SPS SERIES - Low Profile Heavy Duty 1/4" Mono Straight Connectors

SPS4 is the lowest profile 1/4" straight connector with strain relief in the industry. It features a proprietary two-screw cable clamping mechanism that can be retrofitted with a set of anodized screws to provide the most comprehensive color coding identification system found on any connector on the market.

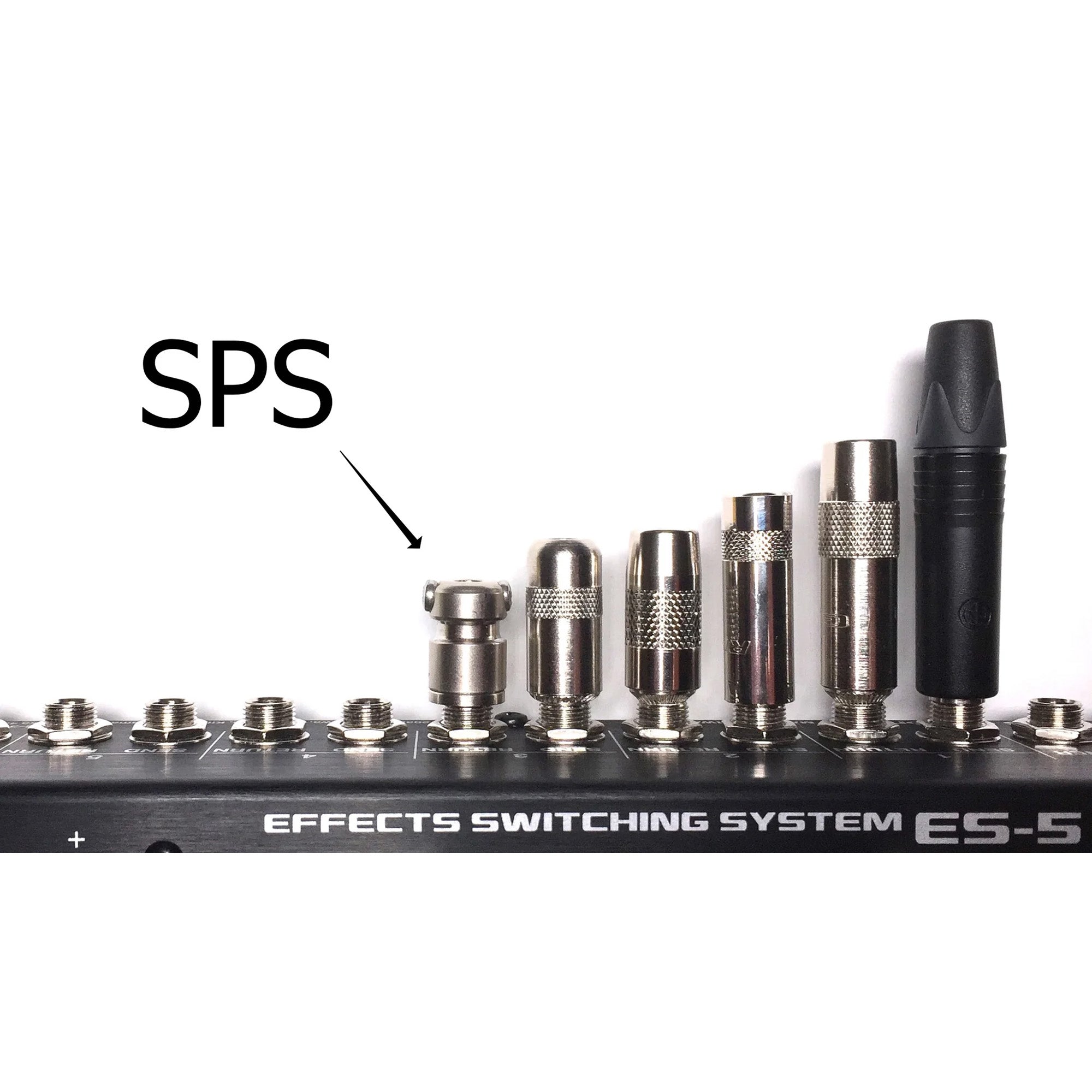

The SPS is the shortest solder type 1/4" connector that features a strain relief, to date! It protrudes by only 21mm when plugged in and has an OD of 13mm (just under 14mm around the screw heads area).

SPS fits on any controller/patch bay/switching system/interface and features a unique 2-screw cable holding mechanism that doubles as a discreet yet effective cable identification system.

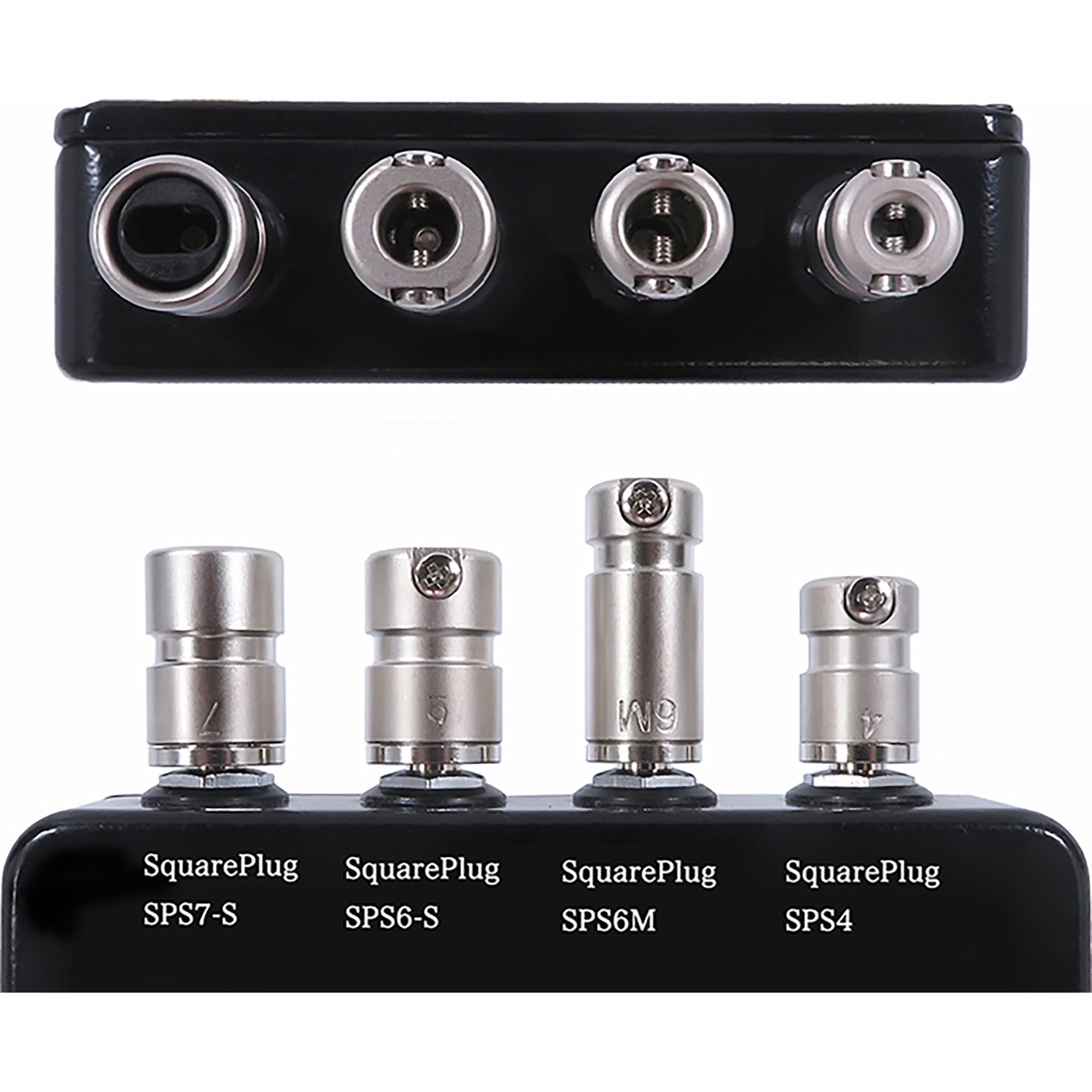

SquarePlug offers the most comprehensive range of low profile audio connectors in the industry. The product line consists of 11 different models, set to cover virtually every possible application where low profile balanced and unbalanced audio cabling is required. Besides the obvious small form factor competitive advantage, SquarePlug connectors provide a set of functionalities not found elsewhere, such as:

An improved strain relief design preventing any axial AND lateral cable movements, thus keeping the solder joints completely stress-free.

An elegant cable identification/tracing system built around a set of colored screws - 2 screws per connector, 10 different colors - that can be retrofitted on all SP connectors. 55 distinct combinations can be built this way.

SquarePlugs are protected by domestic and foreign patents.

Matching Right-Angle Plug

• SquarePlug SP400

SquarePlug SPS4 Pairs Great with These Cables

• Mogami W2314
• Canare GS-4
• Belden 1865A
• Belden 8218

SquarePlug SPS4 Features:

• Super low profile design for highest packing density.

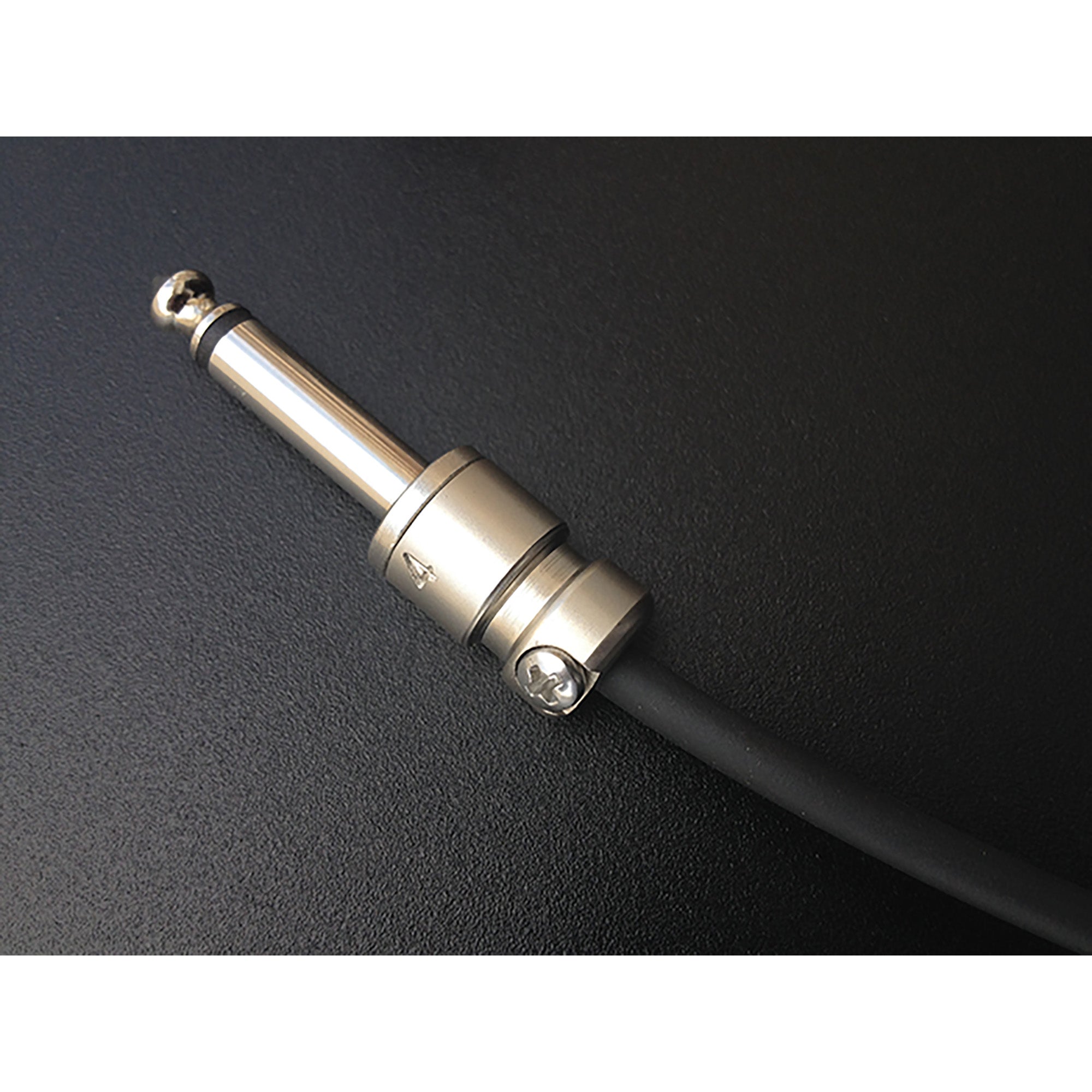

• Unique 2-screw cable clamping mechanism that offers optimal strain relief while allowing for a very compact connector body to be used.
• Unique oblong clamping system that offers optimal strain relief and prevents cables to twist on one another in dual mono cable assemblies.
• Signature ring groove for effortlessly plugging in and out.

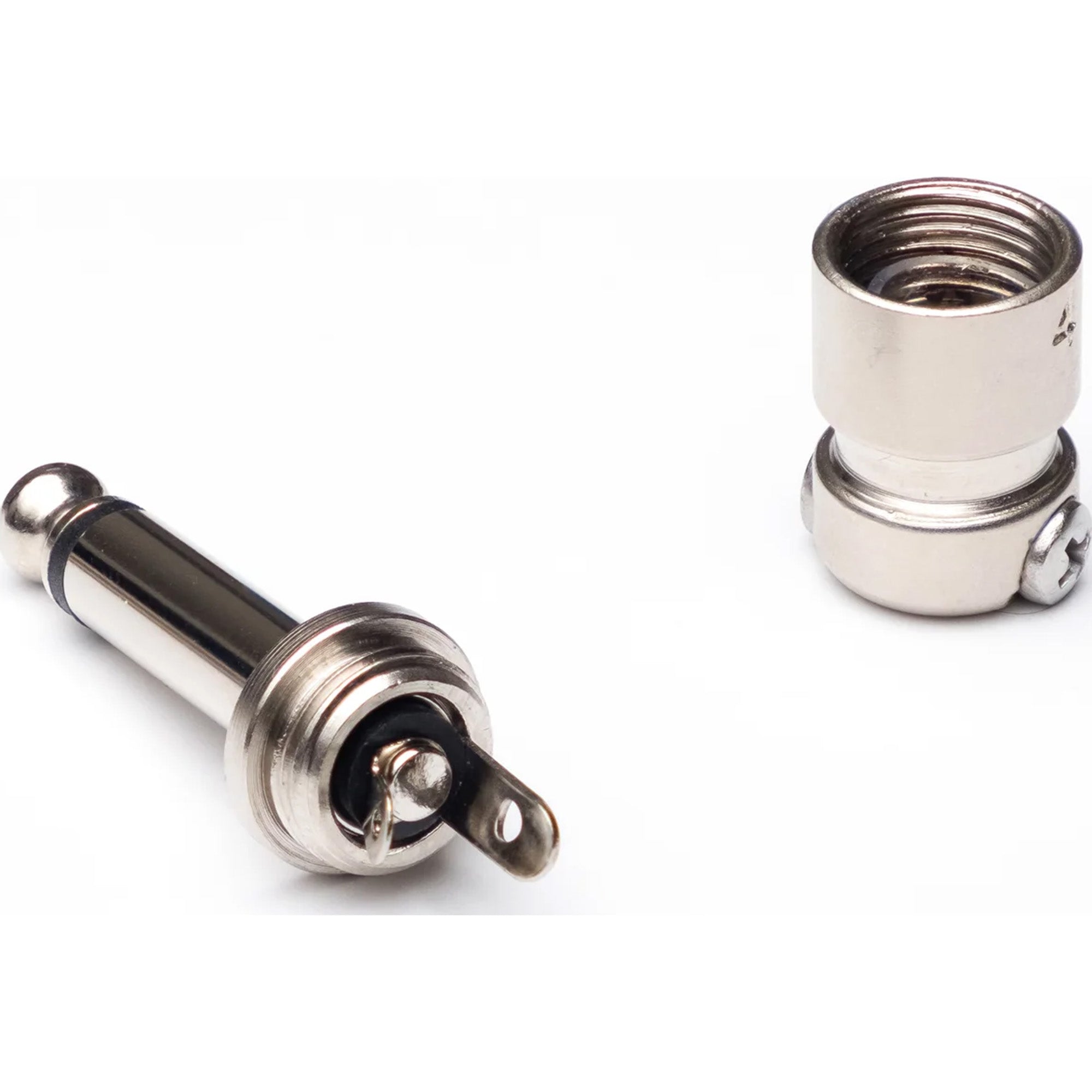

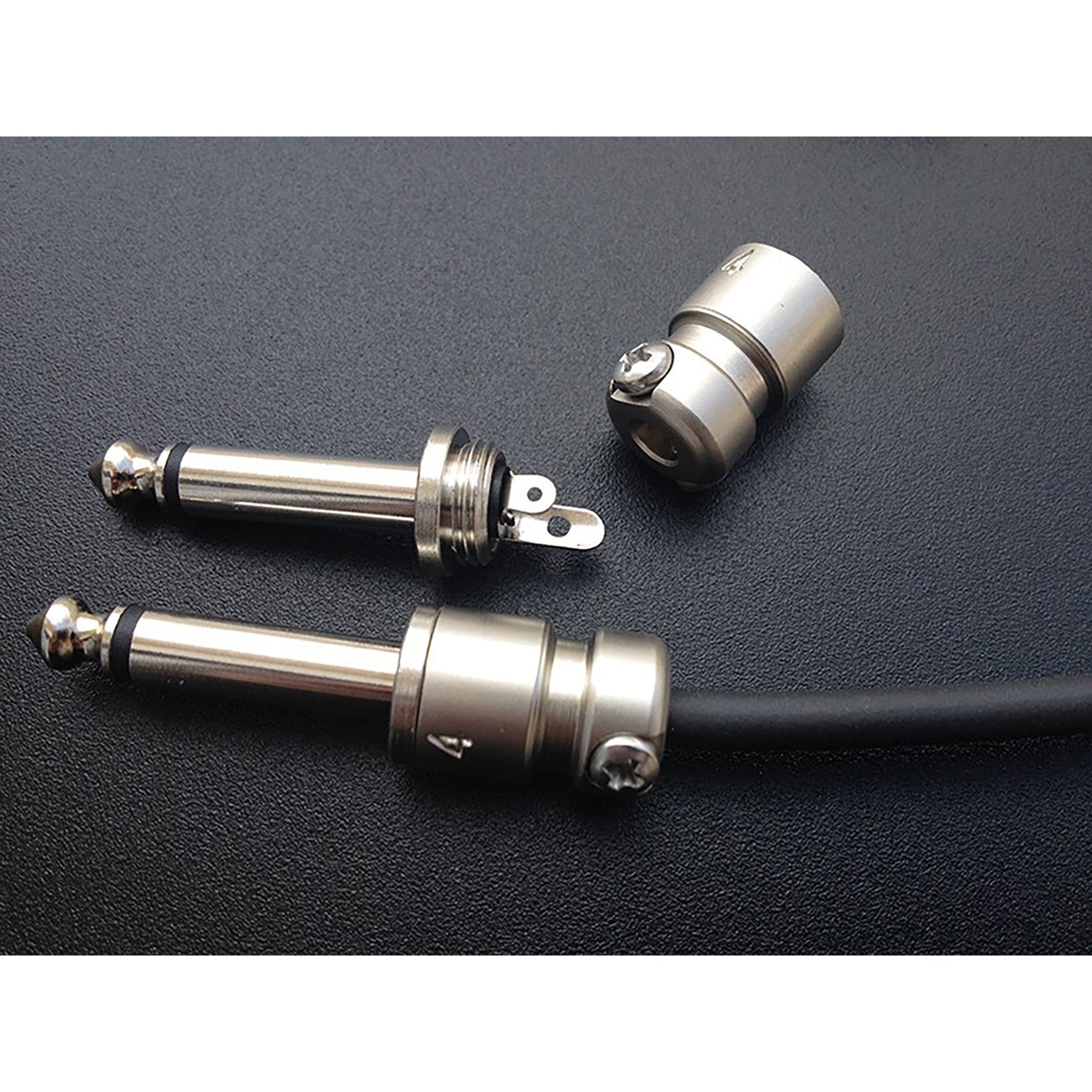

• Solder tabs for tip, ring and sleeve connections for quick and easy soldering and de-soldering.
• Serviceable, Heavy Duty all-metal construction with no plastic parts.
• Available in silver and all-black finish

SquarePlug SPS4 Specifications:

• Designation: Super Low Profile Straight 1/4" TS (Mono) Connector
• Shell Diameter: 0.51" (13mm)
• Shell Length: 0.78" (20mm)
• Strain Relief: Yes
• Color Coding: Yes with Optional Screws
• Finish:
  SPS4: Silver (Body + Cover + Screws)
  SPS4BK: Black (Body + Cover + Screws)
• Fits Cables: 0.16" (4.0mm) to 0.18" (4.6mm) OD
• 2 Solder Tabs: Yes
• Insulation Tube: Yes
