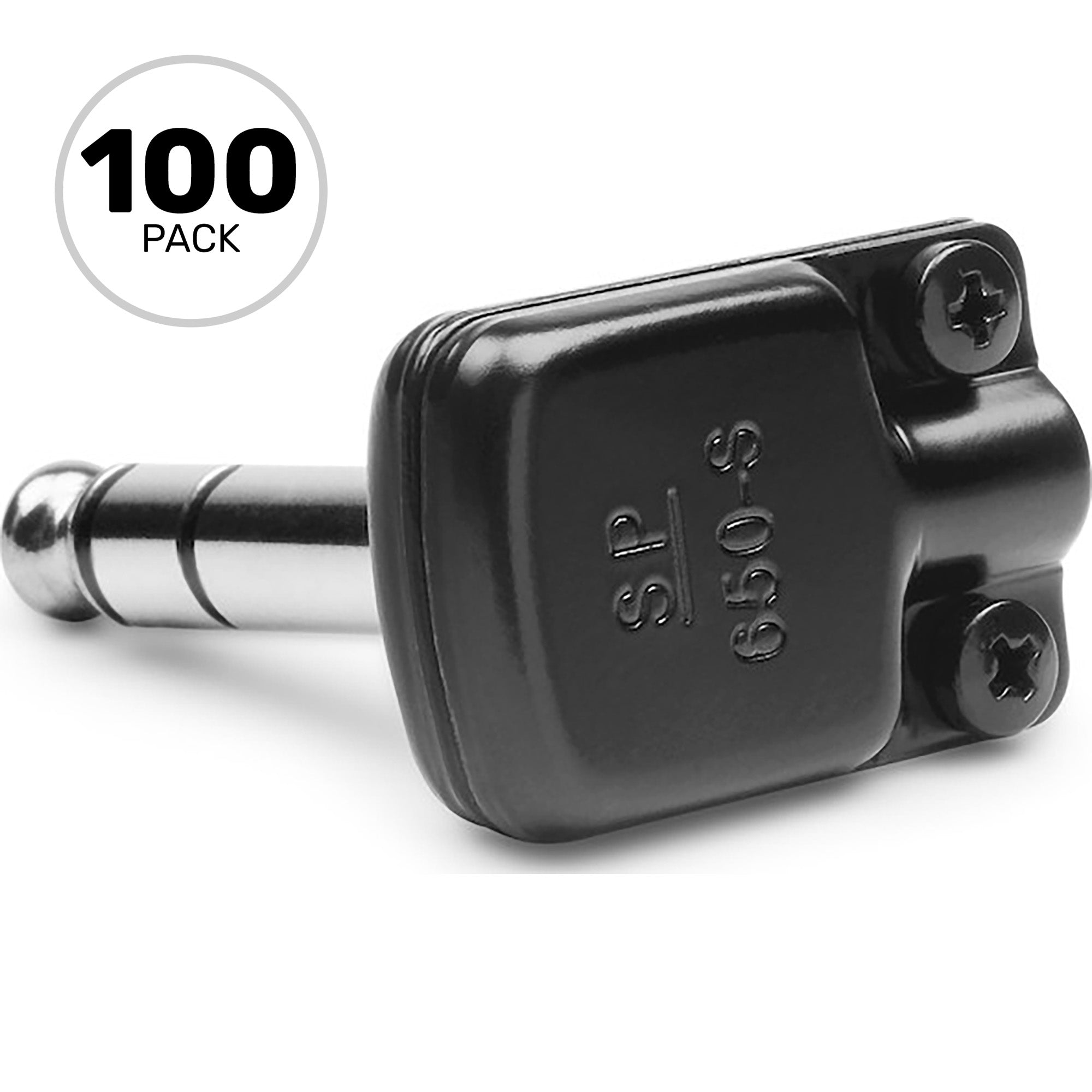

SquarePlug SP650-SBK Compact Pancake Right-Angle 1/4" TRS Stereo Cable Plugs (Black, 100 Pack)

Low Profile Flat Pancake Style 1/4" Stereo TRS Right-Angle Cable End Connector for Cables up to 6.3mm OD - Black - Full Box of 100

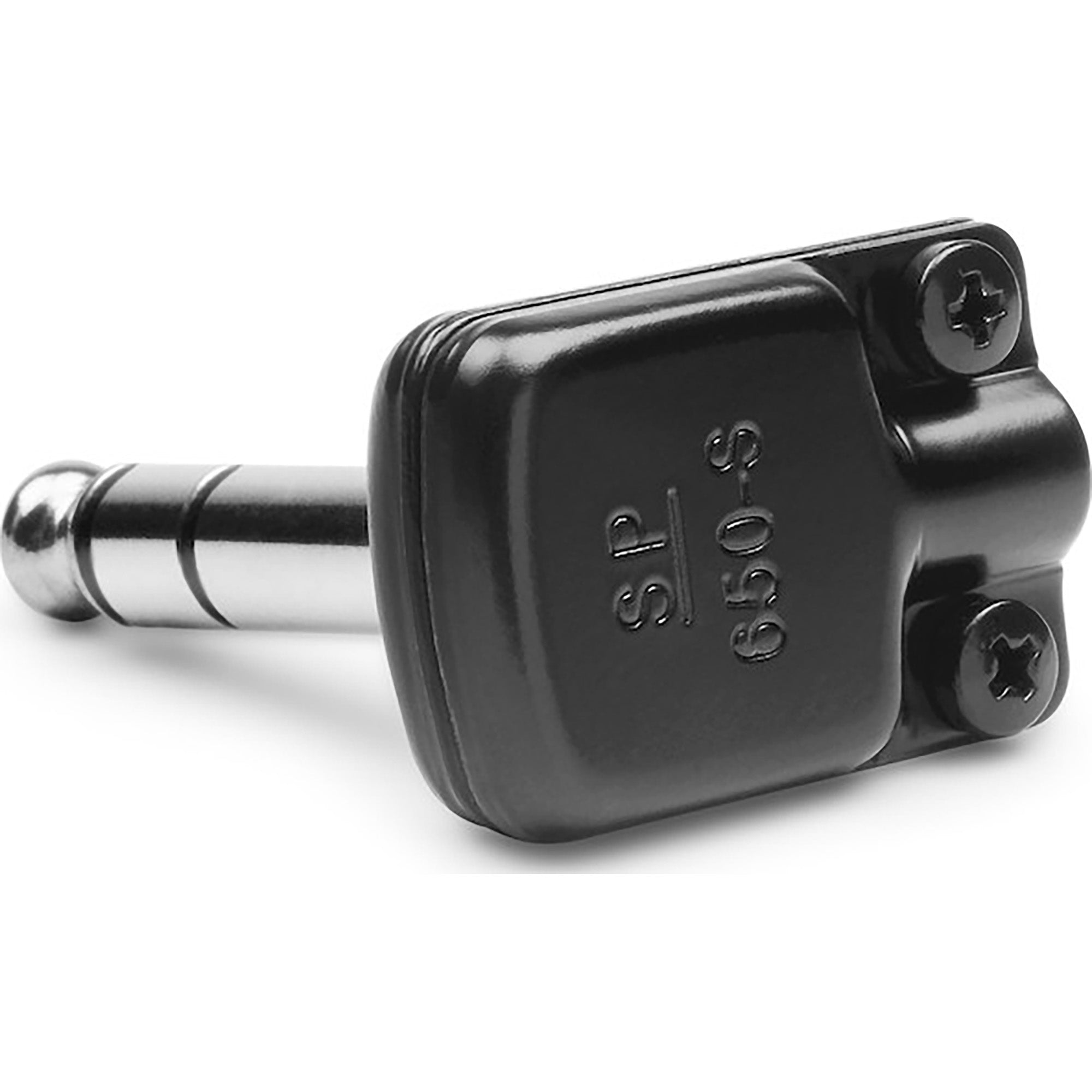

SP SERIES - Low Profile Heavy Duty 1/4" Stereo Right Angle Connectors

SP650-SBK is the TRS variant of the SP600. It can accommodate cables up to 6.3mm OD, which provides with the SPX SERIES a unique TRS/XLR pairing solution for low profile balanced cable assemblies.

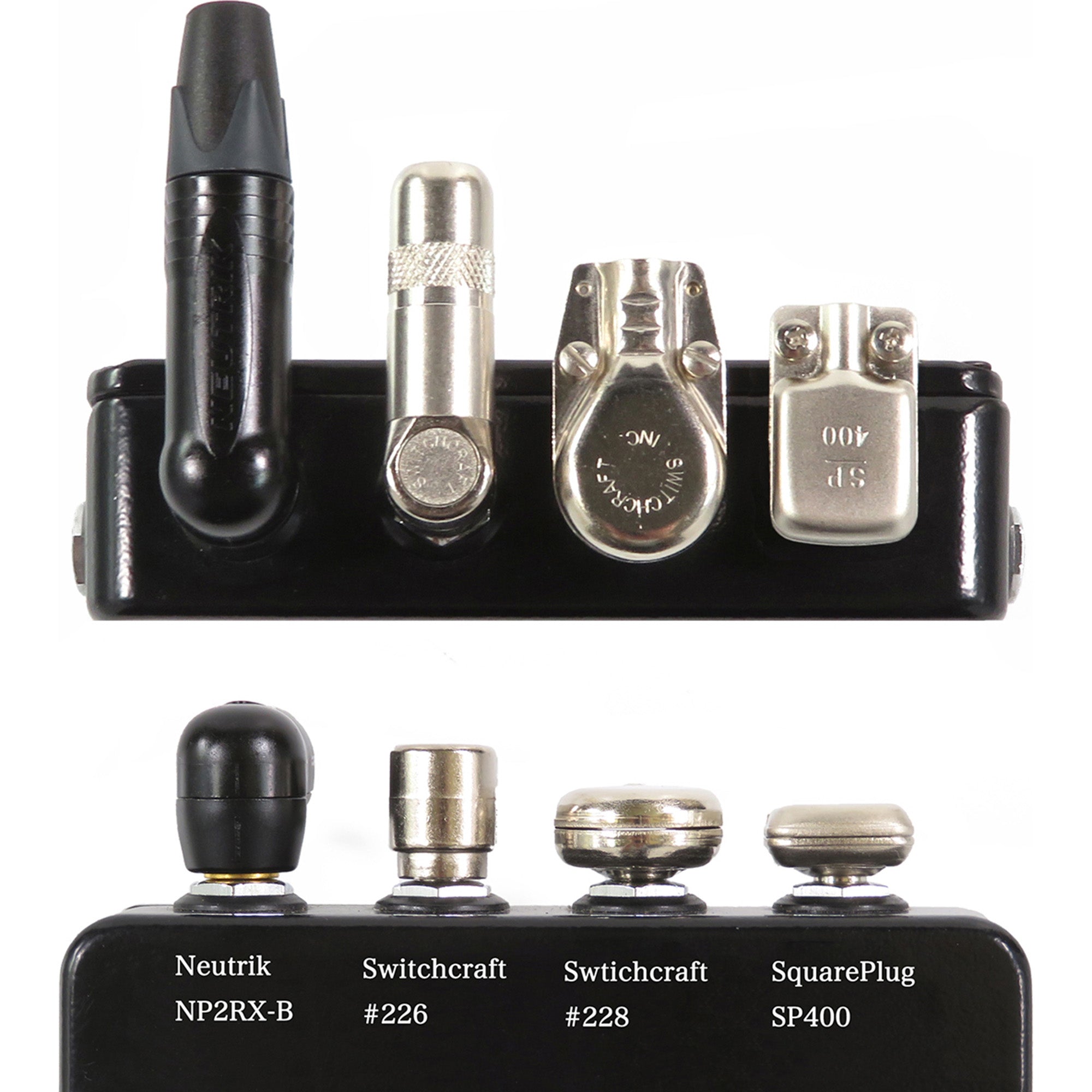

SquarePlug offers the most comprehensive range of low profile audio connectors in the industry. The product line consists of 11 different models, set to cover virtually every possible application where low profile balanced and unbalanced audio cabling is required. Besides the obvious small form factor competitive advantage, SquarePlug connectors provide a set of functionalities not found elsewhere, such as:

An improved strain relief design preventing any axial AND lateral cable movements, thus keeping the solder joints completely stress-free.

An elegant cable identification/tracing system built around a set of colored screws - 2 screws per connector, 10 different colors - that can be retrofitted on all SP connectors. 55 distinct combinations can be built this way.

SquarePlugs are protected by domestic and foreign patents.

Matching Straight Plug

• SquarePlug SPS6-SBK

SquarePlug SP650-SBK Pairs Great with These Cables

• Mogami W2534
• Mogami W2549
• Mogami W2792
• Canare L-2T2S
• Canare L-4E6S

SquarePlug SP650-SBK Features:

• Low profile design for highest packing density
• Unmatched strain relief and emi protection: the SP series features a flat smooth cable channel that's perfectly snug with the right sized cable providing equal pressure around the entire cable, thus insuring proper shielding continuity and effective strain relief action

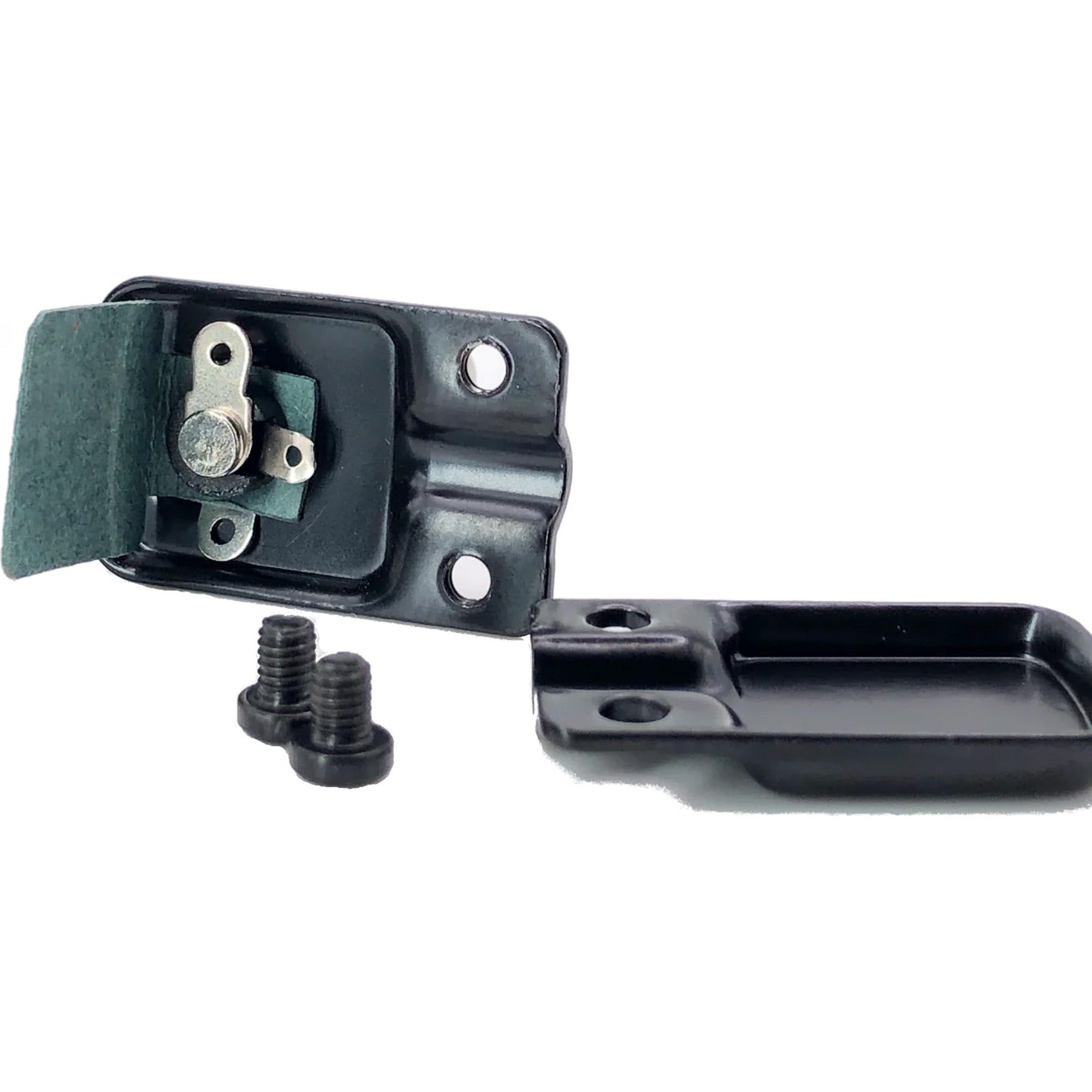

• Solder tabs for tip, ring and sleeve connections for quick and easy soldering and desoldering
• Serviceable, all-metal construction
• Available in silver and all-black finish

SquarePlug SP650-SBK Specifications:

• Designation: Super Low Profile Angled 1/4" TRS (Stereo) Connector
• Shell Thickness: 0.38" (9.7mm)
• Shell Width: 0.73" (18.5mm)
• Shell Height: 1.10" (28mm)
• Strain Relief: Yes
• Color Coding: Yes with Optional Screws
• Finish:
  SP650-S: Silver (Body + Cover + Screws)
  SP650-SBK: Black (Body + Cover + Screws)
• Fits Cables: 0.22" (5.8mm) to 0.25" (6.3mm) OD
• 3 Solder Tabs: Yes
• Insulation Sheet: Yes
