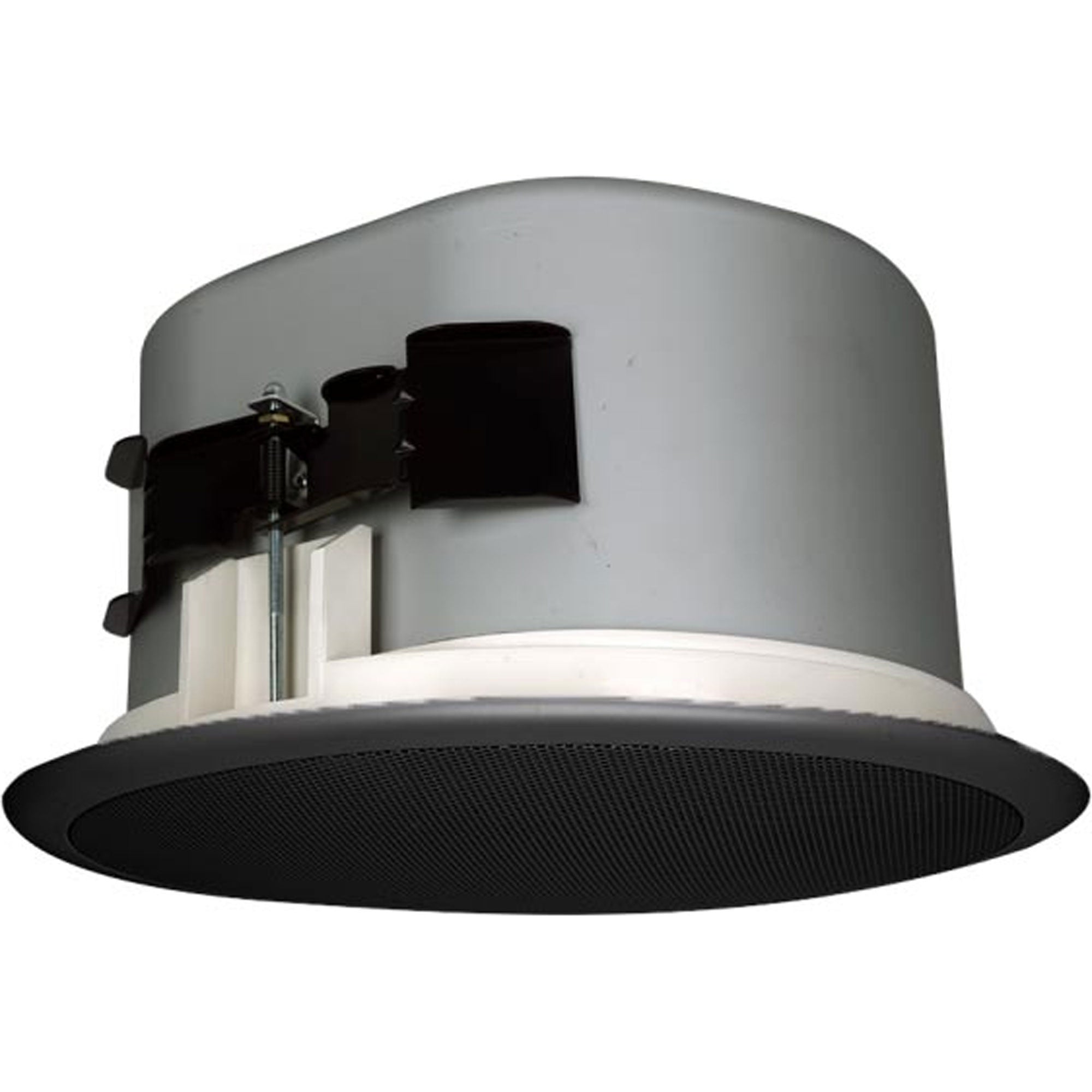

SoundTube CM800i 8" Coaxial In-Ceiling Speaker (Black)

SoundTube 8" In Ceiling Speaker in Black with a BroadBeam Tweeter

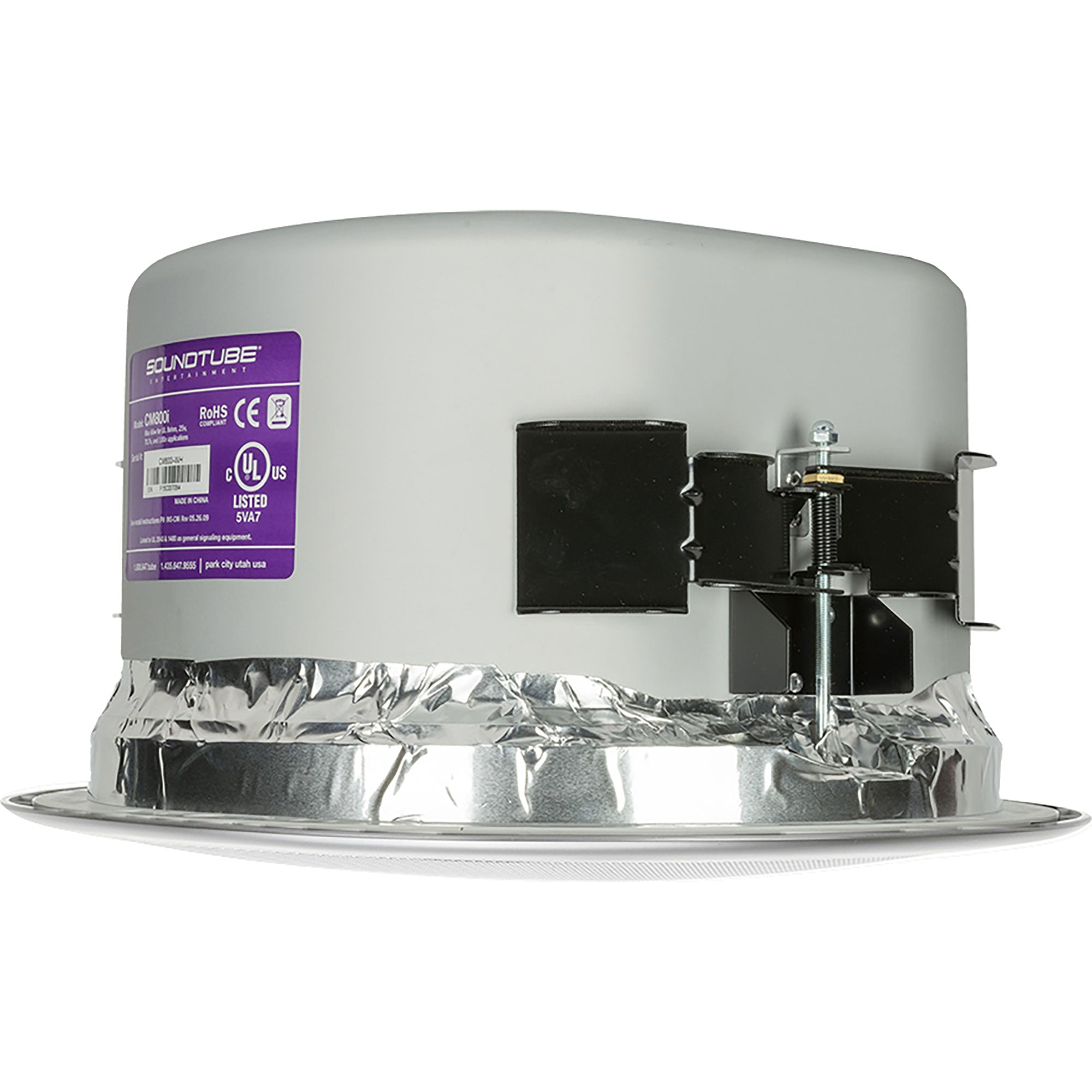

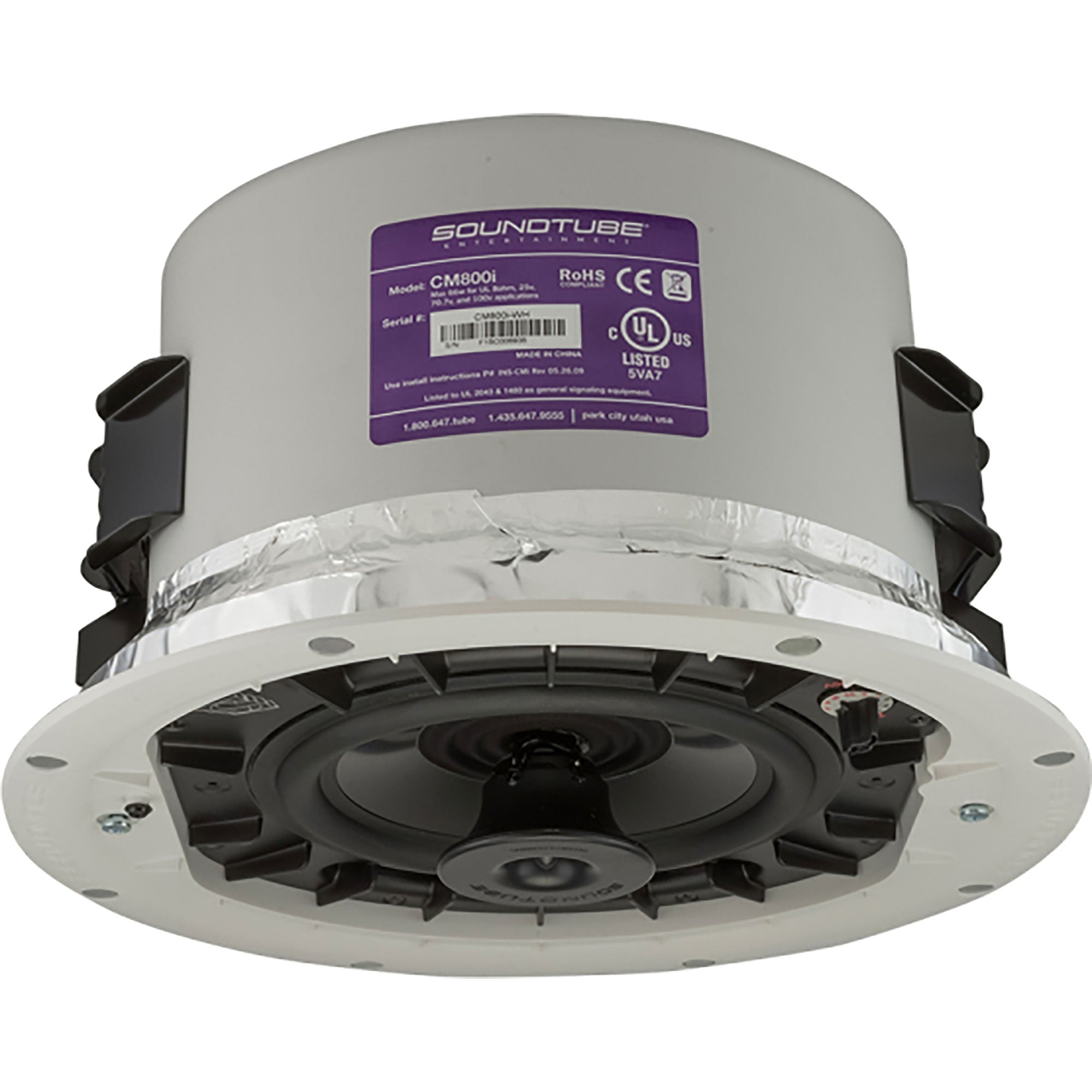

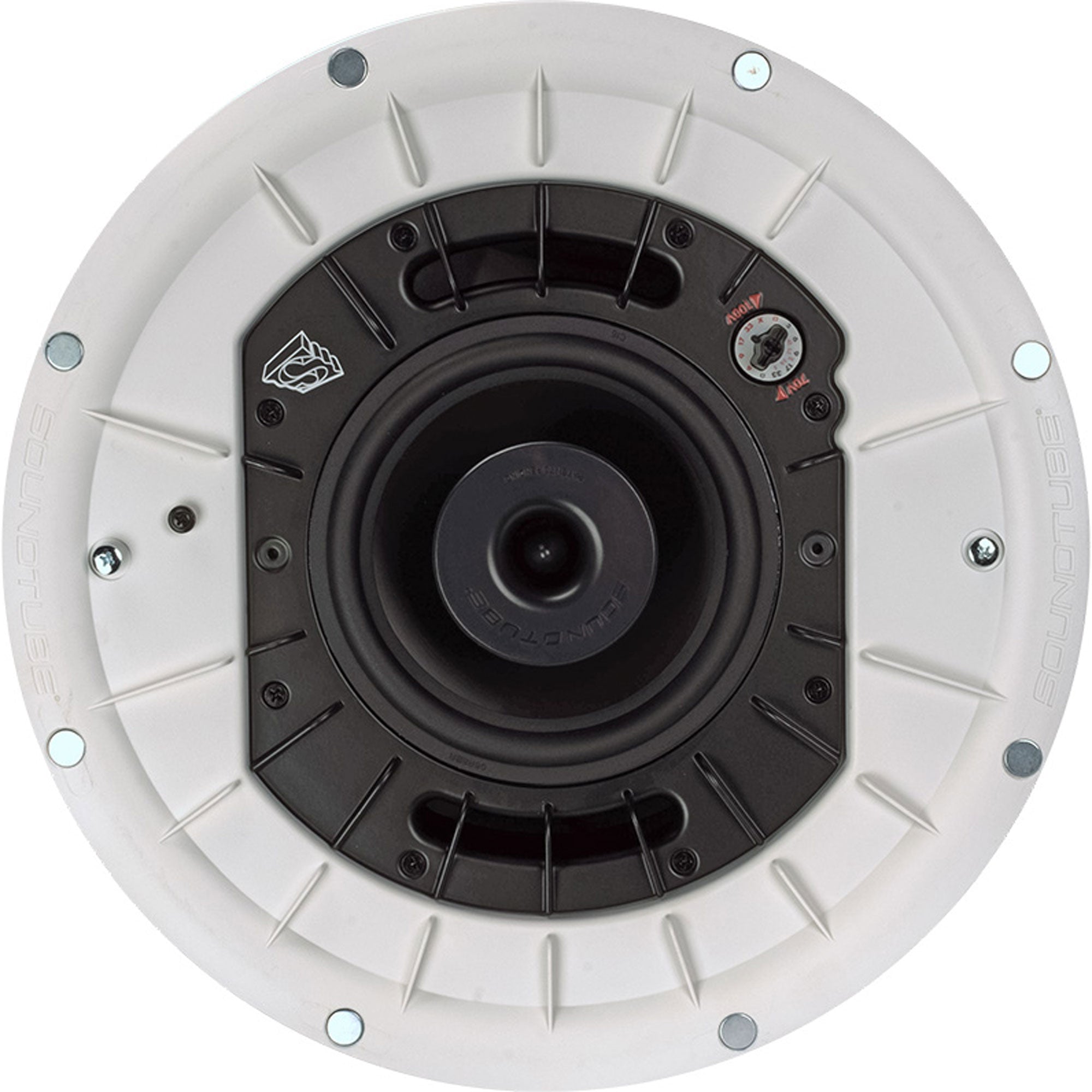

Patented BroadBeam Ring waveguide technology delivers a consistent dispersion pattern for maximum coverage area per speaker. One 8.0 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. An average sensitivity of 90 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask.

Specifications

• Color: Black
• UPC: 752830448889
• Manufacturer: SoundTube
• Manufacturer's Category: CMi In-Ceiling
• Shipping Weight: 40.05 lbs / 18.17 kg
• Carton Height: 19 in / 482.6 mm
• Carton Length: 32 in / 812.8 mm
• Carton Width: 14.25 in / 361.95 mm
• Certifications: CE, RoHS, UL1480A, UL2043
• Enclosure Properties: ABS Glass Fiber Reinforced, Injection Molded, Ported
• Enclosure Volume: 513.8 cu in / 8419.67 cu cm
• Included Accessories: Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge
• Optional Accessories: Black Metal Grille (GRL-CM6/8-BK)|Black Weather-Guard Grille (GRL-CM6/8-WG-BK)|Black Flangeless Grill (GRL-CM6/8-FLG-BK)|Tile Bridge (AC-CM8-TB)|Pre-Construction Bracket (AC-CM8-PCB)|Junction Box (AC-CM-JBOX)
• Source Inputs: 4 Pin 5.08mm Euroblock
• TAA Compliant (Trade America): No
• BAA Compliant (Made in USA): No
• Backcan Diameter: 11.68 in / 296.7 mm
• Backcan Height: 7.94 in / 201.7 mm
• Coverage Angle (±6dB @ 2kHz): 110°
• Crossover Frequency: 3.0 kHz
• Cutout Width/Diameter: 12.75 in / 323.9 mm
• Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 3.8 and 4
• Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 6.0dB and 4.0dB
• Frequency Response (± 10 dB): 71 Hz - 22 kHz
• Frequency Response (± 3 dB): 97 Hz - 22 kHz

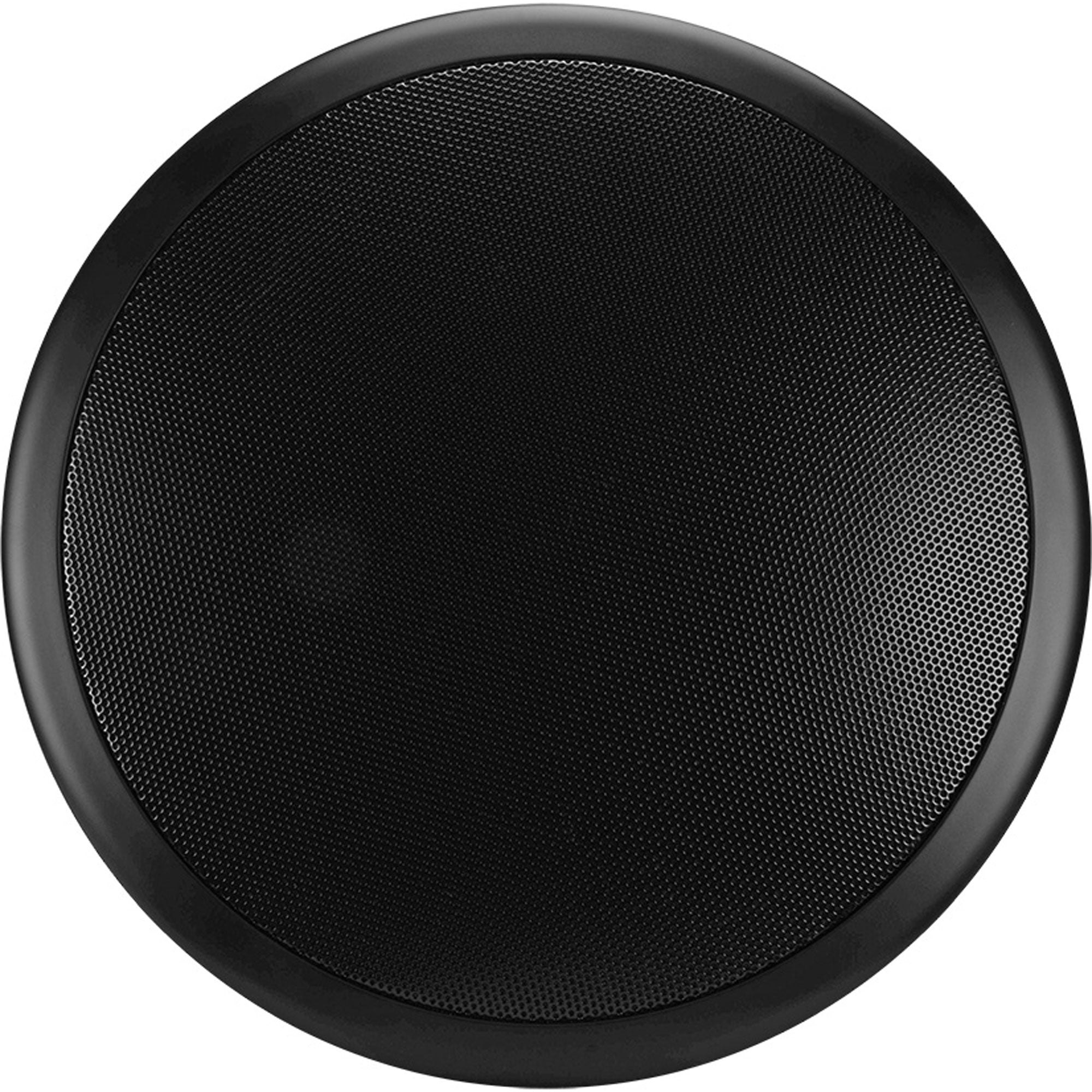

• Grille Properties: Black, Standard-Flange, Magnetic, Powder-Coated, Paintable, Steel
• Low Frequency Voice Coil: 1.2 in / 30.4 mm
• Low Pass Crossover: 12 dB per octave 2nd order
• Max. Ceiling Thickness: 1.91 in / 48.5 mm
• Max. Continuous Power RMS: 125W
• Max. Program Power: 250 W
• Minimum Impedance (Ω Ohms): 5.3 Ω
• Minimum Ceiling Thickness: 0.25 in / 6.4 mm
• Network Type: High Pass: 12 dB per octave 2nd order
• Nominal Impedance (Ω Ohms): 8 Ω
• Tweeter Driver: 1" Convex Titanium w/ BroadBeam Waveguide
• Woofer Driver: 8" Polypropylene Cone w/ Butyl Rubber Surround
• Sensitivity dB @ 1W/1M: 90 dB
• Sensitivity dB @ 2.83V/1M: 90 dB
• Tap Selector: Rotary Switch
• Transformer Options: 25 / 70.7 / 100 V, 8 Ohm direct
• Transformer Taps Max. Setting (25V/70.7V/100V): 9W/66W/66W
• Visible Diameter: 14.76 in / 374.9 mm
• Visible Height: 1.08 in / 27.4 mm
