SoundTube CM600i 6.5" Coaxial In-Ceiling Speaker (Black)

SoundTube 6.5" In Ceiling Speaker in Black with a BroadBeam Tweeter

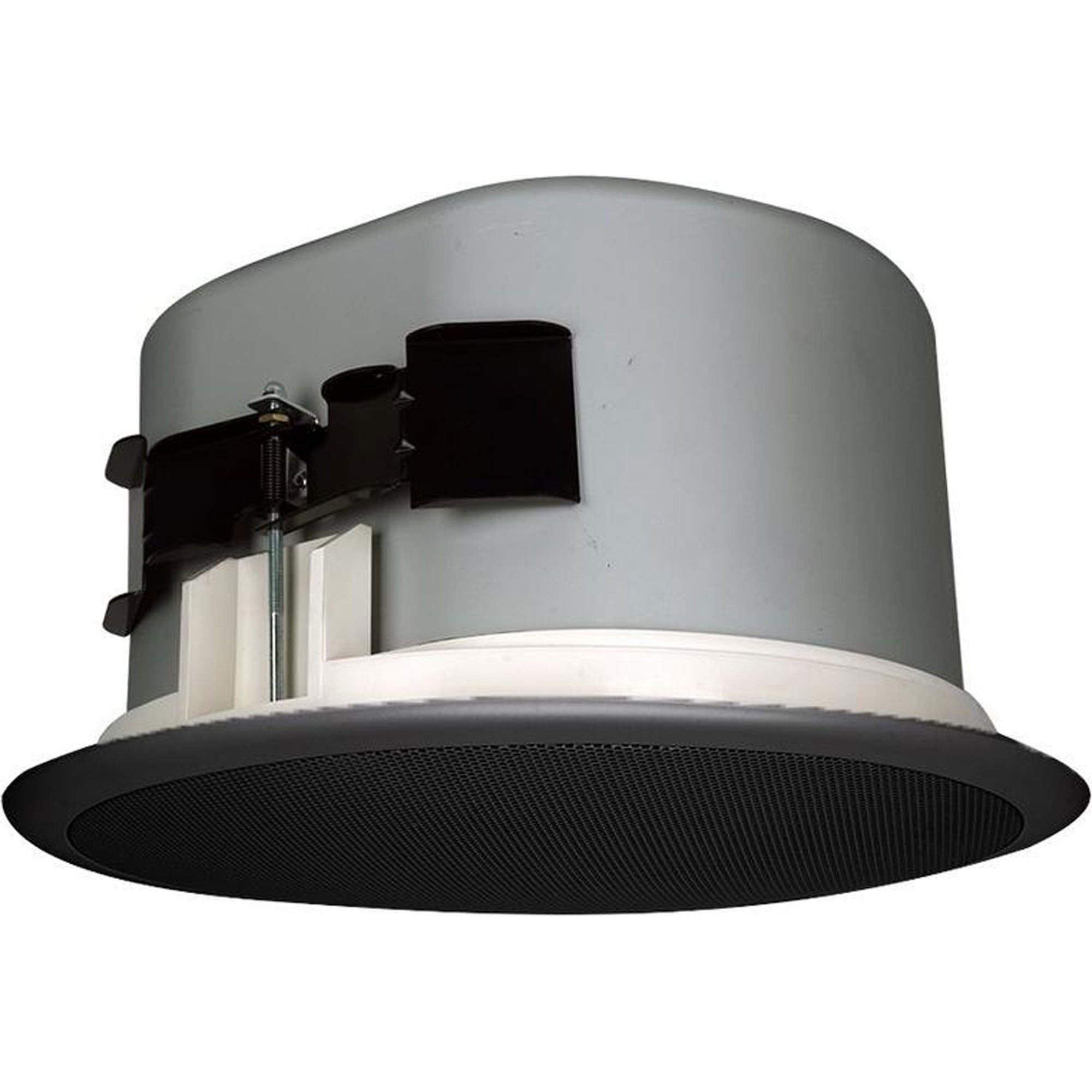

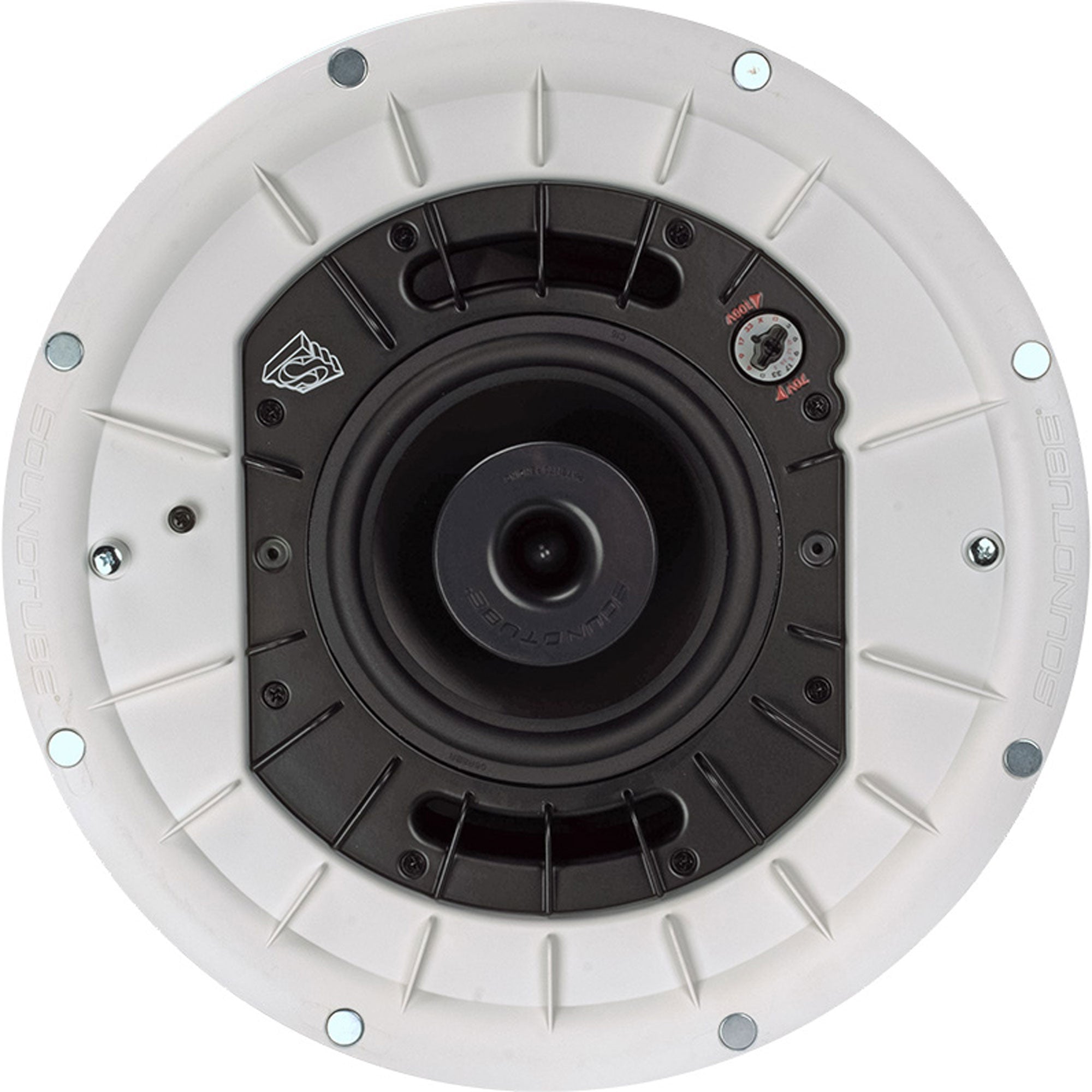

Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 6.5 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum motor-board and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.69 inch (42.9 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, Euroblock connector, paint mask, conduit plate.

Specifications

• Color: Black
• UPC: 752830440586
• Manufacturer: SoundTube
• Manufacturer's Category: CMi In-Ceiling
• Shipping Weight: 35 lbs / 15.88 kg
• Carton Height: 19 in / 482.6 mm
• Carton Length: 32 in / 812.8 mm
• Carton Width: 14 in / 355.6 mm
• Certifications: CE, RoHS, UL1480A, UL2043
• Enclosure Properties: ABS, Aluminum, Ported
• Included Accessories: Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge
• Optional Accessories: Black Metal Grille (GRL-CM6/8-BK)|Black Weather-Guard Grille (GRL-CM6/8-WG-BK)|Black Flangeless Grill (GRL-CM6/8-FLG-BK)|Tile Bridge (AC-CM8-TB)|Pre-Construction Bracket (AC-CM8-PCB)|Junction Box (AC-CM-JBOX)
• Source Inputs: 4 Pin 5.08mm Euroblock
• TAA Compliant (Trade America): No
• BAA Compliant (Made in USA): No

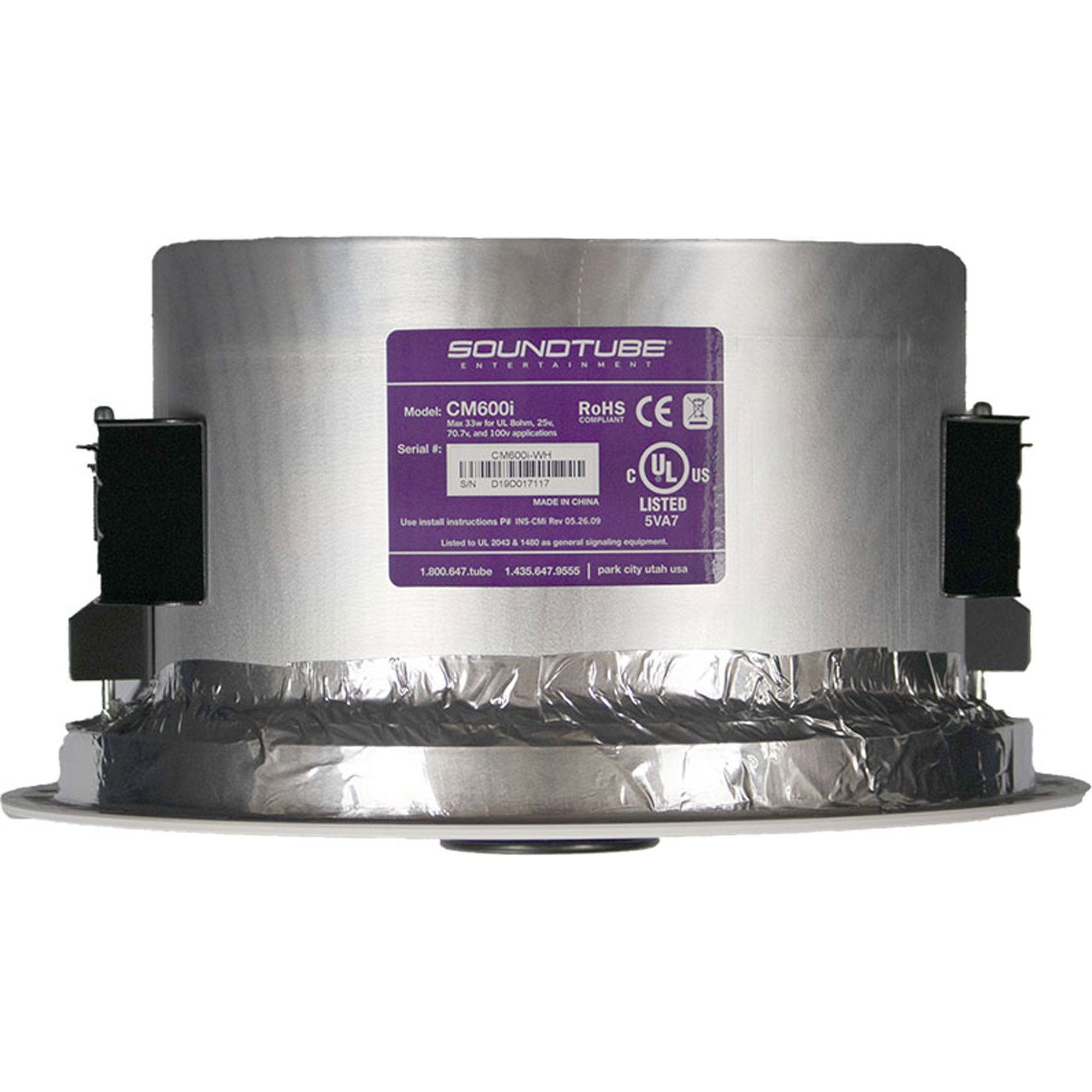

• Backcan Diameter: 11.68 in / 296.7 mm
• Backcan Height: 7.94 in / 201.7 mm
• Coverage Angle (±6dB @ 2kHz): 100°
• Crossover Frequency: 3.0 kHz
• Cutout Width/Diameter: 12.75 in / 323.9 mm
• Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 4 and 5.4
• Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 5.6 dB and 7.3 dB
• Frequency Response (± 10 dB): 52 Hz - 22 kHz
• Frequency Response (± 3 dB): 69 Hz - 22 kHz

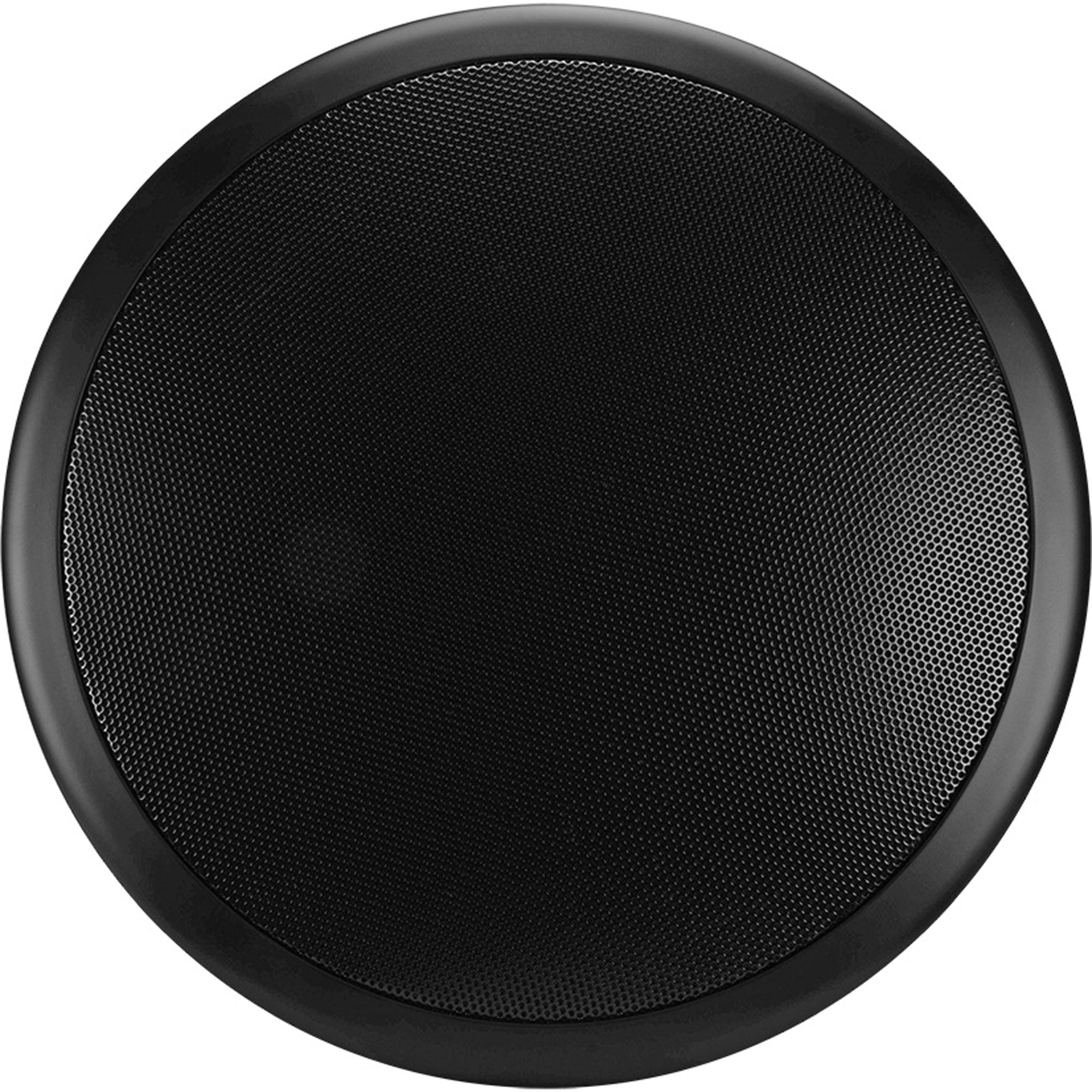

• Grille Properties: Black, Standard-Flange, Magnetic, Powder-Coated, Paintable, Steel
• Low Frequency Voice Coil: 1 in / 25.4 mm
• Low Pass Crossover: 12 dB per octave 2nd order
• Max. Ceiling Thickness: 1.91 in / 48.5 mm
• Max. Continuous Power RMS: 90W
• Max. Program Power: 180 W
• Minimum Impedance (Ω Ohms): 5.3 Ω
• Minimum Ceiling Thickness: 0.25 in / 6.4 mm
• Network Type: High Pass: 12 dB per octave 2nd order
• Nominal Impedance (Ω Ohms): 8 Ω
• Tweeter Driver: 1" BroadBeam
• Woofer Driver: 6.5" Polypropylene
• Sensitivity dB @ 1W/1M: 88 dB
• Sensitivity dB @ 2.83V/1M: 88 dB
• Tap Selector: Rotary Switch
• Transformer Options: 25 / 70.7 / 100 V, 8 Ohm direct
• Transformer Taps Max. Setting (25V/70.7V/100V): 5W/33W/33W
• Visible Diameter: 14.76 in / 374.9 mm
• Visible Height: 1.08 in / 27.4 mm
