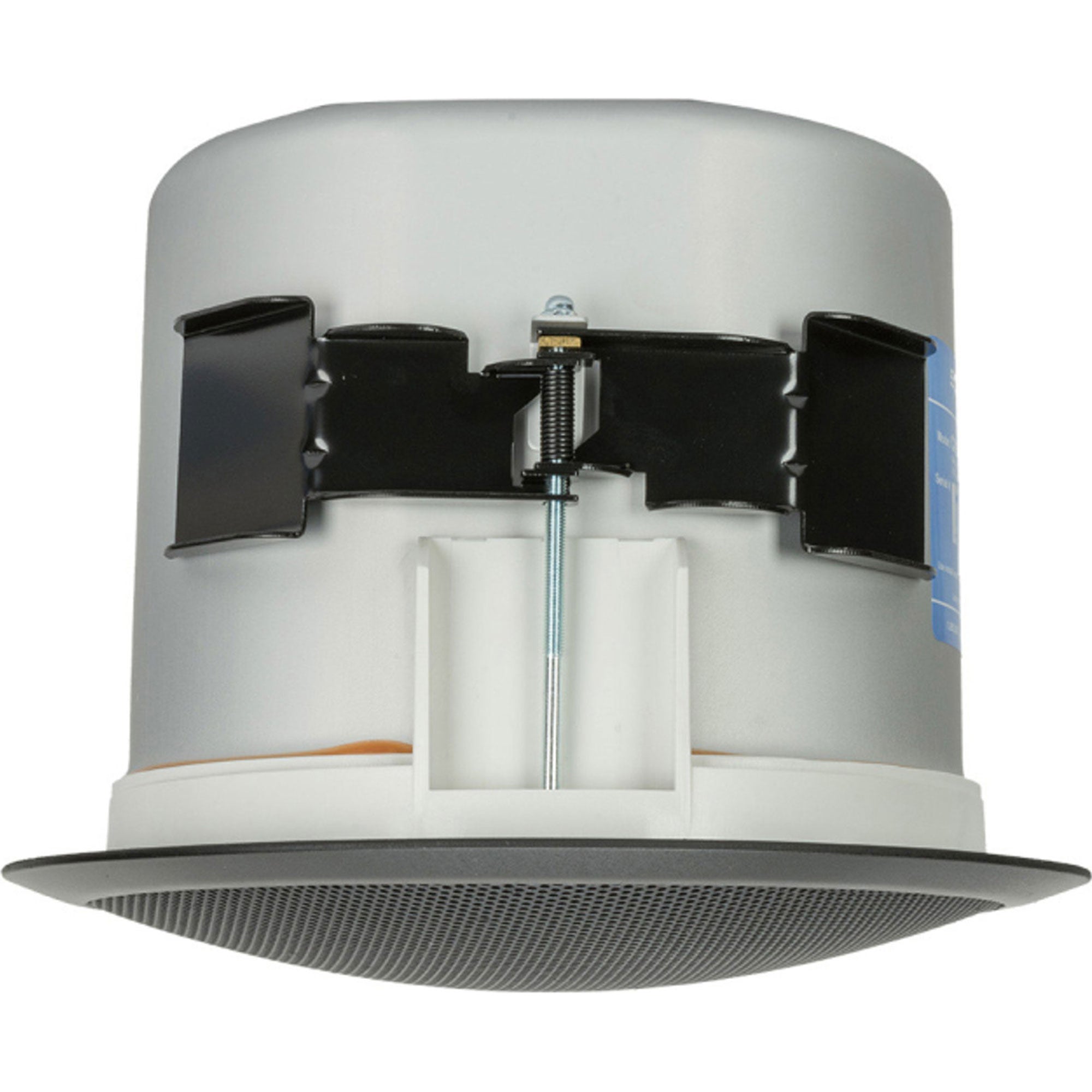

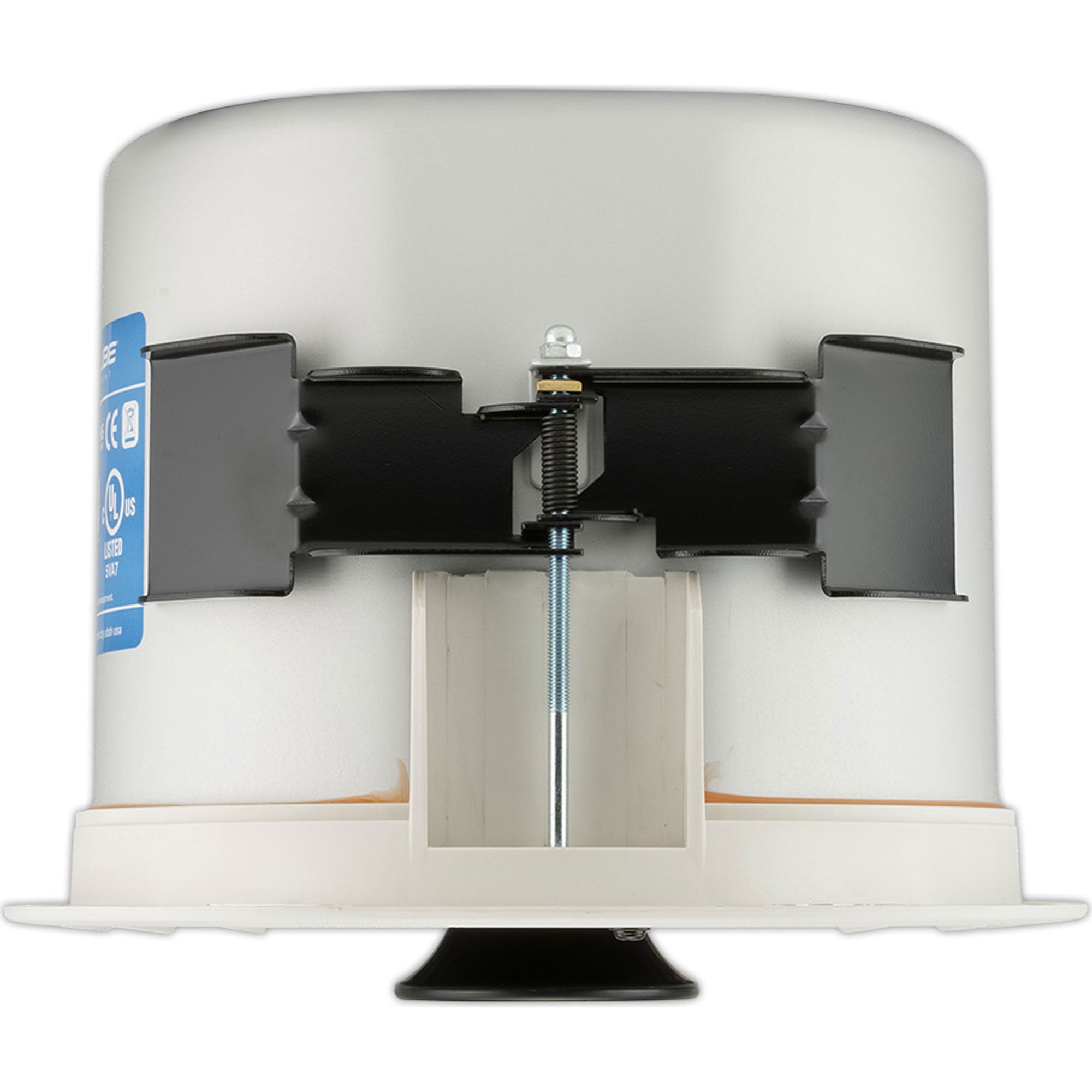

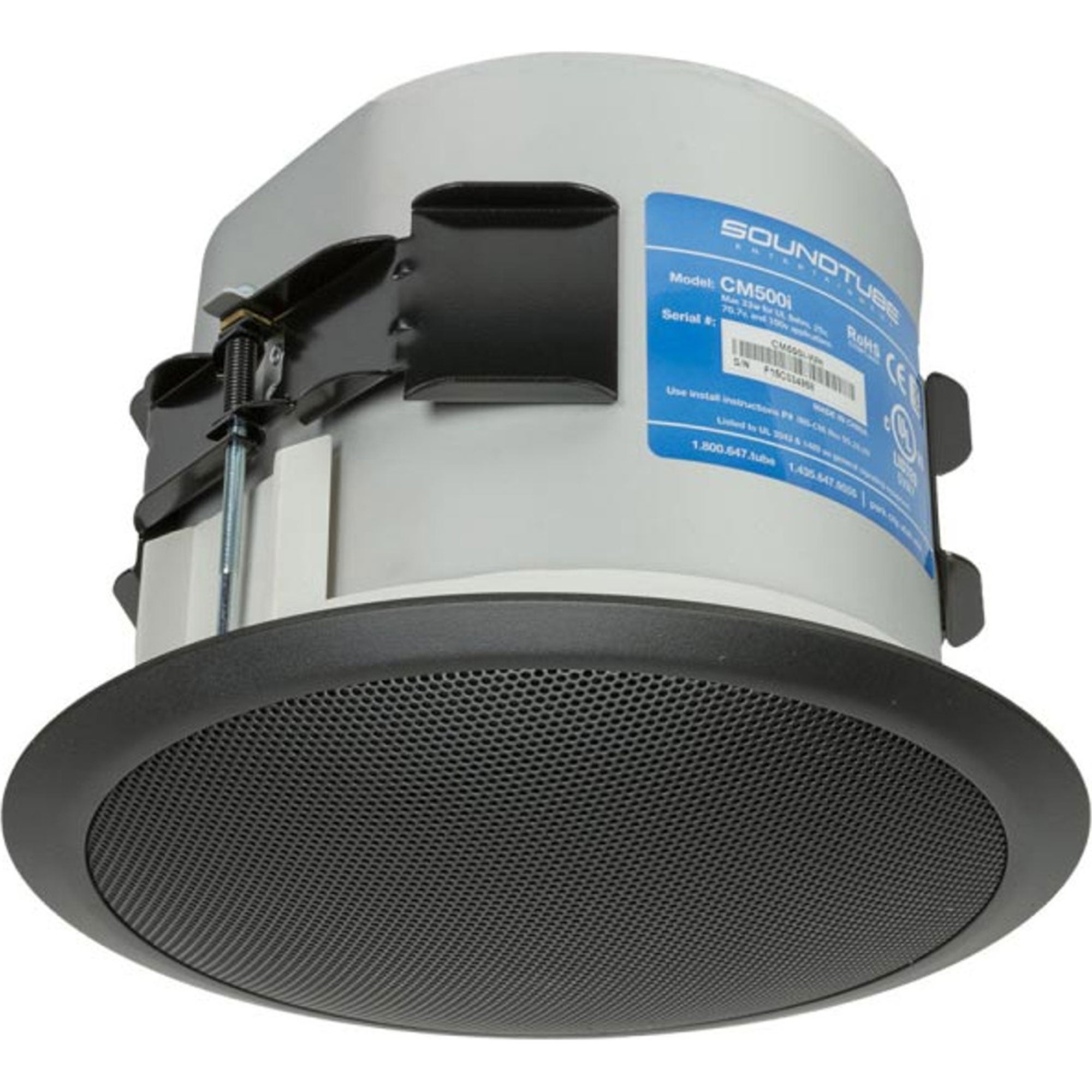

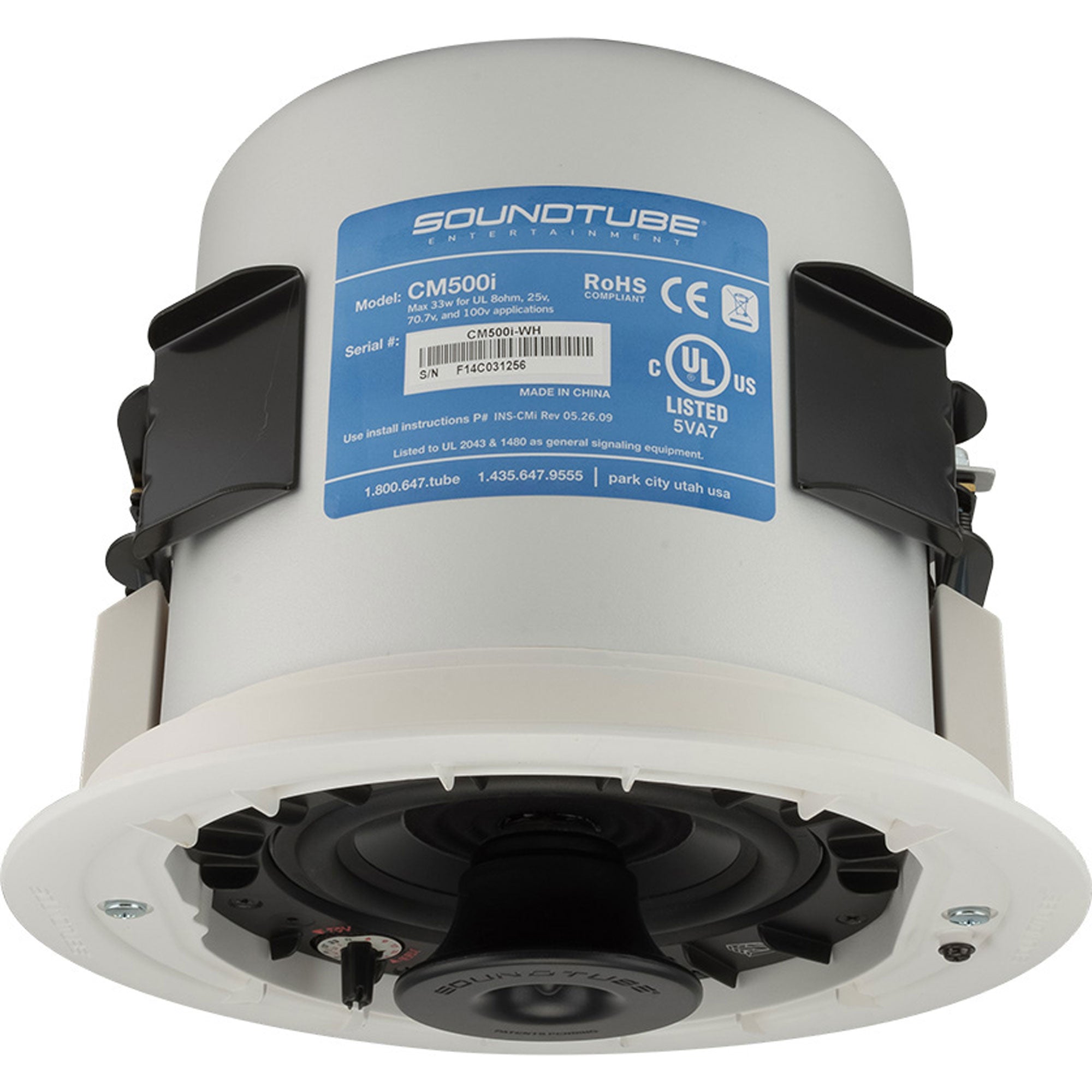

SoundTube CM500i 5.25" Coaxial In-Ceiling Speaker (Black)

SoundTube 5.25" In Ceiling Speaker in Black with a BroadBeam Tweeter

One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. Rapid-installation, blind-mount, fixed wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 86.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask.

Specifications

• Color: Black
• UPC: 752830451384
• Manufacturer: SoundTube
• Manufacturer's Category: CMi In-Ceiling
• Shipping Weight: 25.45 lbs / 11.54 kg
• Carton Height: 15.25 in / 387.35 mm
• Carton Length: 26 in / 660.4 mm
• Carton Width: 14 in / 355.6 mm
• Certifications: CE, RoHS, UL1480A, UL2043
• Enclosure Properties: ABS, Aluminum, Ported
• Included Accessories: Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge
• Optional Accessories: Black Weather-Guard Grill (GRL-CM500-WG-BK)|Black Flangeless Grille (GRL-CM5-FLG-BK)|Tile Bridge (AC-CM5-TB)|Pre-Construction Bracket (AC-CM5-PCB)|Cover Plate (CVR-CMI-BACKPLATE)|Connector (EUROBLOCK)|Junction Box (AC-CM-JBOX)
• Source Inputs: 4 Pin 5.08mm Euroblock
• TAA Compliant (Trade America): No
• BAA Compliant (Made in USA): No
• Backcan Diameter: 8.63 in / 219.2 mm
• Backcan Height: 7.75 in / 196.9 mm
• Coverage Angle (±6dB @ 2kHz): 125°
• Crossover Frequency: 3.0 kHz
• Cutout Width/Diameter: 9 in / 228.6 mm
• Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 4.8 and 9.5
• Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 6.1dB and 9.8dB
• Frequency Response (± 10 dB): 55 Hz - 22 kHz
• Frequency Response (± 3 dB): 75 Hz - 22 kHz

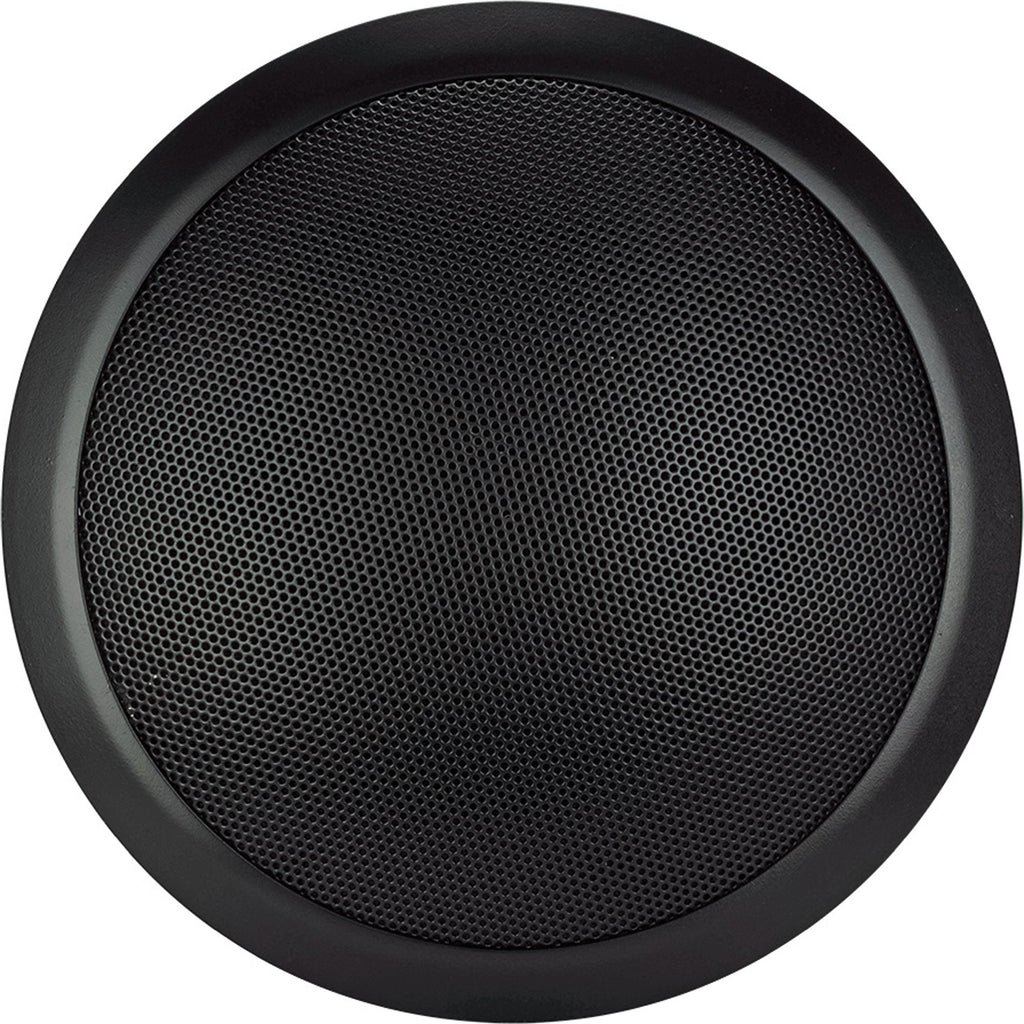

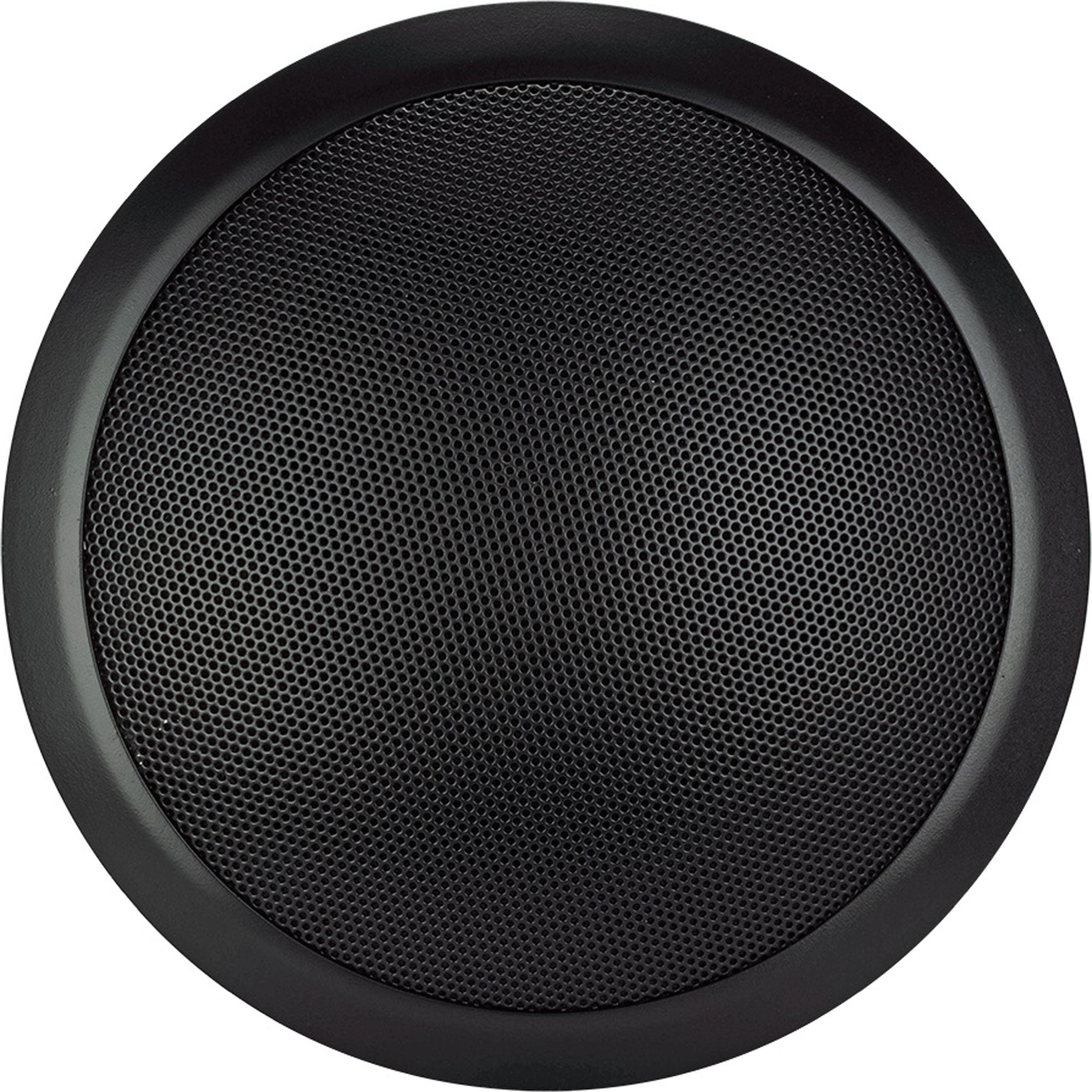

• Grille Properties: Black, Standard-Flange, Magnetic, Powder-Coated, Paintable, Steel
• Low Frequency Voice Coil: 1 in / 25.4 mm
• Low Pass Crossover: 12 dB per octave 2nd order
• Max. Ceiling Thickness: 1.91 in / 48.5 mm
• Max. Continuous Power RMS: 75W
• Max. Program Power: 150 W
• Minimum Impedance (Ω Ohms): 4.7 Ω
• Minimum Ceiling Thickness: 0.25 in / 6.4 mm
• Network Type: High Pass: 12 dB per octave 2nd order
• Nominal Impedance (Ω Ohms): 8 Ω
• Tweeter Driver: 1" Convex Titanium w/ BroadBeam Waveguide
• Woofer Driver: 5.25" Polypropylene Cone w/ Butyl Rubber Surround
• Sensitivity dB @ 1W/1M: 86.5 dB
• Sensitivity dB @ 2.83V/1M: 86.5 dB

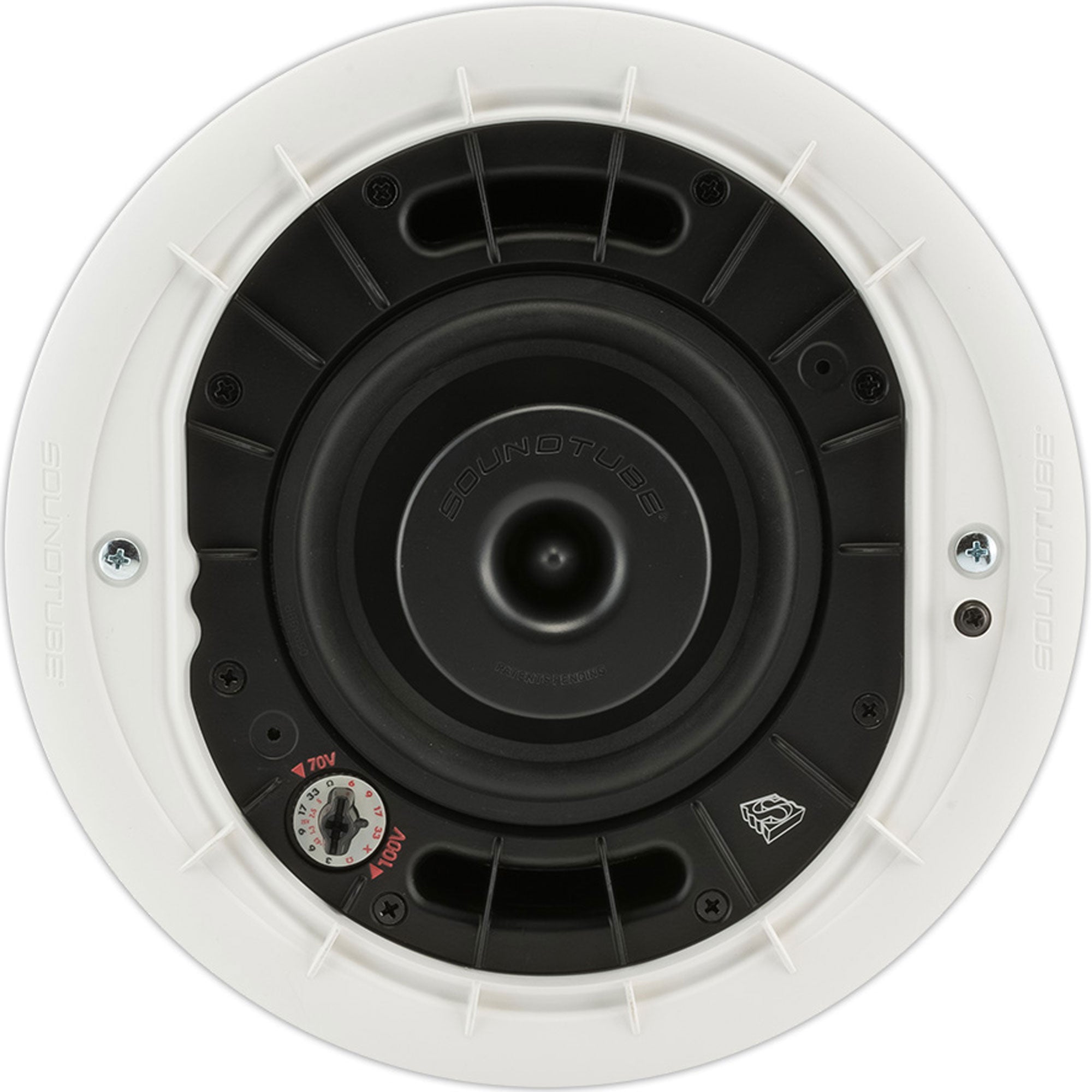

• Tap Selector: Rotary Switch
• Transformer Options: 25 / 70.7 / 100 V, 8 Ohm direct
• Transformer Taps Max. Setting (25V/70.7V/100V): 5W/33W/33W
• Visible Diameter: 10.71 in / 272 mm
• Visible Height: 0.96 in / 24.4 mm
