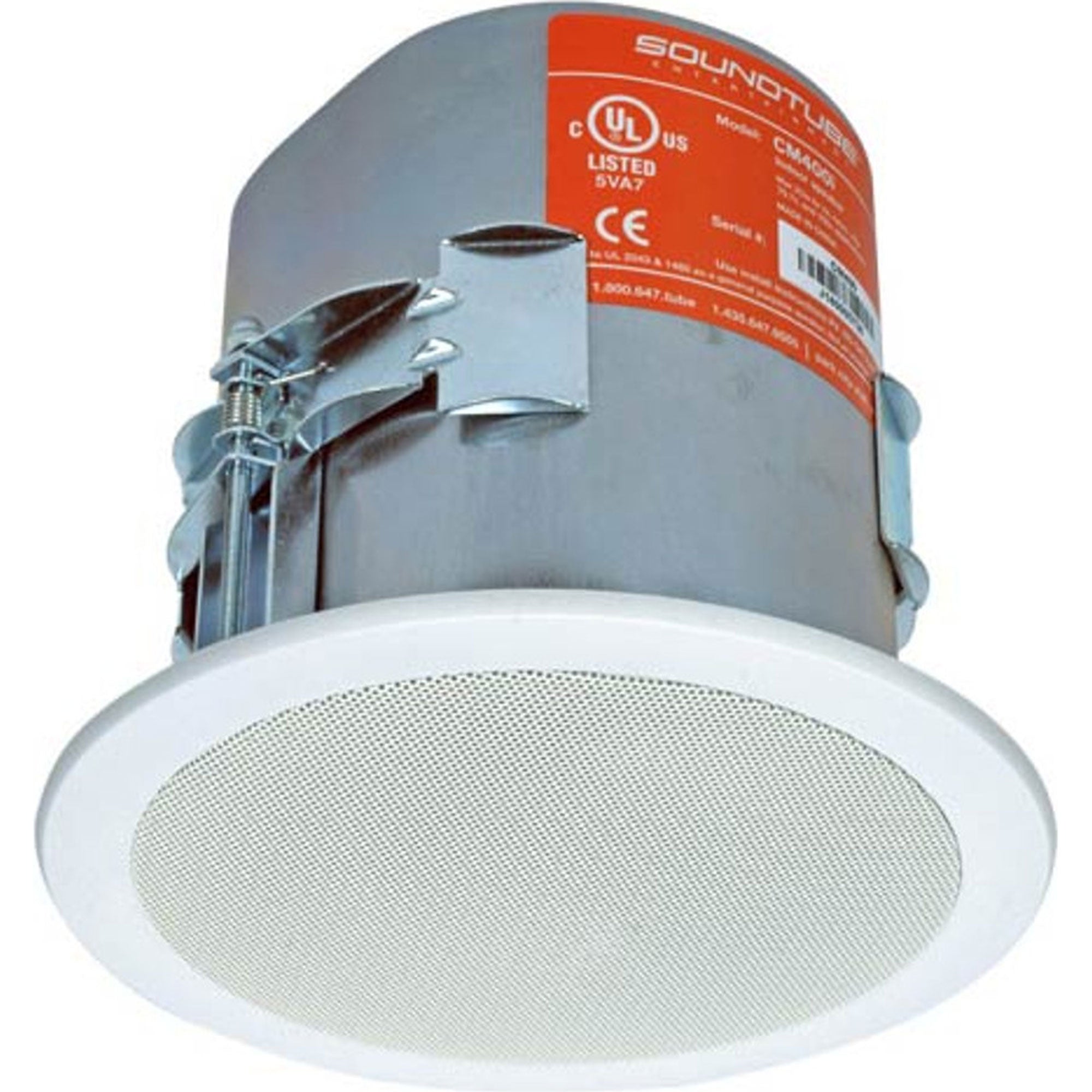

SoundTube CM400i 4" Coaxial In-Ceiling Speaker (White)

SoundTube 4" 2-way In Ceiling Speaker in White with BroadBeam Tweeter

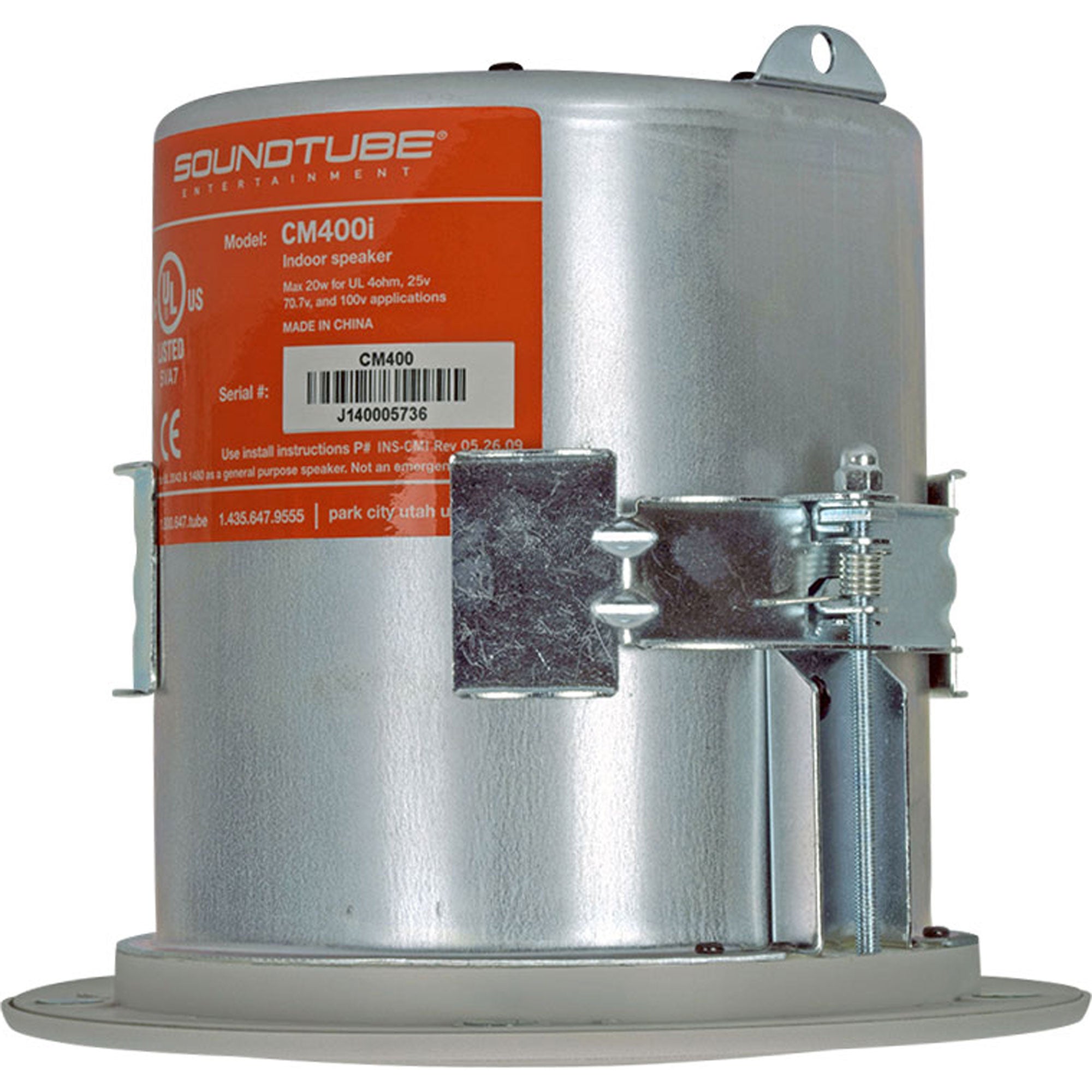

One 4.0 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling. Rapid installation blind-mount, fixed- wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.025 inch (0.6 mm) to 1.87 inch (47.5 mm). Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting. Powder-coated steel grille for lasting durability. 90 dB average sensitivity offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Paint mask, Euroblock connector and UL cover plate, and Choose between a color-coded (orange) tile bridge or a pre-construction bracket.

Specifications

• Color: White
• UPC: 752830440388
• Manufacturer: SoundTube
• Manufacturer's Category: CMi In-Ceiling
• Shipping Weight: 7.25 lbs / 3.29 kg
• Carton Height: 9.25 in / 234.95 mm
• Carton Length: 10 in / 254 mm
• Carton Width: 10 in / 254 mm
• Certifications: CE, RoHS, UL1480A, UL2043
• Enclosure Properties: ABS, Ported, Steel
• Enclosure Volume: 104 cu in / 1704.25 cu cm
• Included Accessories: Conduit Plate, Euroblock, Grille, Paint Mask, Choose Between a Tile Bridge or Pre-Construction Bracket
• Optional Accessories: WH Grille (GRL-CM400-WH)|Flangeless Magnetic Grille (GRL-CM42EZ-II-RD-WH)|Tile Bridge (AC-CMEZ42-TB)|Pre-Construction Bracket (AC-CMEZ4-PCB)|Junction Box (AC-CM-JBOX)|Connector (EUROBLOCK)
• Source Inputs: 4 Pin 5.08mm Euroblock
• TAA Compliant (Trade America): No
• BAA Compliant (Made in USA): No
• Backcan Diameter: 6.05 in / 153.7 mm
• Backcan Height: 6.55 in / 166.4 mm
• Coverage Angle (±6dB @ 2kHz): 65°
• Crossover Frequency: 1.8 kHz
• Cutout Width/Diameter: 6.6 in / 167.6 mm
• Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 4.6 and 4.3
• Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 5.6dB and 6.3dB
• Frequency Response (± 10 dB): 75 Hz - 22 kHz
• Frequency Response (± 3 dB): 90 Hz - 22 kHz

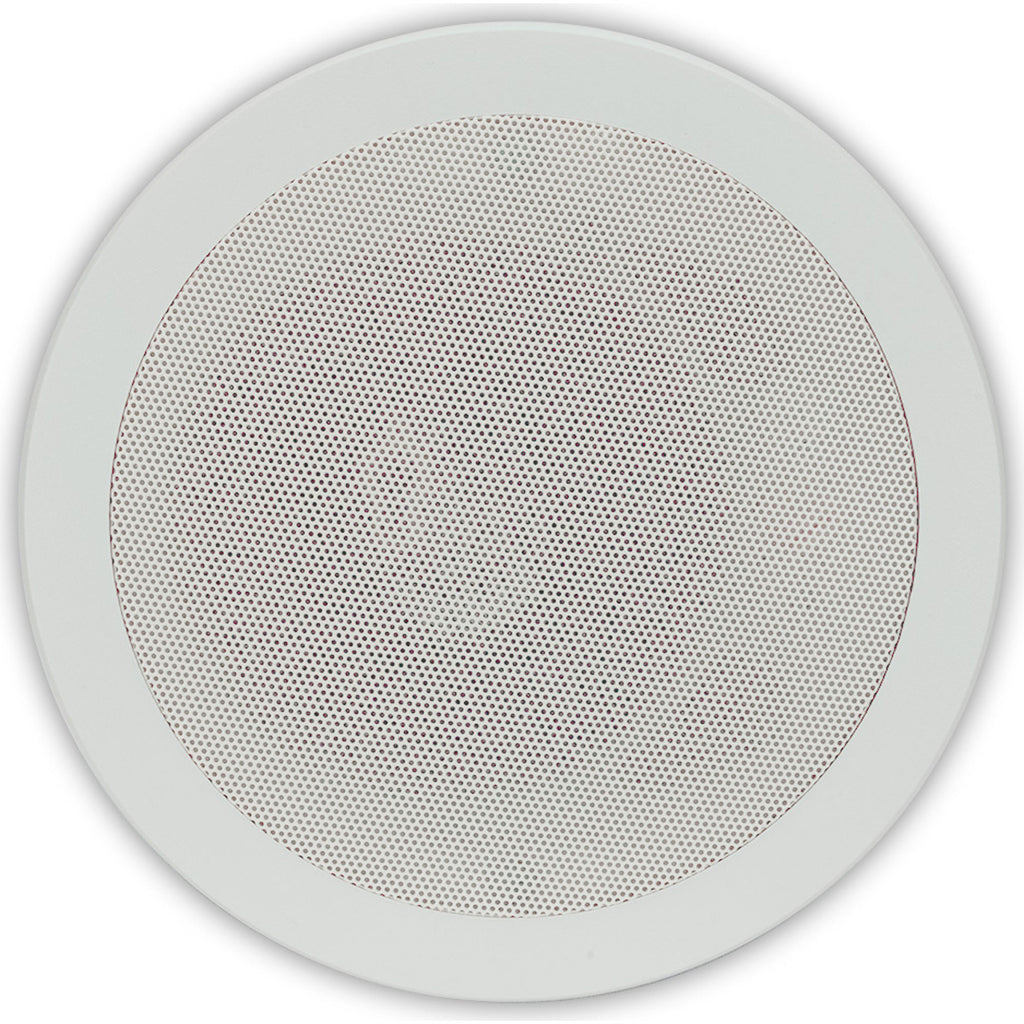

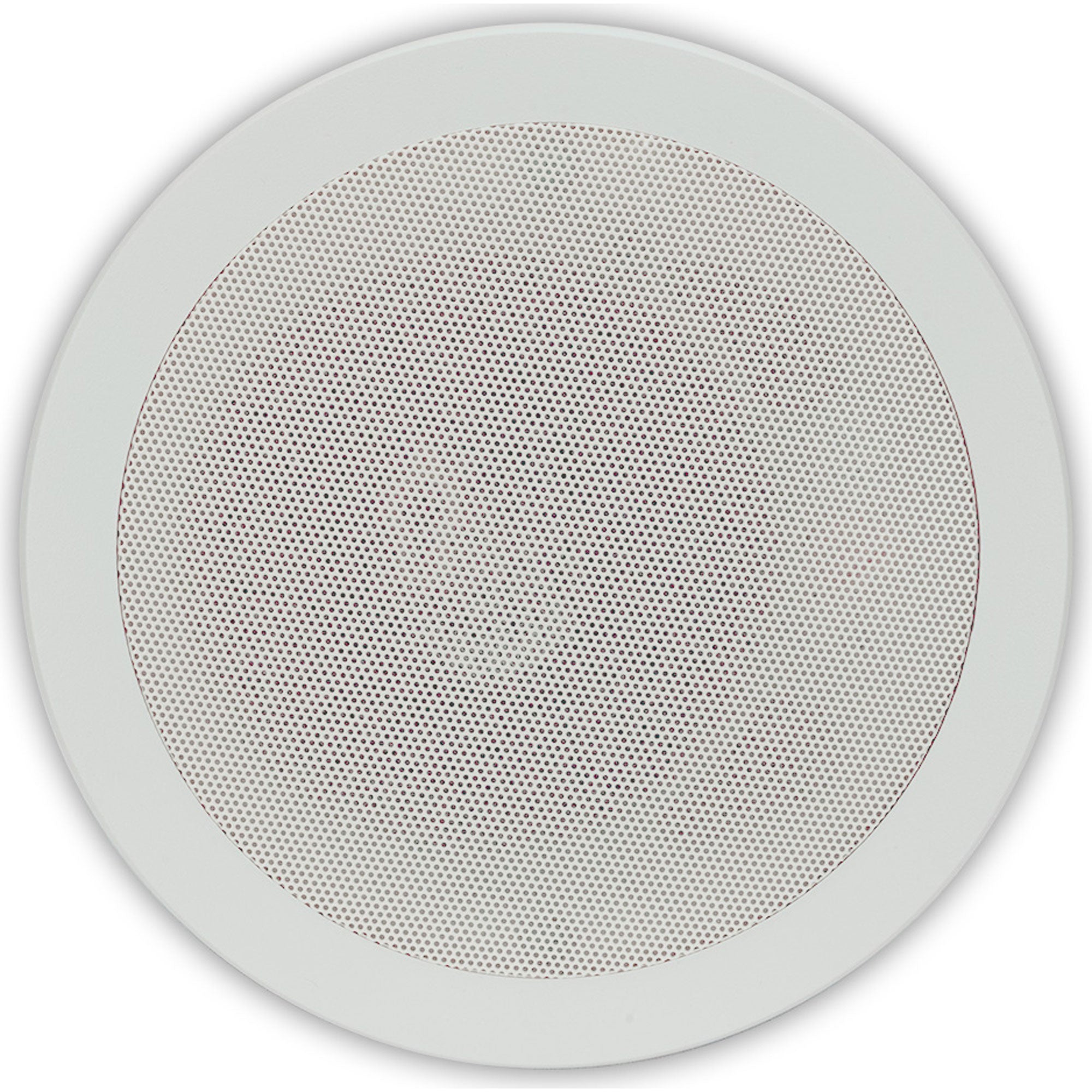

• Grille Properties: Standard-Flange, Magnetic, Powder-Coated, White, Paintable, Steel
• Low Frequency Voice Coil: 0.75 in / 19 mm
• Low Pass Crossover: 12 dB per octave 2nd order
• Max. Ceiling Thickness: 1.87 in / 47.5 mm
• Max. Continuous Power RMS: 20W
• Max. Program Power: 40 W
• Minimum Impedance (Ω Ohms): 3.3 Ω
• Minimum Ceiling Thickness: 0.02 in / 0.6 mm
• Network Type: High Pass: 12 dB per octave 2nd order
• Nominal Impedance (Ω Ohms): 4 Ω
• Tweeter Driver: 1" Convex Aluminum w/ BroadBeam Waveguide
• Woofer Driver: 4" Polypropylene
• Sensitivity dB @ 1W/1M: 87 dB
• Sensitivity dB @ 2.83V/1M: 90 dB

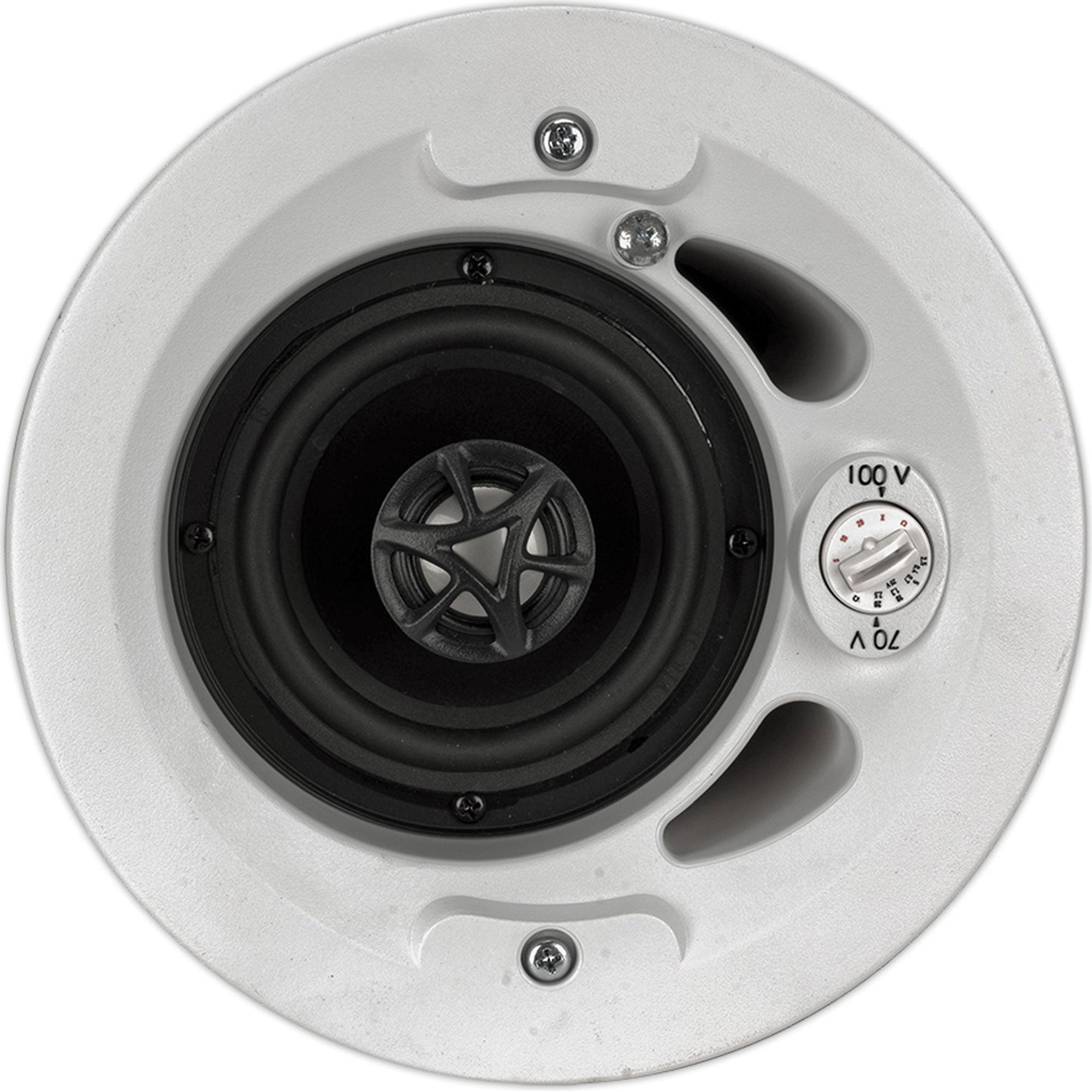

• Tap Selector: Rotary Switch
• Transformer Options: 25 / 70.7 / 100 V, 4 Ohm direct
• Transformer Taps Max. Setting (25V/70.7V/100V): 2.5W/20W/20W
• Visible Diameter: 8.15 in / 207 mm
• Visible Height: 0.47 in / 11.9 mm
