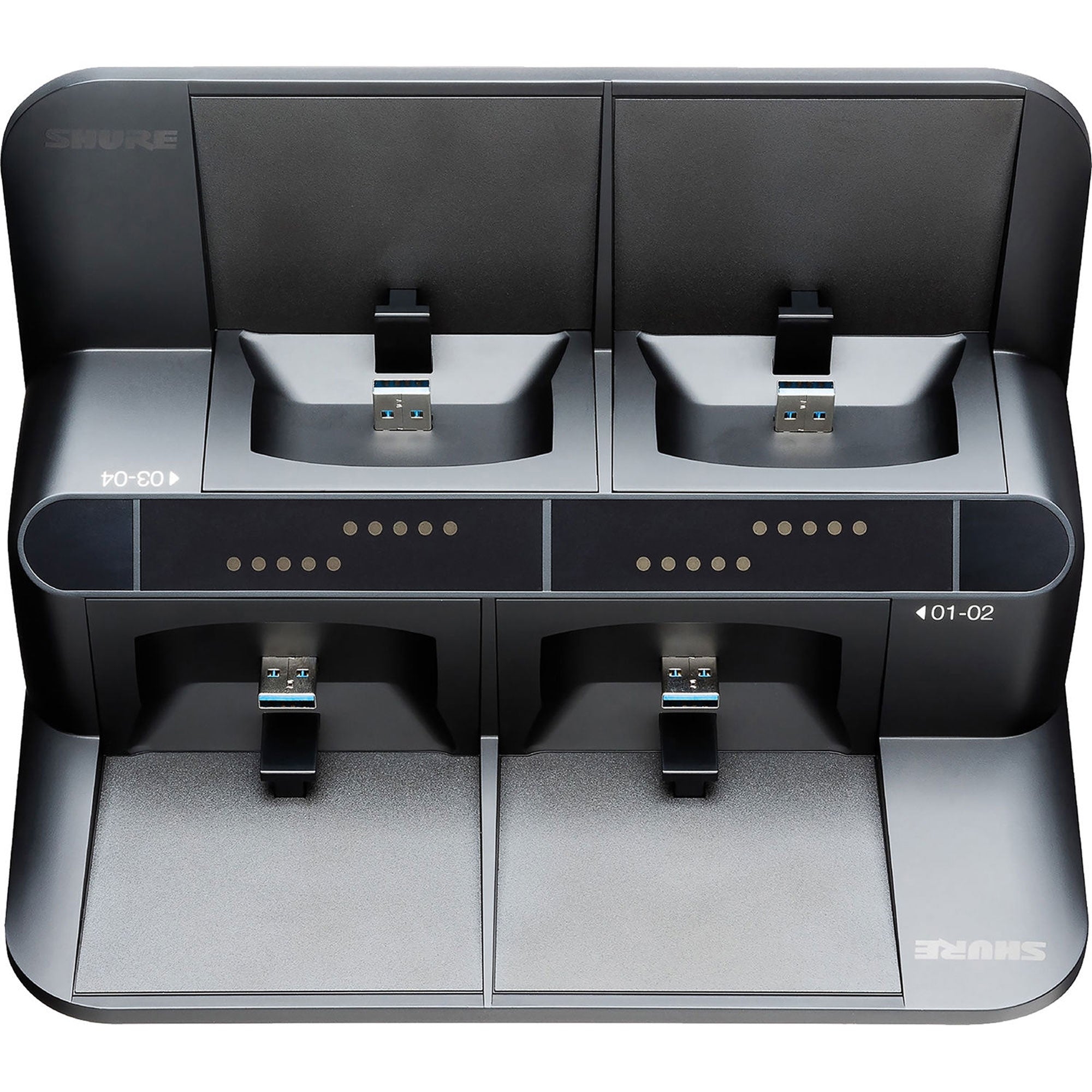

Shure SBC450-US Docking Station

4-Bay Networked Docking Station for ULXD6 & ULXD8

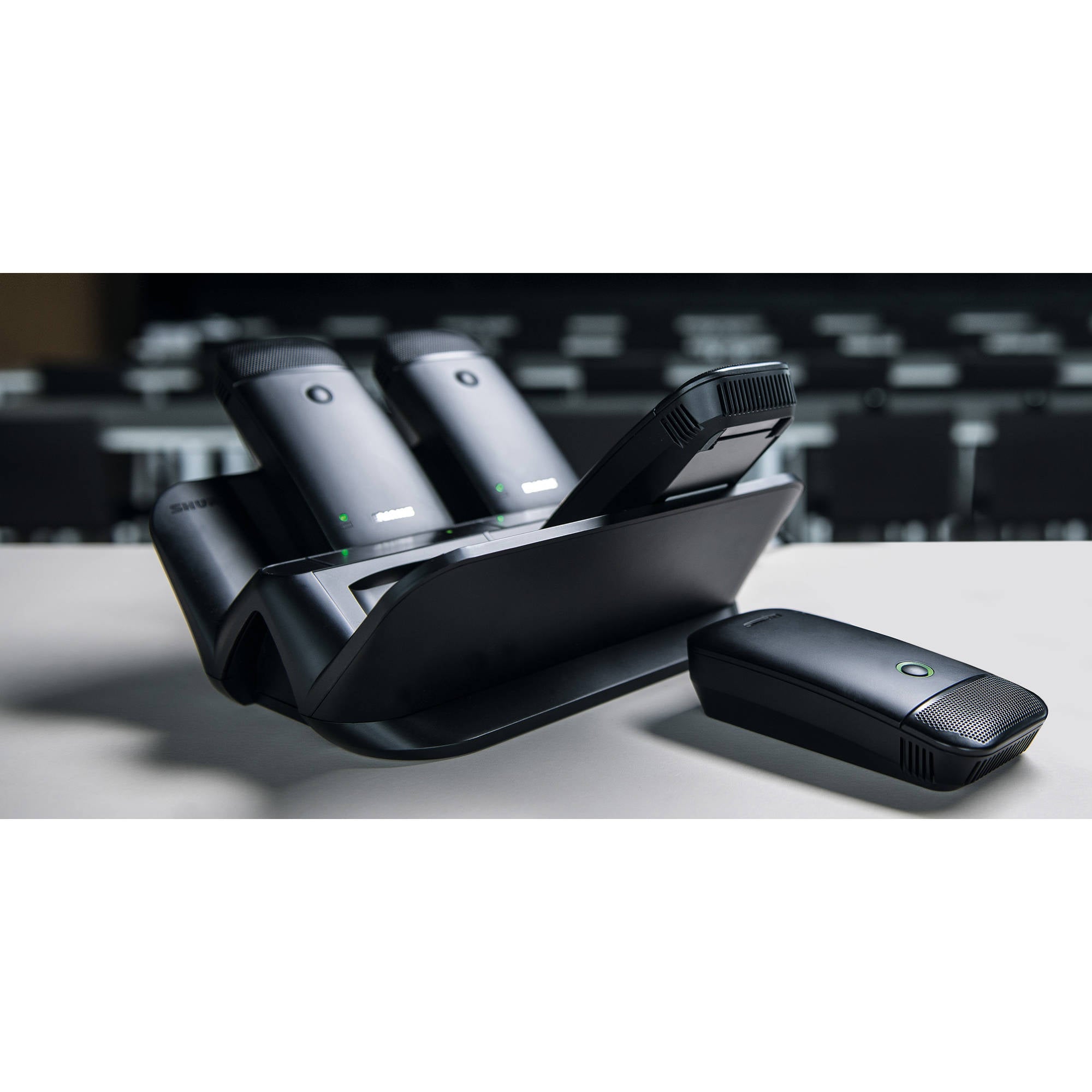

The SBC450 Networked Charging Station allows up to 4 ULXD6 or ULXD8 transmitters that are equipped with the SB900A rechargeable battery to be charged quickly and conveniently.

The transmitters simply slide into the charger; it is not necessary to remove the SB900A battery. Bi-color LEDs confirm charging status.

When the SBC450 is connected to a network, the charging status of each transmitter can be viewed remotely. Transmitter settings or firmware can be updated while the transmitters are in the charger using Shure Wireless Workbench or SystemOn software, or through a third-party room control system.

Specifications:

• Charge Time: ULXD6 and ULXD8: 15 minutes = 1 hour runtime; 1 hour = 50% charged; 3 hours = 100% charged
• Network Interface: 10/100 Mbps Ethernet
• Power Requirement: 15 V DC @ 4.0 A maximum, supplied by external power supply (tip positive)
• Housing: Molded Plastic, Cast Zinc Alloy
• Dimensions: 7.56 in. x 8.83 in. x 3.23 in (192 mm x 224.4 mm x 82.1 mm)
• Weight: 3.51 lbs (1.59 kg)
• Operating Temperature Range: 32°F (0°C) to 113°F (45°C)
• Storage Temperature Range: -20°F (-29°C) to 165°F (74°C)
