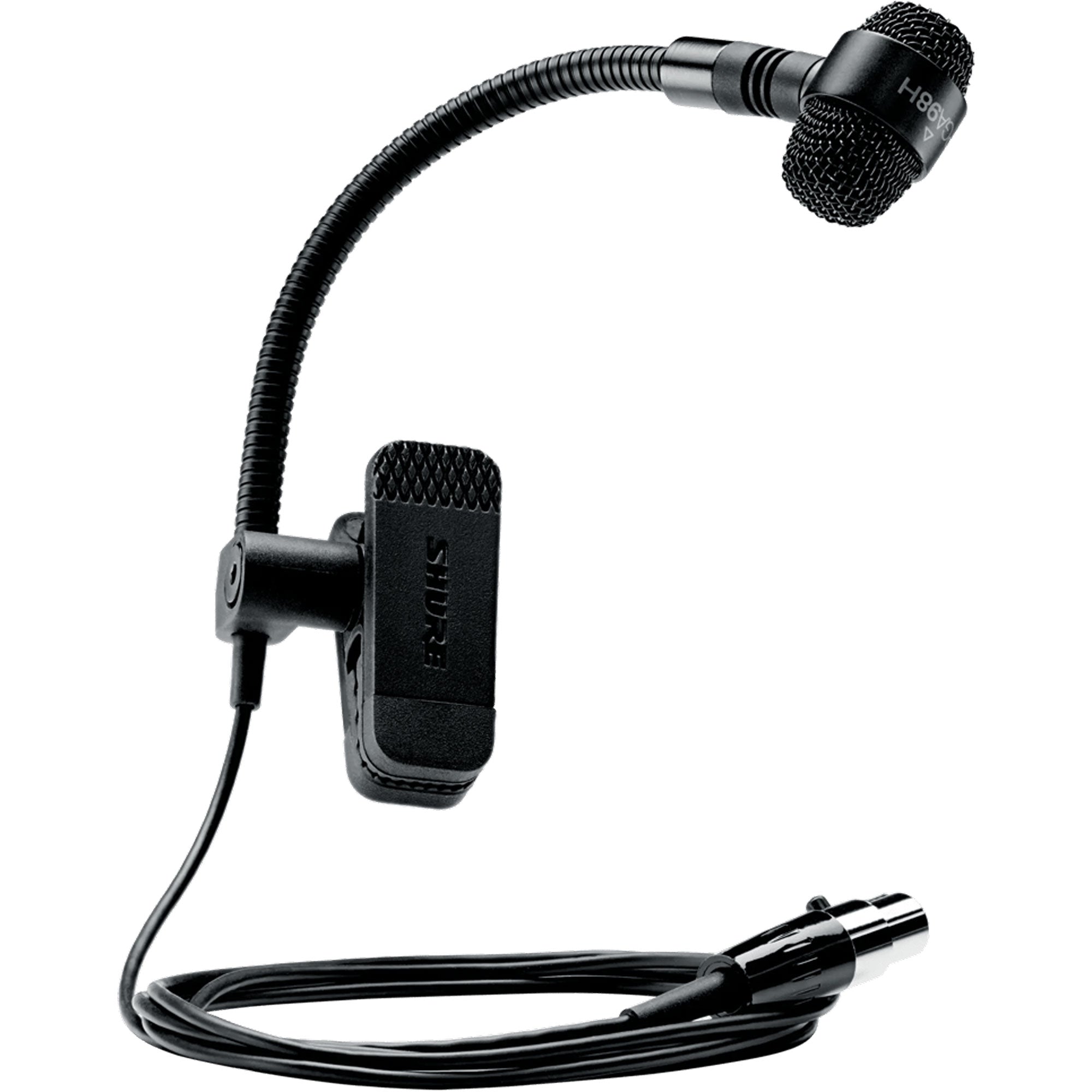

Shure PGA98H Cardioid Condenser Clip-On Horn Microphone for Wireless

Clip-On Cardioid Condenser Horn Microphone with TA4F Connector

The PGA98H is a professional quality cardioid condenser microphone optimized for wind instruments, including woodwinds and brass. Featuring a flexible, discrete gooseneck design with highly durable construction, in-line preamplifier and horn clamp, and choice of XLR or TA4F connector for use with wireless systems, the PGA98H is ideal for both live performance and recording.

Features:

• Tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
• Flexible gooseneck design makes accurate positioning quick and easy
• Integrated horn clamp for quick and easy mounting
• In-line preamplifier provides a direct XLR connection (11-52 VDC phantom power required)
• Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
• Updated industrial design with black metallic finish and grille for unobtrusive visual presence
• Available with and without XLR Cable for flexibility in gear choice
  - With 15 ft (4.6 m) XLR-XLR cable (PGA98H-XLR; inline preamp and cable)
  - Without cable (PGA98H-LC, with XLR preamp only)
  - With TA4F connector for use with wireless bodypack systems (PGA98H-TQG, no preamplifier provided)

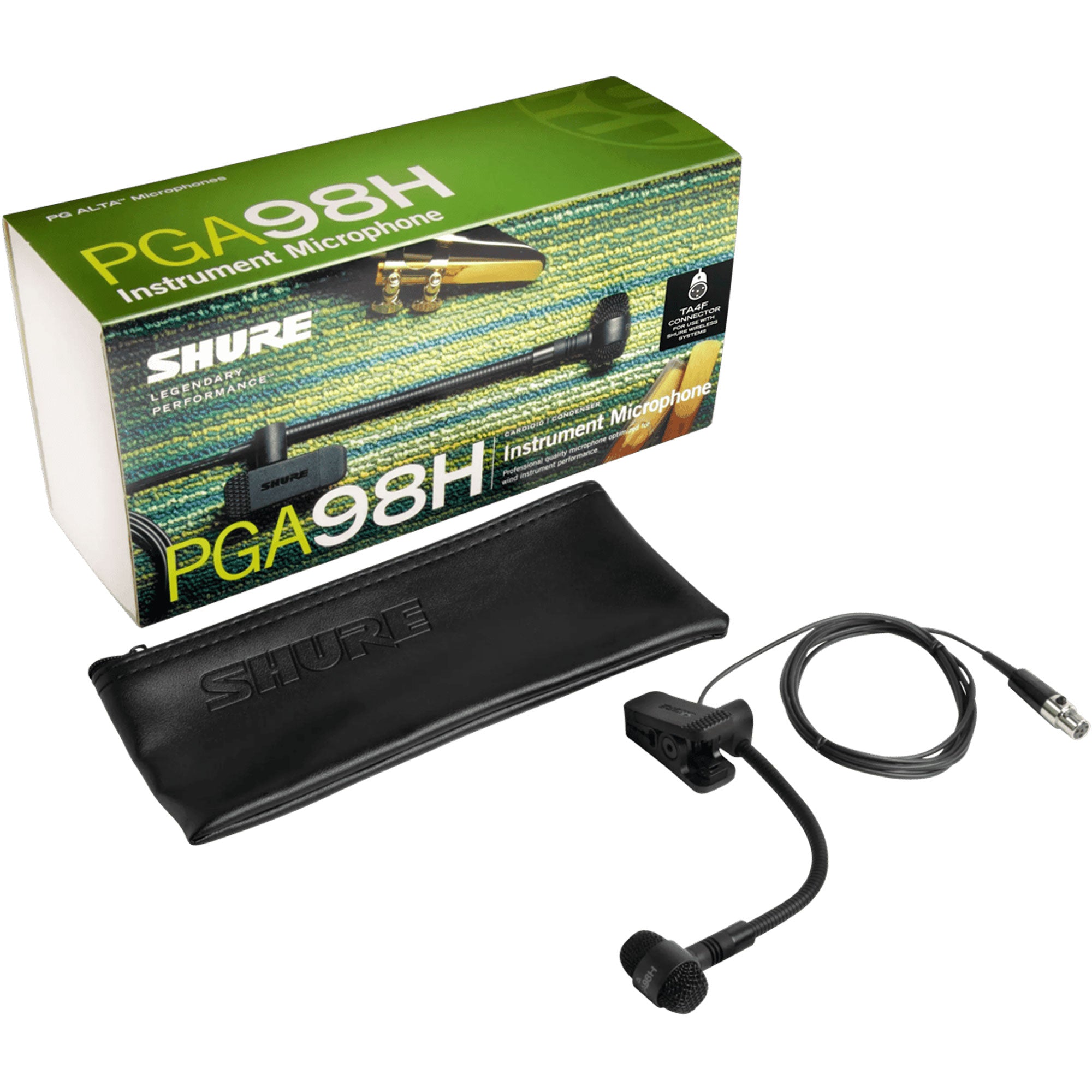

• Zipper pouch included for additional protection during storage or transport
• Legendary Shure quality design and construction for exceptional performance in rigorous environments

Specifications:

• Type: Electret condenser
• Frequency Response: 60 to 20,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 850 Ω
• Sensitivity (at 1 kHz, open circuit voltage): -52 dBV/Pa (2.51 mV)
  1 Pa=94 dB SPL
• Maximum SPL (1 kHz at 1% THD, 1 kΩ): 130 dB SPL
• Self-Noise (A-weighted, typical): 27 dB SPL-A
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: 210 g (8 oz.)
• Connector:
  PGA98H-XLR/PGA98H-LC: Three-pin professional audio (XLR), male
  PGA98H-TQG: 4-pin, female TA4F miniature XLR connector
• Housing: Cast Zinc
• Power Requirements: 11-52 VDC phantom power (2 mA)
