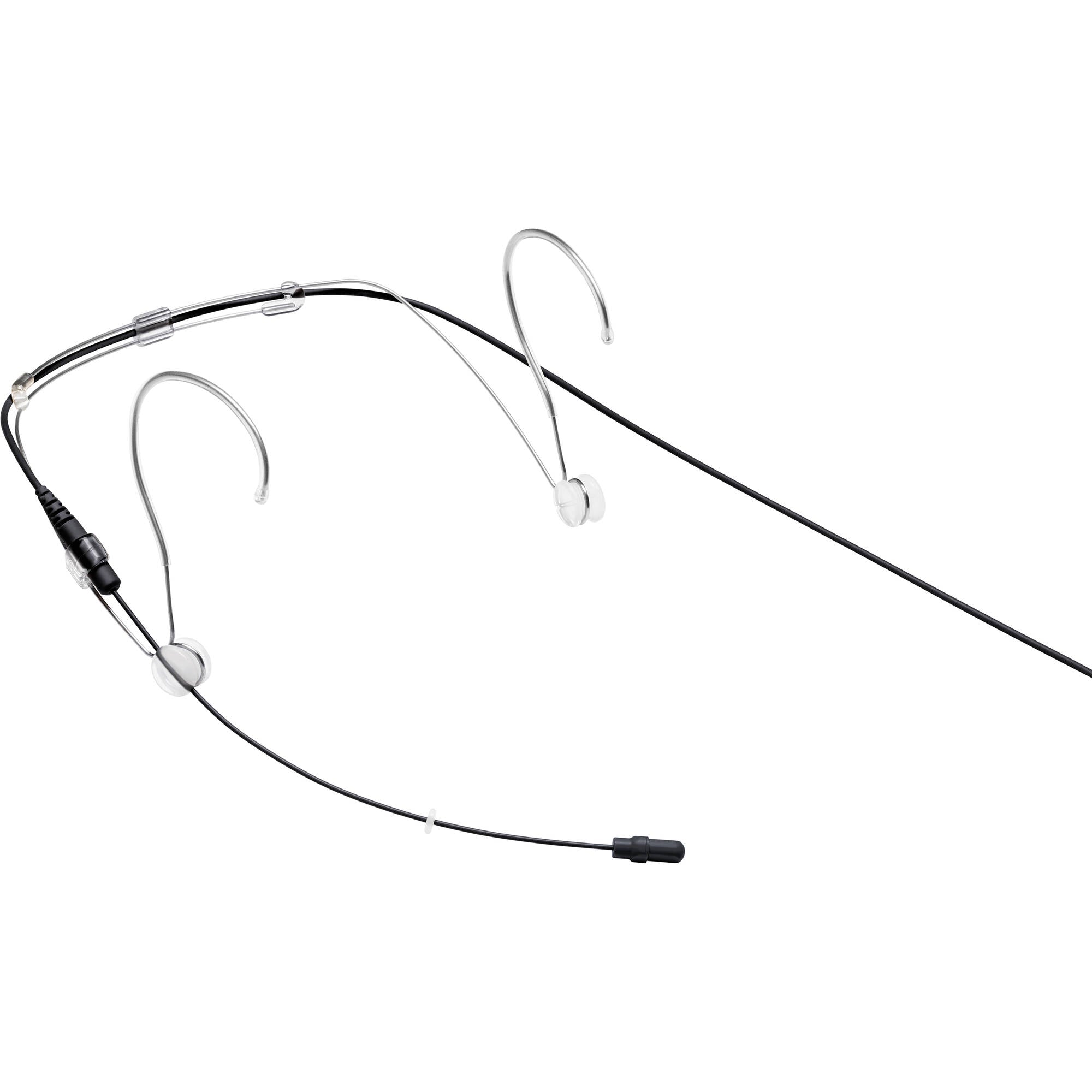

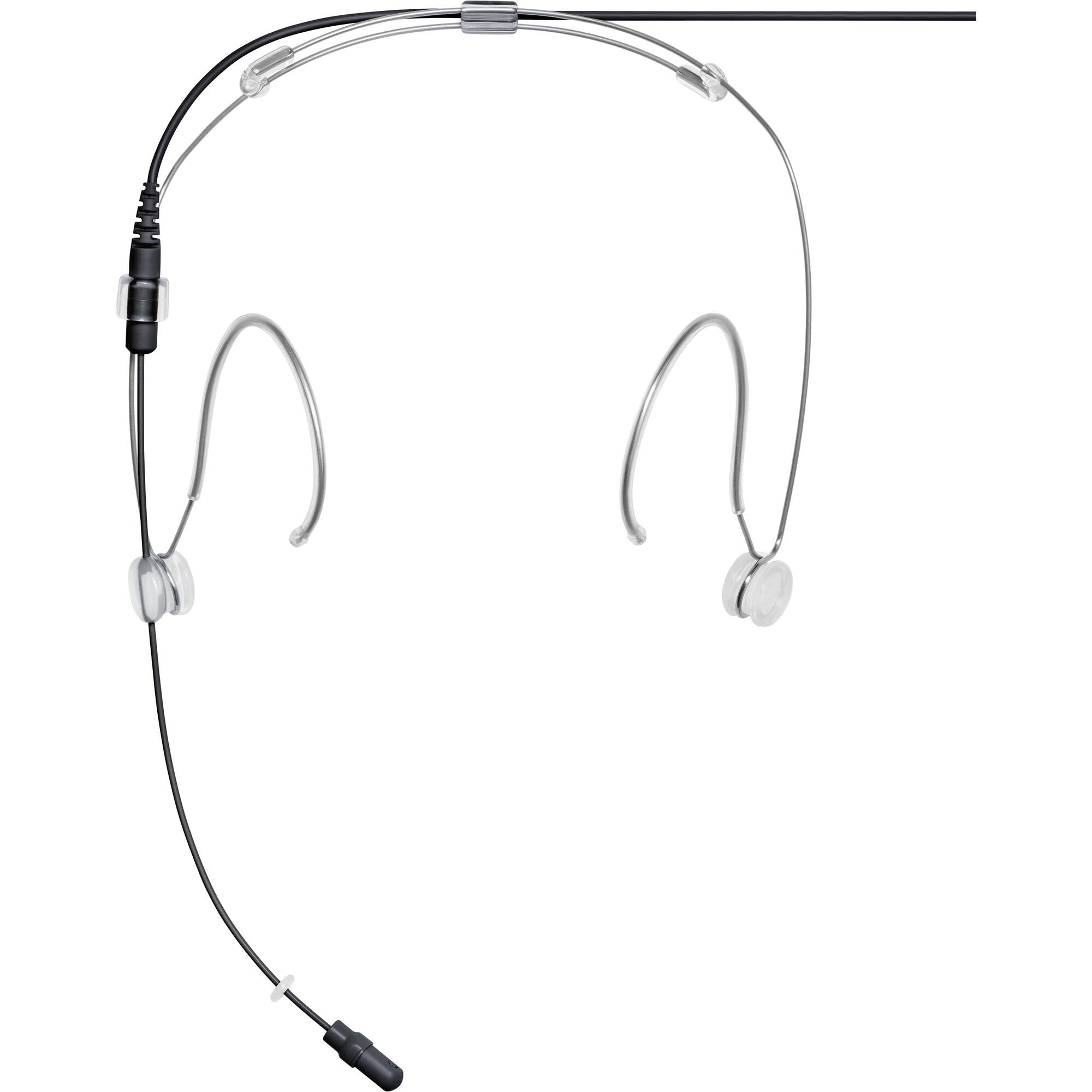

Shure DH5 DuraPlex Omnidirectional Headset Microphone (Black, 3-Pin LEMO)

Waterproof Subminiature Omnidirectional Headset Microphone with IP57-rated Design and 1.6mm Shure Plex Cable - Black, 3-Pin LEMO Connector

Lightweight and comfortable to wear, the DuraPlex DH5 headset microphone offers a neutral, full sound that will lift your performance, speech, musical, or broadcast. Rely on the DH5 headset microphone in the harshest environments, thanks to its long-lasting Shure Plex cable and a certified IP57 rating, which means you're protected against water, sweat, moisture, dust, and dirt. Capture every moment with confidence.

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.

In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

*IP Code, published by the International Electrotechnical Commission (IEC), rates the degree of protection against dust (first number) and water (second number). An IP57 rating classifies DuraPlex as follows:

• 5 (Dust) - Ingress of dust is not entirely prevented, but it does not enter in sufficient quantity to interfere with the satisfactory operation of the equipment.
• 7 (Water) - Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water up to one meter for 30 minutes.

Features:

• 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
• IP57 dust-resistant, waterproof rated
• Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
• Advanced 1.6 mm Shure Plex cable:
• Dual redundant ground in cable serves as secondary shield for unprecedented longevity
• Immune to memory effect and kinks
• Fully paintable with typical theater paints, pens, and polishes
• Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
• Available in four colors: Black, Cocoa, Tan, White
• Available in two connector types: TA4F (mTQG) and LEMO
• Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)

Specifications:

• Microphone
• Form Factor: Headworn
• Sound Field: Mono
• Capsule: MEMS
• Polar Pattern: Omnidirectional
• Windscreen: Foam (Included)
• Performance
• Frequency Range: 20 Hz to 20 kHz
• Maximum SPL: 132 dB SPL (1 kHz, 1% THD)
• Sensitivity: -42.5 dBV at 1 kHz
• Dynamic Range: 101 dB
• Signal-to-Noise Ratio: 63 dB
• Equivalent Noise Level: 31 dB SPL A-Weighted
• Connectivity
• Output Connectors: 1 x LEMO 3-Pin Female (Lockable/Waterproof)
• Cable Length: 66" / 1.7 m
• Cable Diameter: 0.1" / 1.6 mm
• Power
• Operating Voltage: 5 V
• Operating Current Consumption: 220 µA
• Physical
• Color: Black
• IP Rating: IP57
• Construction Material: ABS
• Dimensions:
  W: 0.2 x L: 0.6" / W: 5.2 x L: 14.5 mm (Capsule)
  L: 5.4" / L: 13.6 cm (Boom)
• Weight: 0.7 oz / 20 g

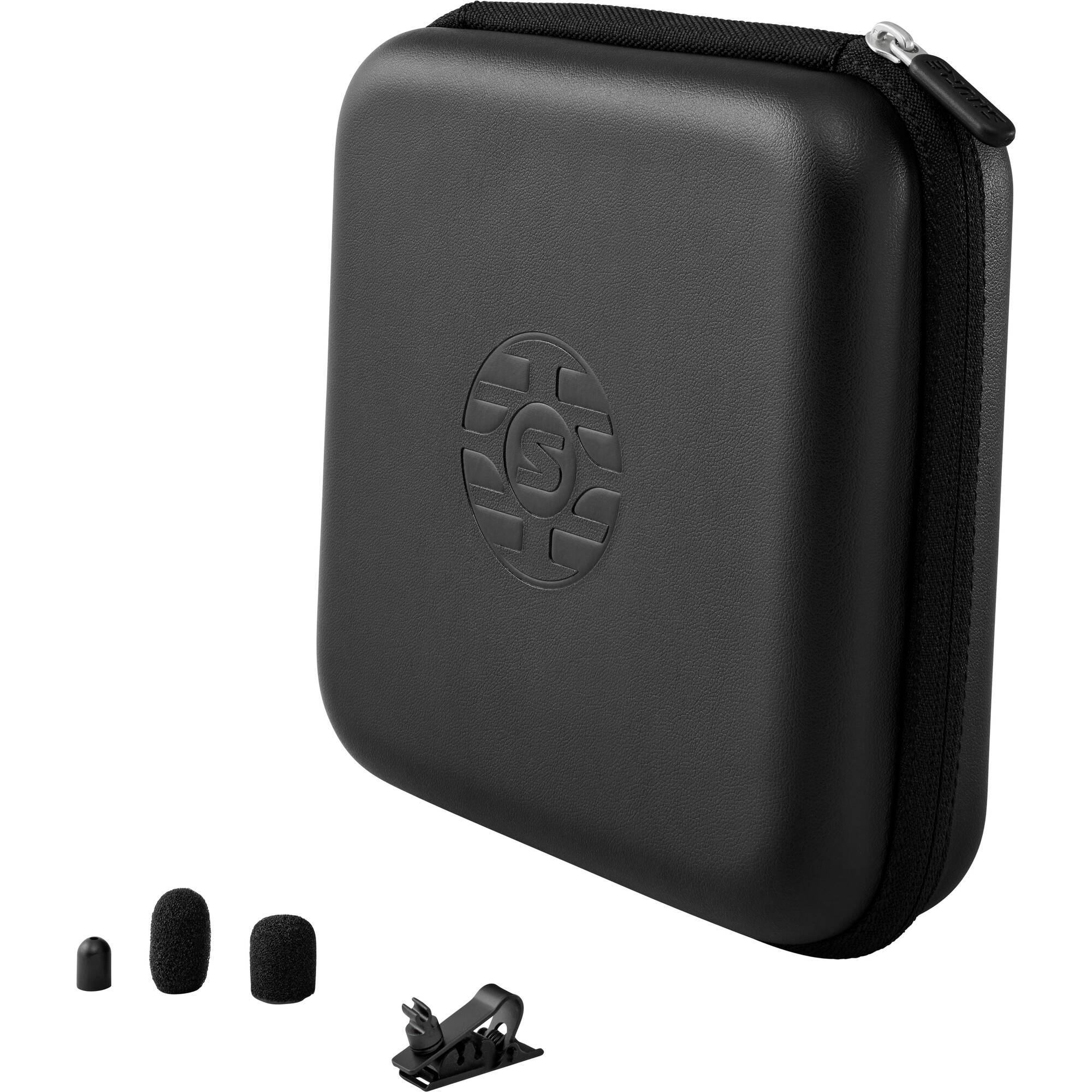

Includes:

• Shure DH5 DuraPlex Omnidirectional Headset Microphone (Black, 3-Pin LEMO)
• Presence Cap
• Single Tie Clip
• Foam Windscreen
• Snap-Fit Windscreen
• Case
• Limited 2-Year Warranty
