Shure BLX14/CVL Wireless Cardioid Lavalier Microphone System (H9: 512-542 MHz)

Wireless Presenter System with CVL Lavalier Microphone (Frequency Band H9, 512-542 MHz)

The entry to Shure quality lavalier microphones for spoken word applications. Features analogue wireless transmission.

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

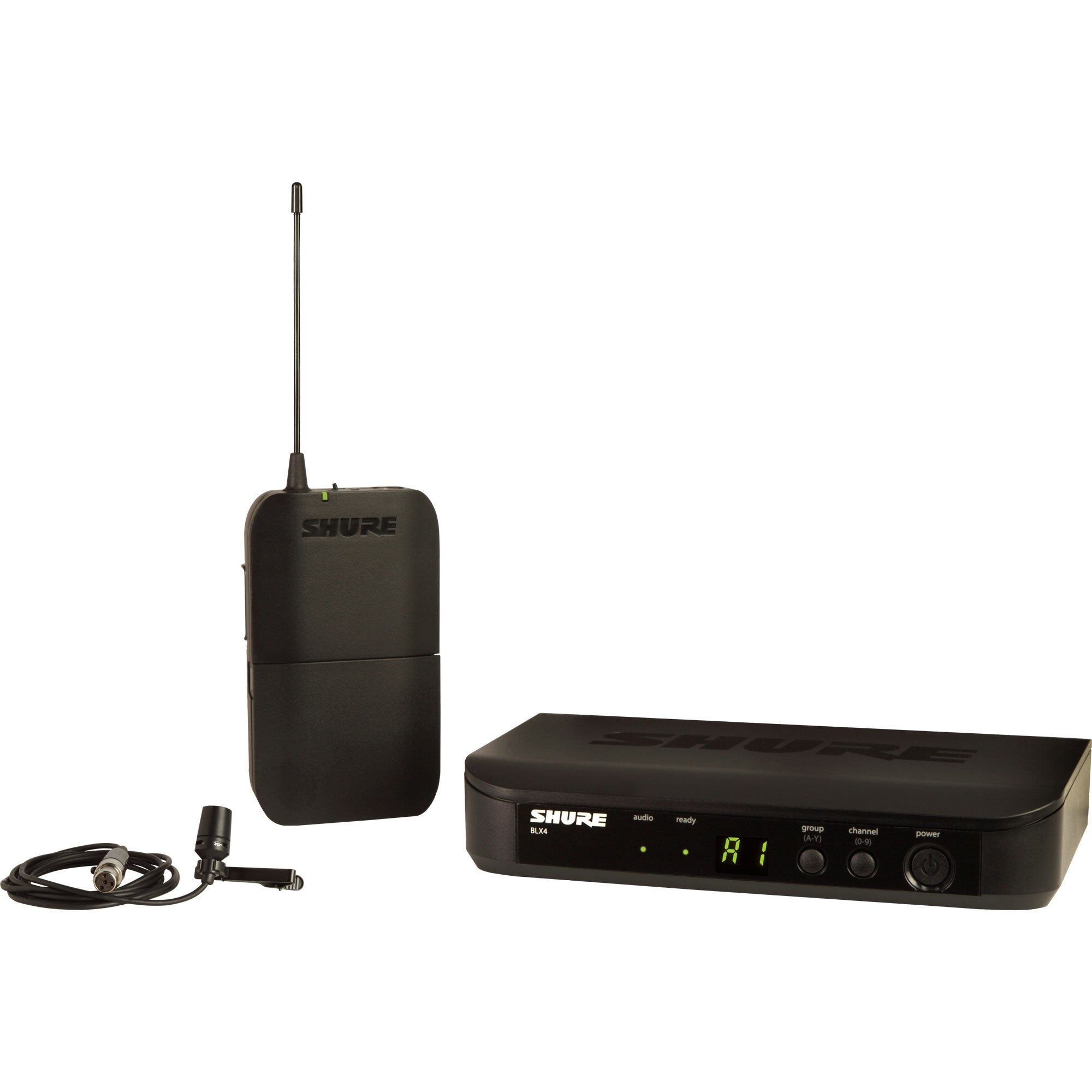

Includes BLX4 wireless receiver, BLX1 bodypack transmitter, CVL lavalier microphone, power supply, lavalier clip, windscreens, and user guide.

Features:

• User-friendly, high-performance wireless system
• BLX wireless supports up to 12 simultaneous systems
• BLX4 single-channel receiver with easy one-touch setup
• CVL lavalier condenser microphone with cardioid polar pattern captures your voice with exceptional clarity
• Also includes mic clip, power supply, and 2 AA test batteries

Specifications:

• System
• Wireless Transmission: Analog UHF
• Number of RF Channels: 123
• Included Transmitters: 1 x Bodypack
• Diversity: Antenna Diversity
• RF Frequency Band:
  H9: 512 to 542 MHz
  H10: 542 to 572 MHz
  H11: 572 to 596 MHz
  J10: 584 to 608 MHz
  J11: 596 to 616 MHz
• RF Bandwidth: 24 MHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 300' / 91.4 m (Line of Sight)
• Max Systems per Setup: 12
• Dynamic Range: 100 dBA

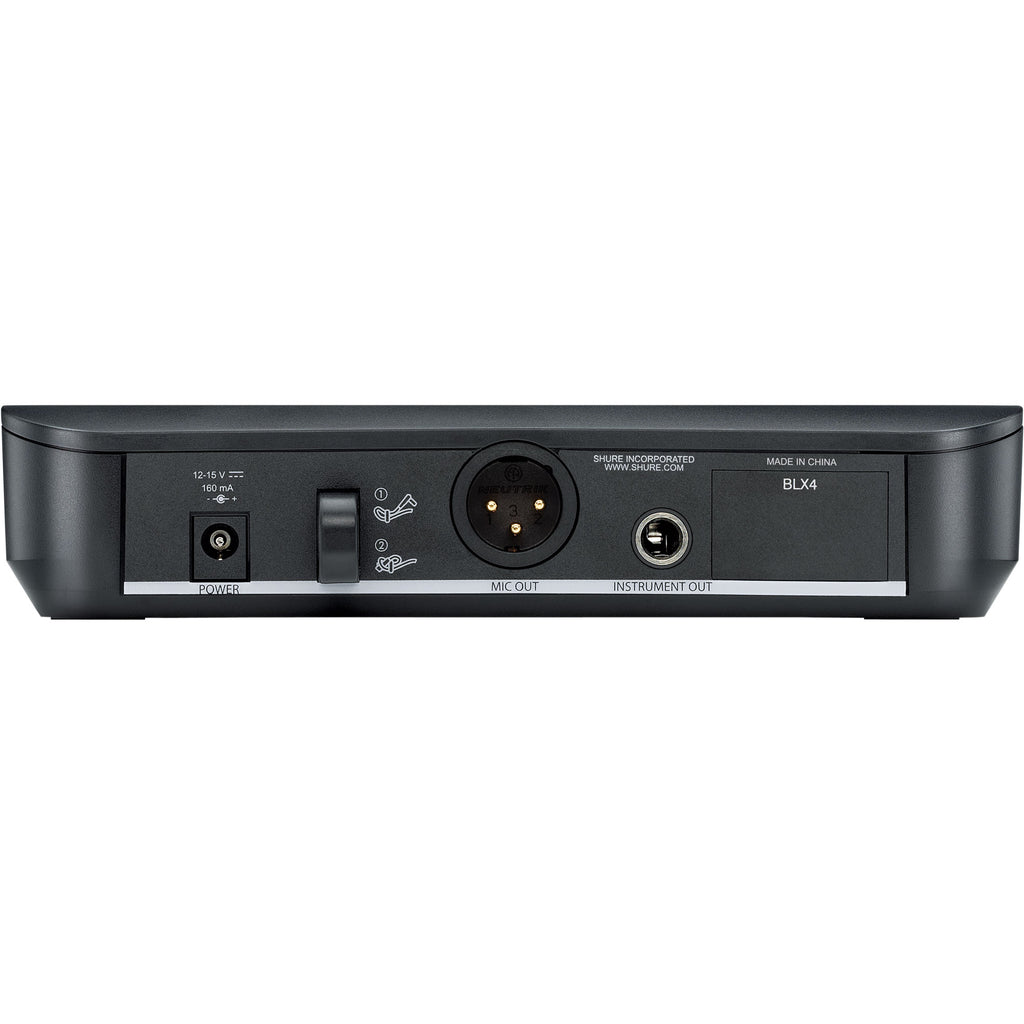

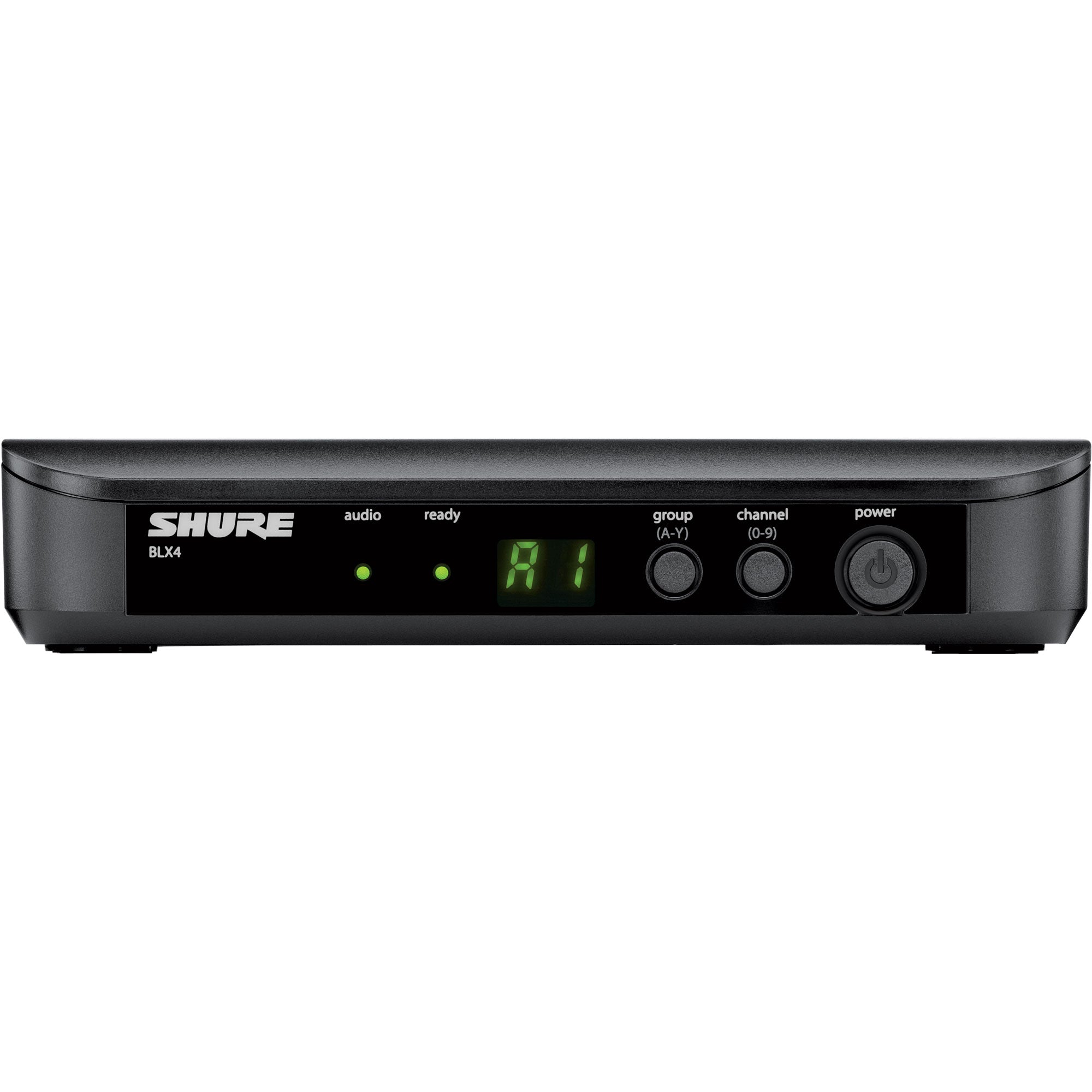

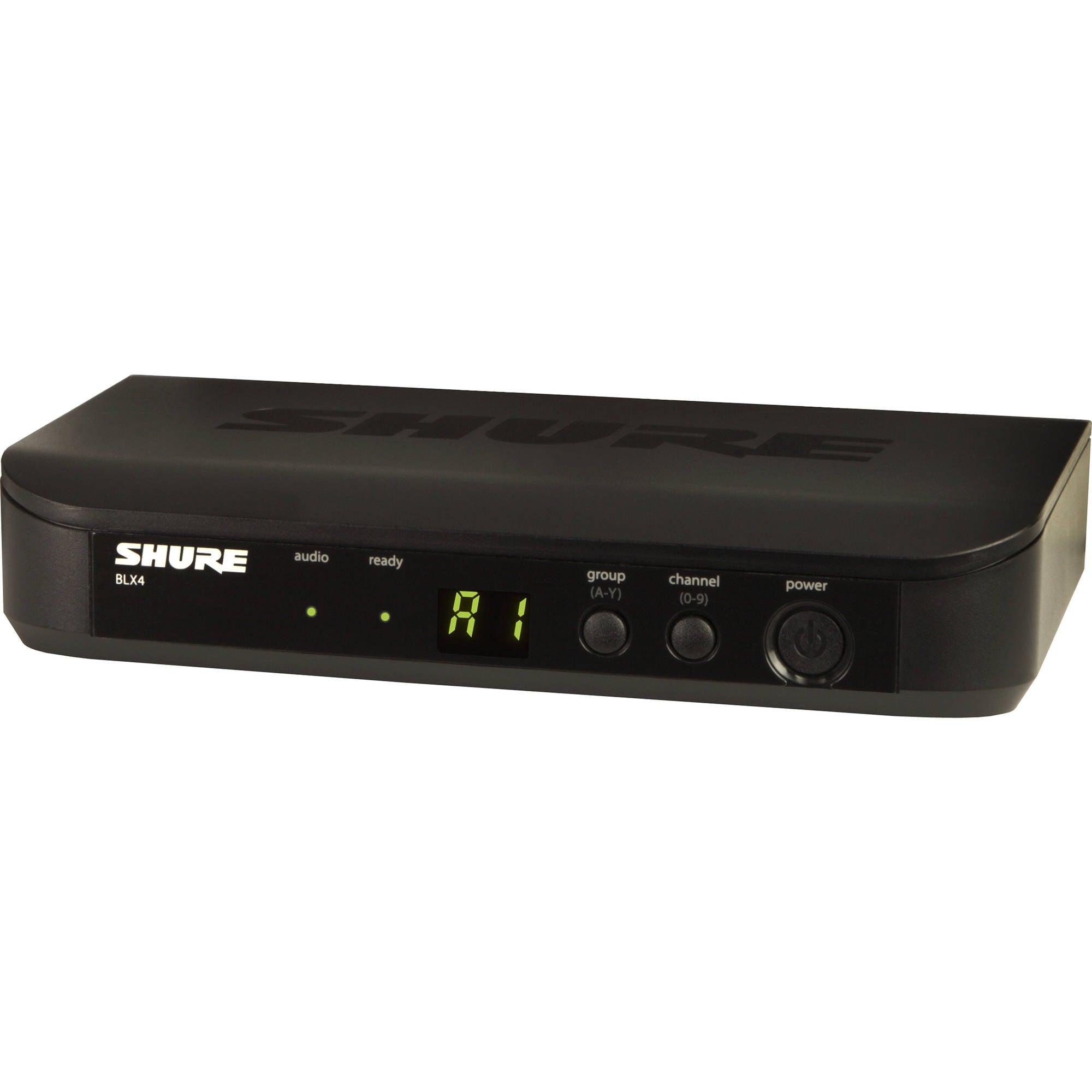

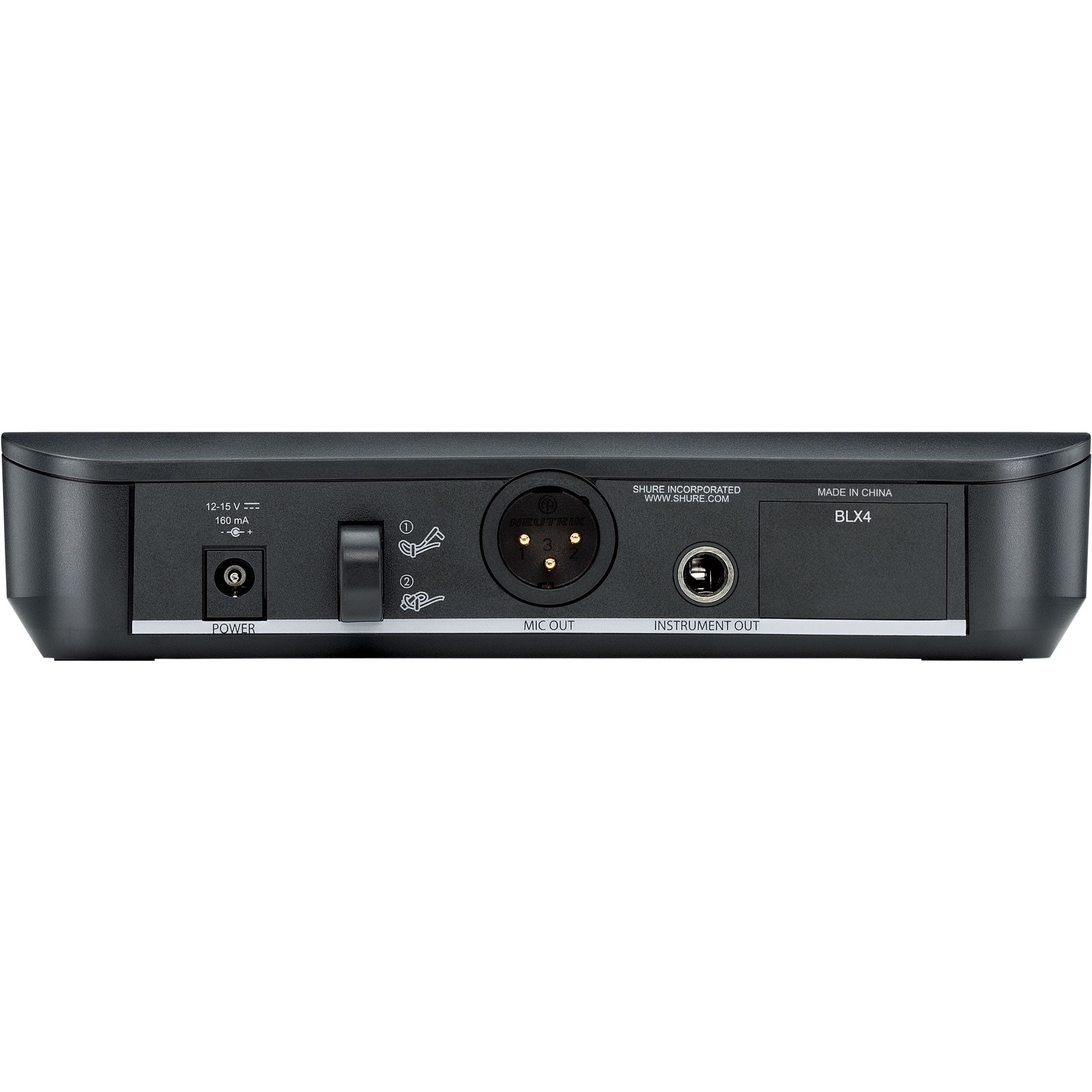

• Receiver
• Form Factor: Tabletop
• Antenna: 2 x Internal, Fixed
• Number of Audio Channels: 1
• Audio I/O:
  1 x XLR 3-Pin Male Balanced Output
  1 x 1/4" TRS Female Unbalanced Output
• Audio Output Level:
  XLR Output: -27 dBV (Mic Level)
  1/4" Output: -13 dBV (Instrument Level)
• Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
• Impedance:
  XLR Output: 200 Ohms
  1/4" Output: 50 Ohms
• Power Requirements: AC/DC Power Adapter
• AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
• Display & Indicators:
  1 x Multi-Segment LED (Channel, Group)
  2 x LED (AF Level, Sync)
• Housing: ABS
• Operating Temperature: 0 to 135¬∞F / -17 to 57¬∞C
• Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
• Weight: 8.5 oz / 241 g

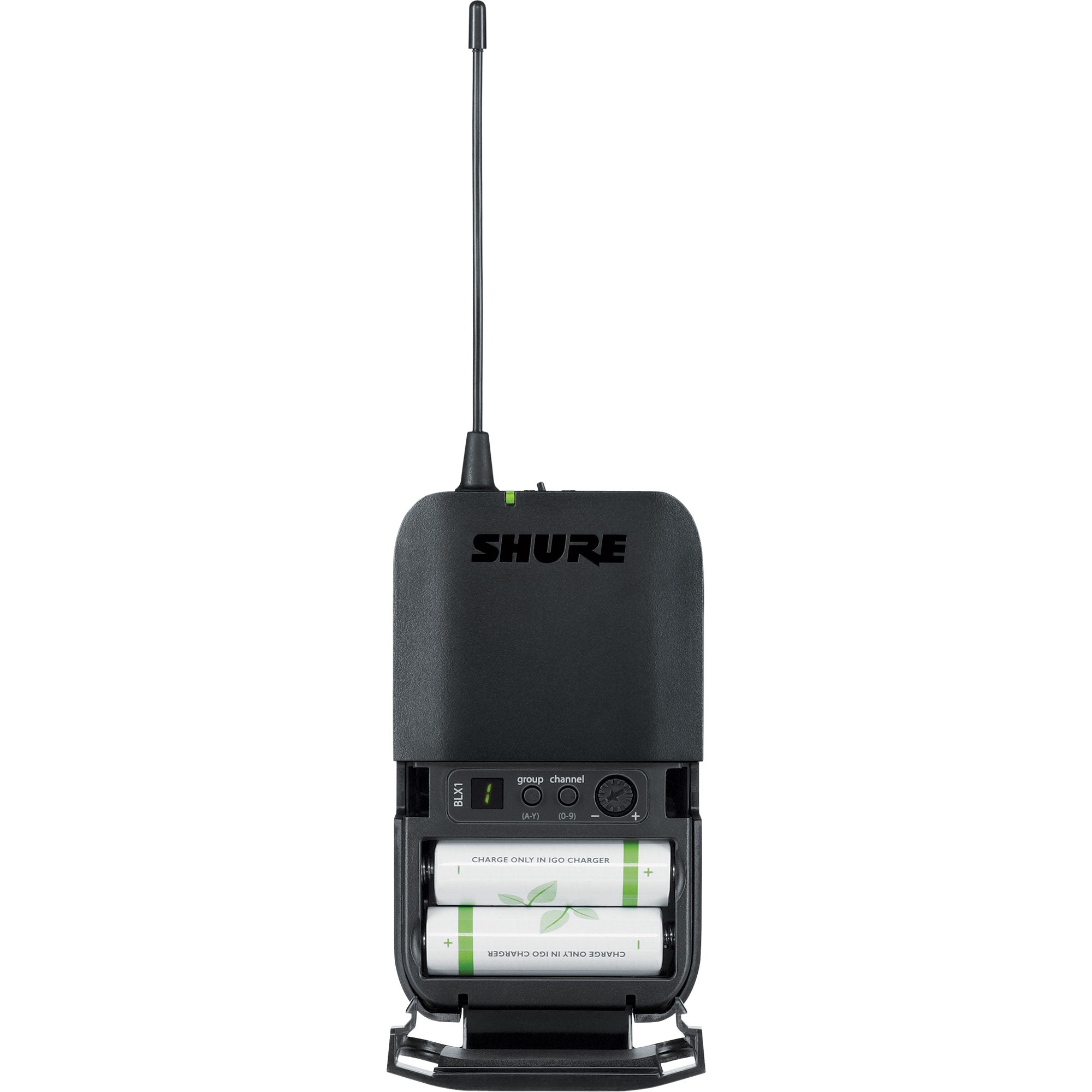

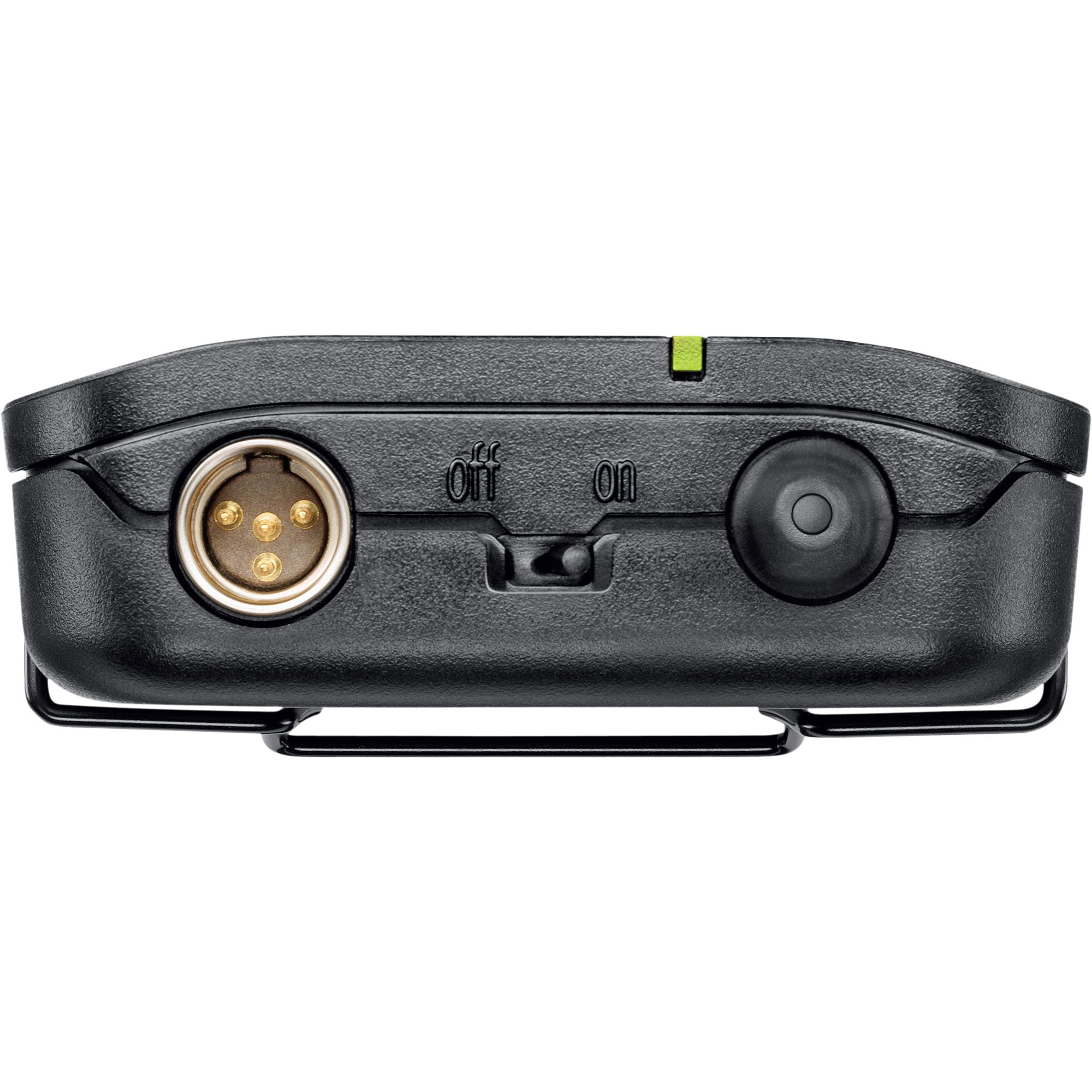

• Transmitter
• Form Factor: Bodypack
• RF Output Power: 10 mW
• Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
• Muting: Off/On Switch
• Auto-Level Control: No
• Gain Range: -16 to +10 dB
• Sync Method: Manual
• Antenna: 1 x Flexible Whip, Fixed (Beltpack)
• Power Requirements: Battery

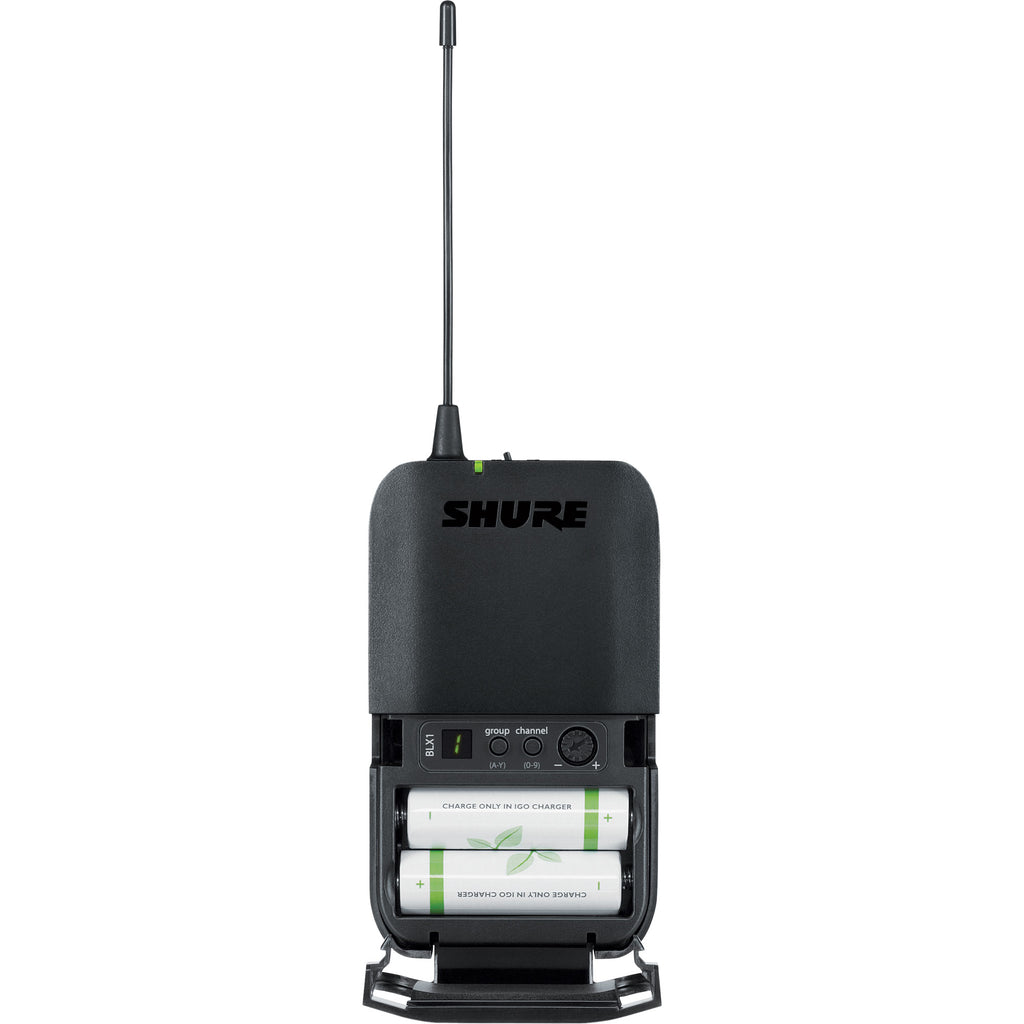

• Battery Type: 2 x AA (Included)
• Approx. Battery Life: 14 Hours (Alkaline)
• Display & Indicators:
  1 x Multi-Segment LED (Channel, Group)
  1 x LED (Battery Status, Power)
• Housing: ABS
• Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
• Weight: 2.6 oz / 75 g (without Batteries)

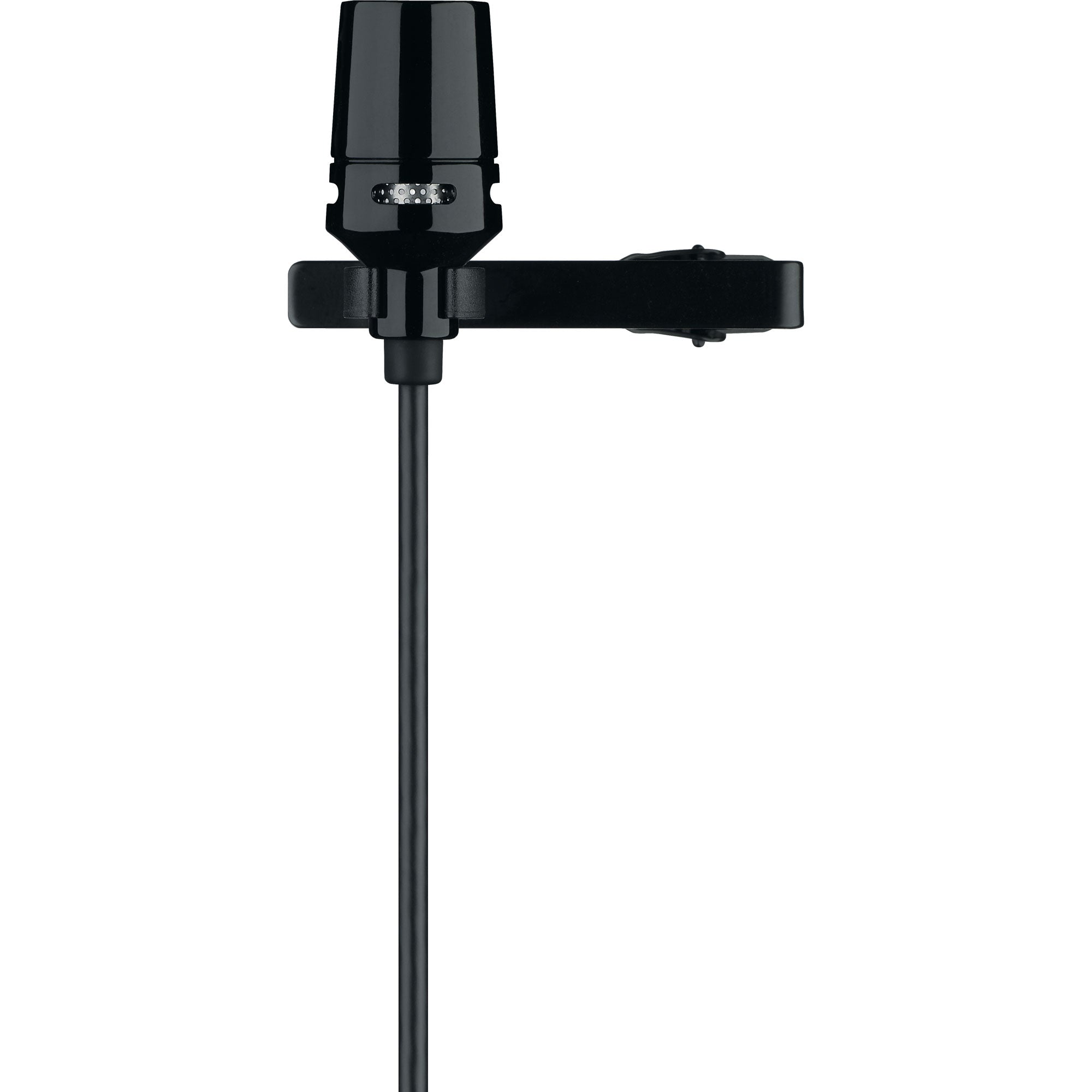

• Microphone
• Form Factor: Lavalier
• Sound Field: Mono
• Capsule: Electret Condenser
• Polar Pattern: Cardioid
• Frequency Range: 50 Hz to 20 kHz
• SNR: 72 dB
• Equivalent Noise Level: 22 dB
• Maximum SPL: 139 dB SPL
• Dynamic Range: 117 dB
• Output Connectors: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
• Cable Length: 4.27' / 1.3 m
• Operating Voltage: 5 V
• Weight: 0.88 oz / 25 g

Includes:

• Shure BLX14/CVL Wireless Cardioid Lavalier Microphone System
• Shure BLX4 Tabletop Wireless Receiver

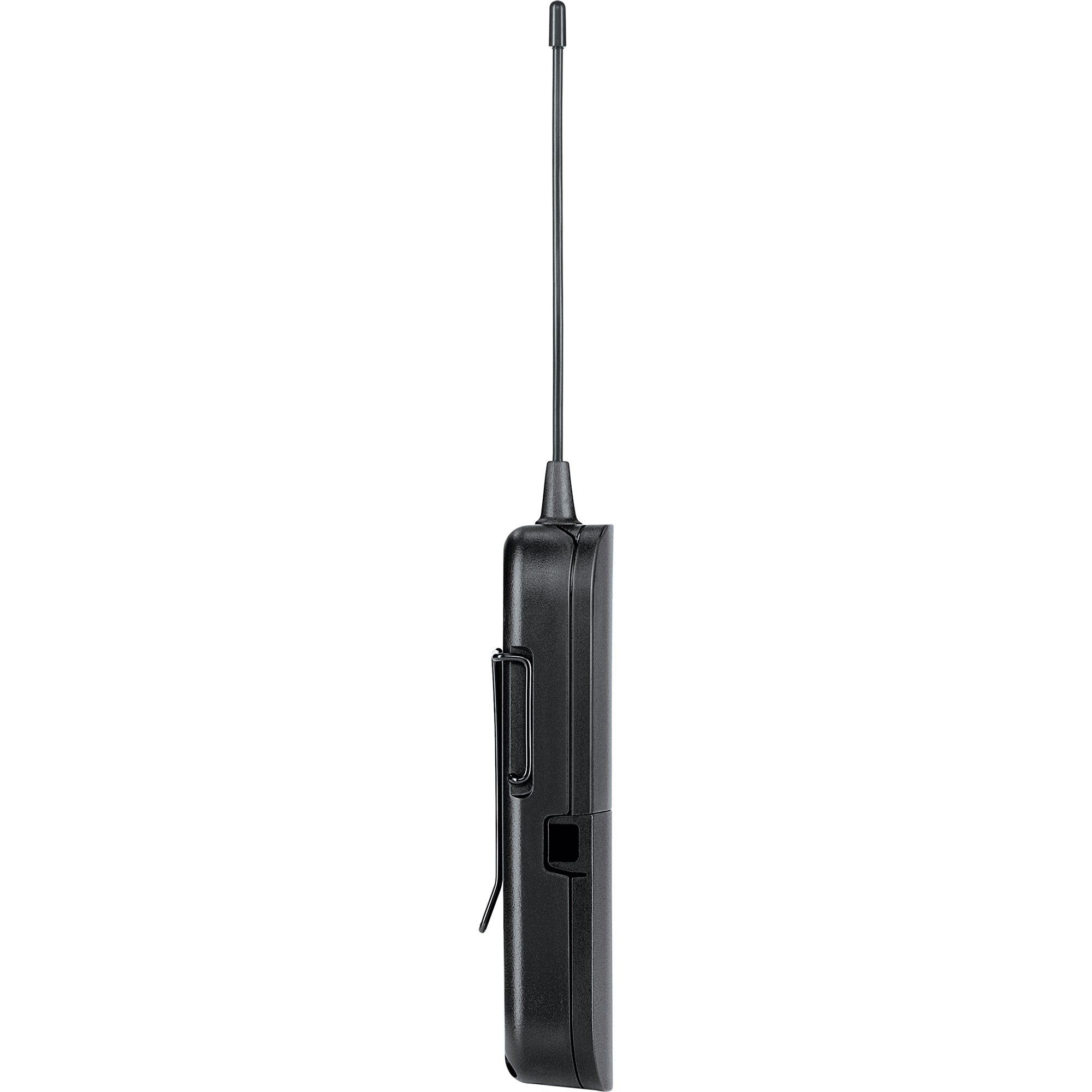

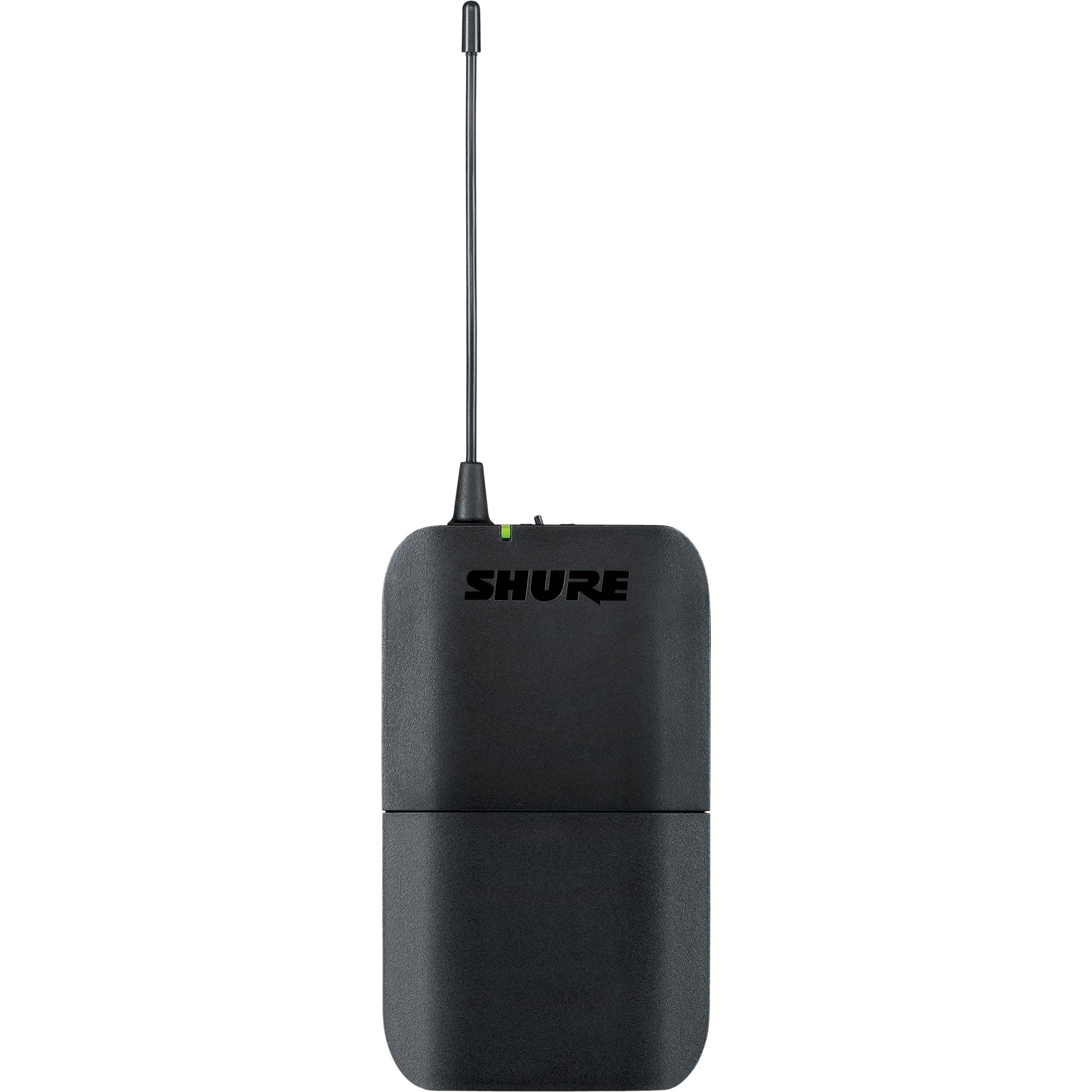

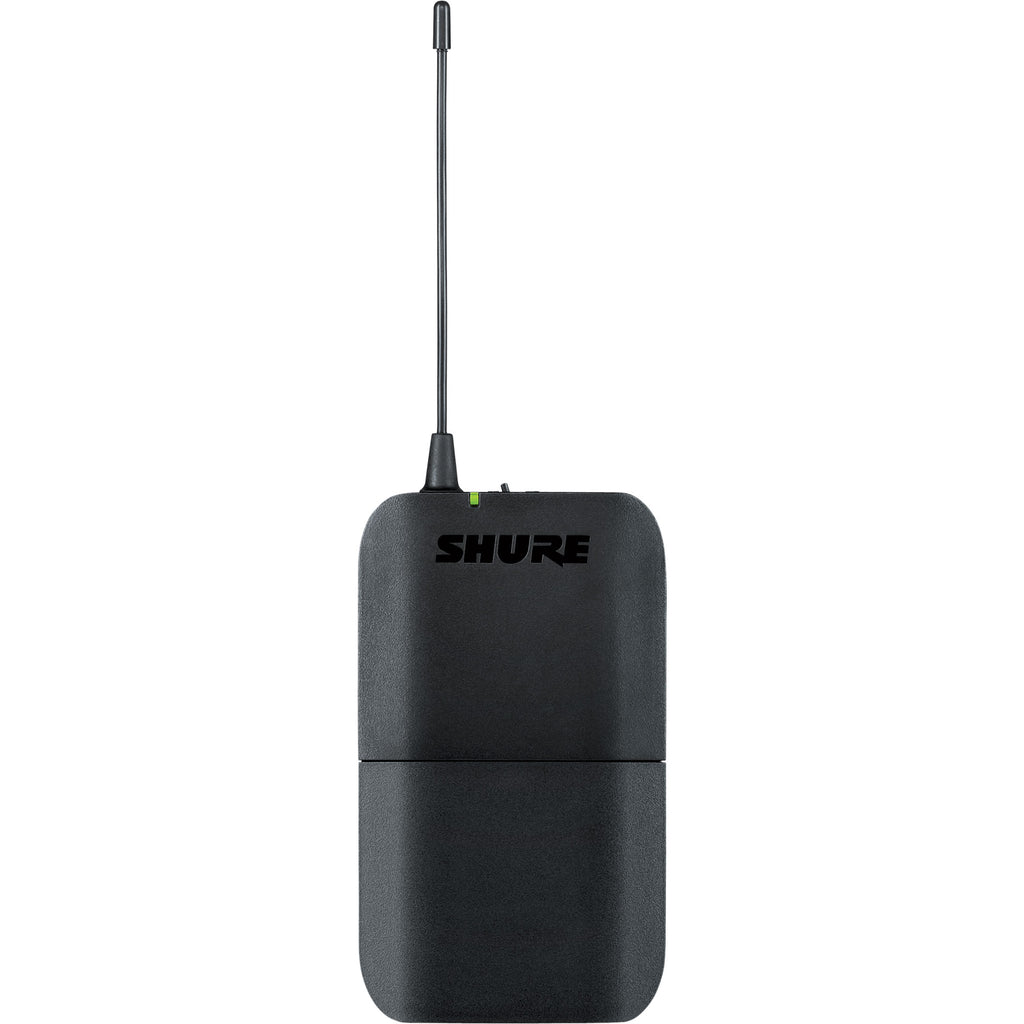

• Shure BLX1 Wireless Bodypack Transmitter

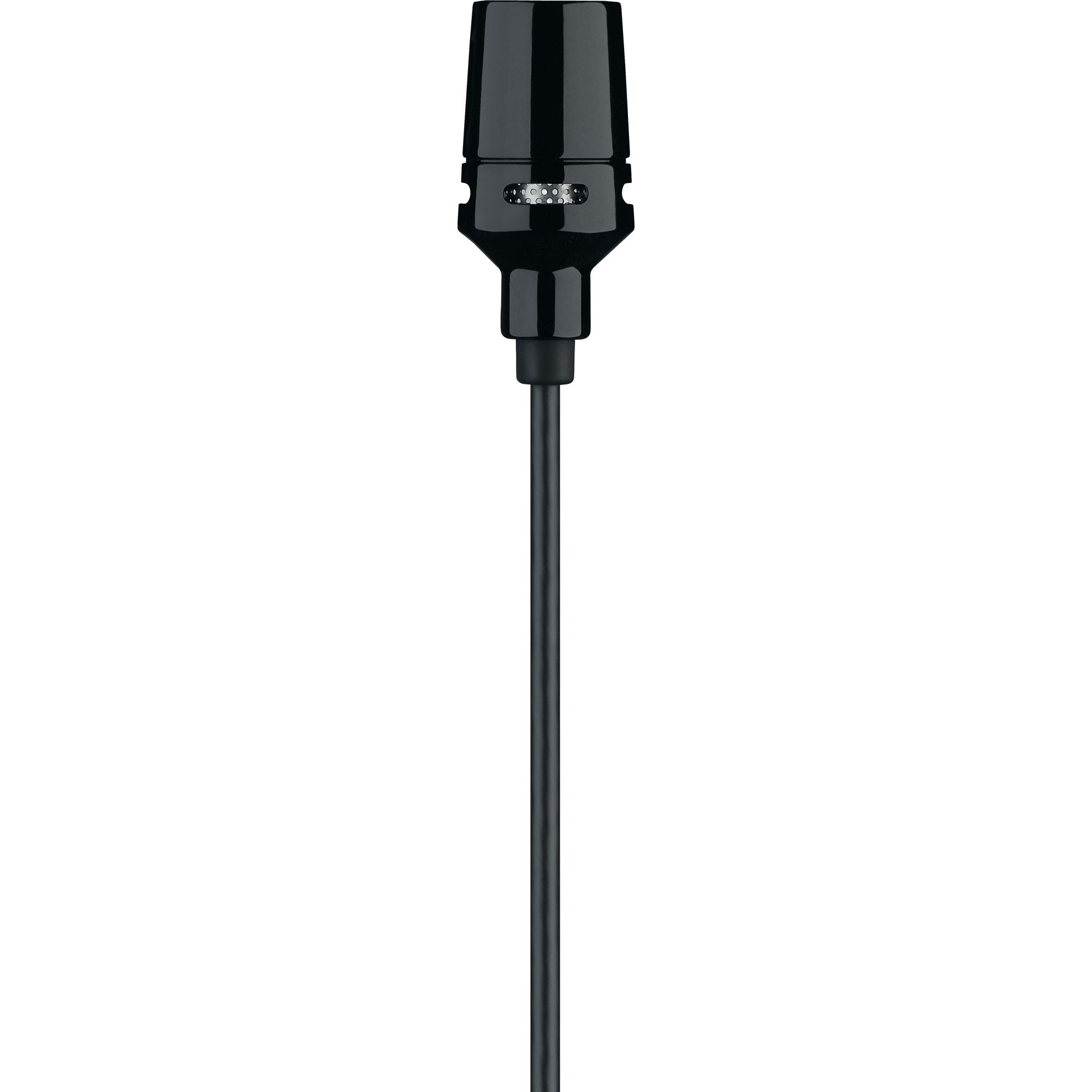

• Shure CVL Centraverse Cardioid Lavalier Microphone
• Tie Clip and Windscreen
• Shure PS24US Power Supply for Select Wireless Receivers
• 2 x AA Batteries
• Limited 2-Year Warranty
