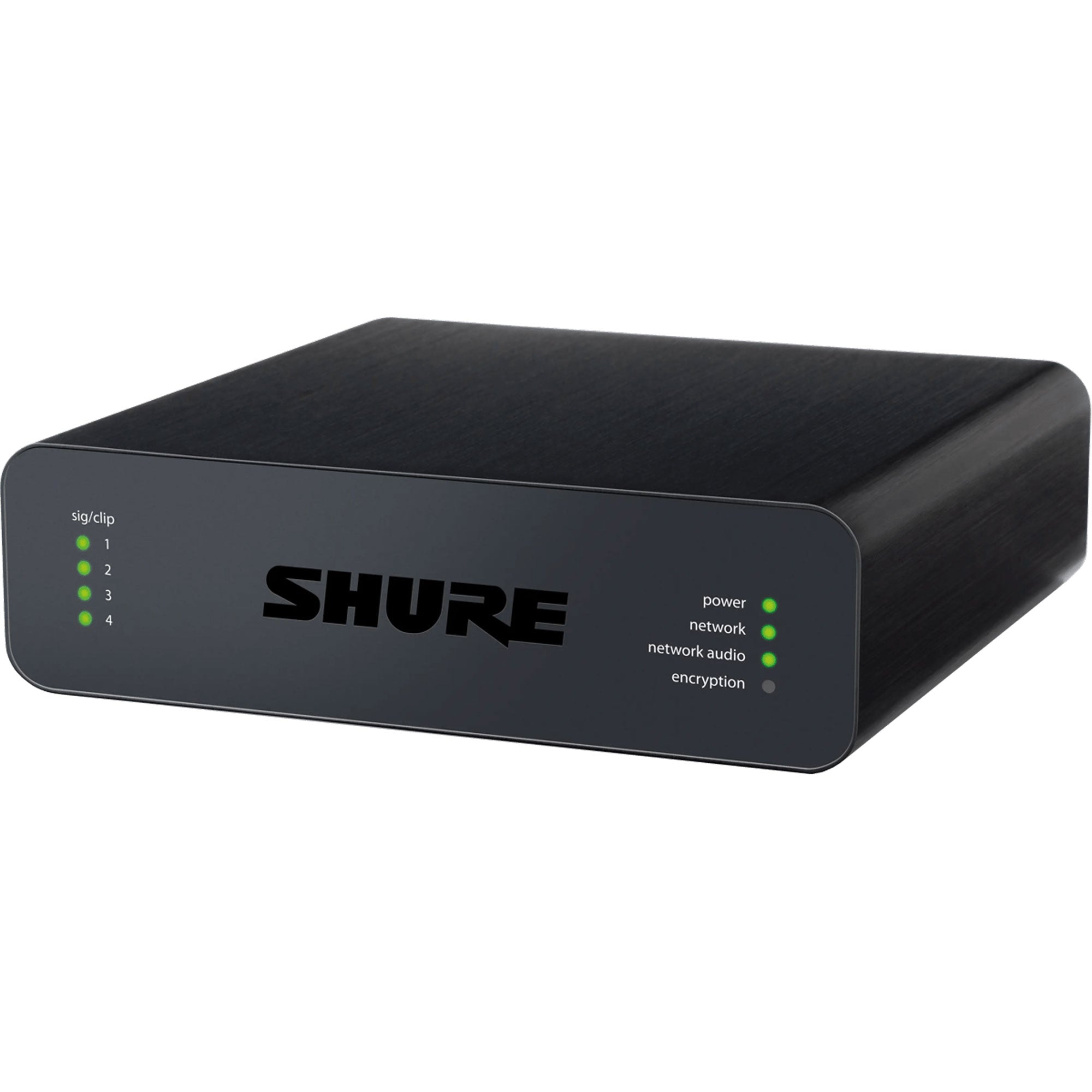

Shure ANI4OUT-XLR 4-Out Dante Audio Network Interface (XLR Outputs)

Microflex Advance 4-Channel Dante Mic/Line Audio Network Interface Unit (XLR Outputs)

Converts Dante digital audio signal to four discrete line / mic analog signals.

Available Options

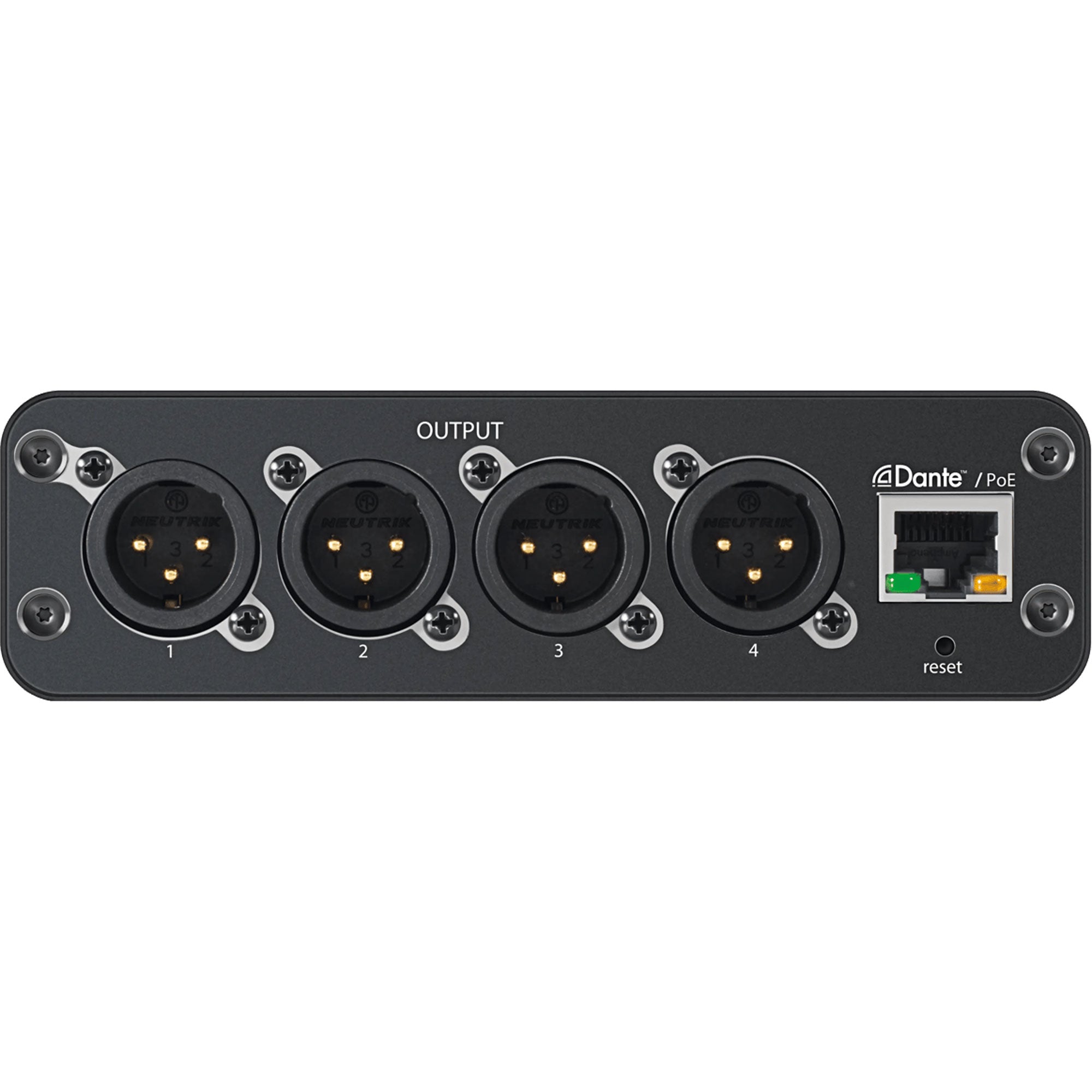

ANI4OUT-XLR: 4-Channel Dante Mic / Line Audio Network Interface-Out with XLR connectivity
ANI4OUT-BLOCK: 4-Channel Dante Mic / Line Audio Network Interface-Out with Block connectivity

Features:

• Single Ethernet port carries Dante audio, power (PoE - class 0)

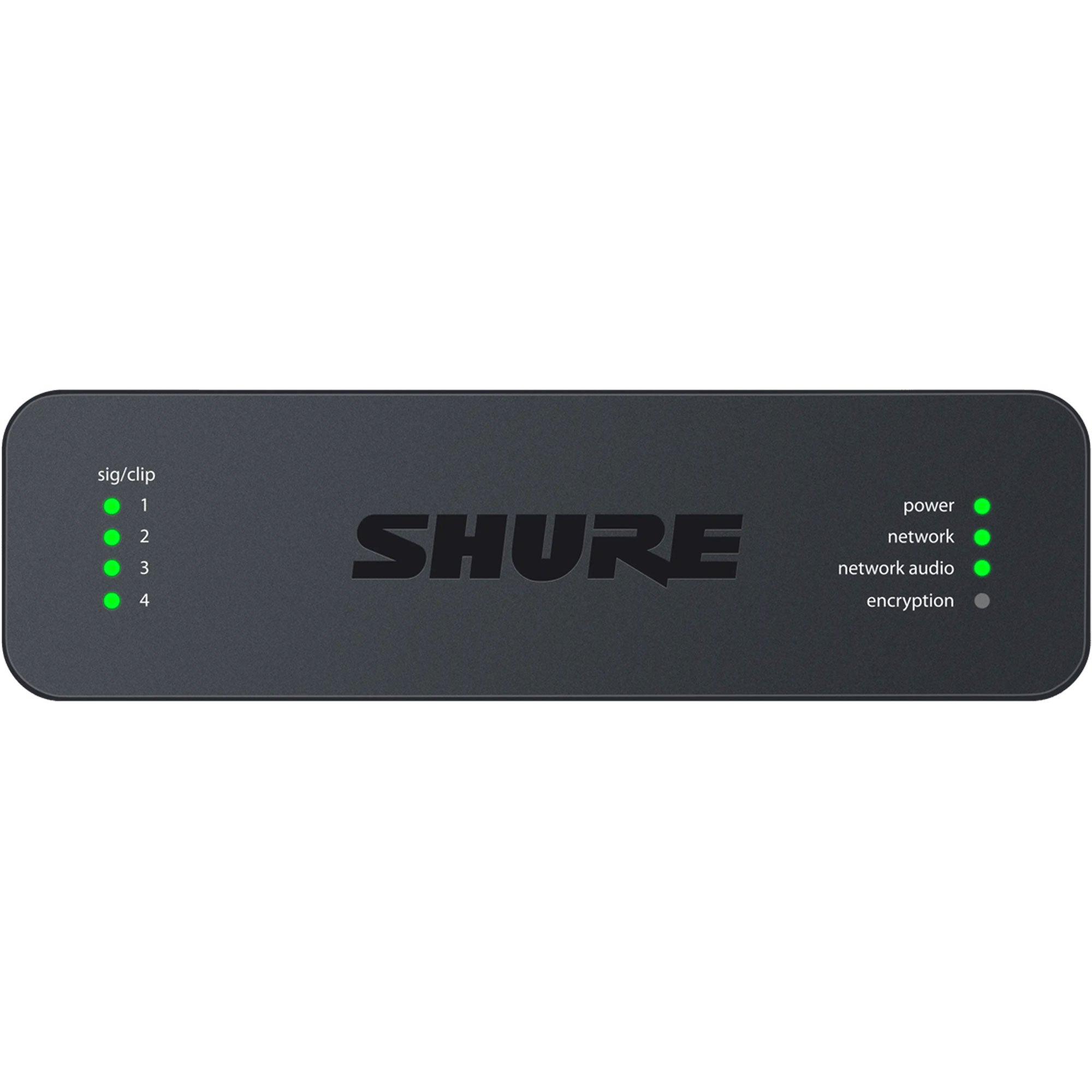

• LEDs indicate device status and audio signal
• Control strings for third-party preset controllers including Crestron and AMX
• 4 Band C/S PEQ on every channel
• Provides channel summing to combine Dante signals from the network and send them over a single analog output
• Browser-based software control for all device parameters, per output channel:
• Mute control
• Digital gain
• Polarity control

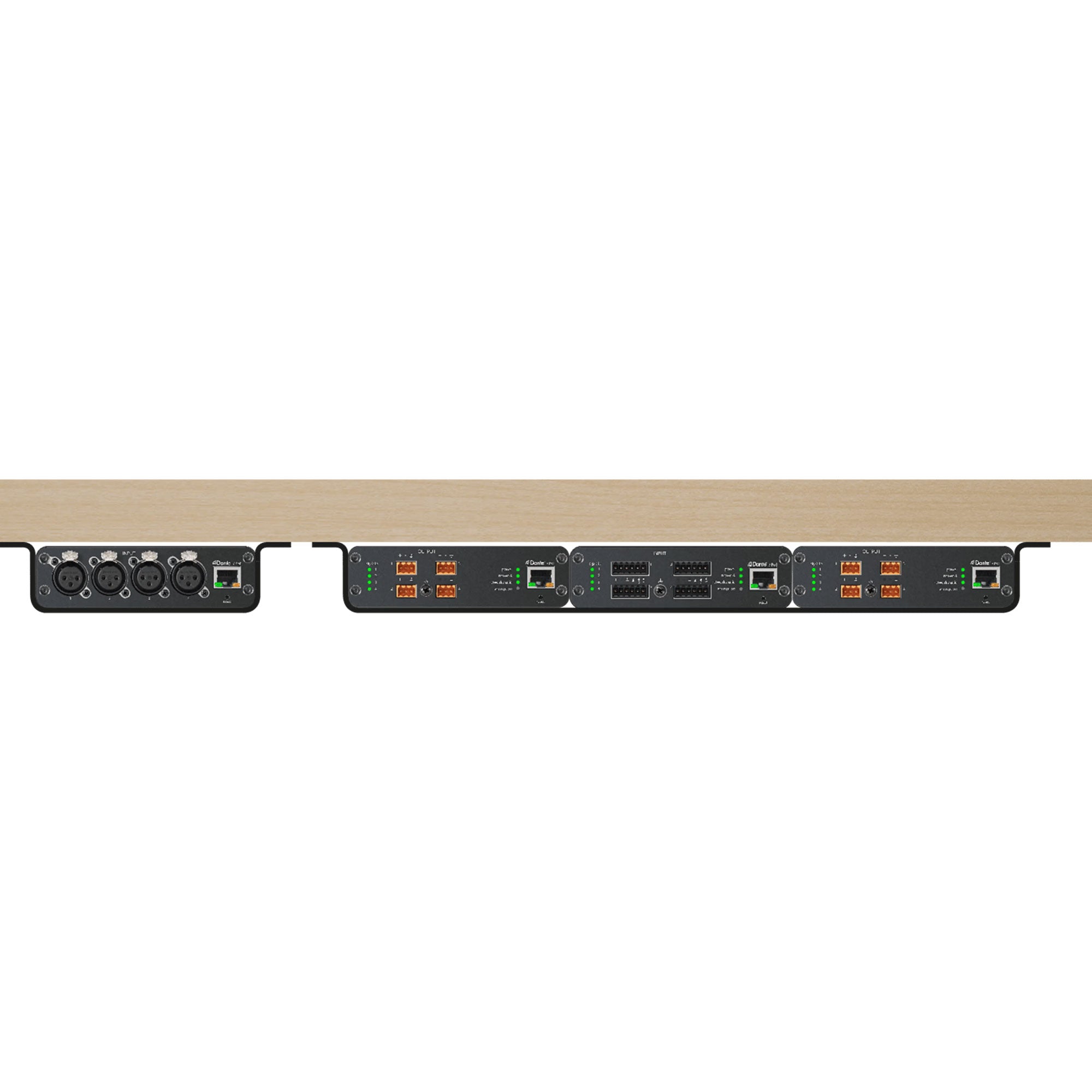

• 1/3 Rack unit wide
• Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
• Available in block connector and standard XLR variations
