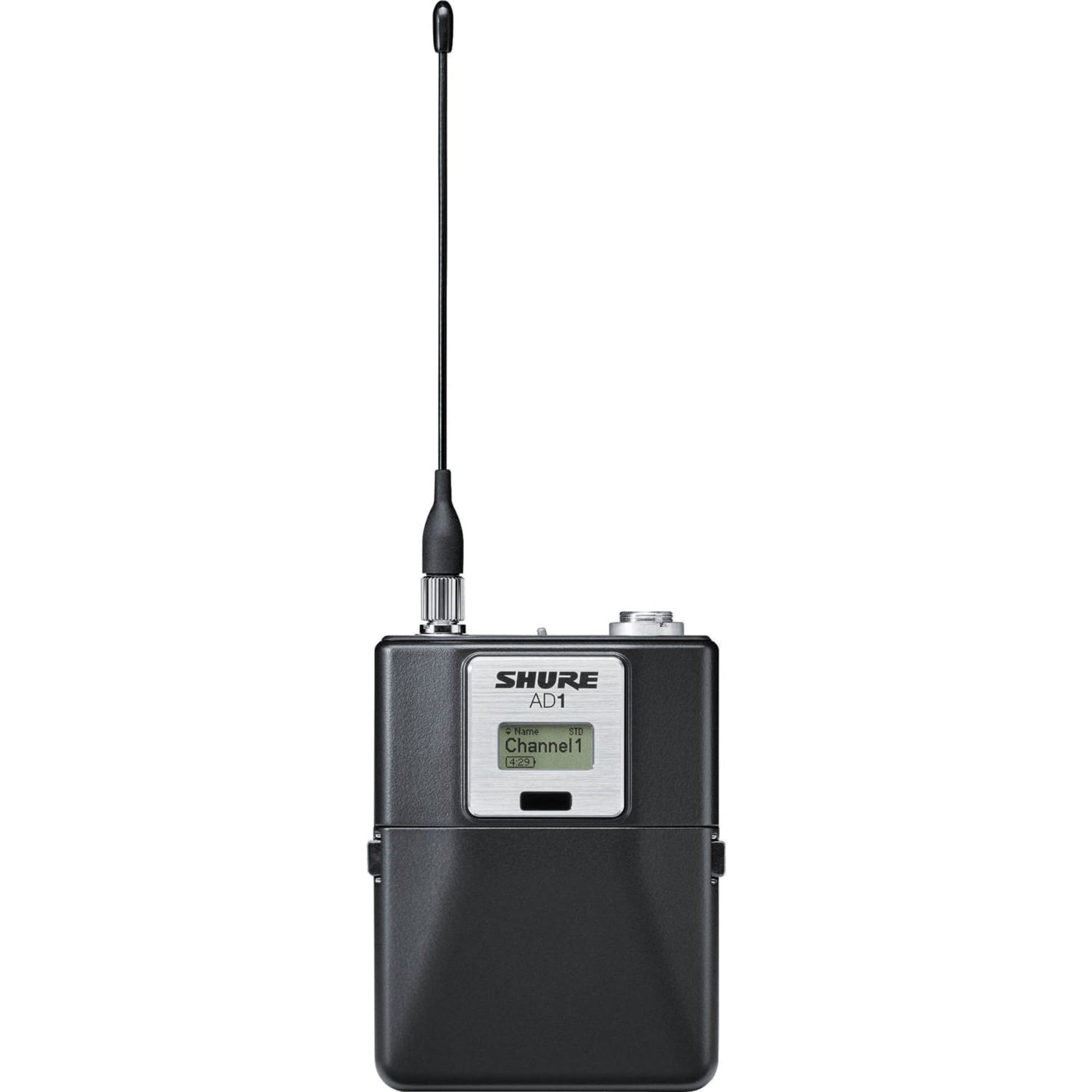

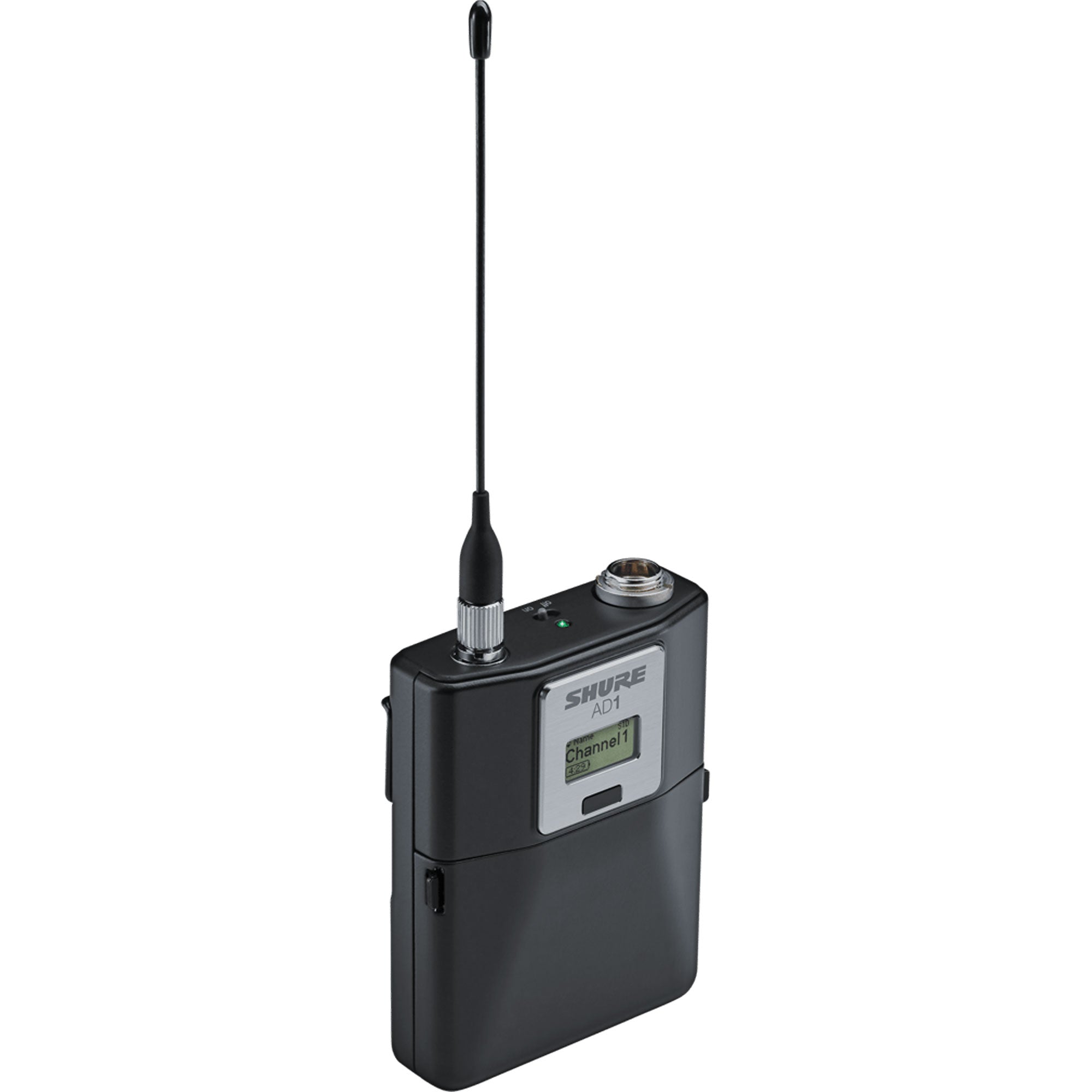

Shure AD1LEMO3 Axient Digital Bodypack Transmitter (G57: 470-616 MHz)

Bodypack Transmitter for Axient Digital Wireless, G57: 470-616 MHz

The AD1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features:

• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• Features a Lemo Connector
• Detachable 1/4-wave antenna
• AA or SB900A lithium-ion rechargeable batteries for convenient power options
• External contacts for docked charging

Specifications:

• Mic Offset Range: -12 to 21 dB (in 1 dB steps)
• Battery Type: Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
• Battery Runtime: @ 10 mW
  Shure SB900A: up to 9 hours
  Alkaline: up to 8 hours
• Dimensions: 3.4 in. x 2.6 in. x 0.9 in H x W x L
• Weight: 5.0 oz., without batteries
• Housing: Cast Metal
• Audio Input
• Connector: Lemo
• Configuration: Unbalanced
• Impedance: 1 MΩ
• Maximum Input Level: 1 kHz at 1% THD
  Pad Off: 8.5 dBV (7.5 Vpp)
  Pad On: 20.5 dBV (30 Vpp)
• Preamplifier Equivalent Input Noise (EIN):
  System Gain Setting >= +20
  -120 dBV, A-weighted, typical
• RF Output
• Connector: SMA
• Antenna Type: 1/4 wave
• Impedance: 50 Ω
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Axient Digital Proprietary
• Power: 2 mW, 10 mW, 35 mW
