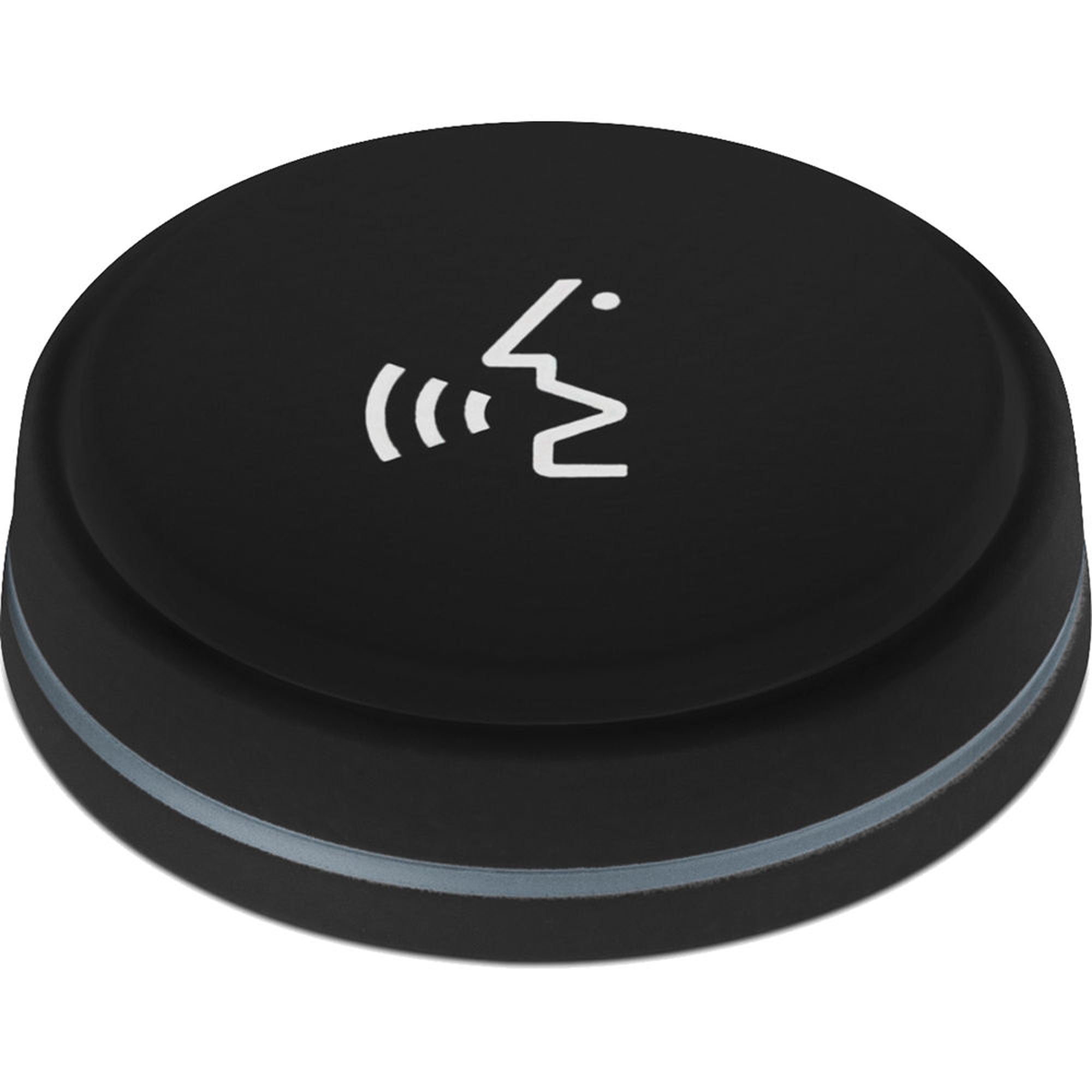

Sennheiser MAS 1 Microphone Button (Black)

Rugged Microphone Activation Button - Black

The rugged MAS 1 microphone activation button, used in conjunction with the MAS 133 inline switch box, offers control of connected microphone. Programmable activation modes include On, On/Off, PTT, PTM. For easy status indication, the MAS 1 is equipped with a bi-color LED.

Specifications:

• Dimensions: Height: 3.19 in (0.31 in above surface), Diameter: 1.12 in
• Connector: XLR-5M out, Pin assignment: 1 = Ground, 2 = Switch, 3 = LED Red, 4 = LED Green, 5 = LEDs +12 V
• Weight: 2.11 oz
• Phantom powering: 12 V (1.5 mA max.)
• Operating temperature: 14 ° to 122 °F
• Current consumption: LED ring: 3 mA
• Colour: LED light ring: Red / Green
• Thread: M 20

Includes:

• MAS 1
• Mounting hardware
• Quick guide
