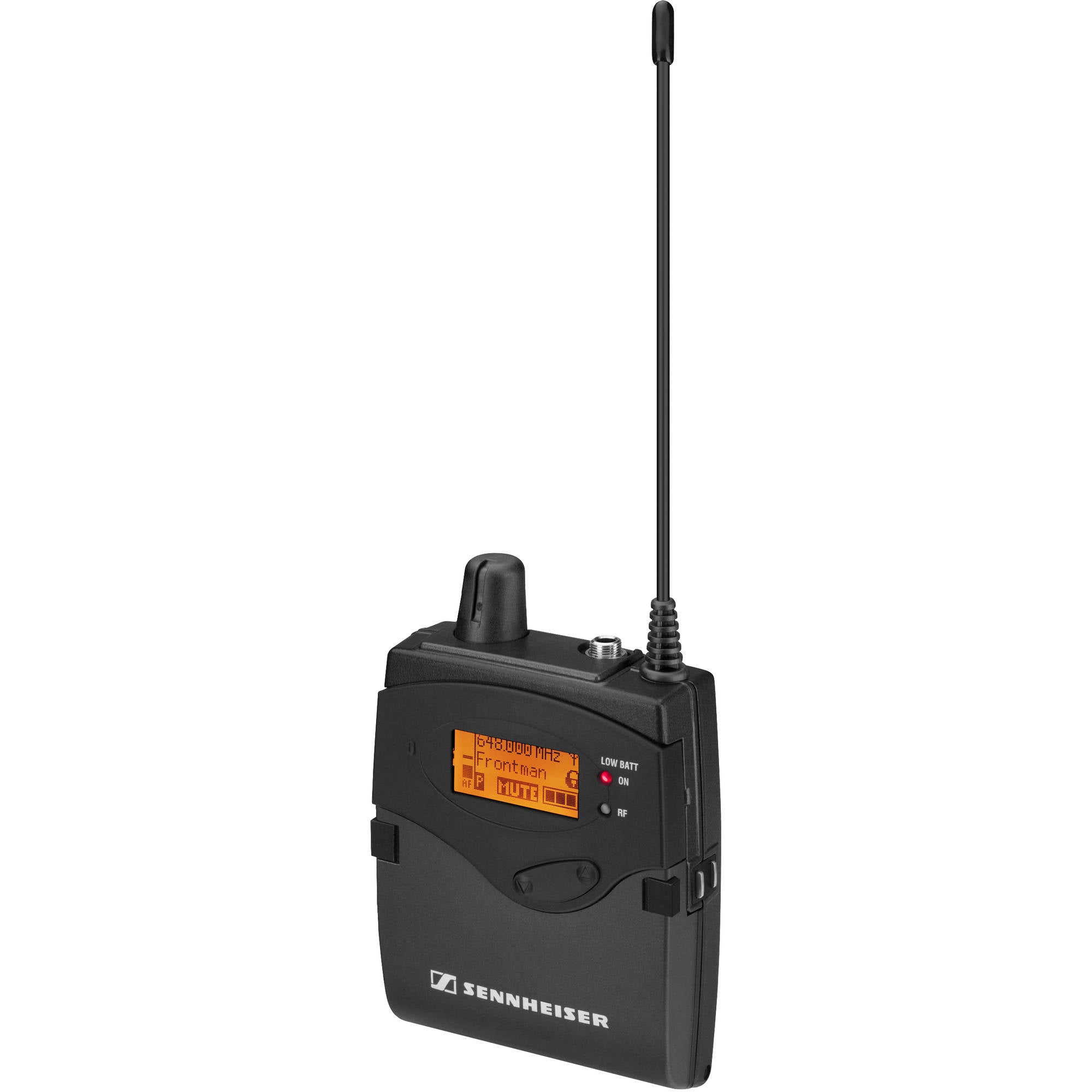

Sennheiser EK 2000-IEM Stereo Wireless Bodypack Receiver for In-Ear Monitoring (Aw+: 470-558 MHz)

Wireless UHF Bodypack In-ear Monitor Receiver with Infrared Transmitter Sync, HDX Compander, Limiter, Stereo/Focus Mode, and Selectable Balance - AW+ Band (470-558MHz)

In Ear Monitoring receiver beltpack for the SR 2050 transmitters. Robust and reliable, for demanding and professional In Ear Monitoring on all stages and broadcast applications.

The receiver of this in-ear wireless monitoring set works with Adaptive Diversity Technology. The cable of the earphone is used as second antenna. Thus, significantly fewer dropouts can be achieved. It is compatible with all In Ear headphones with a 3.5 mm jack plug and provides an authentic picture of the live sound, allowing perfect performance control.

Features:

• Robust all-metal housing
• Up to 3000 frequencies in up to 75 MHz switching bandwidth
• 20 fixed frequency banks with up to 32 compatible presets
• 6 banks with up to 32 tunable channels
• Adaptive Diversity technology for high reliability
• Pilot tone squelch can be set in 2 dB steps for interference-free reception
• Frequency scan feature searches for available reception frequencies
• Wireless synchronization of receiver parameters from transmitter
• User-friendly menu interface with a backlit graphic display
• HDX compander for crystal clear sound
• Enhanced audio frequency response
• Backlit graphic display
• 4-stage battery status display
• Power supplied by BA2015 rechargeable batteries or AA batteries/rechargeable
• Charging contacts for recharging BA2015
• Auto-lock feature to prevent settings from being changed accidentally
• Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
• For universal application due to extensive range of accessories

Specifications:

• Frequency range:
  470 ... 558 MHz / EK 2000 IEM-Aw+
  558 ... 626 MHz / EK 2000 IEM-GW
  626 ... 698 MHz / EK 2000 IEM-BW
  606 ... 678 MHz / EK 2000 IEM-GBW
  558 ... 607.9 MHz / EK 2000 IEM-GW1
• Dimensions: 82 x 64 x 24 mm
• Presets: max. 32
• Frequency response: 25 - 15000 Hz
• Jack plug: 3,5 mm Jack
• Weight: 200 g
• Signal-to-noise ratio: > 90 dB(A)
• Switching bandwidth: max. 75 MHz
• Operating time: 4 - 6 h
• Modulation: FM, MPX-stereo
• Carrier frequencies: max. 3000
• Squelch threshold: off, 5 ... 25 dBμV in 2 dB steps
• Audio-Output-Power: 100 mW @32 Ω
• Operating voltage (stand alone): 2 x 1,5V AA

h2>What's in the Box:

• 1 EK 2000 IEM diversity receiver
• 1 IE 4 earphones
• 1 instruction manual
• 1 supplementary frequency sheet
