Key Features
- For evolution G3, G4 Wireless Systems
- +10 dB boost
- For Long Antenna Cable Runs
- BNC Connectors
- Compensates for Signal Losses
- Supports Tuning Bandwidths up to 88 MHz
Description

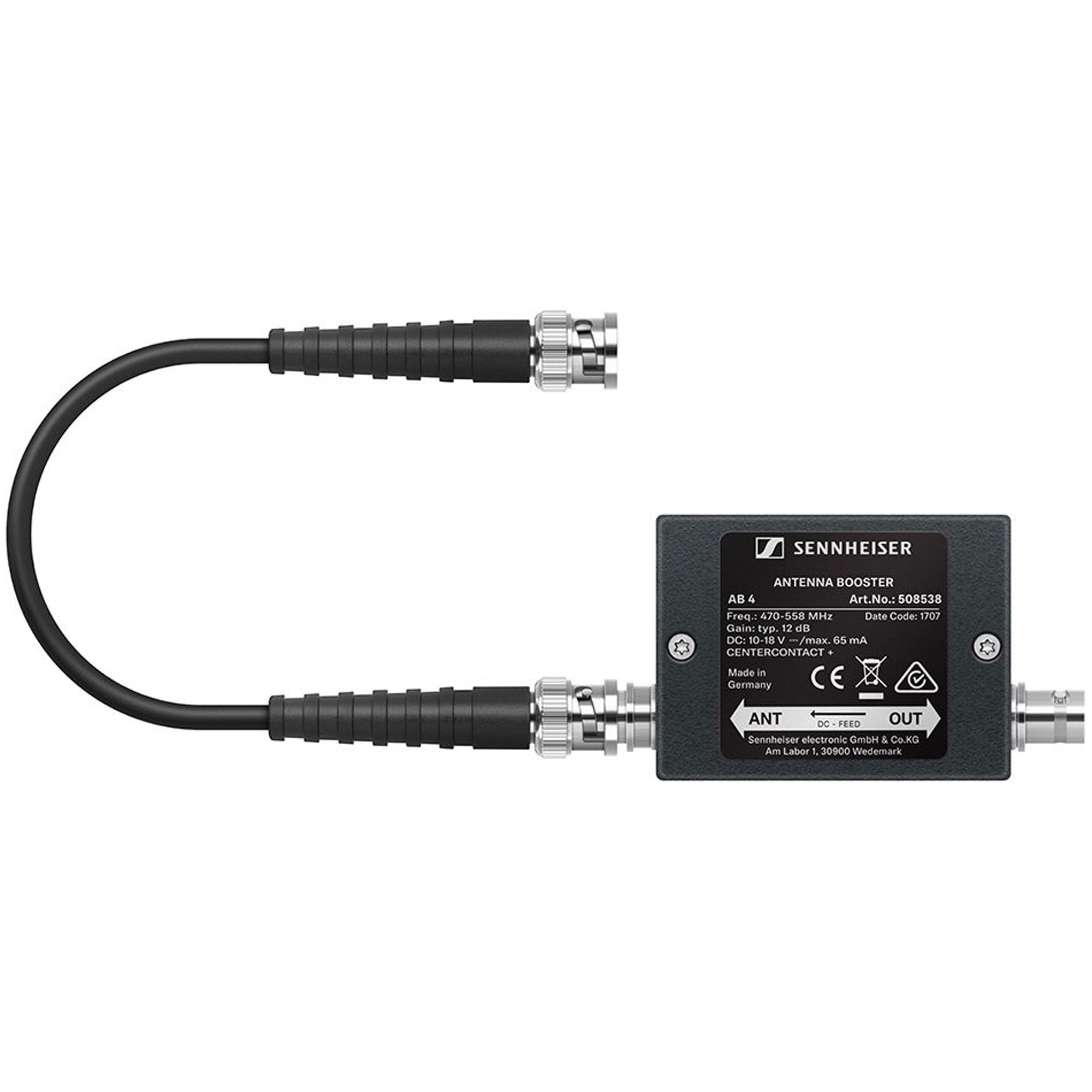

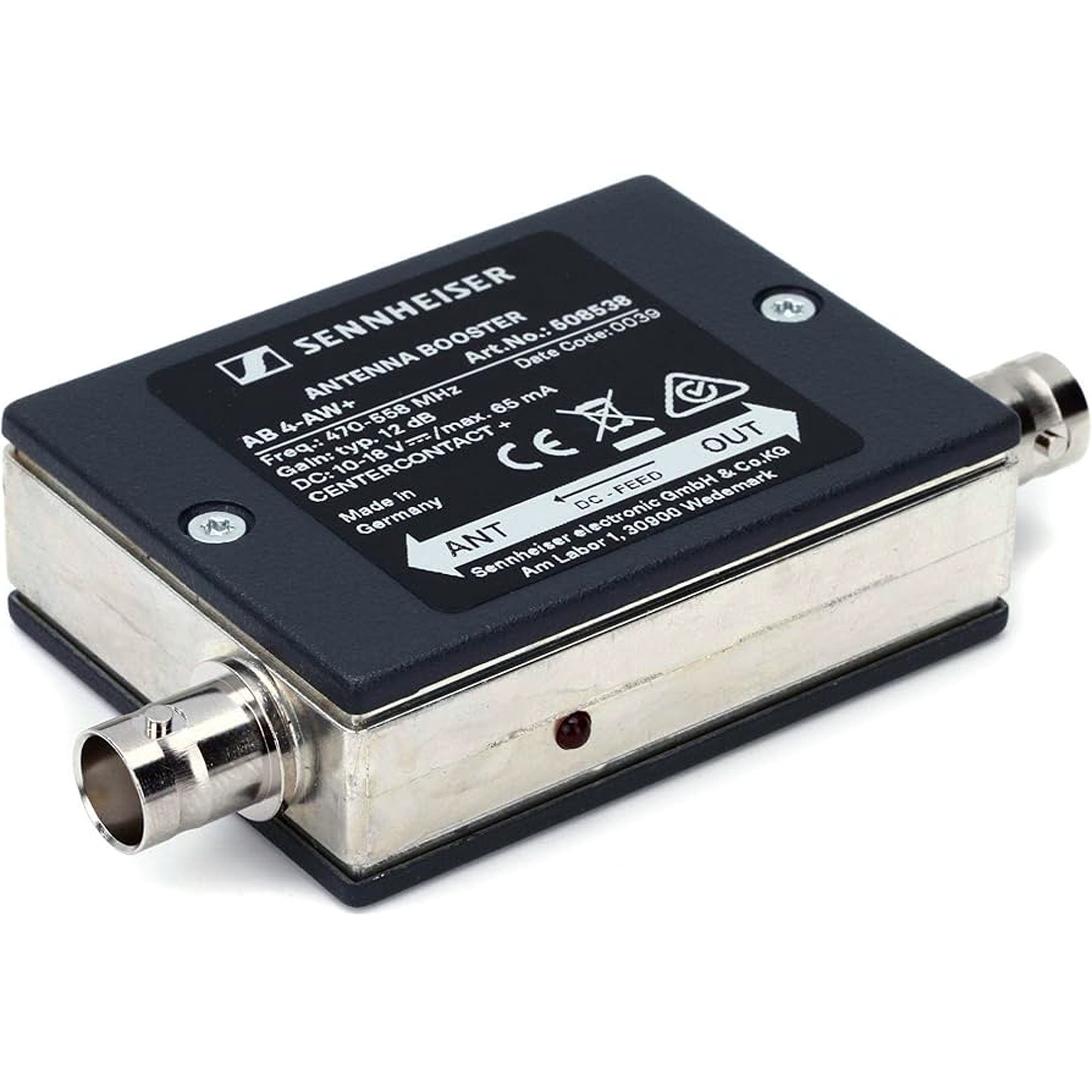

RF Booster for Sennheiser Evolution Wireless Systems with +10dB Gain - AW+ (470-558MHz)
The AB 4 is a filtered, inline antenna booster module with BNC connectors, designed to offer typ. +12dB of boost to compensate for signal losses created by long antenna cable runs.
The AB 4 is fully compatible with all legacy evolution wireless systems. Additionally, the AB 4's filters have been expanded to support the bandwiths up to 88 Mhz.
Features:
- Boosts filtered signal by typ. 12dB
- No power supply necessary
- Compact full metal housing
Specifications:
- Frequency range:
AB 4-AW+: 470-558 MHz
AB 4-GW: 558-626 MHz - Gain: approx. 12 dB
- Power supply: via antenna cable from ASA 214 or EM 2050
- Connector: BNC
- Dimensions: 12.5 x 8.2 x 2.6 cm
- Weight: 184 g
- What's in the Box
- Sennheiser AB 4 antenna booster
- BNC cable
Details
- Manufacturer: Sennheiser
- MPN: AB 4-AW+
- Model Number: AB 4-AW+
- UPC: 615104321403
