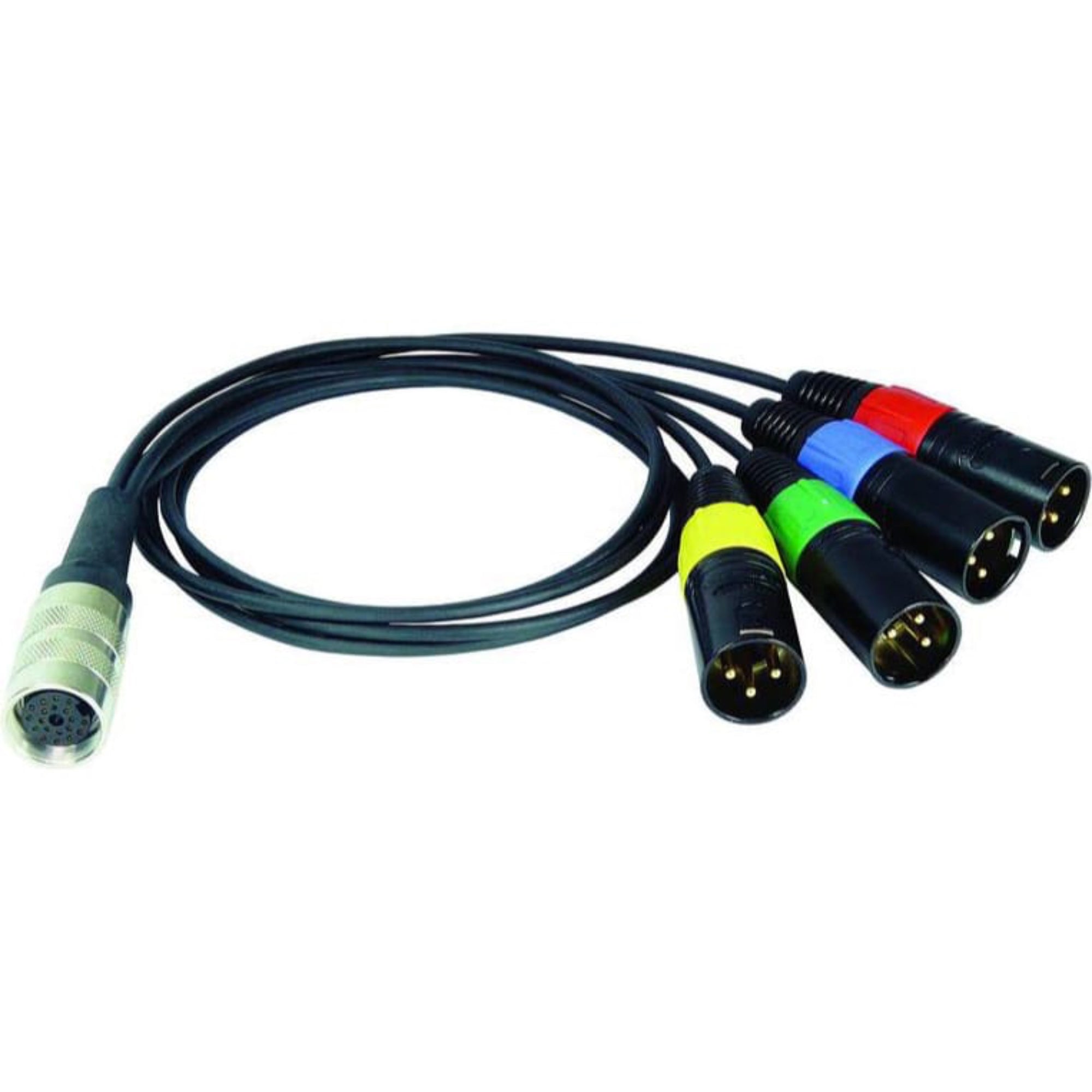

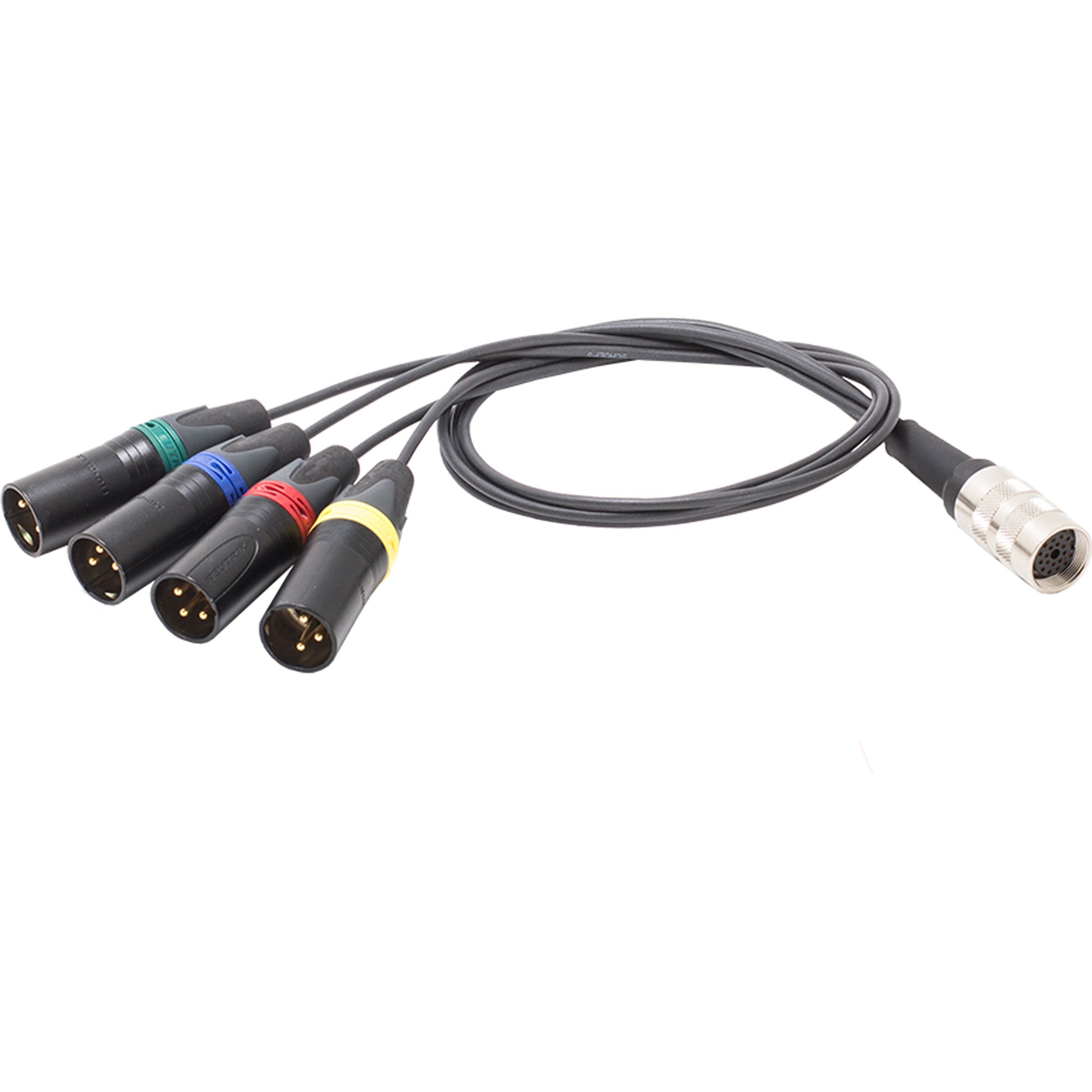

Schoeps AK Surround M/4U Adapter Cable

Adapter Cable from Miniature Multi-Pin to XLR-3 AK Surround M/4U (M/5U)

For surround recordings with up to six channels (e.g. 5.1 surround) we offer the K Surround x MM cable with multi-pin connectors at both ends (with the "x" corresponding to the length of the cable in meters).
The AK Surround M/4U adapter cable splits this multicore cable to four XLR-3 connectors.
It is also available in a five-channel version, called AK Surround M/5U.
For six channels the Splitterbox M/6U can be used.

Features:

• e.g. for ORTF Surround recordings

Specifications:

• Length: 0,5m
• Input: 19 pins
• Output: 4 x XLR-3M (AK Surround M/4U)
• 5 x XLR-3M (AK Surround M/5U)
• yellow = ch 1
• red = ch 2
• blue = ch 3
• green = ch 4
• grey = ch 5 (only AK Surround M/5U)
