Key Features
- Power Remote Senders & Receivers
- DC Jack or Terminal Block Power Input
- Blue Receiving Power LED
- Green Output Voltage LED
- 2 RJ45 Jacks Provide Power Output
- Power Receiver from One RJ45 Jack
- Power Sender from One RJ45 Jack
Description
Power Inserter - Twisted Pair - 1 Set of Outputs - Signal Loop-Through

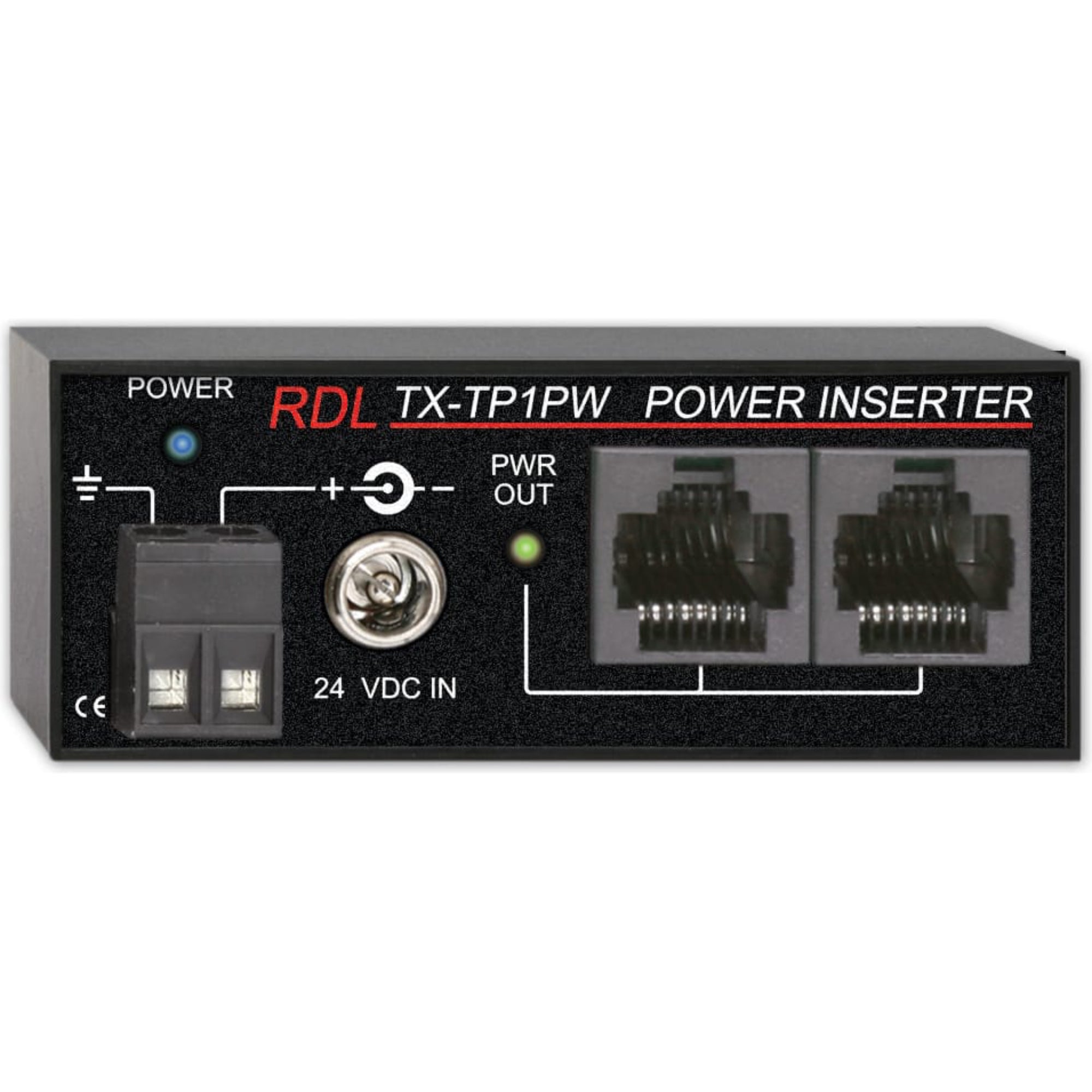

The TX-TP1PW is a single output power inserter compatible with RDL twisted pair products. The TX-TP1PW is powered from a 24 Vdc power supply using either the power jack or the detachable terminal block. A dual-RJ45 jack set is provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. Output voltage is protected by an automatically resetting fuse. The output power LED facilitates identification of wiring faults. Module power is indicated by a front-panel LED. The TX-TP1PW is ideal for powering remote twisted pair modules from any convenient location.
Features:
- Power Remote Senders and Receivers from Convenient Location
- 24 Vdc Power Input on dc Power Jack or Detachable Terminal Block
- Blue Power LED Shows Module is Receiving Power
- Green LED Indicates Correct dc Output Voltage on RJ45s
- Two Associated RJ45 Jacks Provide Power Output
- Receiver May Be Powered From One RJ45 Jack
- Sender May Be Powered From One RJ45 Jack
Specifications:
- Output:Dual-RJ45
- Indicators (2):Power In; Power Out
- Power Connections (2):Power Jack; Detachable Terminal Block
- Power Requirement:24 Vdc @ 20 mA plus connected loads
- Dimensions:3.0" (7.6 cm) W; 1.2" (3.0 cm) H; 1.4" (3.6 cm) D
- Ambient Operating Environment:0 C to 55 C
Details
- Manufacturer: RDL
- MPN: TX-TP1PW
- Model Number: TX-TP1PW
- UPC: 813721016140
