RDL DS-J1 Microphone Input Assembly on Decora Plate (Stainless Steel)

Microphone Input Assembly on Decora Wall Plate - XLR, Terminal Block - Stainless Steel Finish

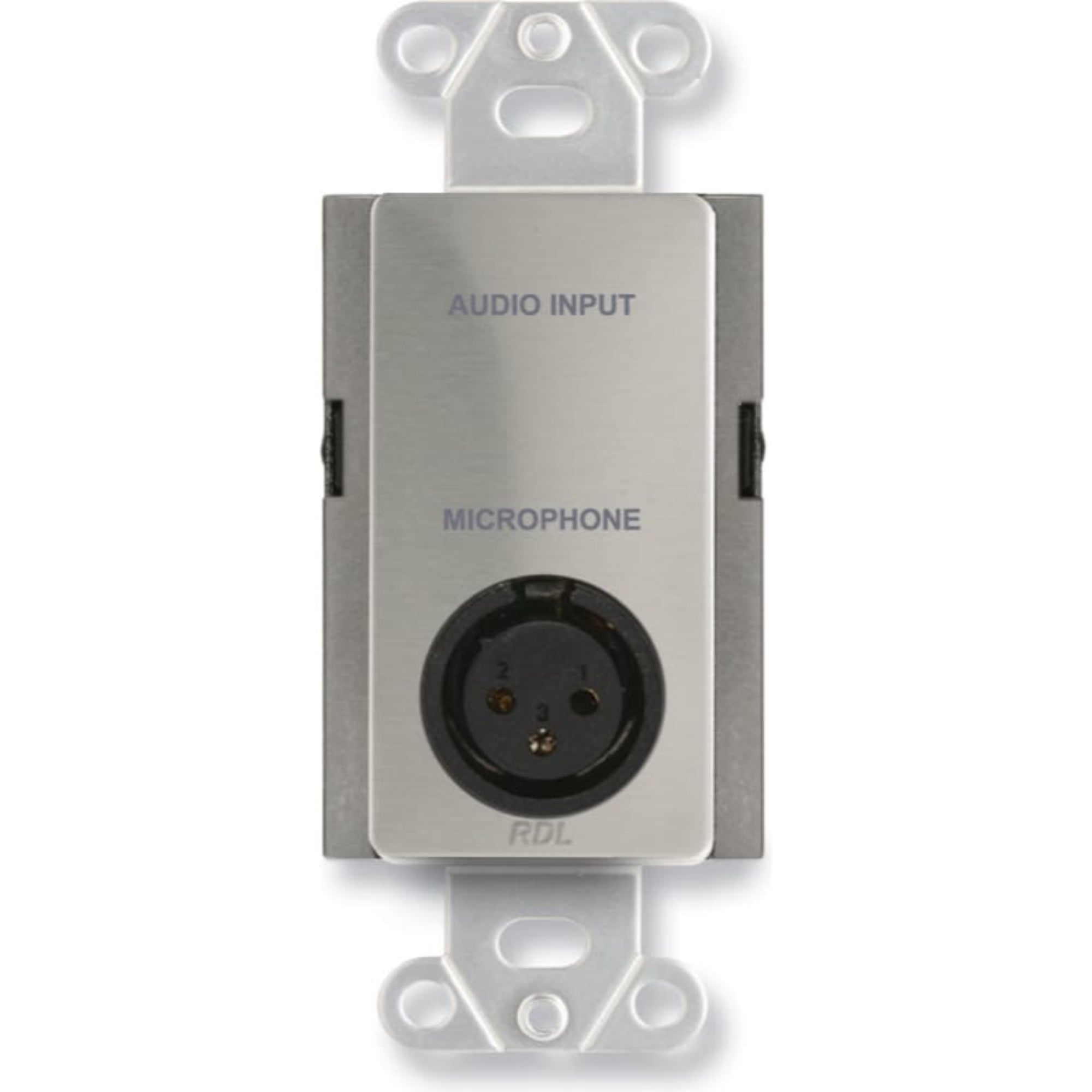

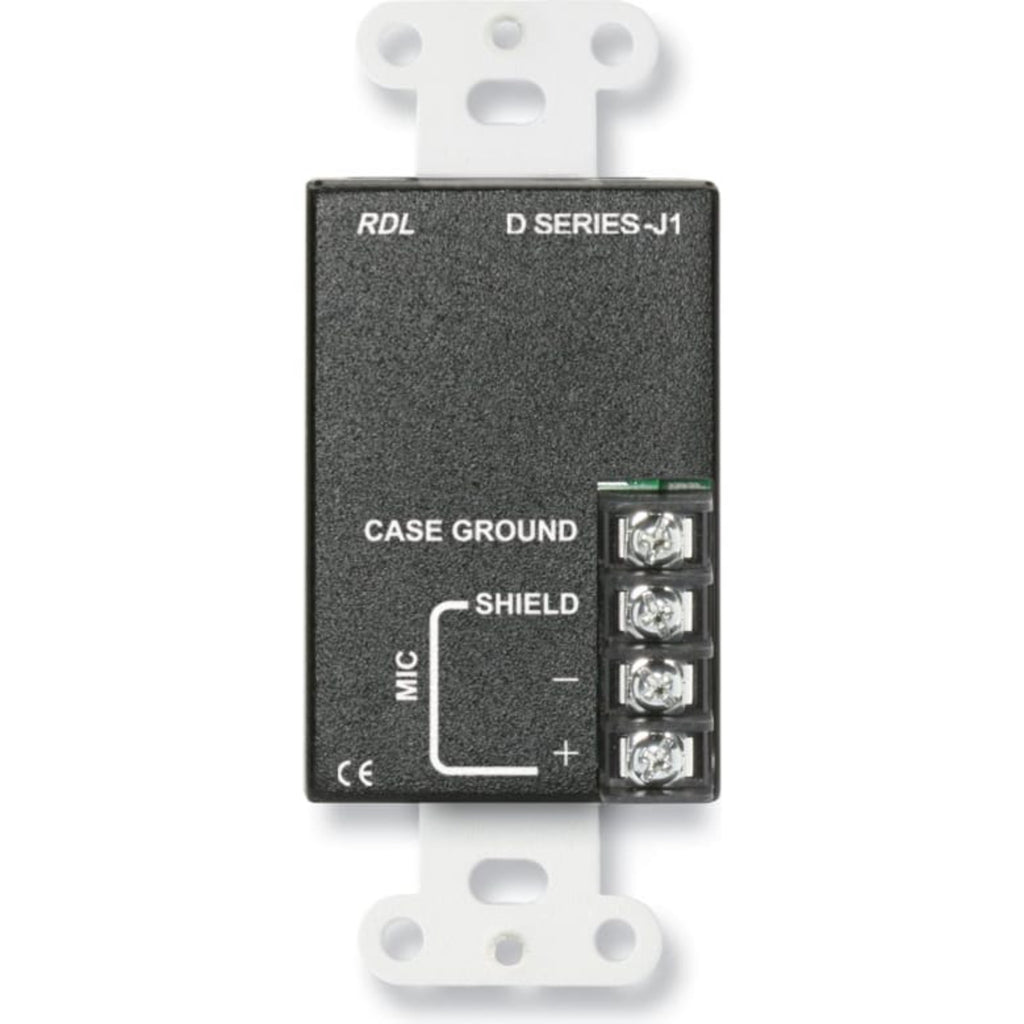

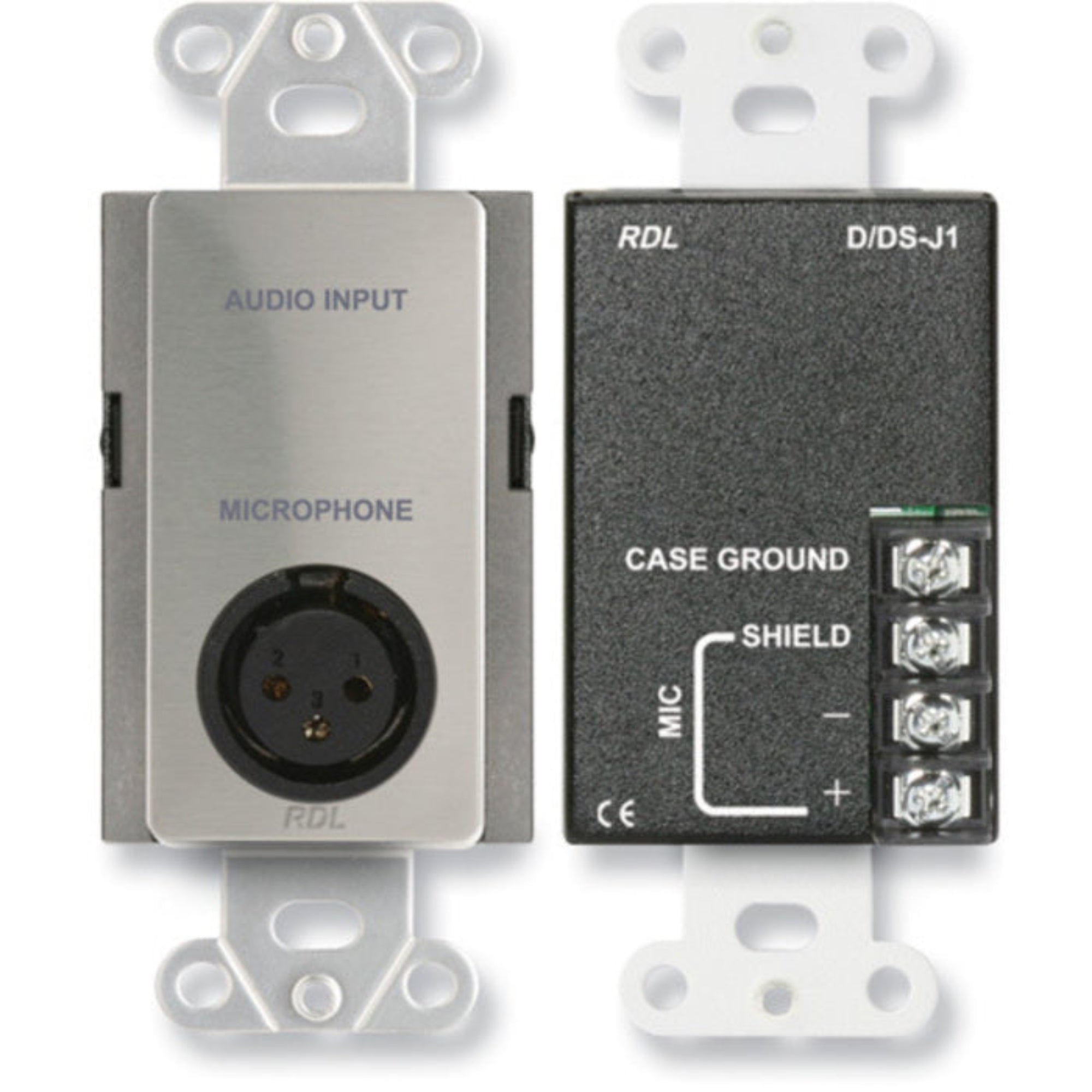

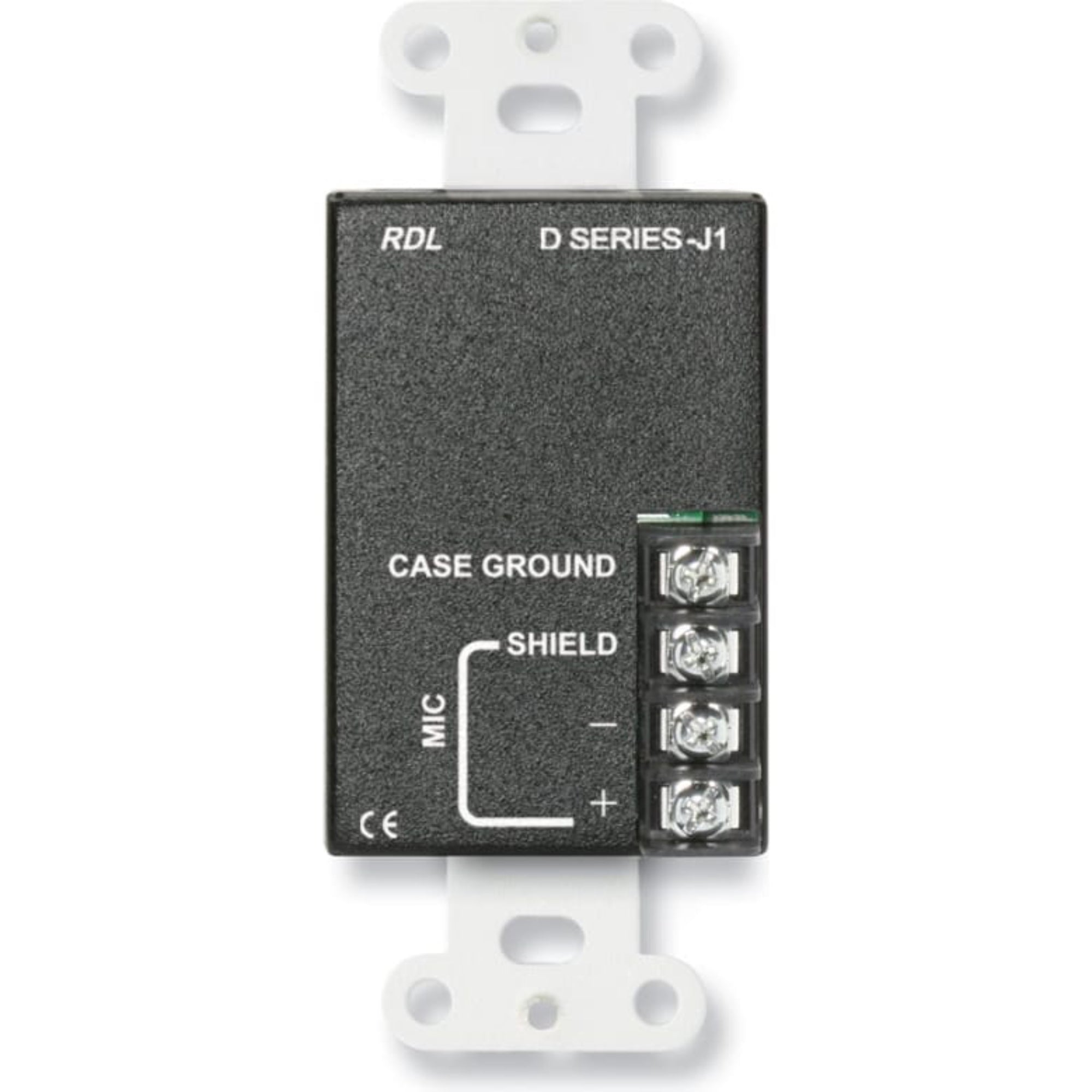

The D-J1/DS-J1/RCX-J1 is a complete microphone input panel assembly. Connections to the female front-panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D-J1/DS-J1/RCX-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D-J1/DS-J1/RCX-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Features:

• Wall Mounted Microphone Input Panel
• XLR Input Connector with Gold Contacts
• Barrier Block Wiring Connections
• Ground-Lift Terminals on Barrier Block

Specifications:

• Input Connector: XLR female gold contacts
• Output Connector: Barrier block
• Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
• Power Requirement: Passive
• Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
• Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
