RDL DS-CIJ3D Consumer Input Jacks Stereo on Decora Plate (Stainless Steel)

Consumer Input Jacks on Decora Wall Plate - Stereo - Stainless Steel

The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

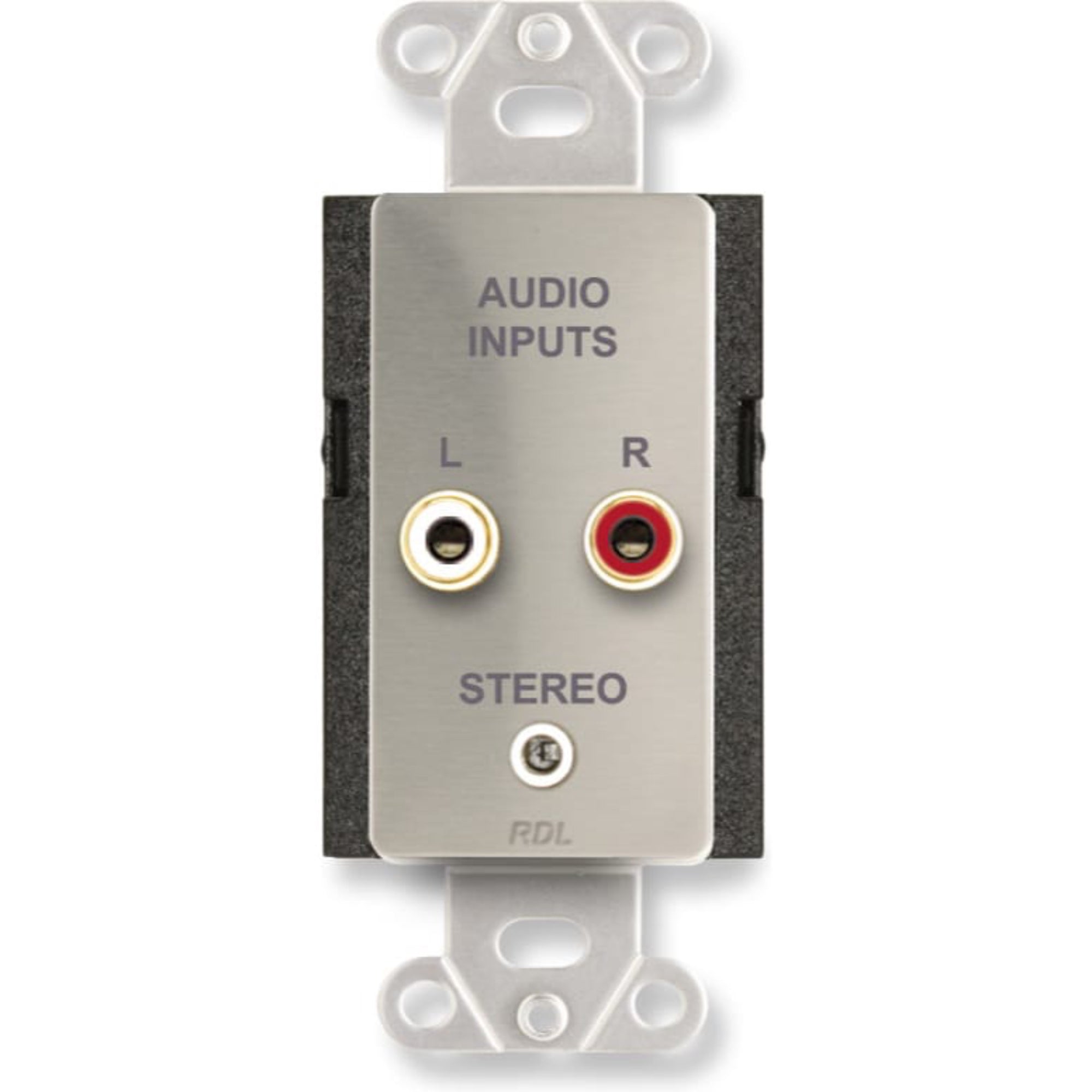

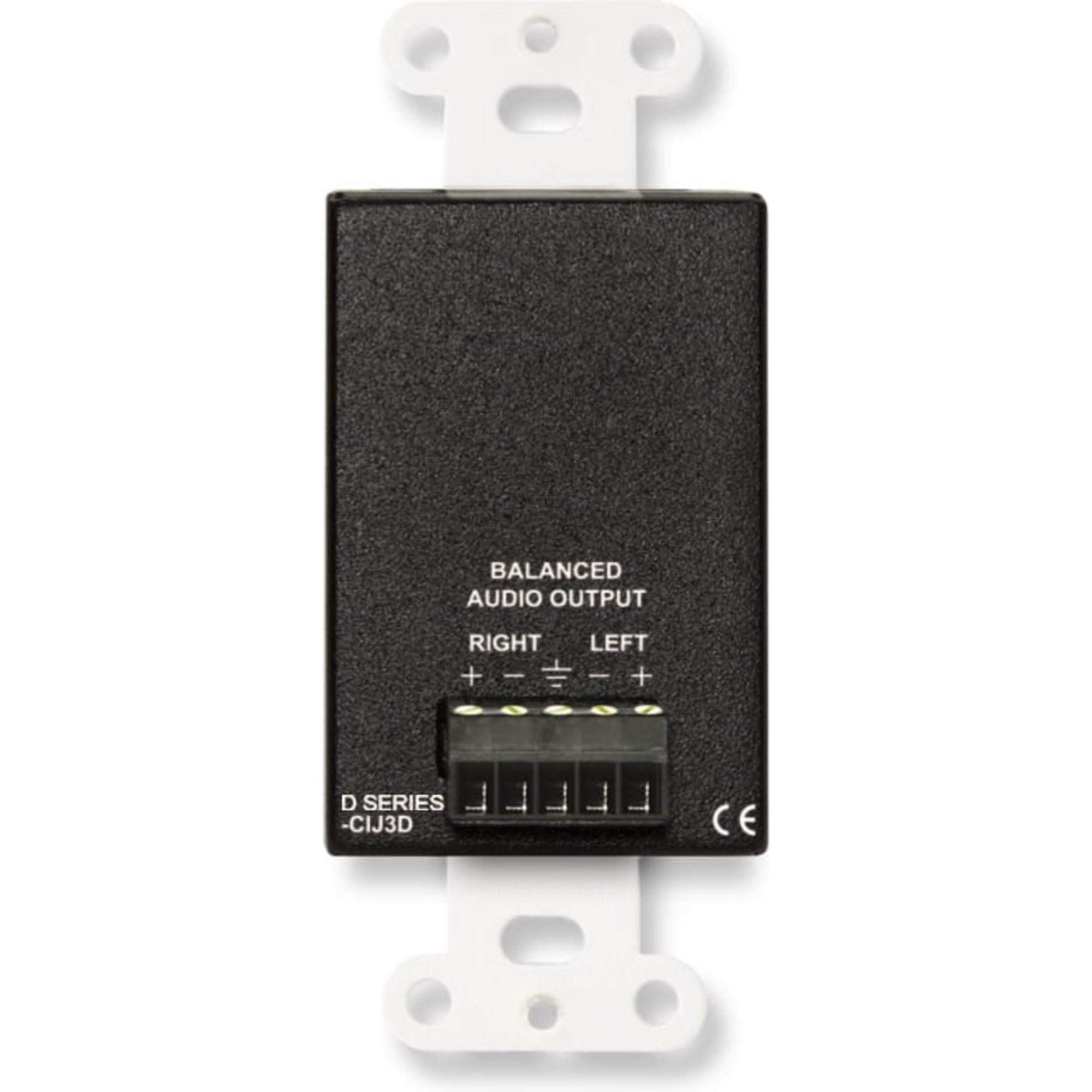

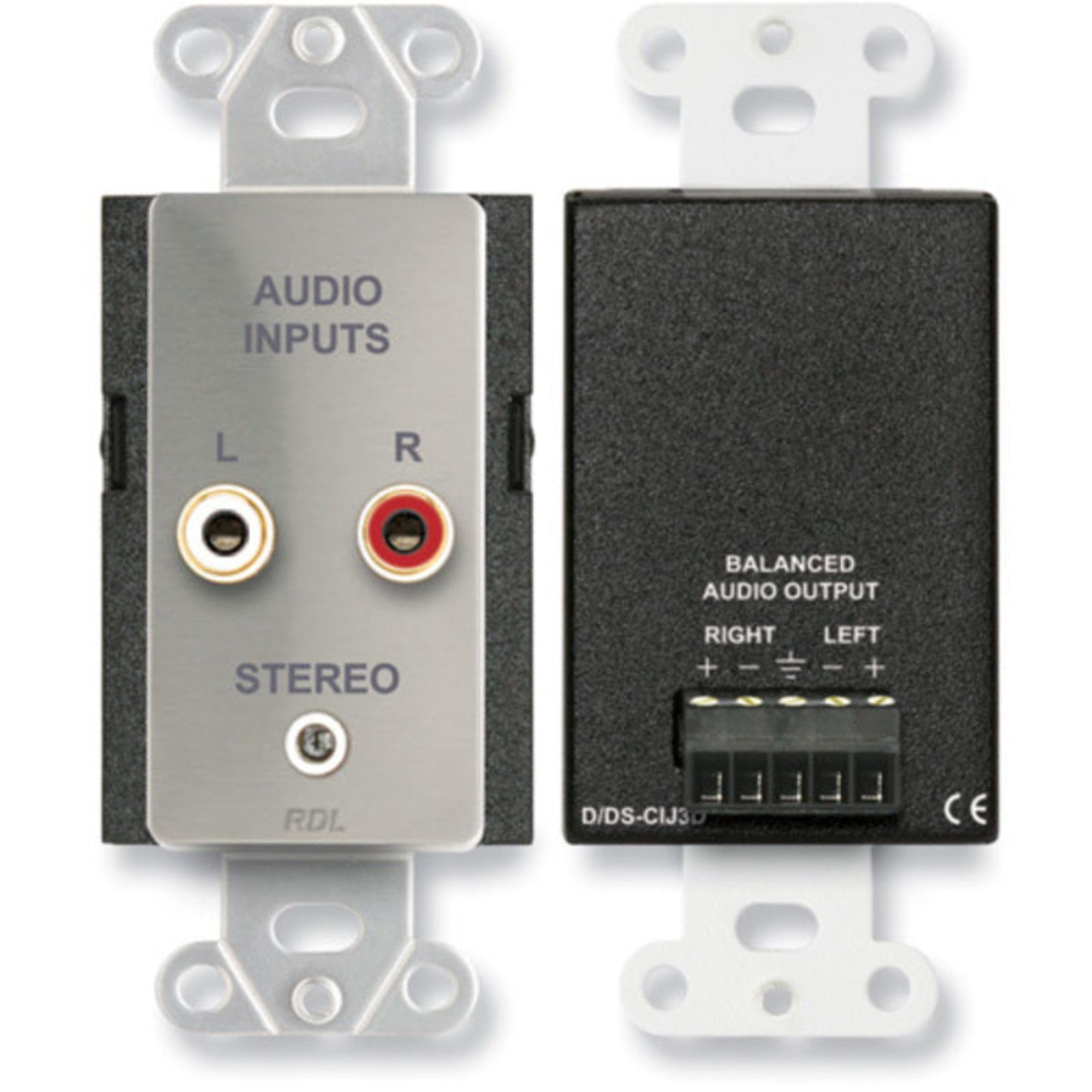

The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.

Features:

• Stereo Inputs to Stereo Outputs
• Stereo Inputs on RCA Jacks and Stereo Mini-Jack
• Unbalanced to Balanced Conversion Without Gain
• Transformer Isolation for Unbalanced Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Line-Level Output to Feed 10 kΩ Equipment Input
• Output Connections on Detachable Terminal Block
• Available in RDL White/Gray (D-CIJ3D)
• Available in Stainless Steel (DS-CIJ3D)

Specifications:

• Input connectors (3):Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
• Frequency response (line level):50 Hz to 20 kHz (+/-1 dB); 30 Hz to 20 kHz (+/-2 dB)
• THD:<0.2% (1 kHz)
• Output connector:Detachable terminal block
• Dimensions:Height: 4.13 in. 10.49 cm
• Width: 1.7 in. 4.32 cm
• Depth: 2.15 in. 5.47 cm
• Mounting Box Minimum Dimensions:Width: 1.80 in. 4.57 cm
• Depth: 1.75 in. 4.45 cm
• Crosstalk:<-80 dB (1 kHz); <-60 dB (10 Hz to 20 kHz)
• Ambient Operating Environment:0 C to 55 C
