RDL D-RT2 Remote Control Selector on Decora Plate (White)

Remote Control Selector on Decora Wall Plate - White/Gray Finish

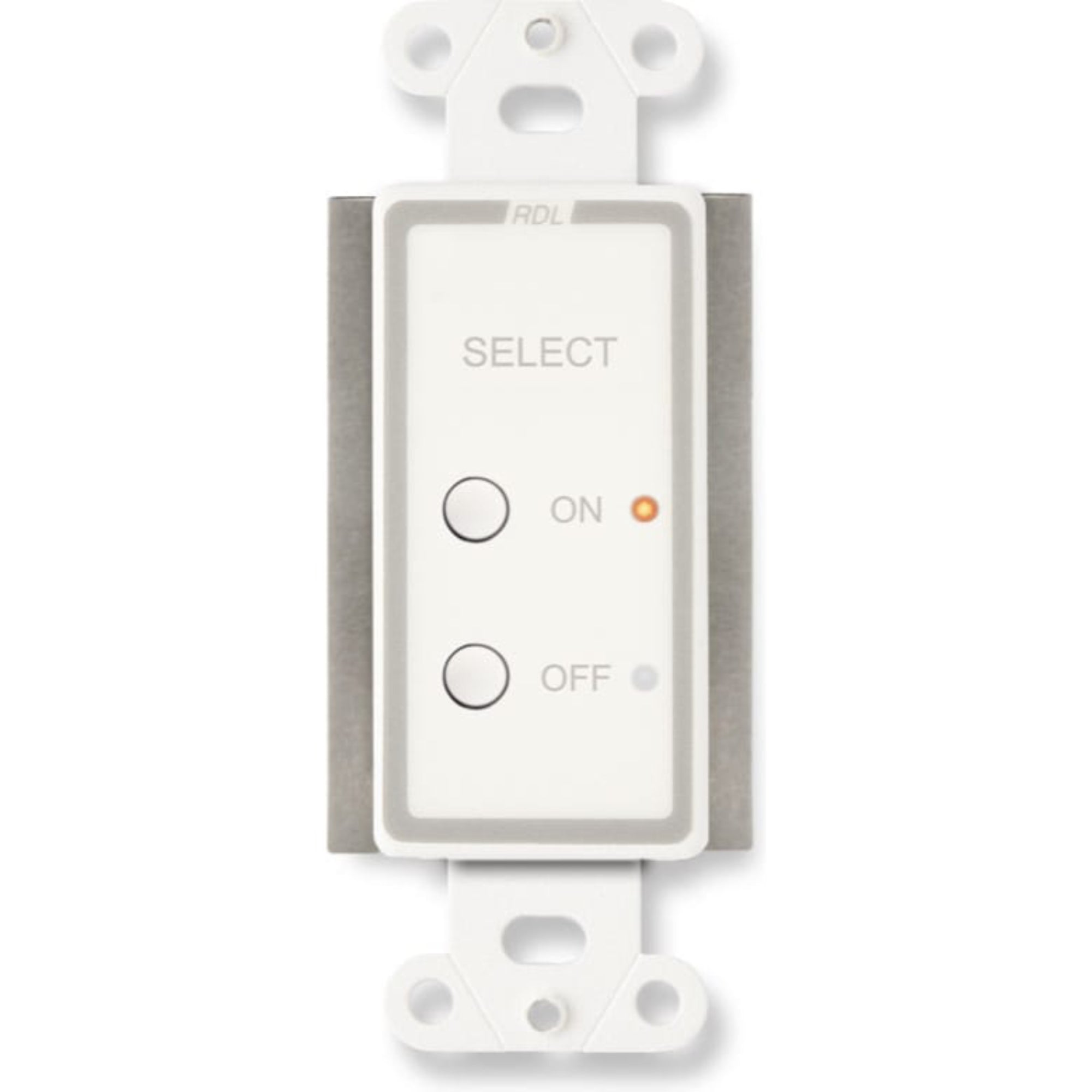

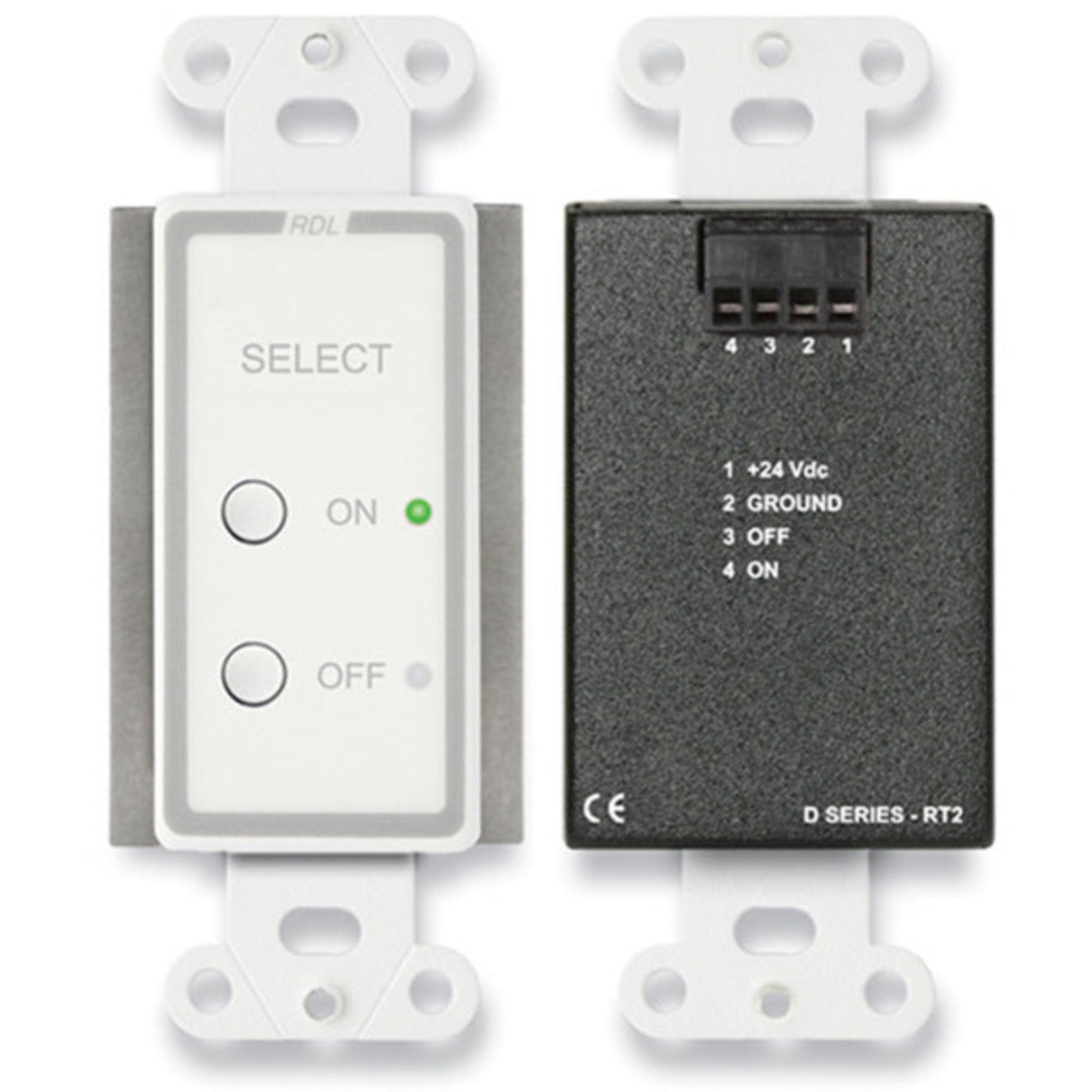

The front panel of the DB-RT2 features two pushbuttons with two associated LEDs. Upon initial power-up, the OFF mode is selected. Touching the other button de-selects OFF and immediately selects ON. An LED adjacent to each button shows which mode is selected.

In a typical installation, the DB-RT2 may be used to turn an audio or video source on or off. To turn on an audio source, the DB-RT2 may be connected to an RDL ST-SSR1 or ST-RX2 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. In each of the above examples, only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the DB-RT2 may be mounted adjacent to an RDL remote volume control, such as the RLC2, RLC3 or RLC10K.

In installations where ULTRASTYLE wall controls are preferred, use the RUC-4 Universal Remote.

Features:

• Remote Selection of ON or OFF
• Single-Button Selection for Each Function
• Open-collector Switching
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls

Specifications:

• Selectors (2): Momentary pushbuttons, (1 for ON,
• 1 for OFF)
• Indicators (2): Green/Red LEDs, (indicates status ON or OFF respectively)

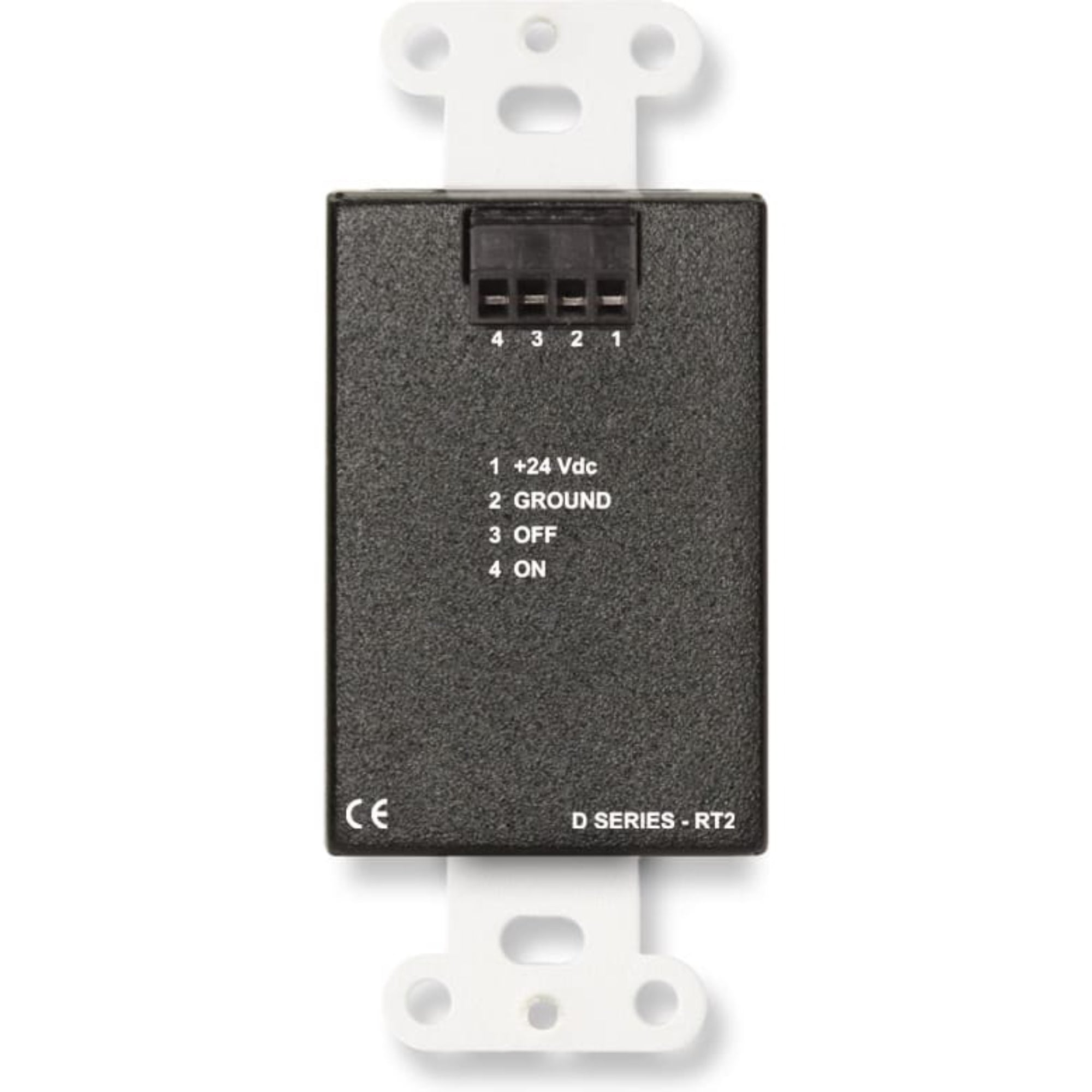

• Connections: Detachable terminal block; Power input; Separate open-collector outputs for ON and OFF (25mA max.)
• Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
• Ambient Operating Environment: 0 C to 55 C
