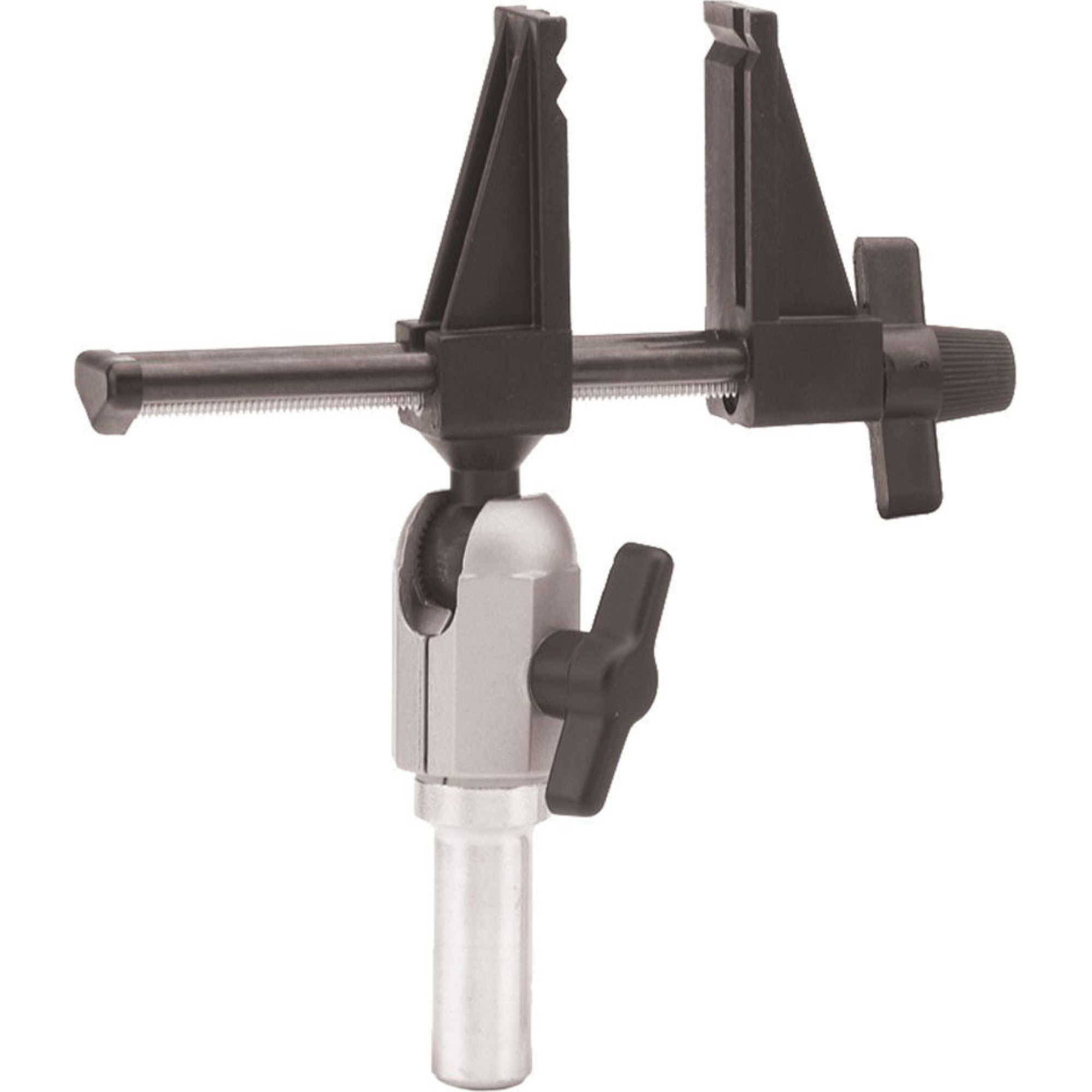

PanaVise 203 PV Jr. Head

Pv Jr. Vise Head with 5/8" Shaft for 300 Series Bases

The PanaVise 203 PV Jr. vise head is a versatile and lightweight vise head designed for arts and crafts, jewelry and model making, electronics, and other small projects. The 203 PV Jr. vise head is compatible with all PanaVise 300 series work-holding tool bases, has fine and coarse clamping abilities, grooved jaws for easy holding power, and heat-tolerant construction.

Versatile Head Design Compatible with All 300 Series Bases
The 203 PV Jr. vise head is a work-holding tool accessory designed for versatility. Its 5/8" (15.9 mm) post diameter is compatible with the PanaVise 300 series product line of bases. The 203 PV Jr. vise head has jaws composed of reinforced thermal composite plastic that are 2" (50.8 mm) tall x 1" (25.4 mm) wide, and open to 2-7/8" (73 mm), and are suitable for holding small tubes, rods or small circuit boards. The grooves along the jaws' inner edges are designed for dependable holding power, while the fine/coarse adjusting knob controls provide jaw pressure for delicate work. When combined with a compatible base, the 203 PV Jr. vise head is suitable for small projects such as arts and crafts, jewelry and model making, electronics. Becasue vise uses such as circuit board wiring and jewelry making involve soldering, the vise head assembly of the PanaVise 203 PV Jr. is highly heat resistant, with continuous heat tolerance to 350 degrees F (177 degrees C) and intermittent heat tolerance to 450 degrees F (204 degrees C).

Limited Lifetime Warranty
All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

Features:

• Easy-to-use single knob controls head movement through 3-planes: 210 degree Tilt, 360 Turn & 360 Rotation
• Fine/coarse adjusting knob controls jaw pressure for delicate work
• Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic
• Continuous heat tolerance to 350 F (177 C), intermittent heat up to 450 F (204 C)
• Neoprene Jaw Pads are available for holding delicate items
• Limited Lifetime Warranty!

Specifications:

• Height: 3-3/4" (95.2 mm)
• Weight: 0.4 lb. (0.2 kg)
• Post diameter: 5/8" (15.9 mm)
• Continuous heat tolerance: Up to 350 degrees F (177 degrees C)
• Intermittent heat tolerance: Up to 450 degrees F (204 degrees C)
• Vise opening: up to 2-7/8" (73 mm)
• Jaw width: 1" (25.4 mm)
• Jaw height: 2" (50.8 mm)

Includes:

• PanaVise 203 PV Jr. vise head
• User's manual and warranty information
