Key Features
- Male 1/8" (3.5mm) Stereo Phone Plug
- Tip, Ring, Sleeve (TRS) Connections
- Solder Cups
- 4mm Cable Outlet
- Black Metal Housing
- Silver Contacts

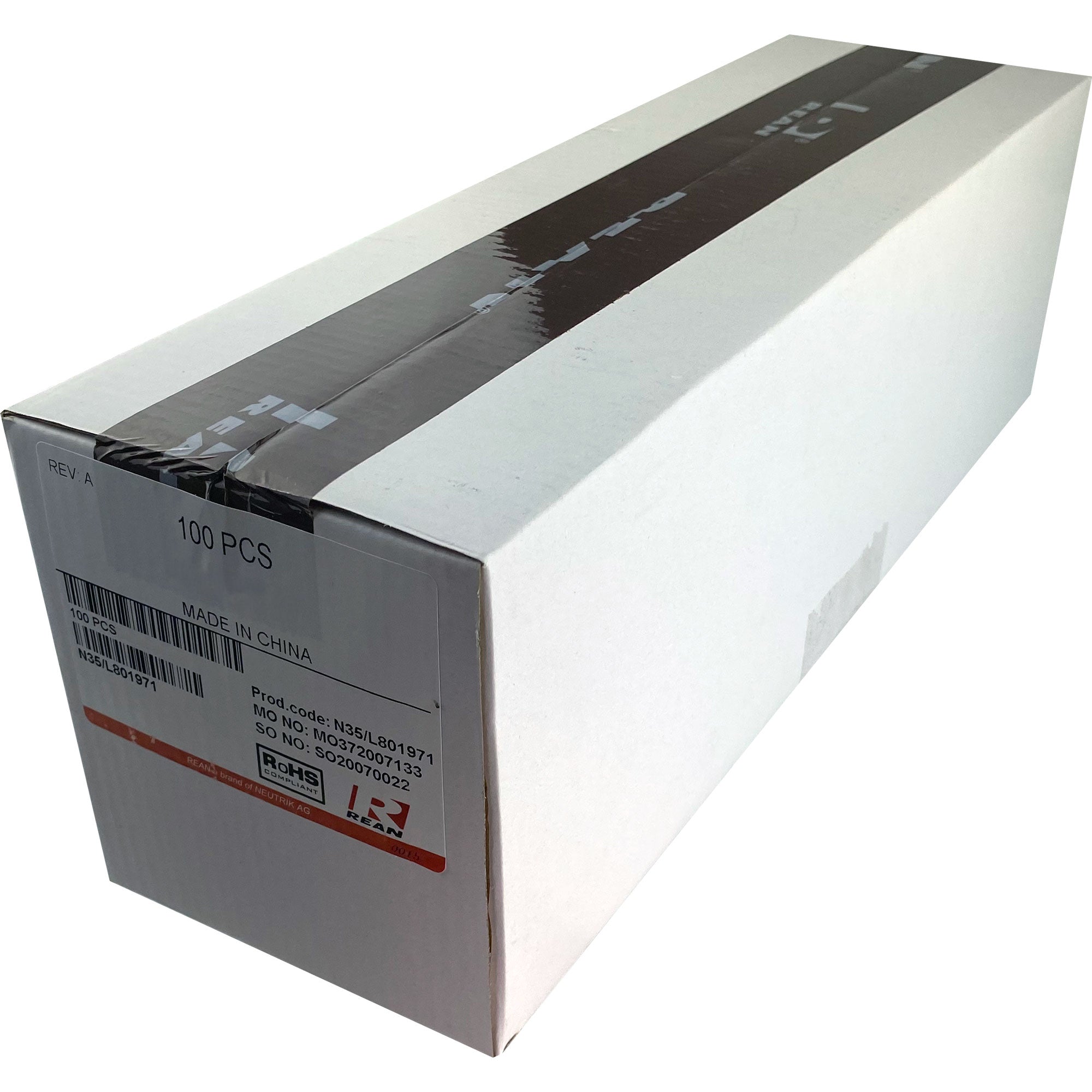

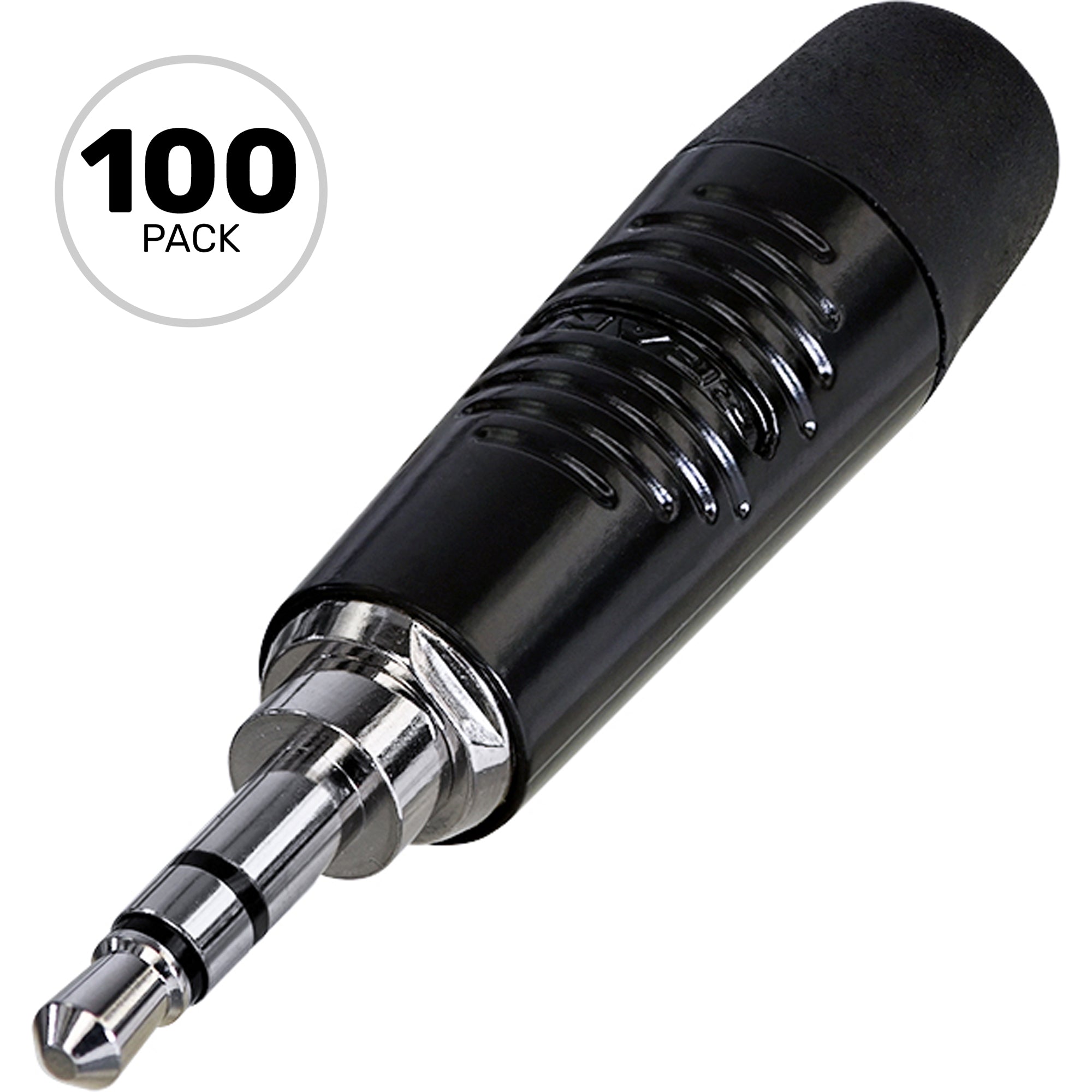

- Full Box of 100 Connectors
Description

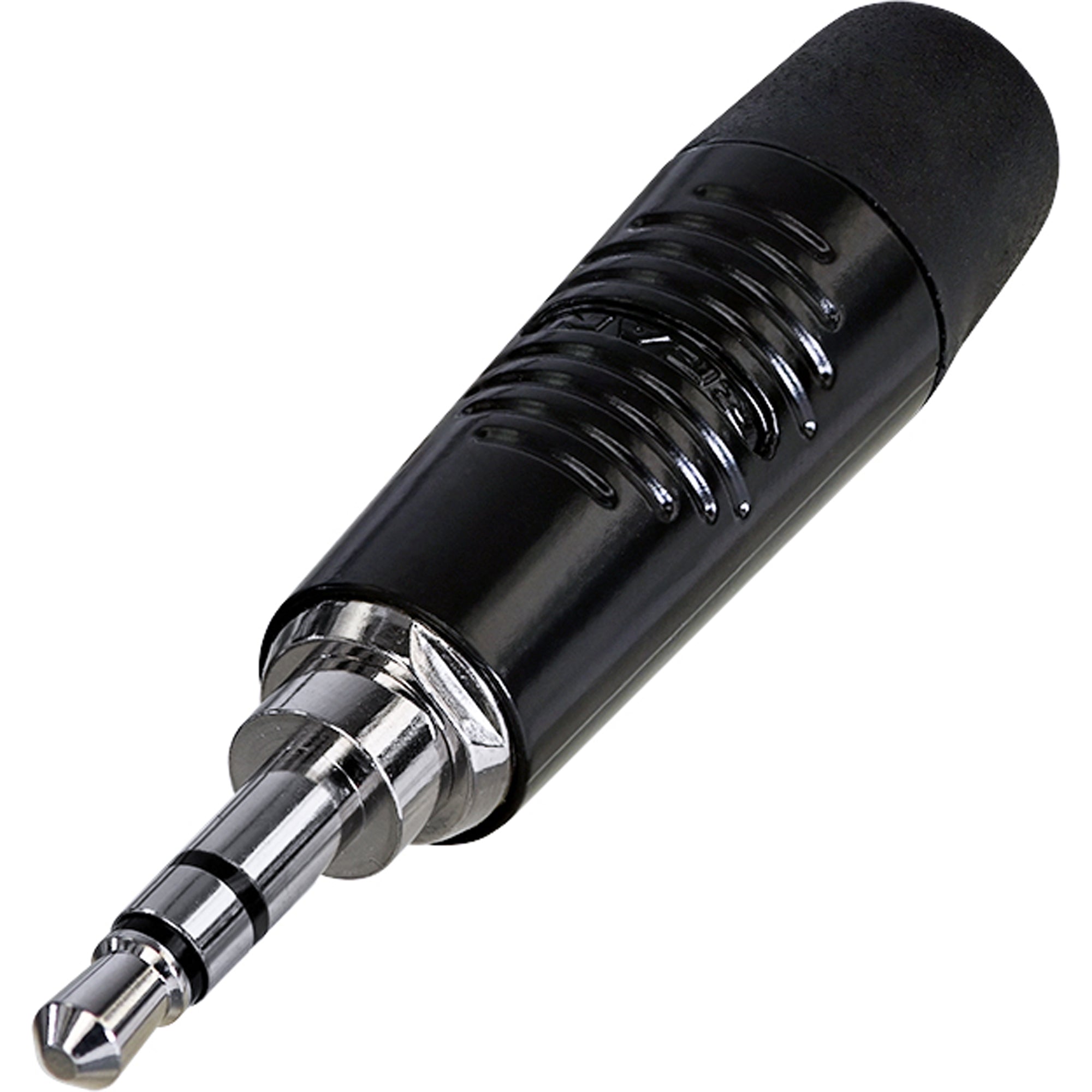

Male 1/8" (3.5mm) TRS Stereo Plug with 4mm Cable Outlet, Cable End, Black Housing, Silver Contacts
3.5mm stereo plug, black shell, nickel plated contacts
Features & Benefits
- Ergonomic space saving design
- Full metal rugged shell, reliable quality
- Easy to assemble and use
- Optional mono 2 pole and stereo 3 pole
- Precision machined one piece contacts - no rivets
Technical Information
- Product
- Title: RTP3C-BAG
- Connection Type: 3.5mm plug
- Gender: Stereo
- Electrical
- Contact resistance: Depends on mating connector
- Dielectric strength: 1 kV dc
- Insulation resistance: > 1.5 GΩ
- Mechanical
- Lifetime: > 1000 mating cycles
- Insertion force: ≤60 N
- Withdrawal force: ≤60 N
- Wiresize: 2-6 mm
- Material
- Contact plating: Nickel
- Shell: Zinc alloy
- Shell plating: Black
- Bushing: PVC
- Sleeve & Inner: Brass
- Tube: Polyamides
- Sleeve Plating: Nickel
- Inner Plating: Nickel
- Cable Clamp: Steel
- Environmental
- Flammability: UL94 HB
- Solderability: IEC68-2-20
- Temperature range: -20 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: RTP3C-BAG
- Model Number: RTP3C-BAG
