Key Features
- Male 1/8" (3.5mm) Stereo Phone Plug
- Tip, Ring, Sleeve (TRS) Connections
- Solder Cups
- 4mm Cable Outlet
- Nickel Metal Housing
- Silver Contacts

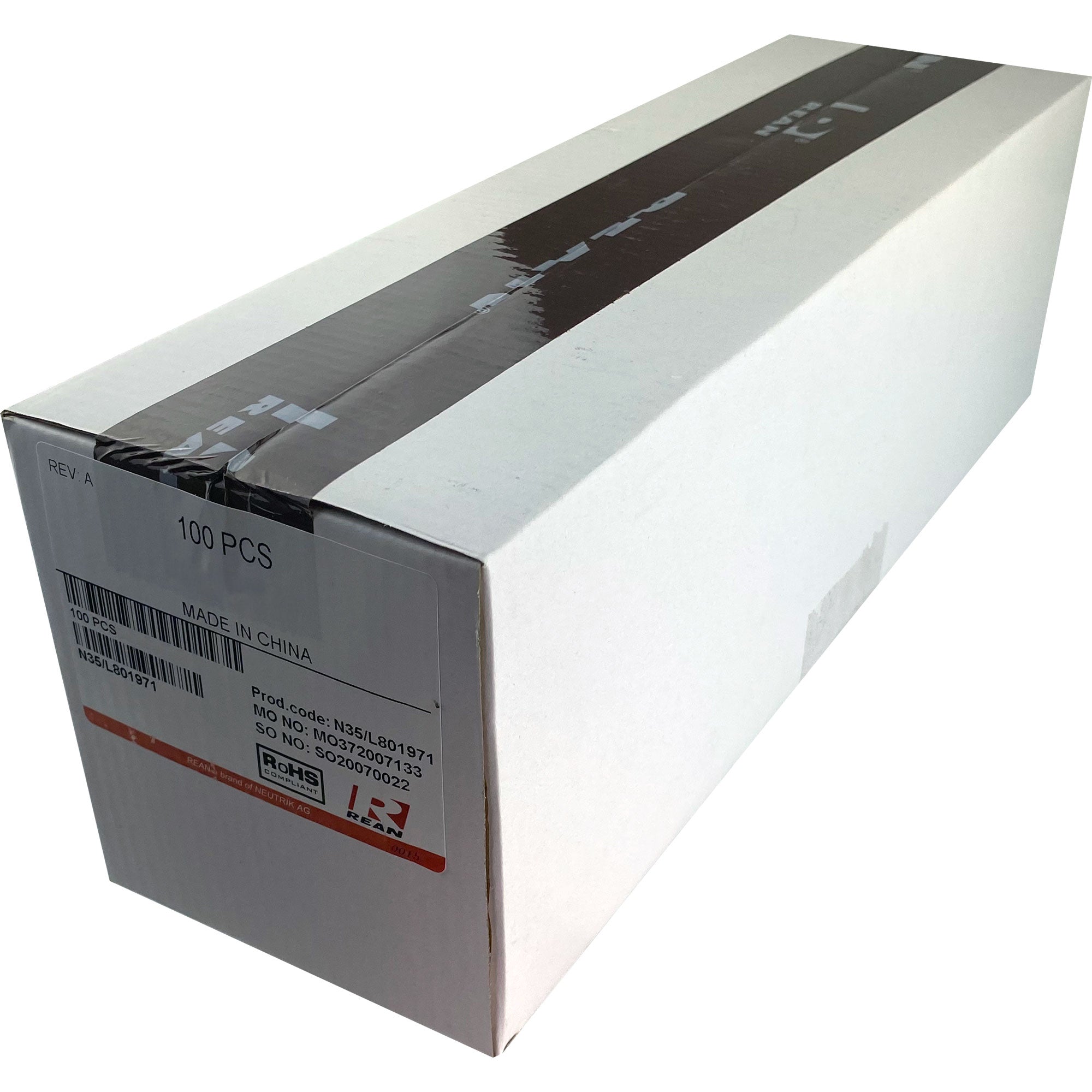

- Full Box of 100 Connectors
Description

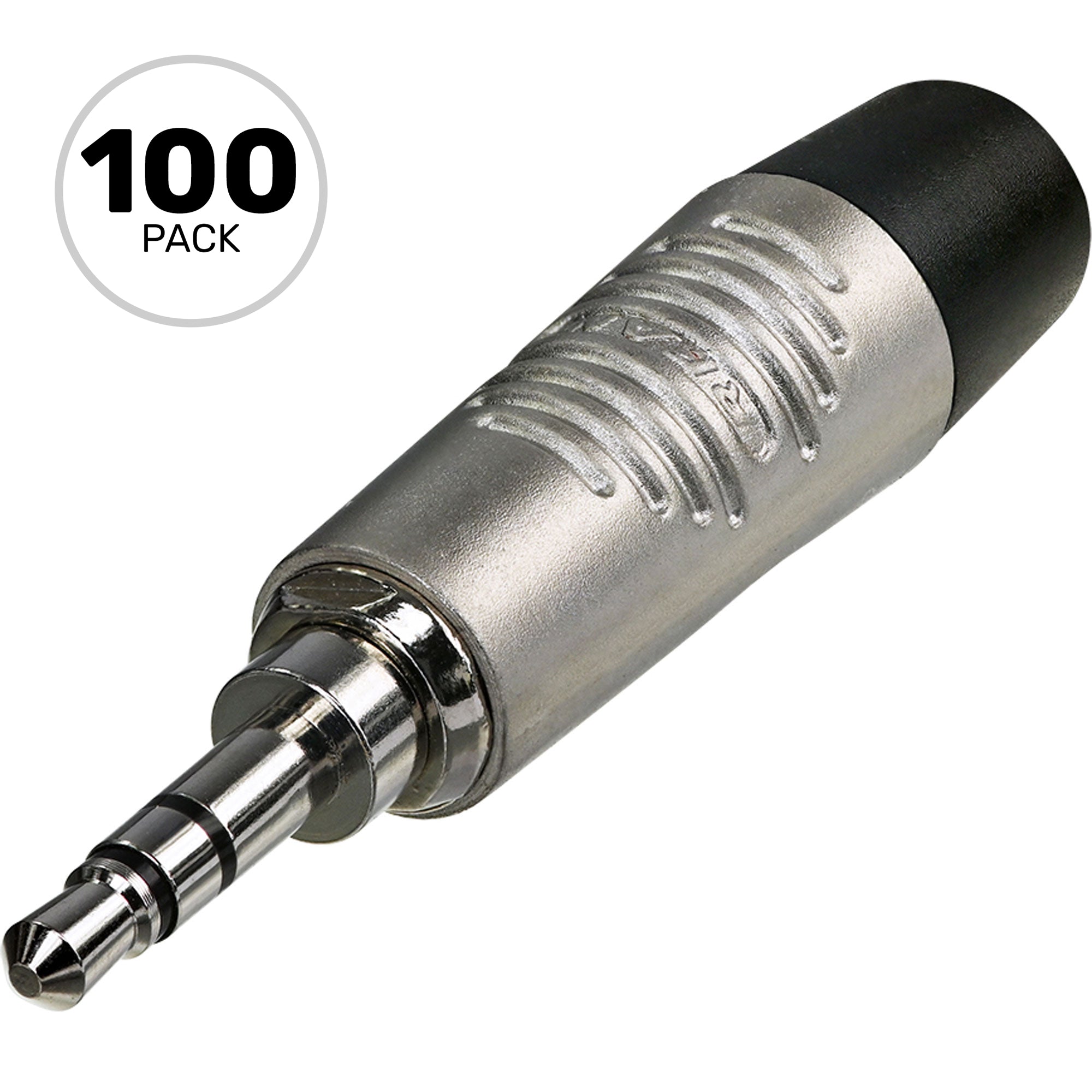

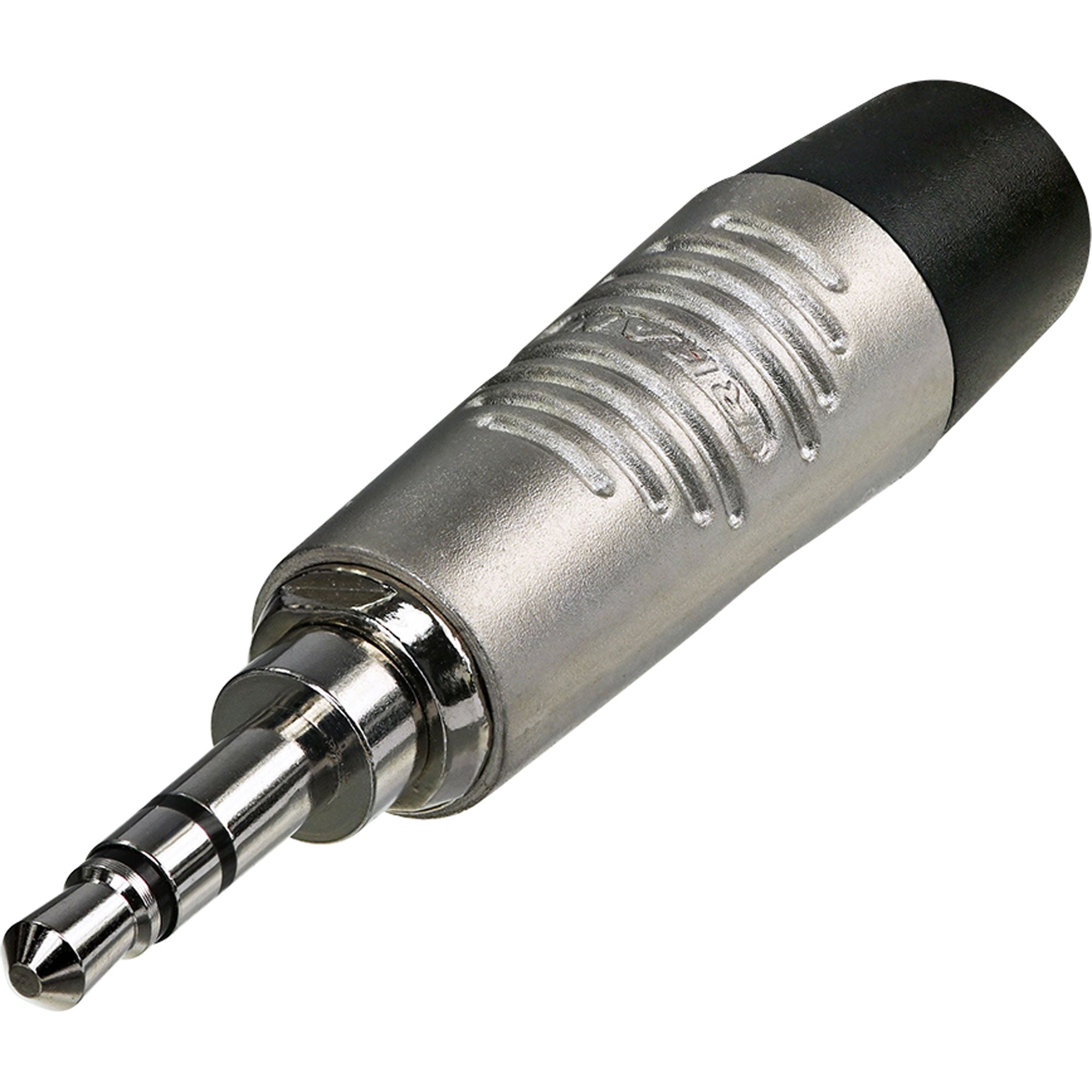

Male 1/8" (3.5mm) TRS Stereo Plug with 4mm Cable Outlet, Cable End, Nickel Housing, Silver Contacts - Full Box of 100 Connectors
3.5mm stereo plug, nickel shell, nickel plated contacts
Features & Benefits
- Ergonomic space saving design
- Full metal rugged shell, reliable quality
- Easy to assemble and use
- Optional mono 2 pole and stereo 3 pole
- Precision machined one piece contacts - no rivets
Technical Information
- Product:
- Title: RTP3C
- Connection Type: Plug
- Electrical:
- Contact Resistance: ≤10 mΩ
- Insulation Resistance: >200 MΩ(Initial)
- Dielectric Strength: 500V dc 50HZ
- Mechanical:
- Insertion and Withdrawal Force: ≤60 N
- Lifetime: >1,000 Mating Cycles
- Cable O.D.: 2 - 4 mm
- Wiresize: 0.24 mm²
- Wiresize: 24 AWG
- Material:
- Sleeve Assembly: Brass
- Sleeve: Brass
- Housing: Zinc
- Sleeve Assembly: Nickel Plating
- Sleeve: Nickel Plating
- Housing: Nickel Plating
Details
- Manufacturer: Neutrik
- MPN: RTP3C
- Model Number: RTP3C
